Specifications
Equipped With
GENERAL SPECIFICATIONS SUBJECT TO VERIFICATION:

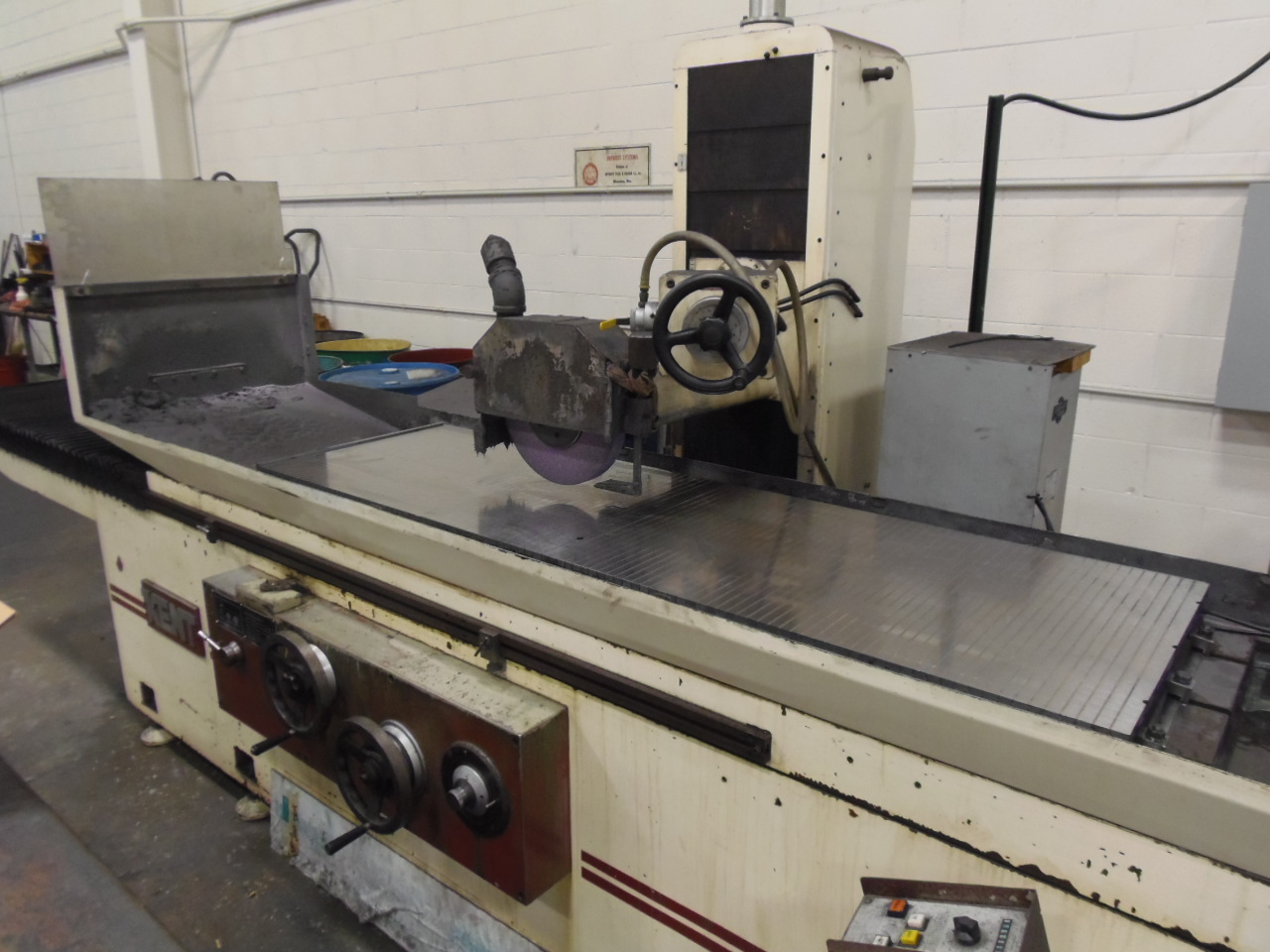

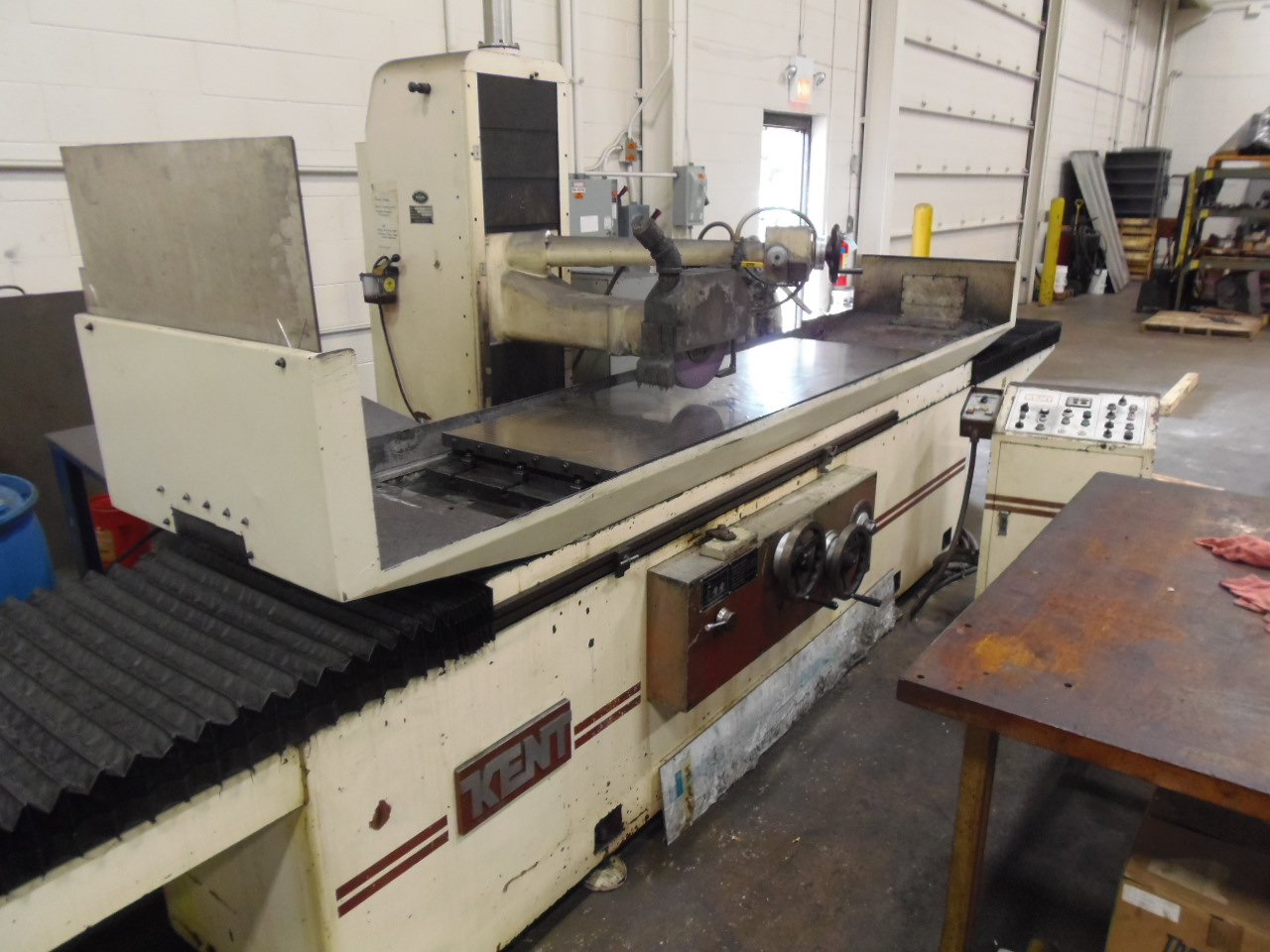

MAKE................................... KENT

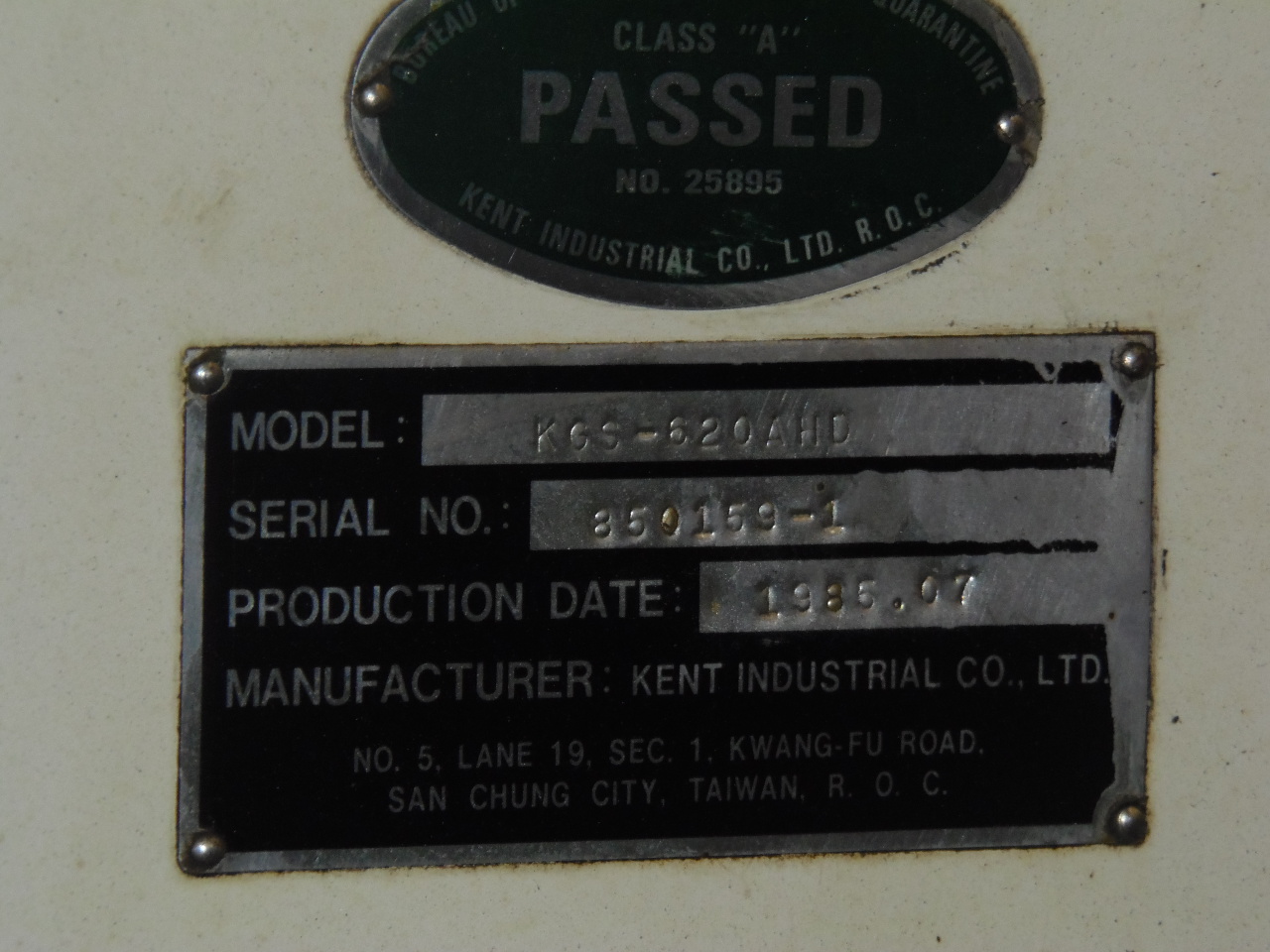

MODEL.................................. KGS-620 AHD
YEAR................................... 1985
SERIAL NUMBER ......................... 850159-1

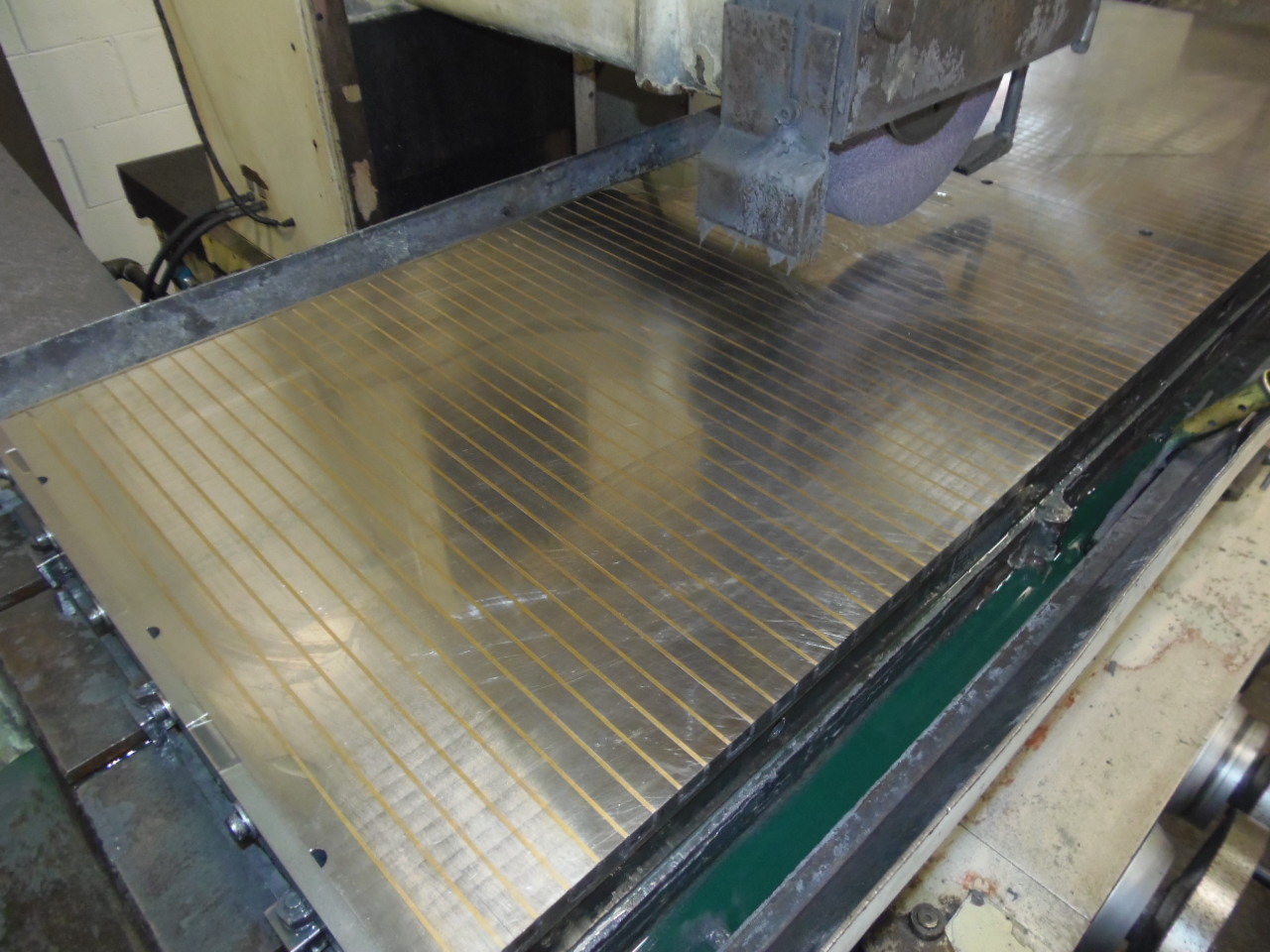

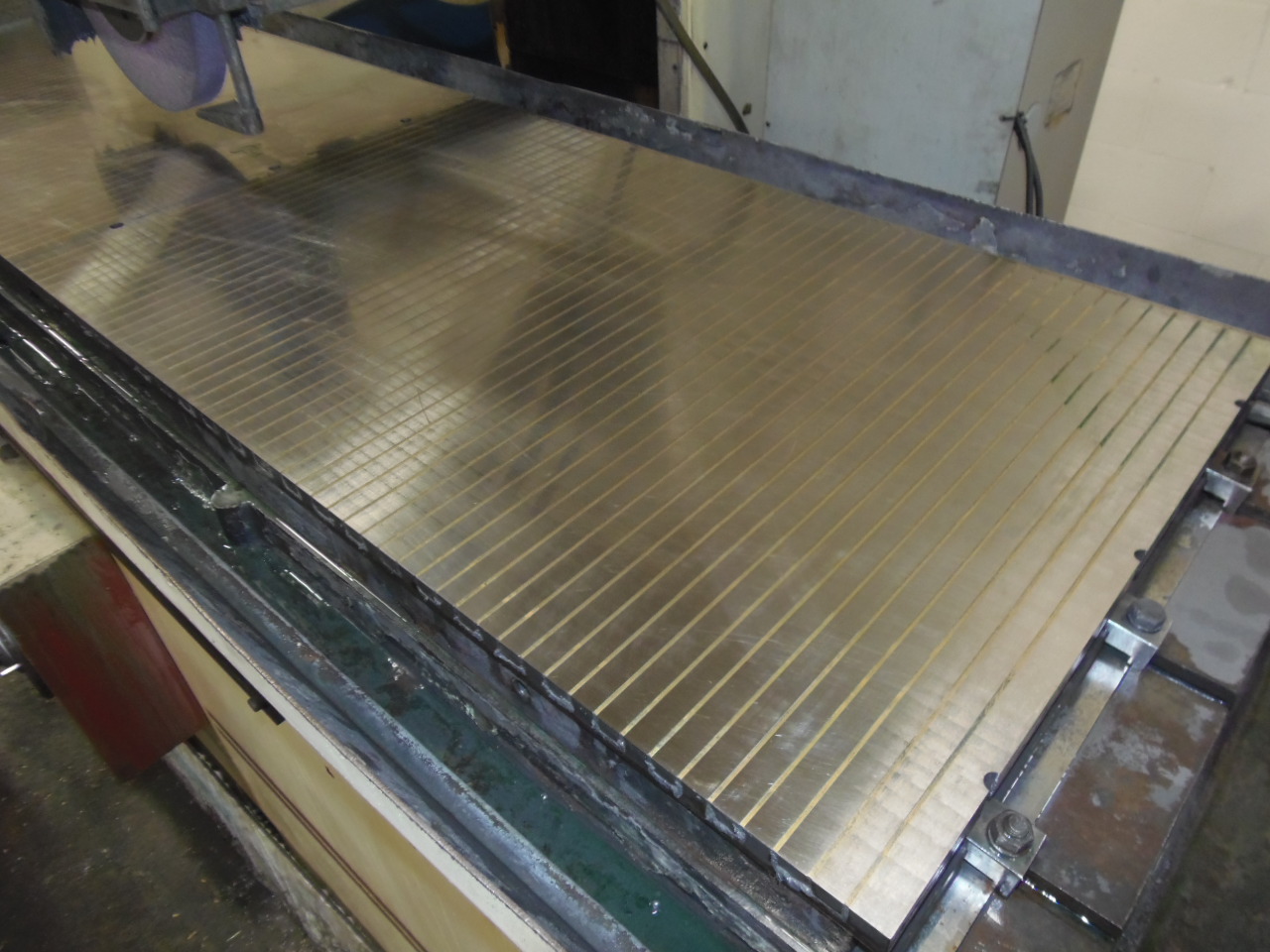

WORKING SURFACE OF TABLE............... 80.25" X 23.5"
....................................... (2040 MM X 600 MM)
MAX TABLE TRAVEL....................... 87.37" X 26.37"
....................................... (2220 MM X 670 MM)
MAX SURFACE GROUND..................... 81.12" X 24"
....................................... (2060 MM X 610 MM)
MAX DISTANCE CENTER OF SPINDLE TO TABLE 23.62" (600 MM)
TABLE SPEED............................ 4-23M/MIN (13-73 FPM)
AUTOMATIC CROSS FEED IN TABLE,
PER STROKE VARIABLE.................... 0.02" X 0.5" (.5-12MM)
POWER CROSS FEED OF COLUMN (60HZ)...... 60"/MIN (1500MM/MIN)
POWER HEAD ELEVATION (60HZ)............ 6"MIN (150MM/MIN)

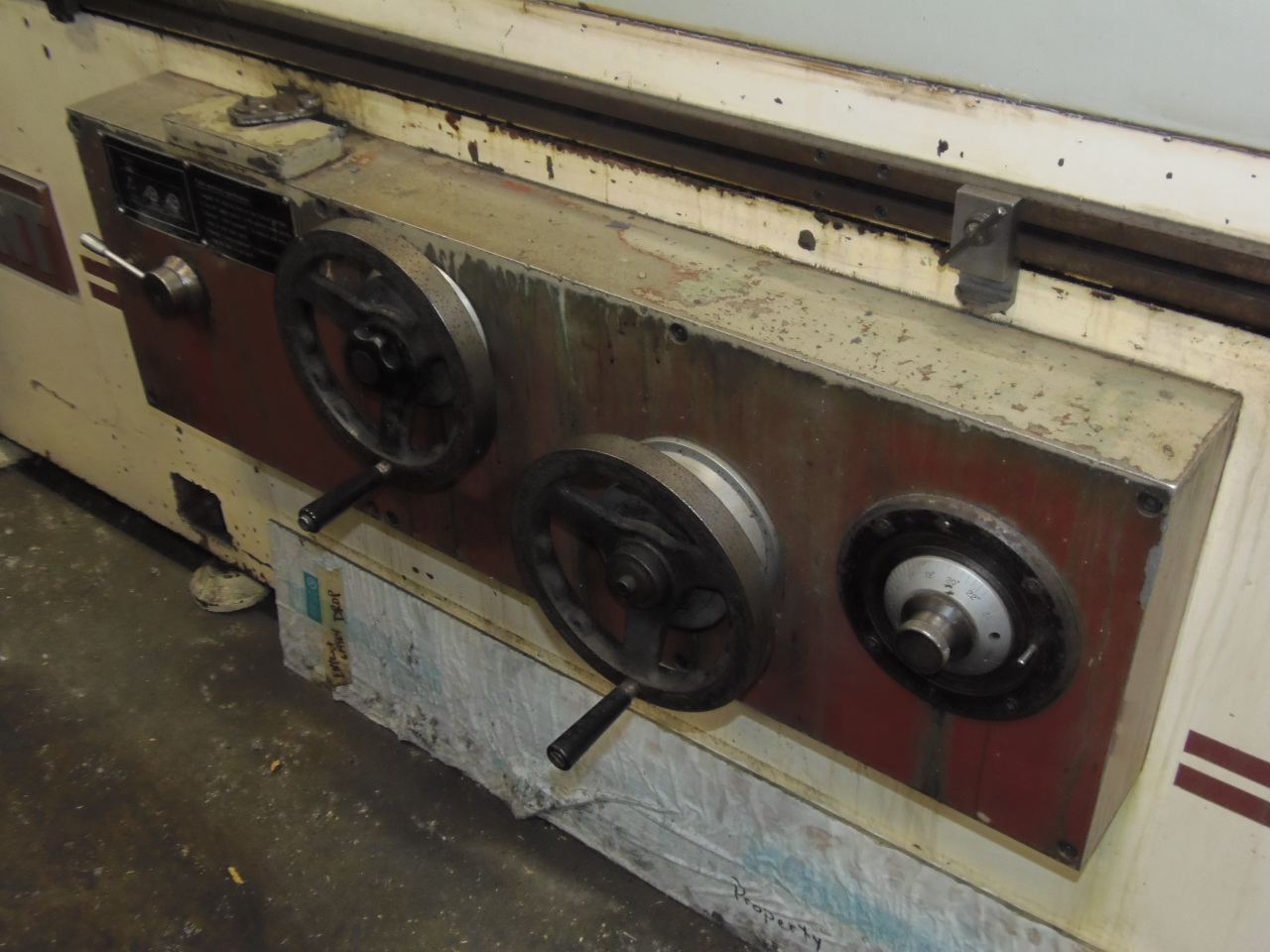

CROSS FEED ON HANDWHEEL......... 1 REVOLUTION: 0.2" (5MM)
................................ 1 GRADUATION: 0.001" (.02MM)
VERTICAL DOWN FEED ON HANDWHEEL. 1 REVOLUTION: 0.02" (.5MM)
................................ 1 GRADUATION: 0.0001" (.002MM)
AUTO DOWNFEED INCREMENT,
VARIABLE 6 STEPS................ .0002"-.0016" (.005-.04MM)
WHEEL SPEED (60HZ).............. 1740 RPM

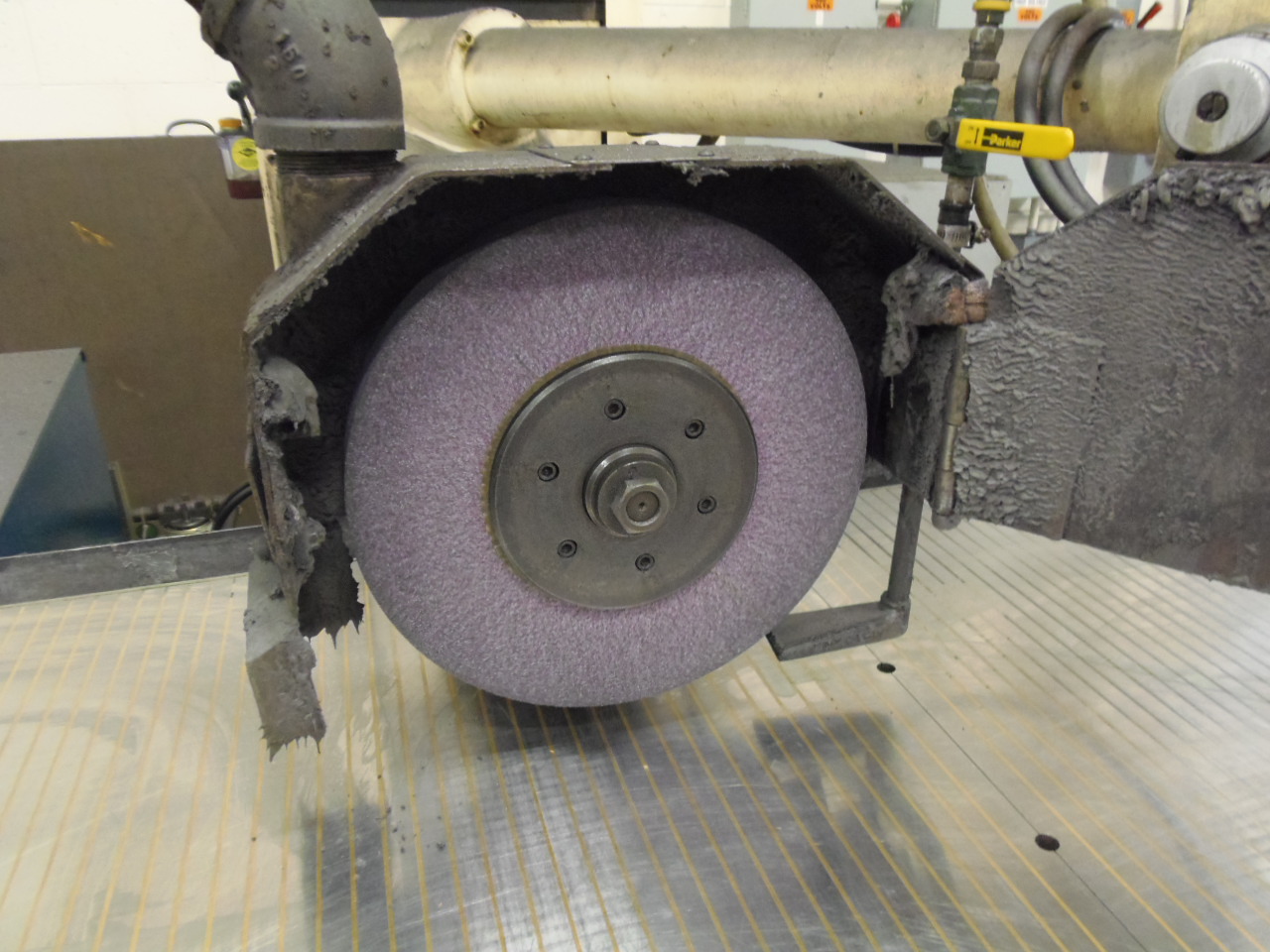

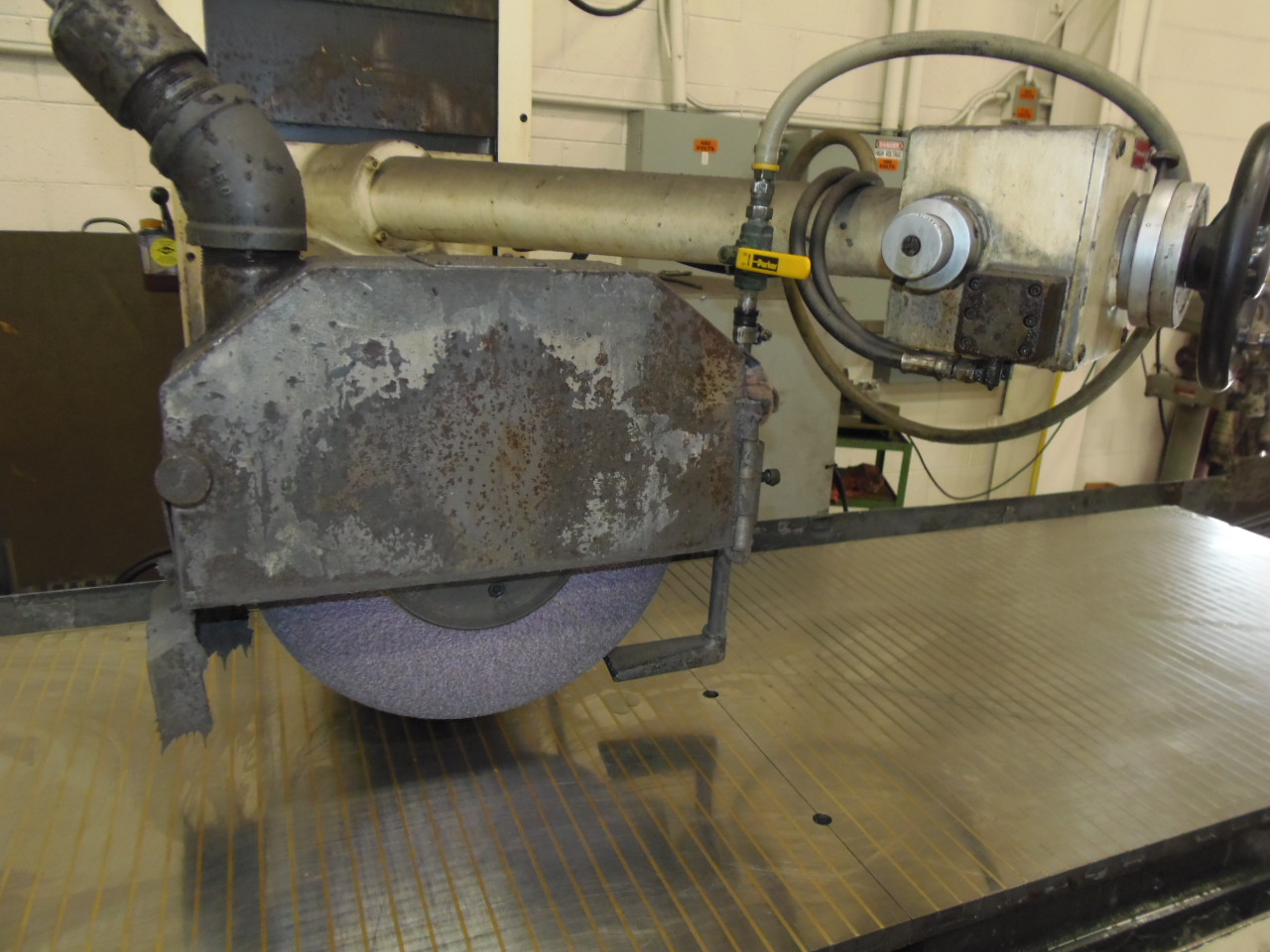

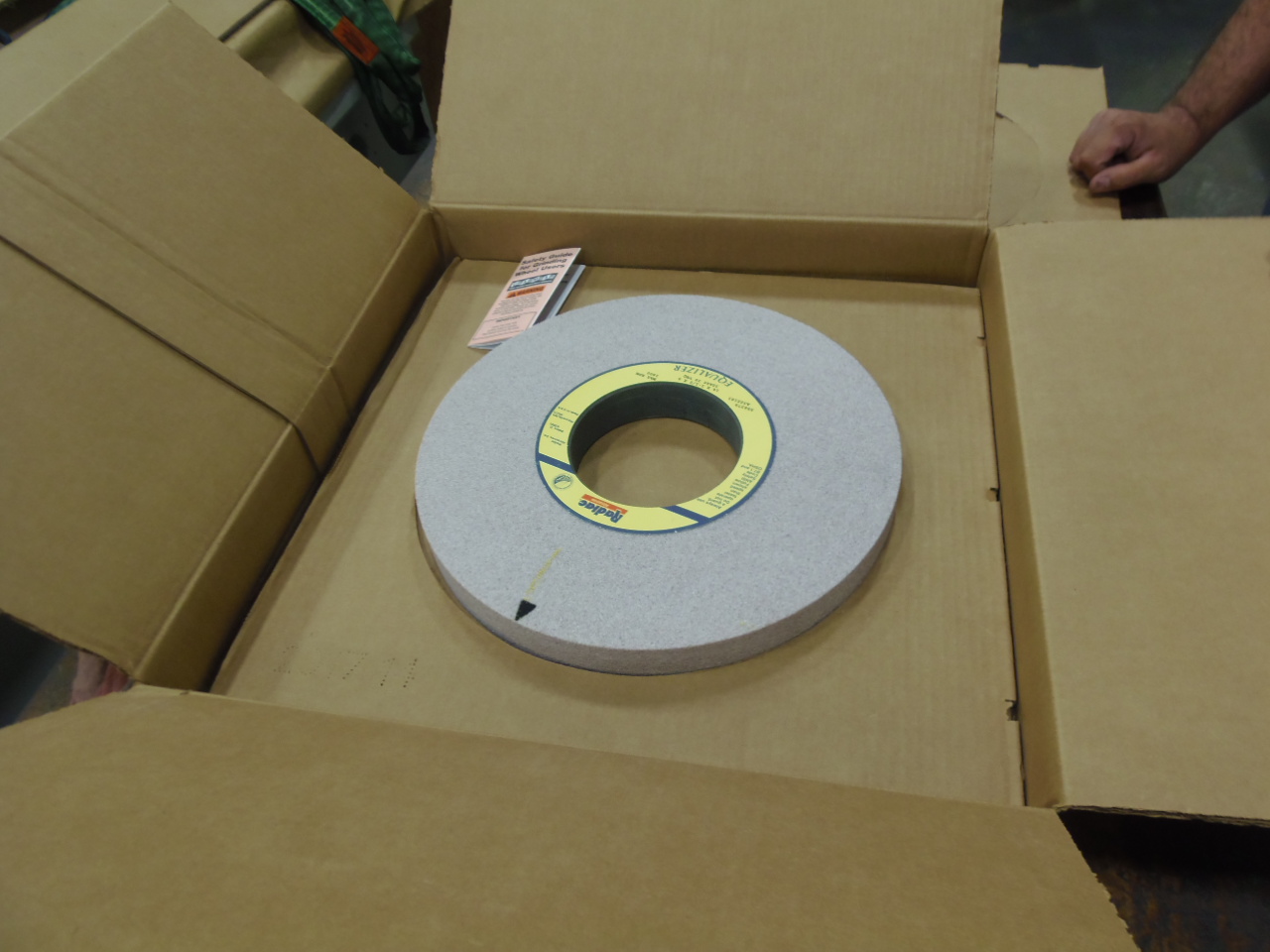

WHEEL DIMENSION (OD X T X ID)... 14"X2"X5"(355 X 50.8 X 127MM)
WHEEL SPINDLE MOTOR (V-3 GRADE). 10 HP
HYDRAULIC PUMP MOTOR............ 5 HP
AUTOMATIC CROSS FEED MOTOR...... .25 HP
POWER ELEVATION MOTOR........... .25 HP

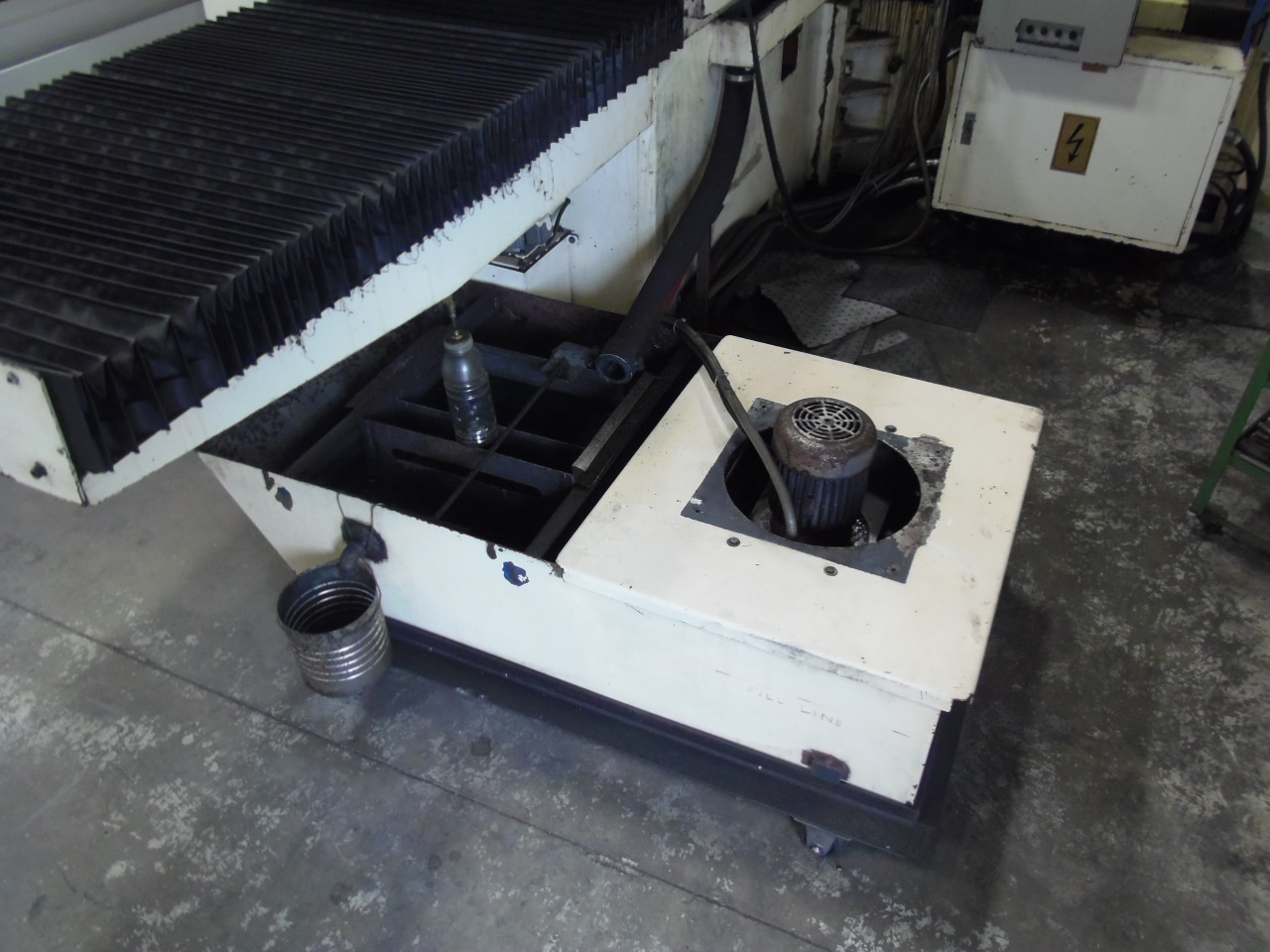

COOLANT PUMP.................... .125 HP
MACHINE NET WEIGHT.............. 13,750 LBS (6250 KG)
GROSS WEIGHT.................... 15,510 LBS (7050 KG)
MACHINE DIMENSION............... 245" X 106" X 87"
................................ (6200 X 2314 X 2191 MM)
PACKING DIMENSION............... 188" X 89" X 100"
................................ (4770 X 2250 X 2515 MM)
Note: Special Pricing prior to removal
