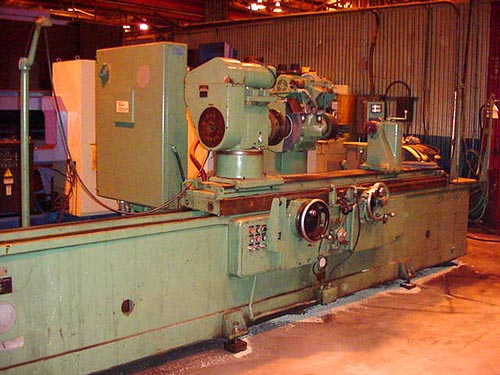

24" x 72", WARNER & SWASEY, No. #U-4, 1976, SWING DOWN INTERNAL, 3" WHEEL

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1976
SWING 24"
CENTERS 72"
MAXIMUM WHEEL WIDTH (RECESSED) 3"
WHEEL HEAD MOTOR 7 1/2 HP
WHEEL SPEED 1750 RPM
WORKHEAD (VARI) 1 HP DC

EQUIPPED WITH:
INTERNAL SPINDLE (WITH SPINDLE)
MOTOR 2 HP 1750 RPM
230/460
COOLANT AND PIPING
HAS 6" FACTORY RISER
CHUCK BACK PLATE ON WORKHEAD
DEAD CENTER IN TAILSTOCK
SWIVALIGN INDICATOR ATTACHMENT
7270 HOURS ON METER
WIRED 460 VOLT
WORK SPACE REQUIRED 203" L-R X 80" F-B
