GENERAL SPECIFICATIONS:

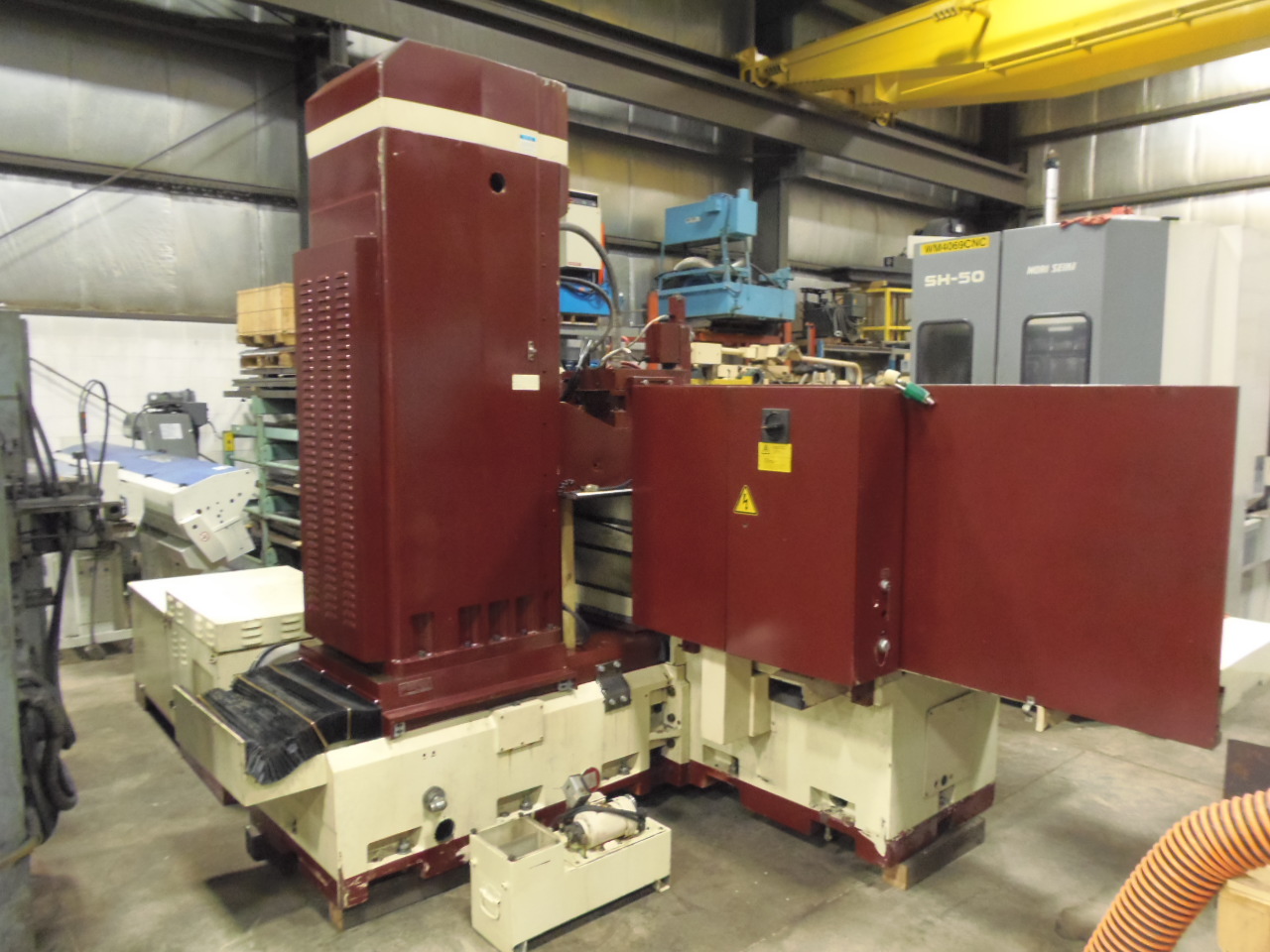

MANUFACTURER....................... CHEVALIER
MODEL.............................. FSG-2460TX
SERIAL NUMBER...................... 54835001
NEW................................ 1994
CAPACITY........................... 24" X 60"

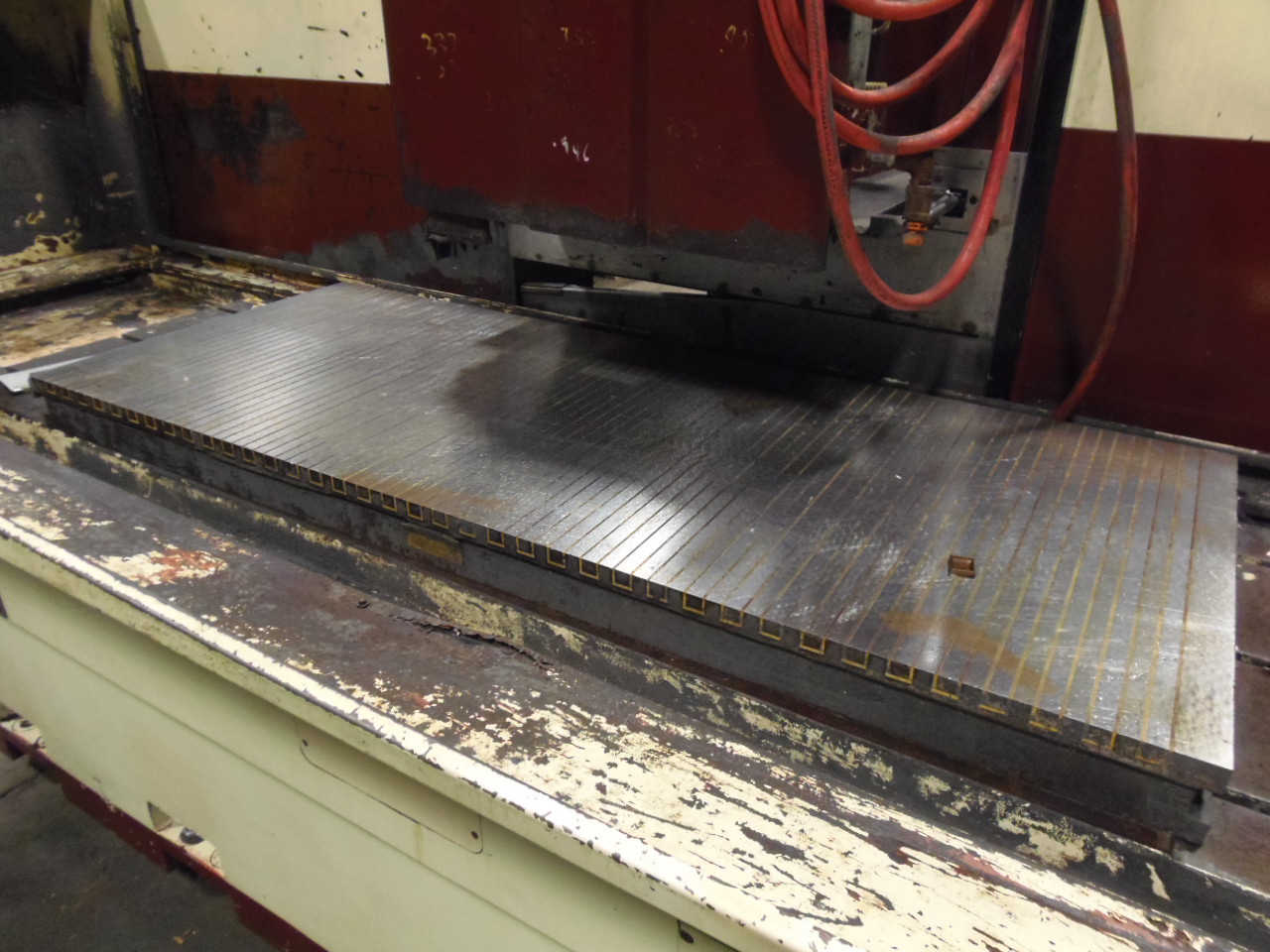

CHUCK SIZE MAGNETIC................ 24" X 59.5"
MAX. DISTANCE TABLE TO SPINDLE C/L. 33.46"
TABLE SPEED........................ 16-82 FPM
RAPID TRAVERSE (INF. VARIABLE)
CROSS........................... 0-16 FPM
VERTICAL........................ 0-6.5 FPM
MICRO FEED BOTH AXIS............... .0001"
GRINDING WHEEL
SPEED........................... 1400 RPM
HORSEPOWER...................... 25 HP
WHEEL SIZE...................... 16" DIA X 3" WIDTH X 5" BORE
MACHINE WEIGHT.................. 18,000 LBS
FLOOR DIMENSIONS................ 255" X 134" X 108"
EQUIPPED WITH:
INCREMENTAL DOWN
PENDENT CONTROL WITH AUTO OPERATION, SPARK OUT TIMER, MAGNETIC ADJUSTMENT, MANUAL PULSE GENERATOR, DIGITAL READOUT, PLUNGE CYCLE, OVER WHEEL DRESSER
COOLANT SYSTEM
COMBINATION OPERATOR, ELECTRICAL, AND PARTS MANUAL
