Specifications
Equipped With
MANUFACTURER......................... AMADA

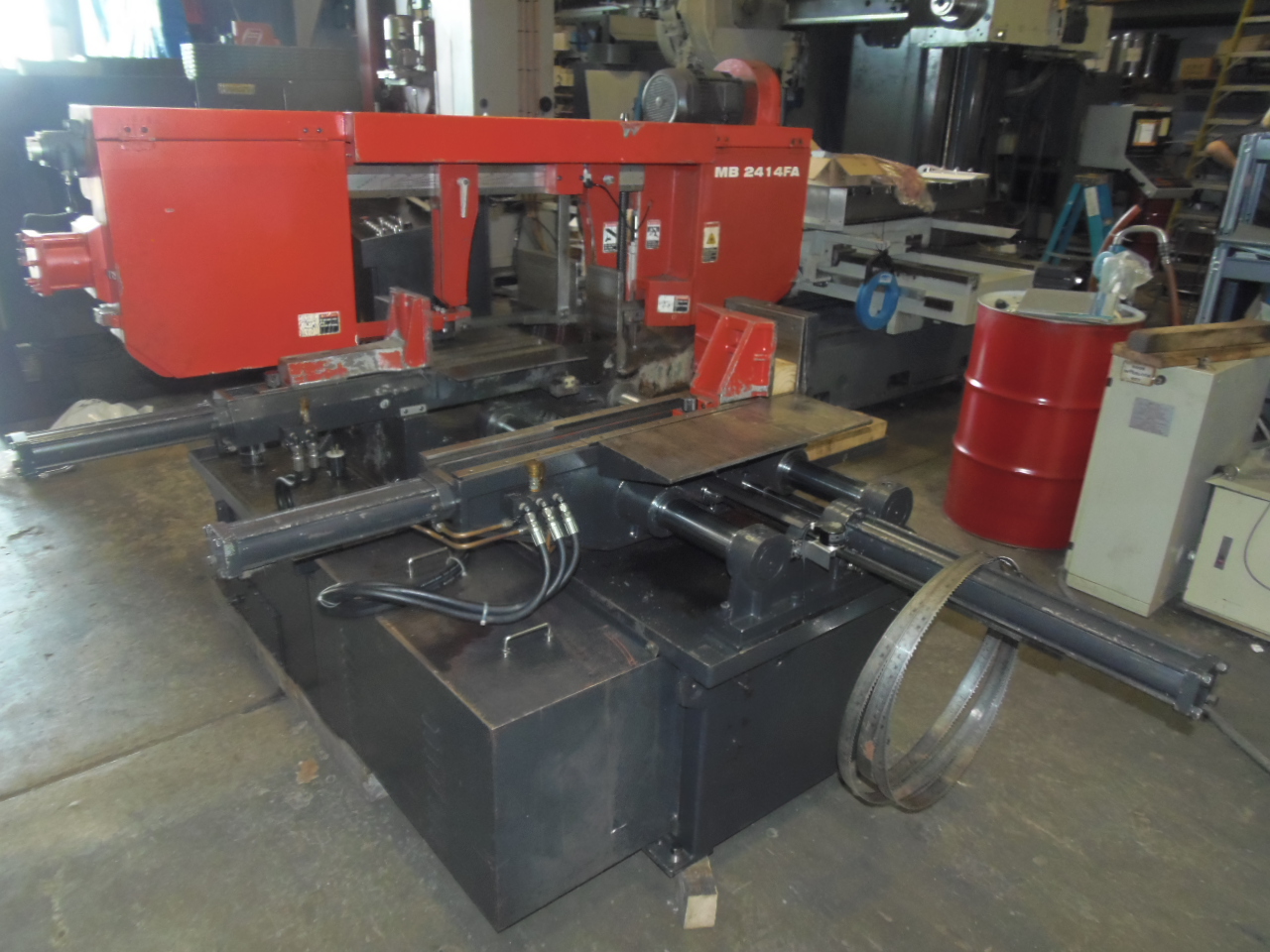

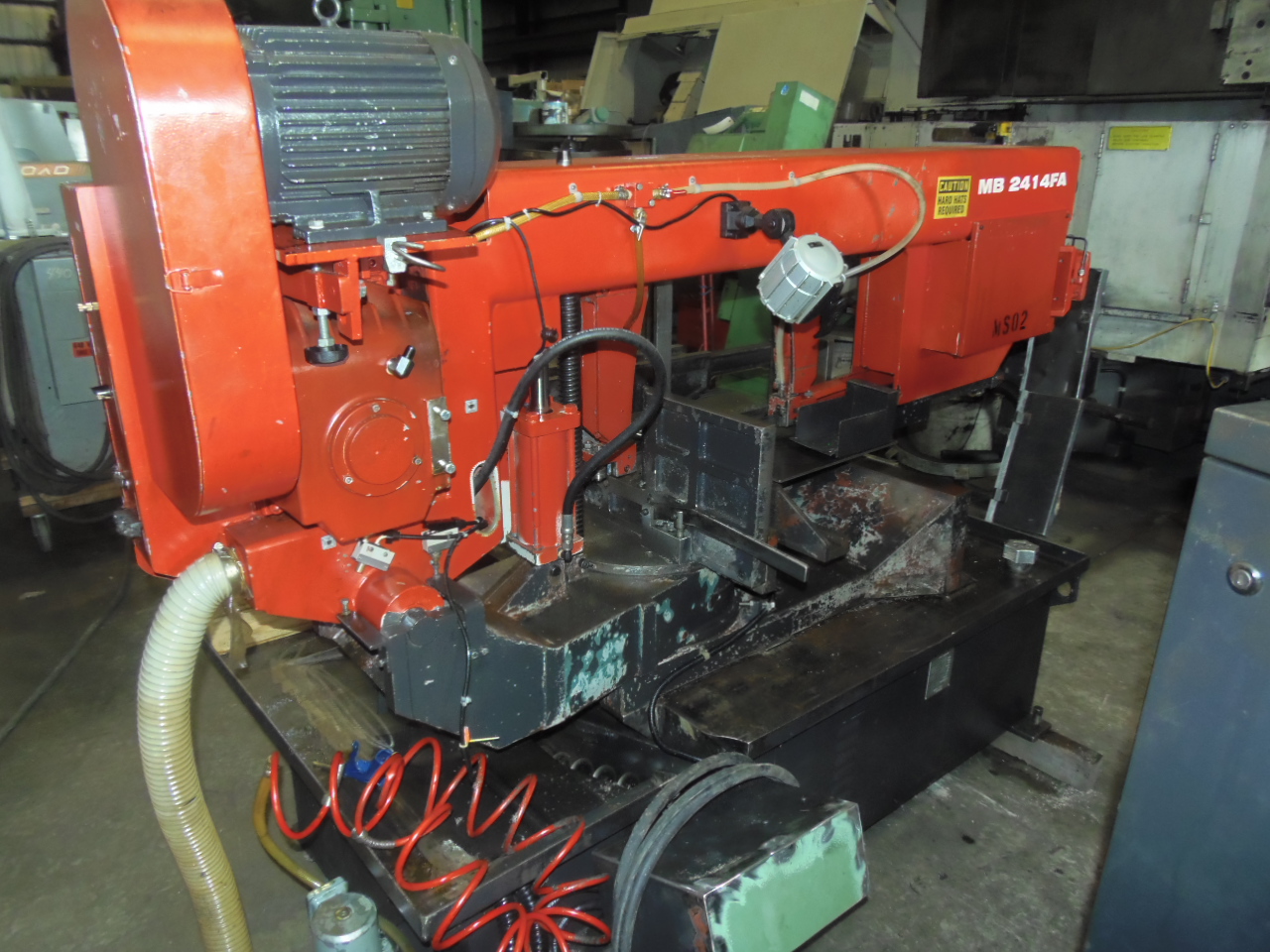

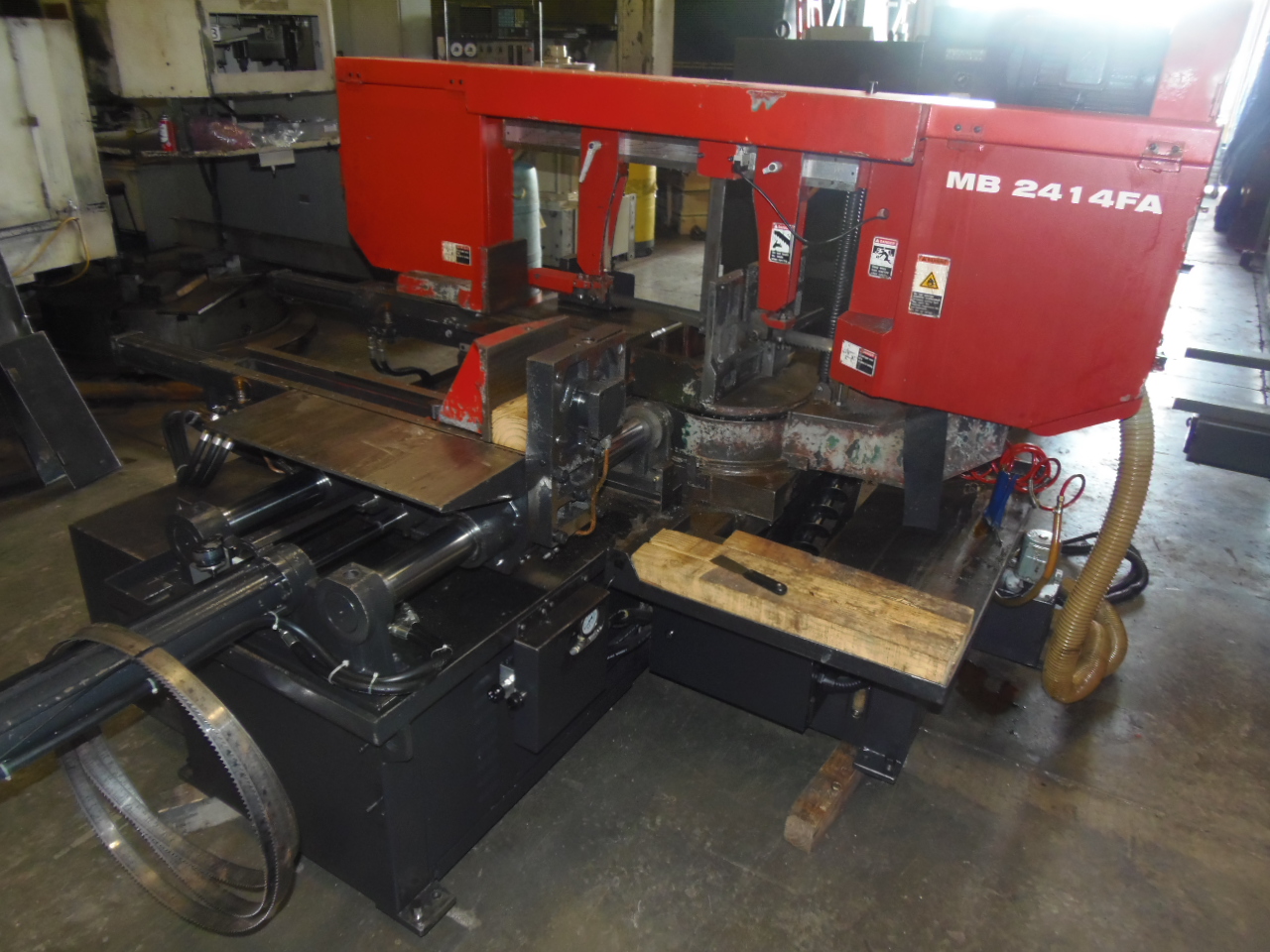

MODEL................................ MB2414FA

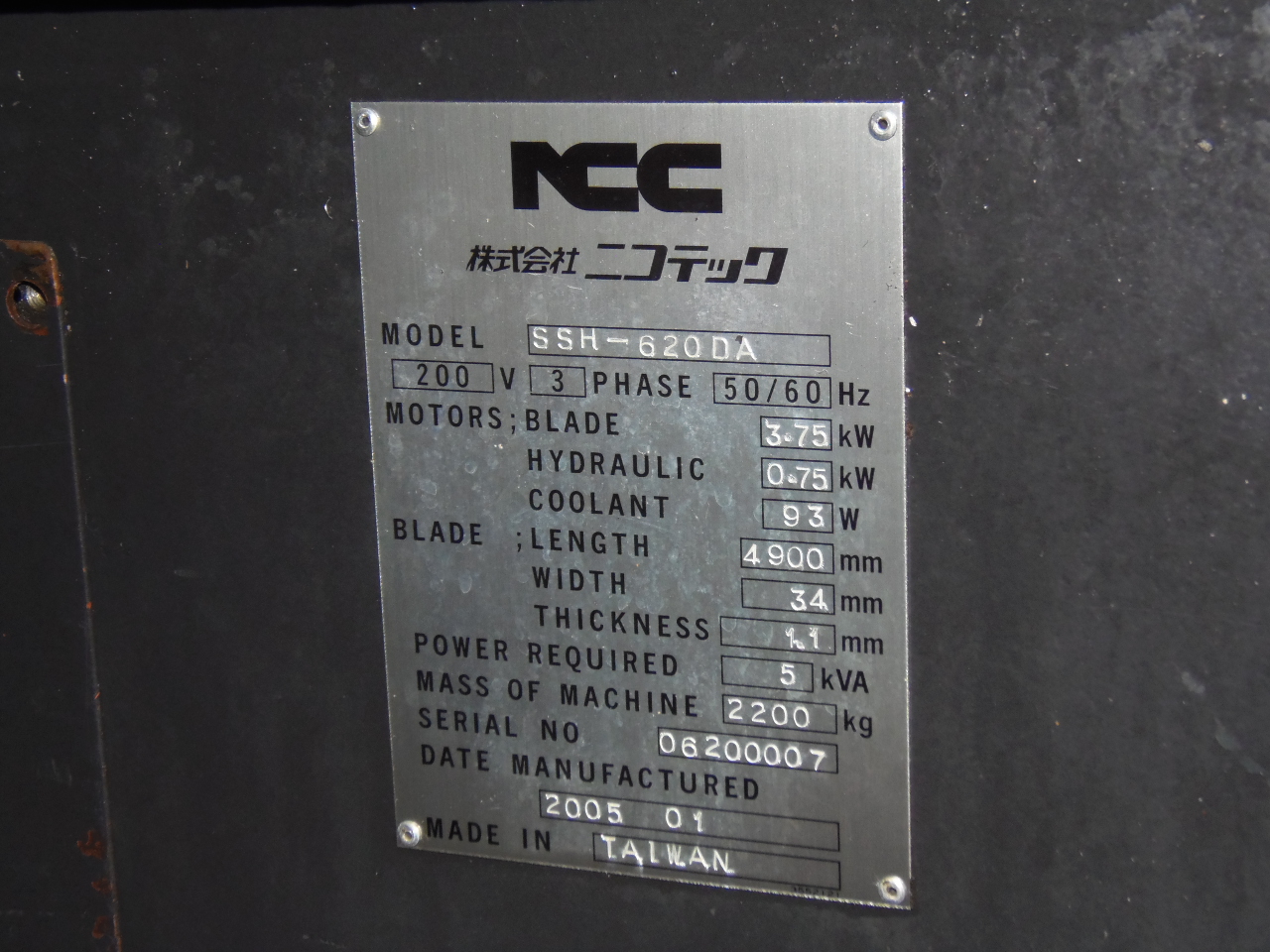

SERIAL#.............................. SSH-6200A
NEW.................................. 2007
CAPACITY 90 DEG.(ROUND).............. 14"
(RECT.).............. 24.4" X 14" HIGH
60 DEG.(ROUND).............. 11.8"
(RECT.).............. 11.8" X 14" HIGH
45 DEG.(ROUND).............. 14"
(RECT.).............. 15.7" X 14" HIGH

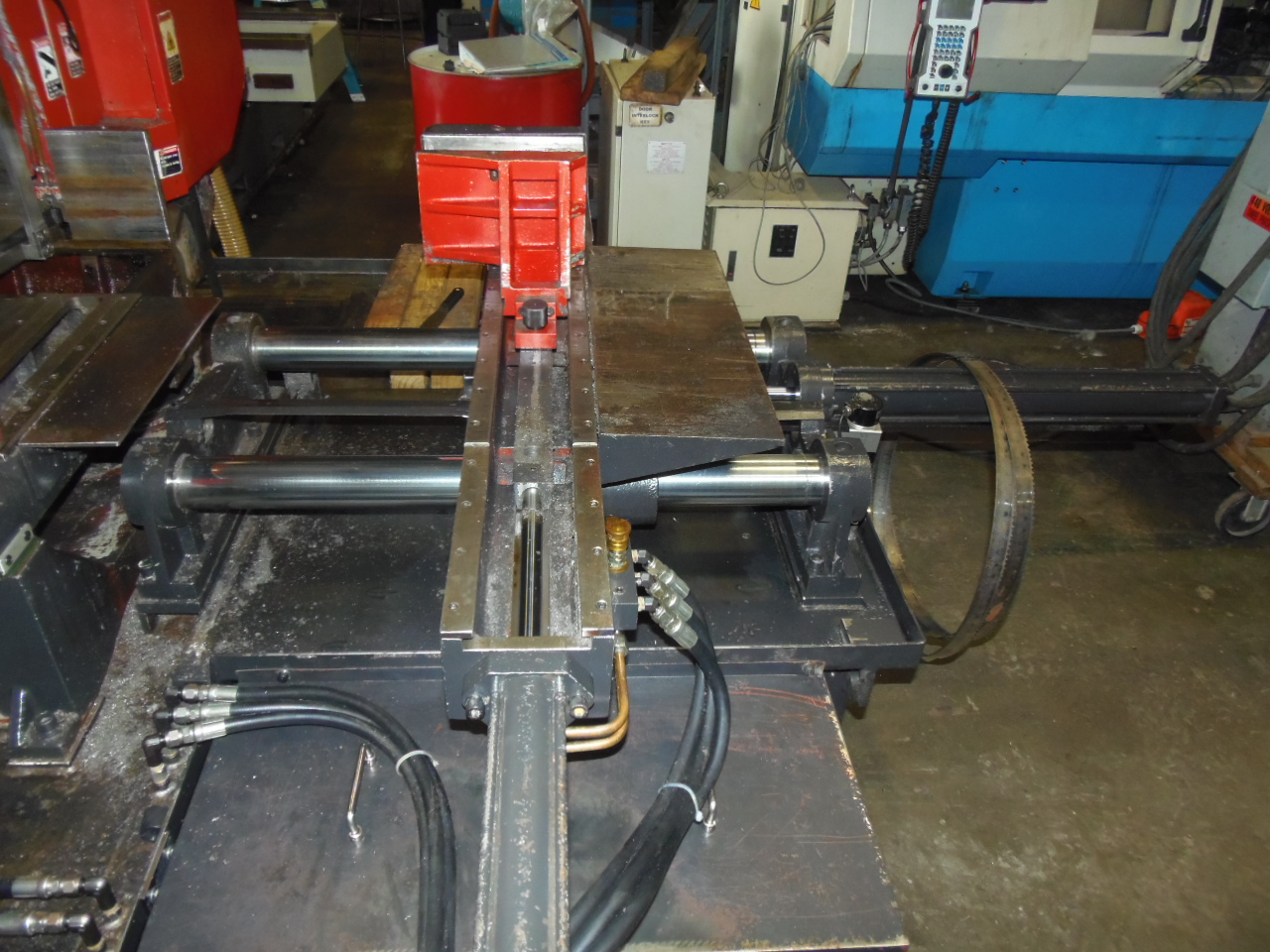

MAX. PART FEED....................... 24.6"
MULTIPLE PART STROKE................. 9 TIMES
MIN. PART FEED....................... .78"
BLADE SIZE........................... 1.25" X 193"
BLADE SPEED, VARIABLE................ 60 TO 450 FPM
MAIN DRIVE MOTOR..................... 5 HP
HYDRAULIC PUMP MOTOR................. 1 HP
FLOOR SPACE.......................... 178" X 87"
ELECTRICS............................ 220V / 3PH
WEIGHT (APPROX)...................... 5,000 LBS.
EQUIPPED WITH:
MANUAL/AUTOMATIC OPERATION

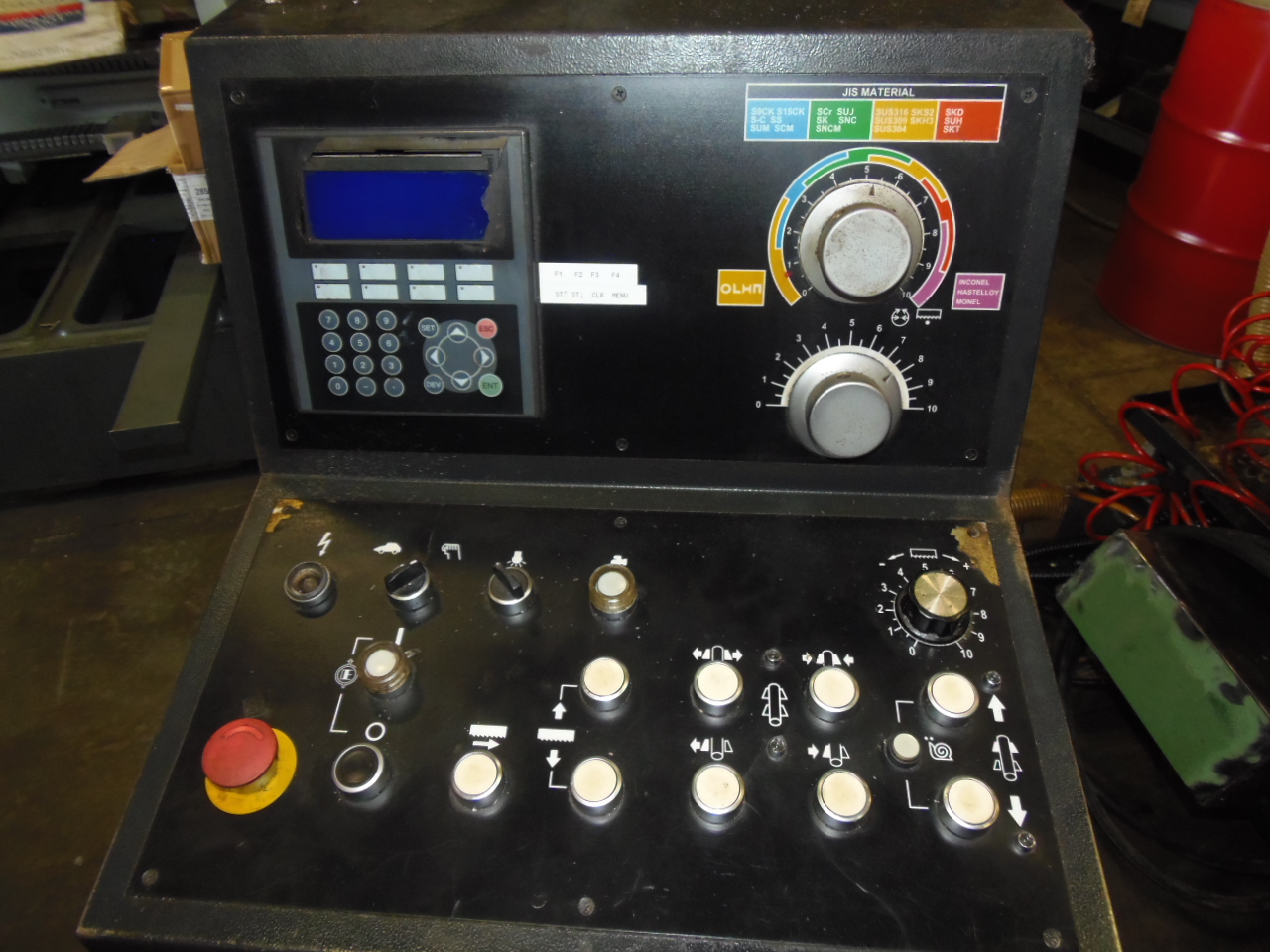

AMADA HFA250 SOFTWARE FOR STORING CUTTING DATA FOR MULTIPLE JOBS, SETTING AUTOMATIC OPERATION,ALARM CODES FOR MAINT. & OPERATION
VARIABLE BLADE SPEED
+- 45 DEGREES TO 60 DEGREES
CHIP AUGER
OPERATORS MANUAL
