Specifications
Equipped With
SPECIFICATIONS:
MANUFACTURER--------------TOOLMEX
MODEL--------------------------TUR 630A
SERIAL NUMBER---------------47210

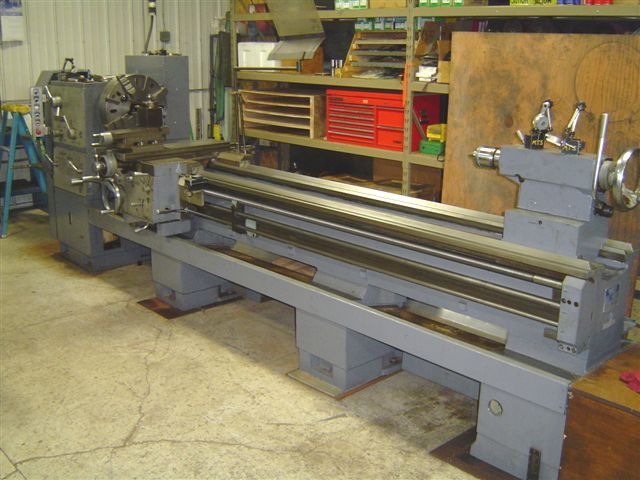

MACHINE TYPE----------------HORIZONTAL
YEAR----------------------------1987
SPINDLE BORE-----------------5.500" / 139.7MM
SWING--------------------------24.800" / 629.9MM
CENTERS-----------------------118" / 2,997.2MM
POWER-------------------------20HP / 14.9 KW
RPM-----------------------------15-1400 rpm
SWING OVER CROSS---------14.800" / 375.9MM
VOLTS---------------------------230
WEIGHT-------------------------10,800 LBS
EQUIPED WITH:

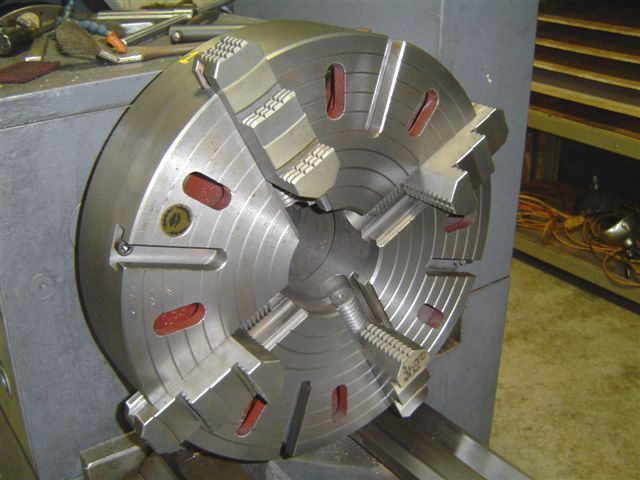

20": 4 JAW CHUCK

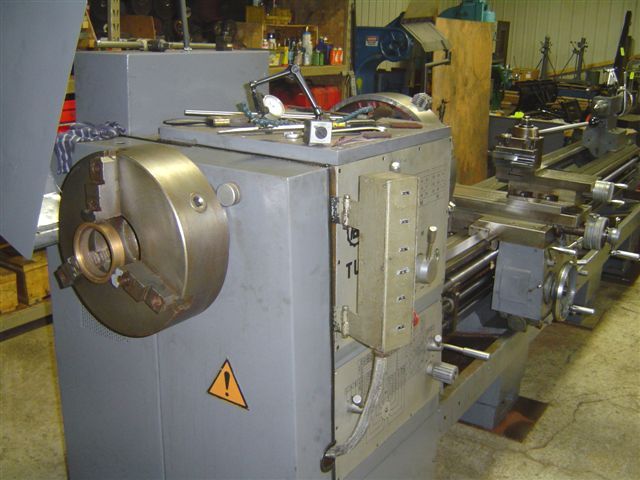

16" 3 JAW CHUCK ON REAR
2 STEADY RESTS
IN/MM THREADING
TOOL POST
5" TRAVEL DIAL
