GENERAL SPECIFICATIONS:

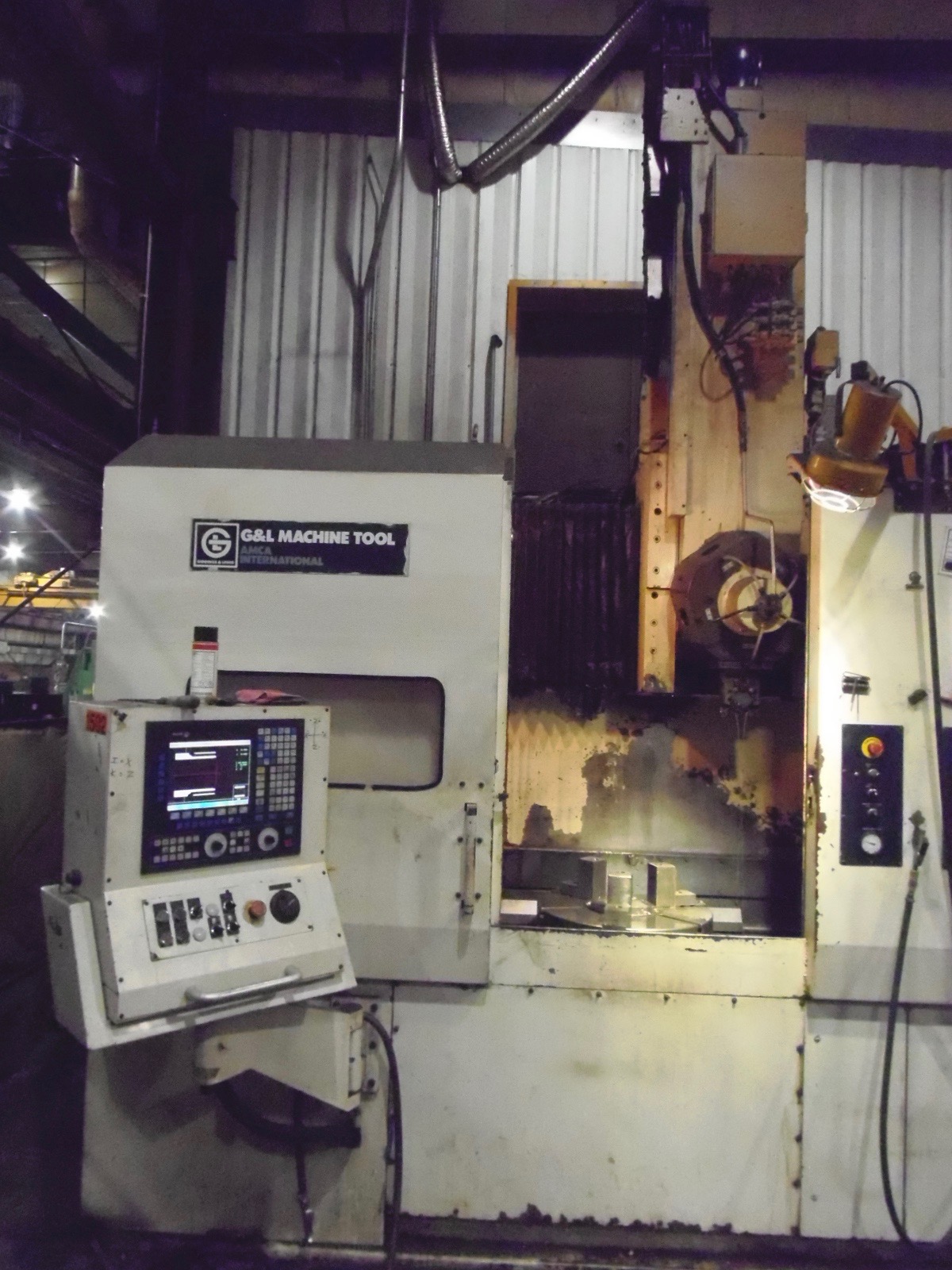

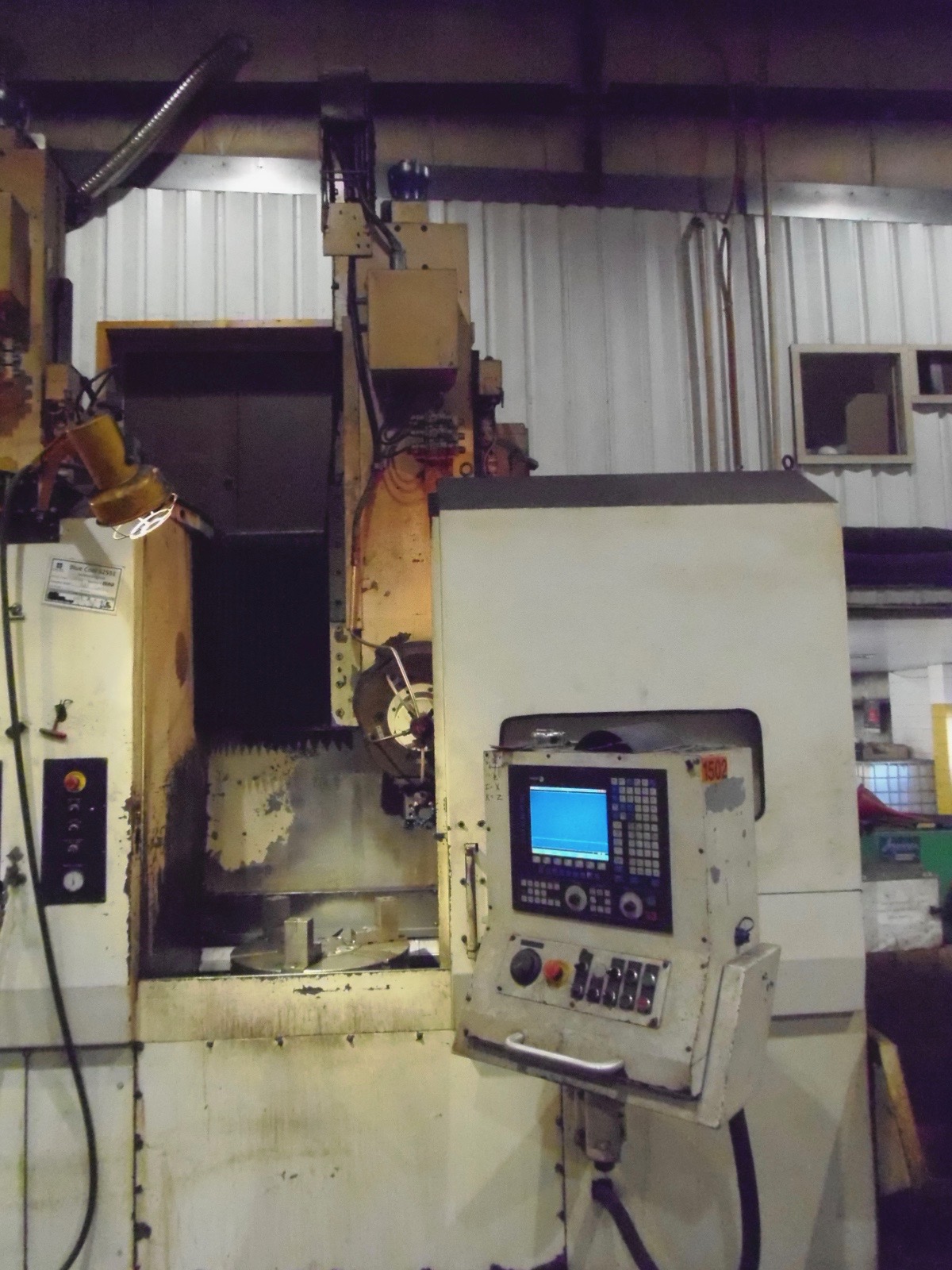

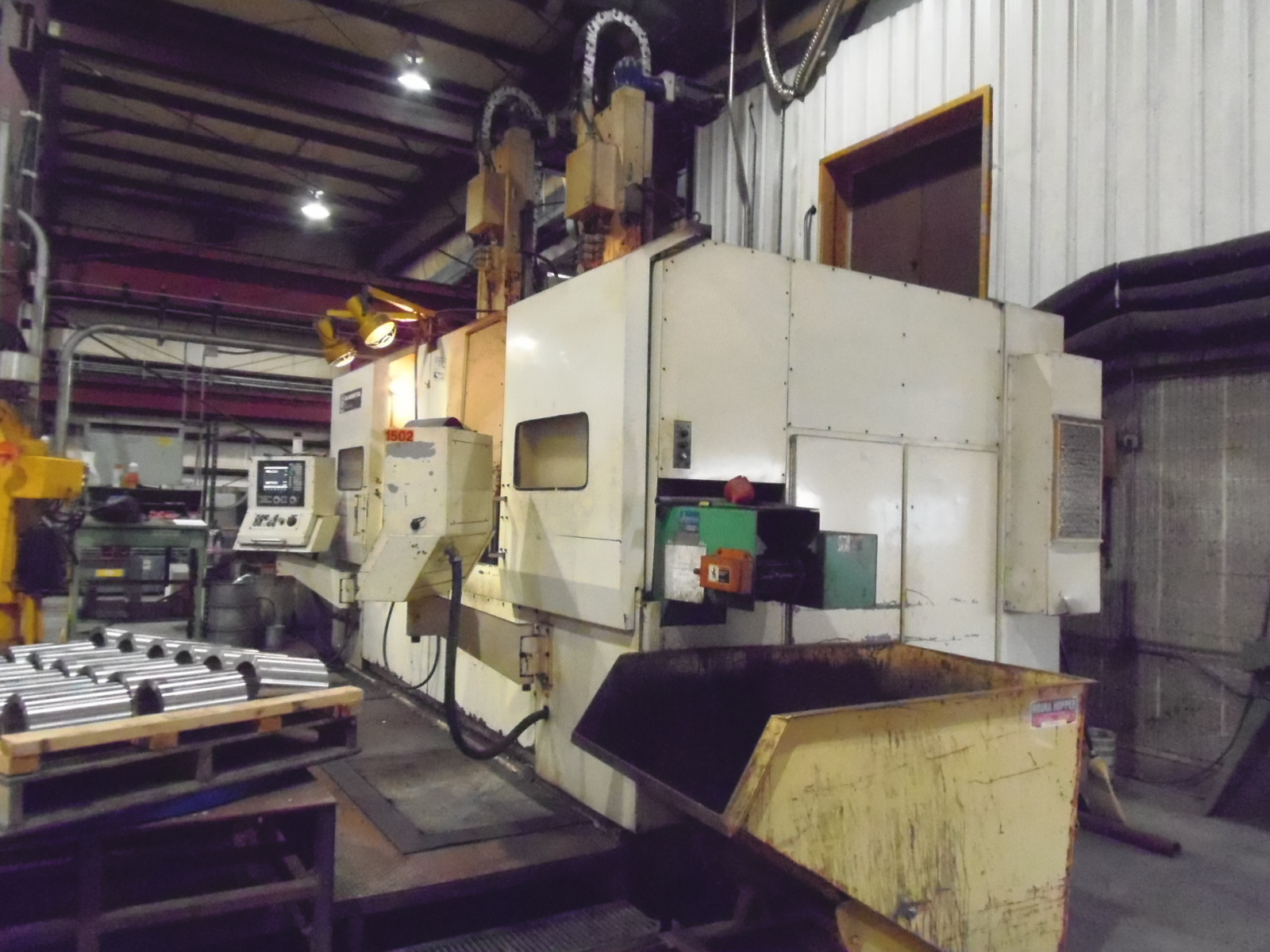

MANUFACTURER..................... GIDDING & LEWIS
MODEL............................ D25 VNC
RETROFIT......................... 2007
NEW.............................. 1986
NUMBER OF CHUCKS................. 2

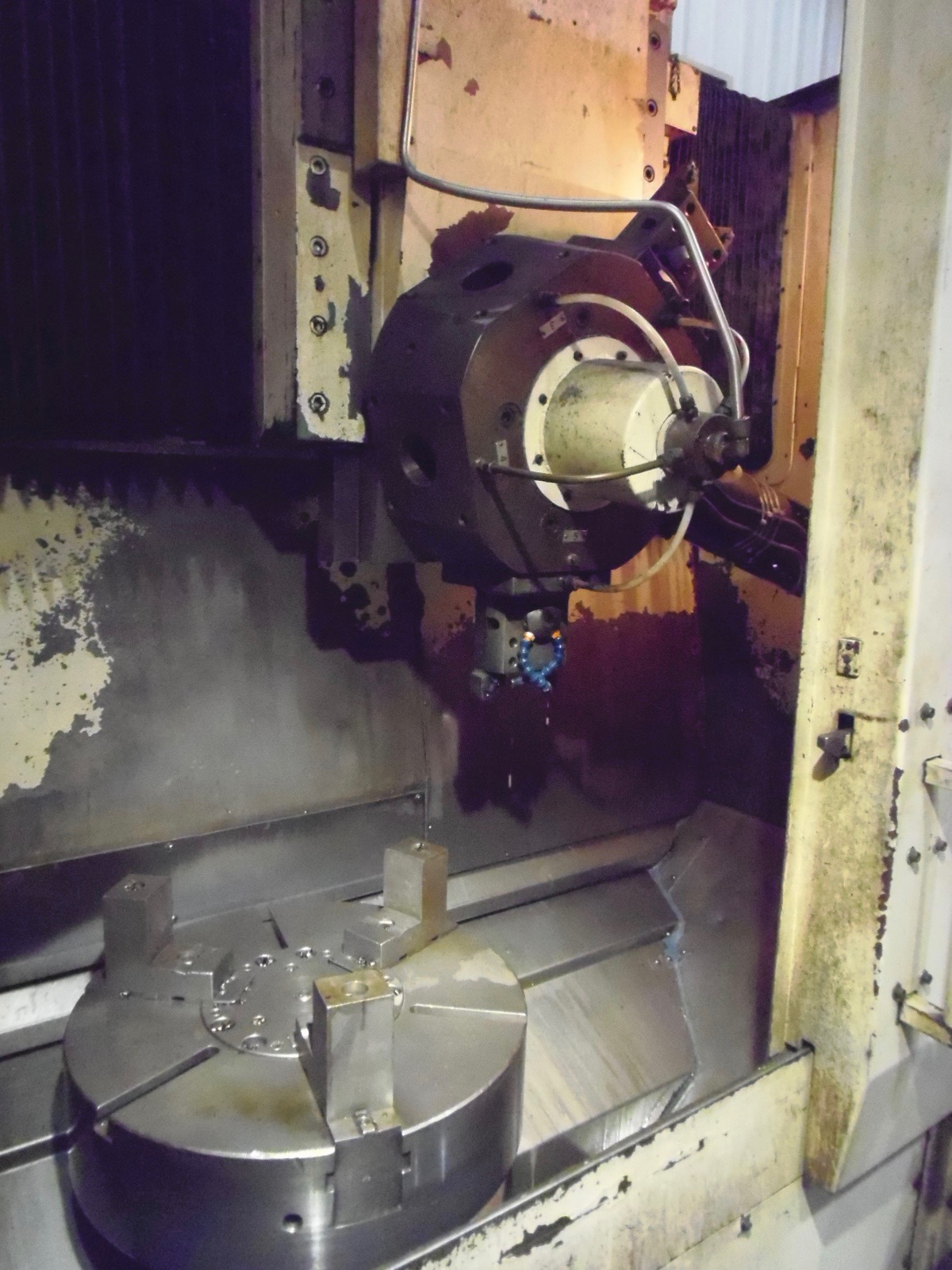

CHUCK SIZE....................... 24"
TYPE OF ACTUATION................ HYDRAULIC
SPINDLE NOSE..................... A2-11

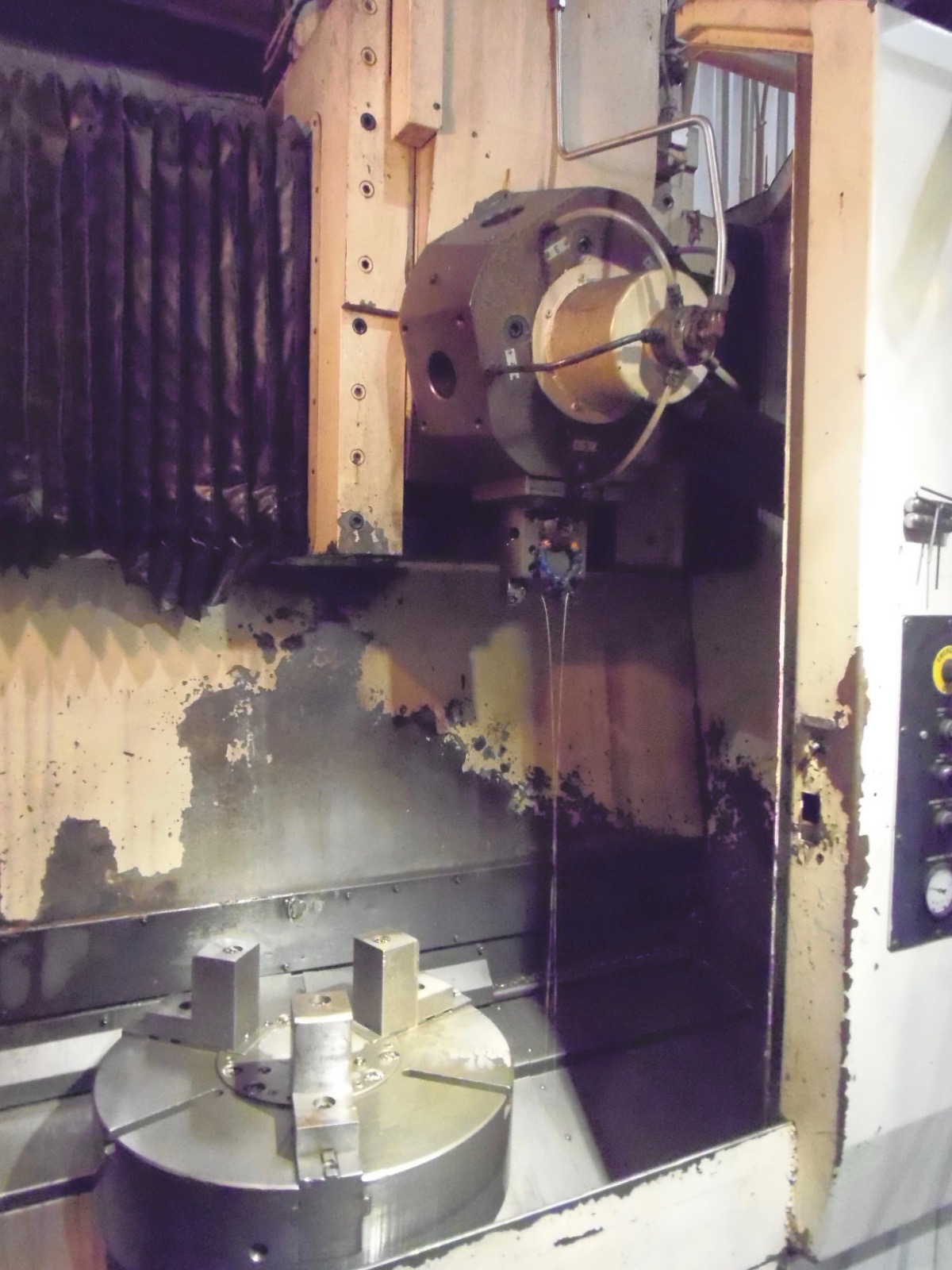

NUMBER OF TOOLS ON TURRET........ 5

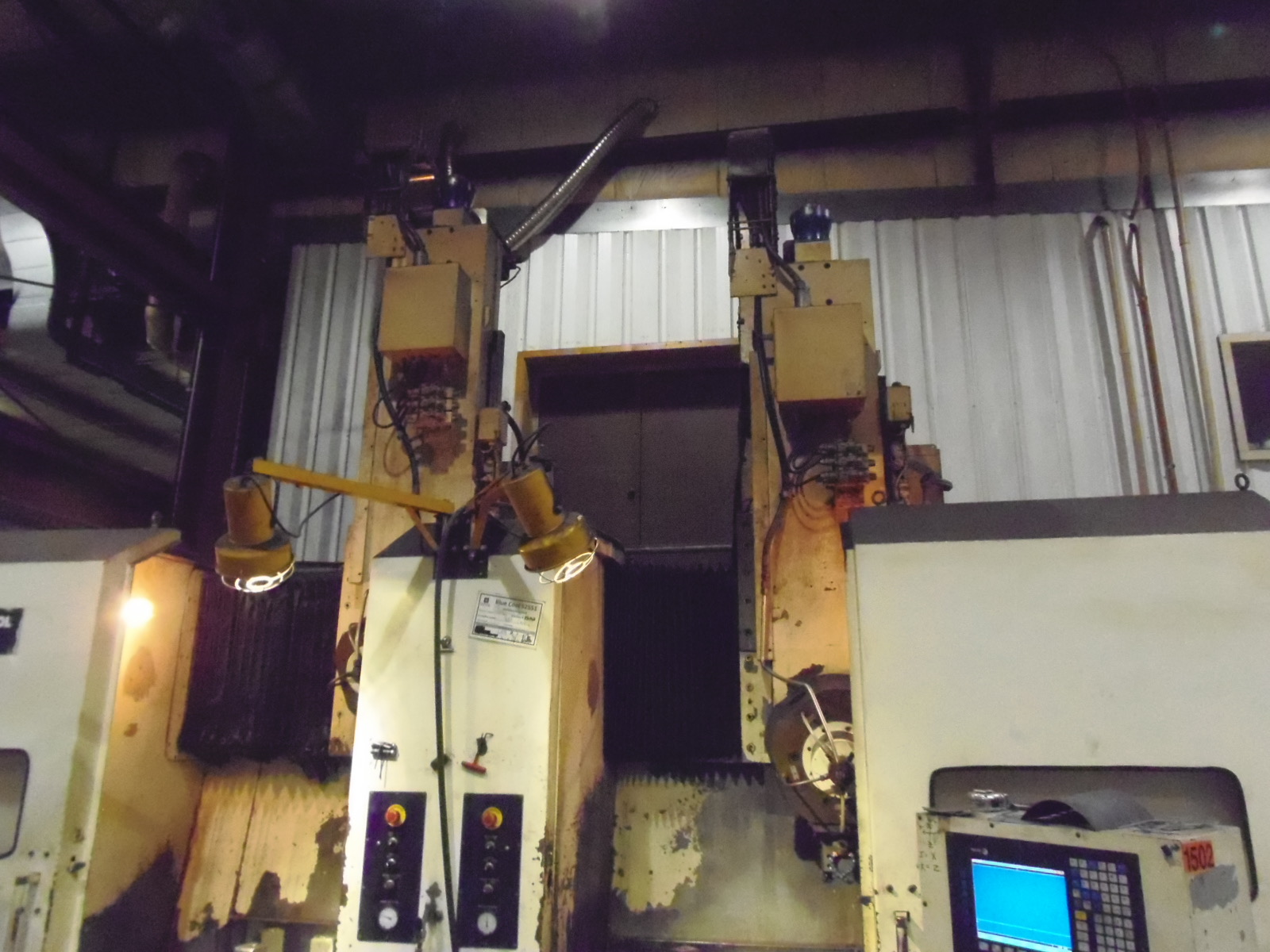

NUMBER OF TURRETS................ 2
RPM RANGE WHEN BUILT............. 70 - 3450
RPM RANGE AFTER RETROFIT......... 0 - 500 INF. ADJUSTABLE
HORSEPOWER PER SPINDLE........... 50
X AXIS TRAVEL.................... 23"
SWING............................ 45"
Z AXIS TRAVEL.................... 33"
RAPID TRAVELS.................... 200 IPM

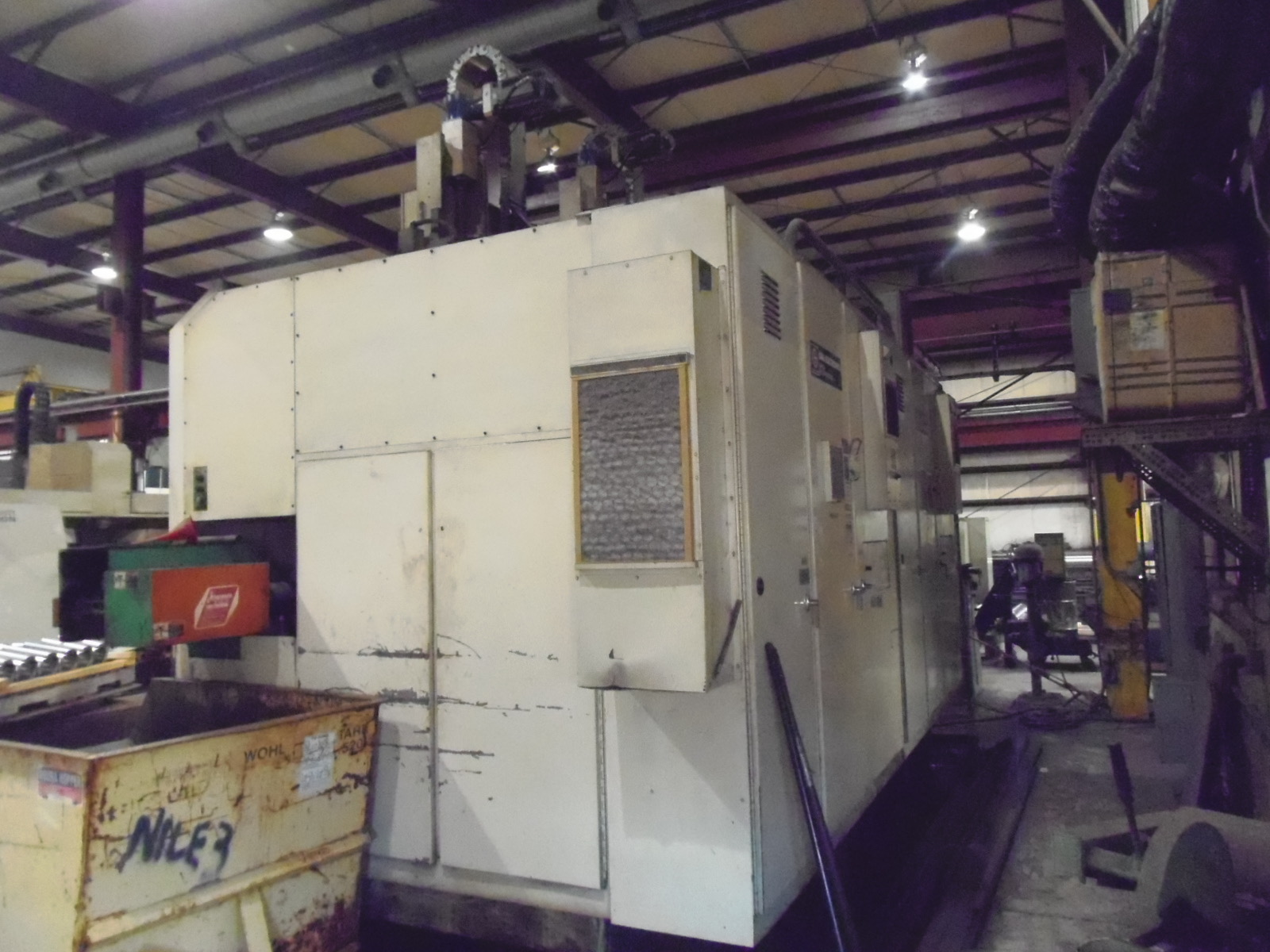

CHIP CONVEYOR.................... YES
NUMBER OF CONTROLS............... 2

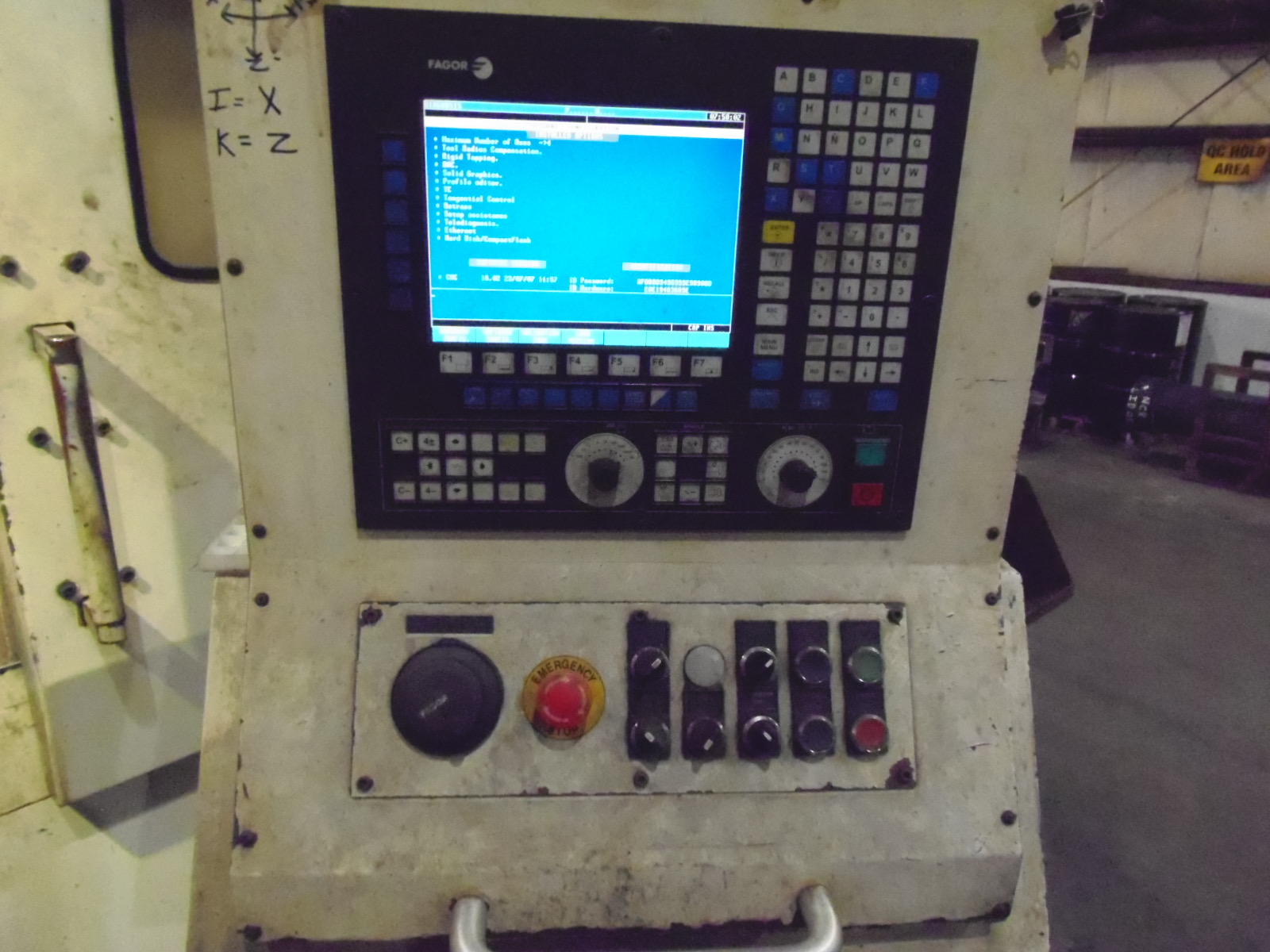

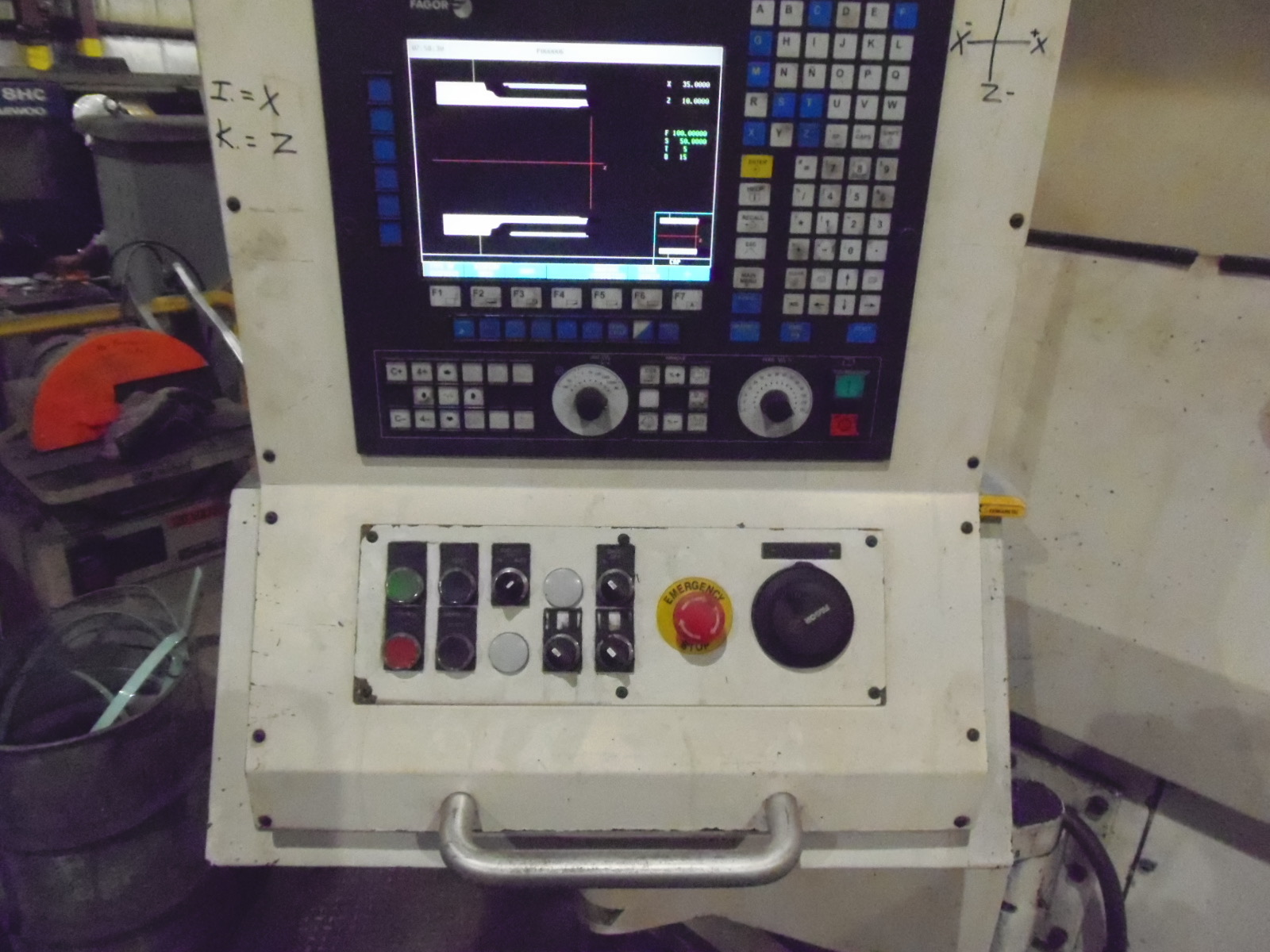

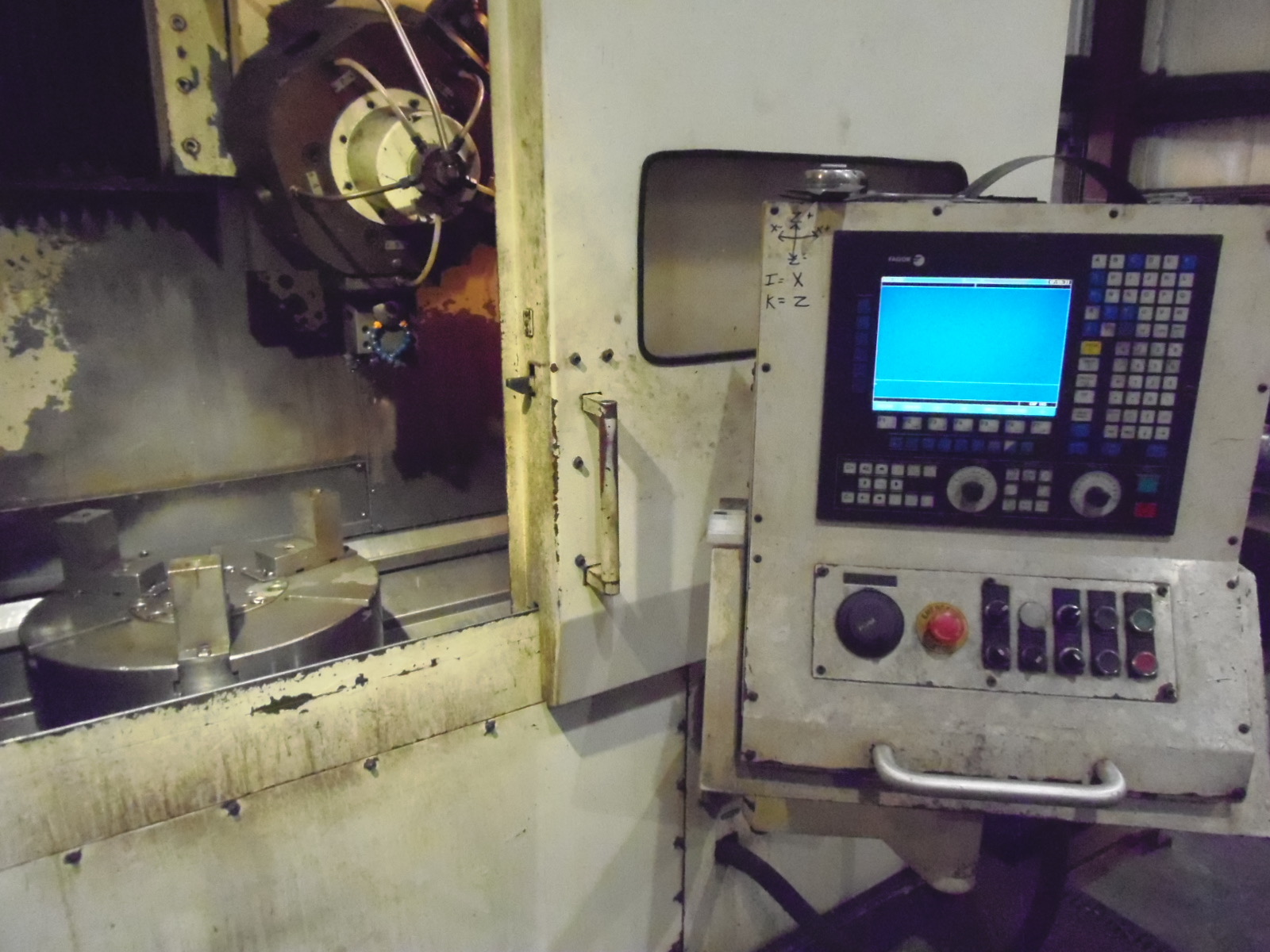

RETROFIT CONTROLS................ FAGOR 8055L/A-T
COOLANT.......................... YES, FLOOD TYPE
EQUIPPED WITH:
EACH SPINDLE RUNS AND CAN BE PROGRAMMED INDEPENDENTLY
MACHINE IS IN HEATED STORAGE WAS REPLACED BY A MULTI AXIS MILLION DOLLAR MACHINE
