Specifications
Equipped With
GENERAL SPECIFICATIONS:

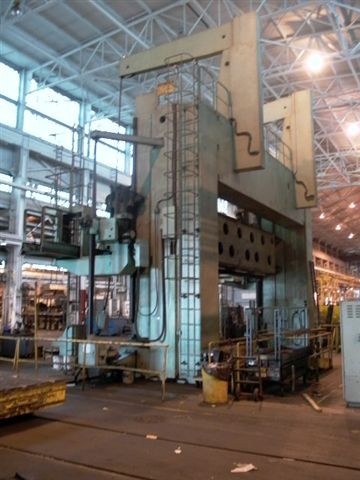

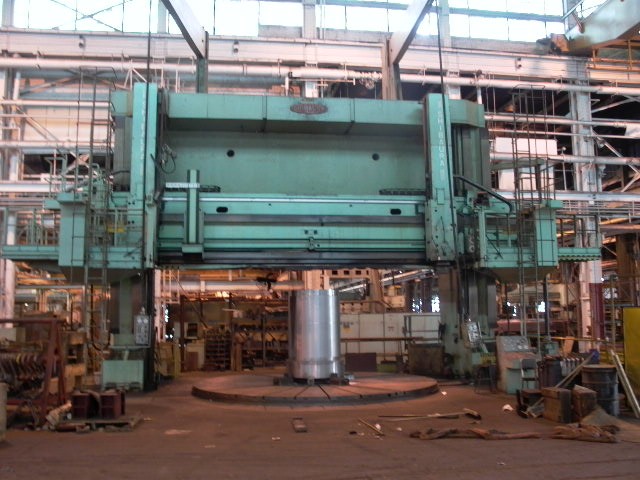

MANUFACTURER TOSHIBA
MODEL TD-60/80S
NEW (APPROX.) 1977
TABLE DIAMETER 236"
MAX. TURNING DIAMETER 265,000 LBS.
TABLE SPEEDS (3 RANGES) .32 - 4.2,11.7 & 32.0 RPM
MAX. HEIGHT UNDER SADDLE 190"
MAX. HEIGHT UNDER RAIL 183"
FEED RANGE .020 - 25 IPM
RAPID 60 IPM
VERT. TRANVEL OF RAM HEADS 94.5"
RAM SWIVEL 30 DEG.
HORIZ. TRAVEL OF RAM HEADS 168"
MAX. TURNING HEIGHT 177"
MIN. DIA. BORE RAM MILL CENTER 235"
CROSS RAIL TRAVEL 137"
T-SLOTTED TABLE DIAMETER 236"
MAIN TABLE DRIVE MOTOR 120 HP
ELEVATING RAIL MOTOR 60 HP
DIMENSIONS (APPROX.) 49'W x 26'L x 35'4"H
WEIGHT (APPROX.) 218 TONS
EQUIPPED WITH:
(2) SWIVEL RAM HEADS

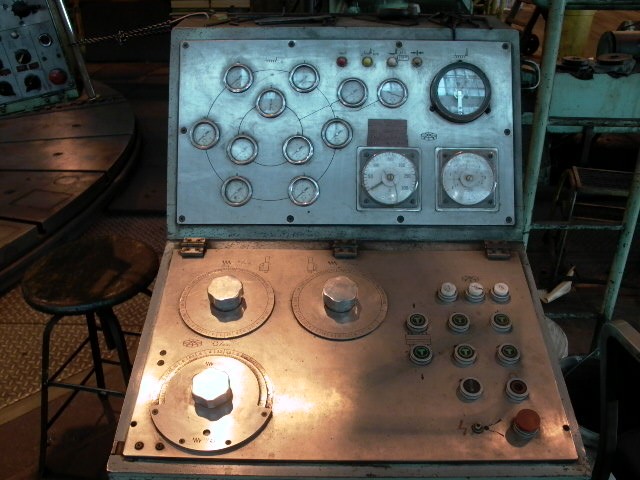

(2) PENDANT CONTROLS (FLOOR OPERATION) & FLOOR CONTROLS
INDEPENDENT CHUCK JAWS
THREAD GROOVING-.25-6 TPI BY GEARS, RIGHT RAM
ELECTRIC TRACER ATTACHMENT
TAPER TURNING 0-60 DEG.
DIGITAL READOUTS
INCH/METRIC LEBUS GROOVING MANUAL & PRINTS
