Specifications
Equipped With

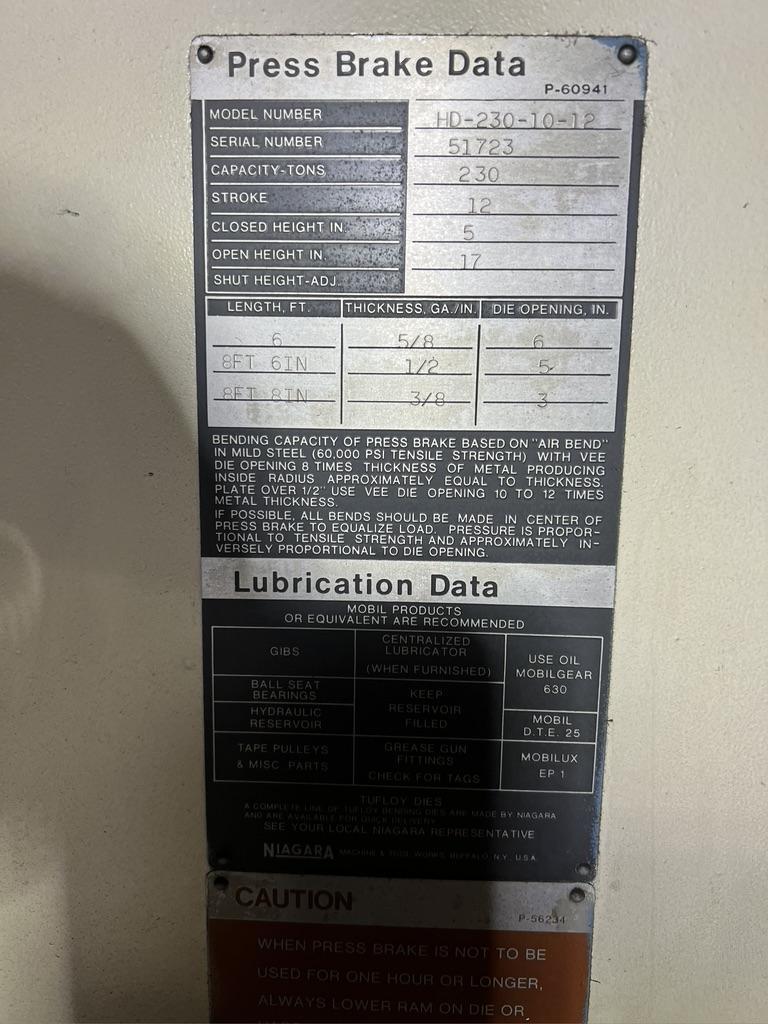

GENERAL SPECIFICATIONS:
MAKE.......................... NIAGARA
MODEL......................... HD-230-10-12
SERIAL NUMBER................. 51723
OVERALL BED LENGTH............ 144"
DIST. BTWN. HOUSINGS.......... 10' 6"
RATED TONNAGE................. 230 TONS
STROKE........................ 12"
OPEN HEIGHT................... 17"
CLOSED HEIGHT................. 5"
CAPACITY
6' WITH 6" DIE OPENING..... 5/8"
8'6" WITH 5" DIE OPENING... 1/2"
8'8" WITH 3" DIE OPENING... 3/8"
MAIN MOTOR.................... 30 HP
ELECTRICS..................... 460V / 3PH
DIMENSIONS.................... 192" X 48" X 130" H
WEIGHT APPROX................. 30,000 LBS.
EQUIPPED WITH:

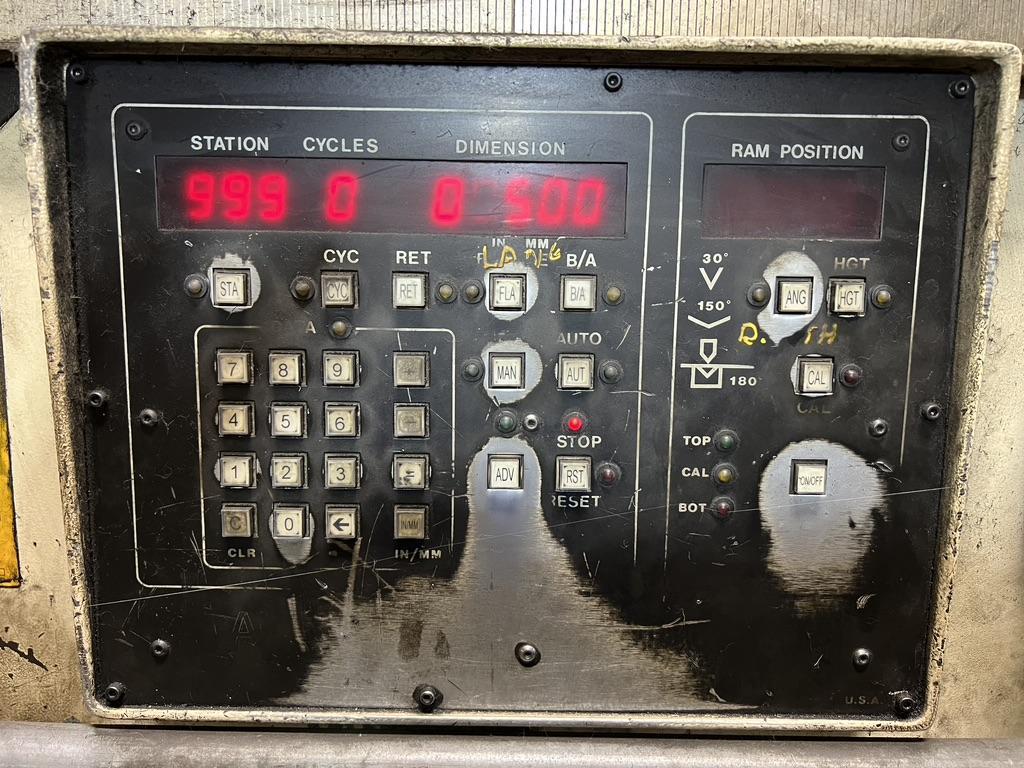

AUTOMEC 1000 CNC CONTROL

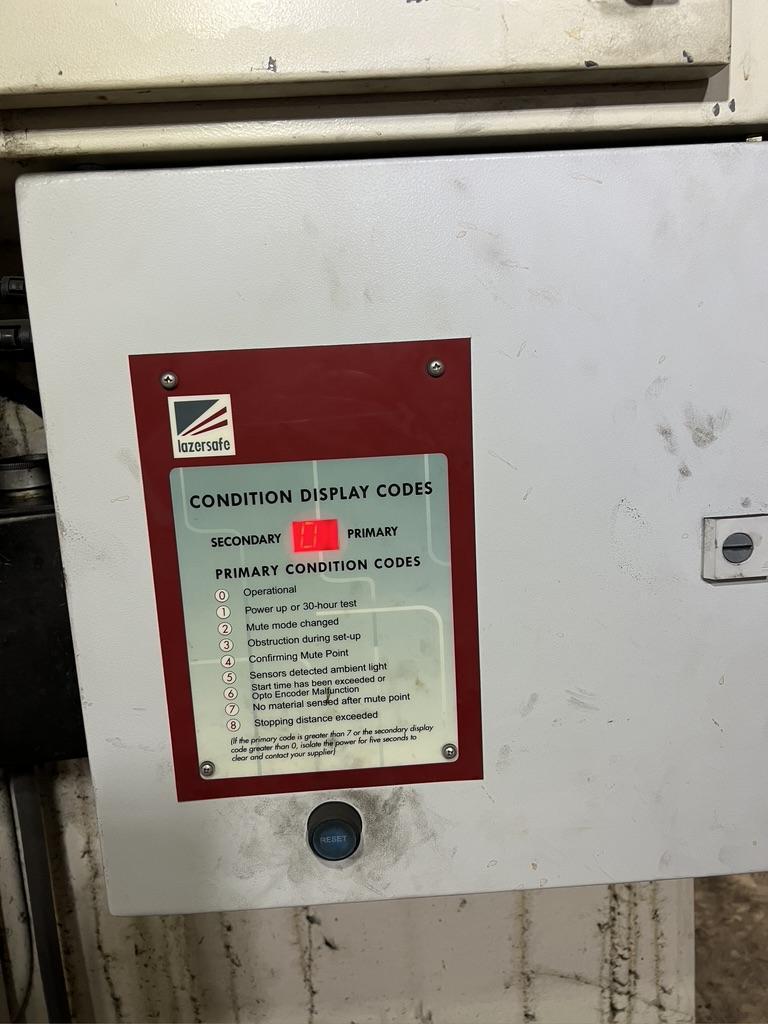

LAZERSAFE LIGHT CURTAINS
MULTI BEND CONTROL
DIE RAIL

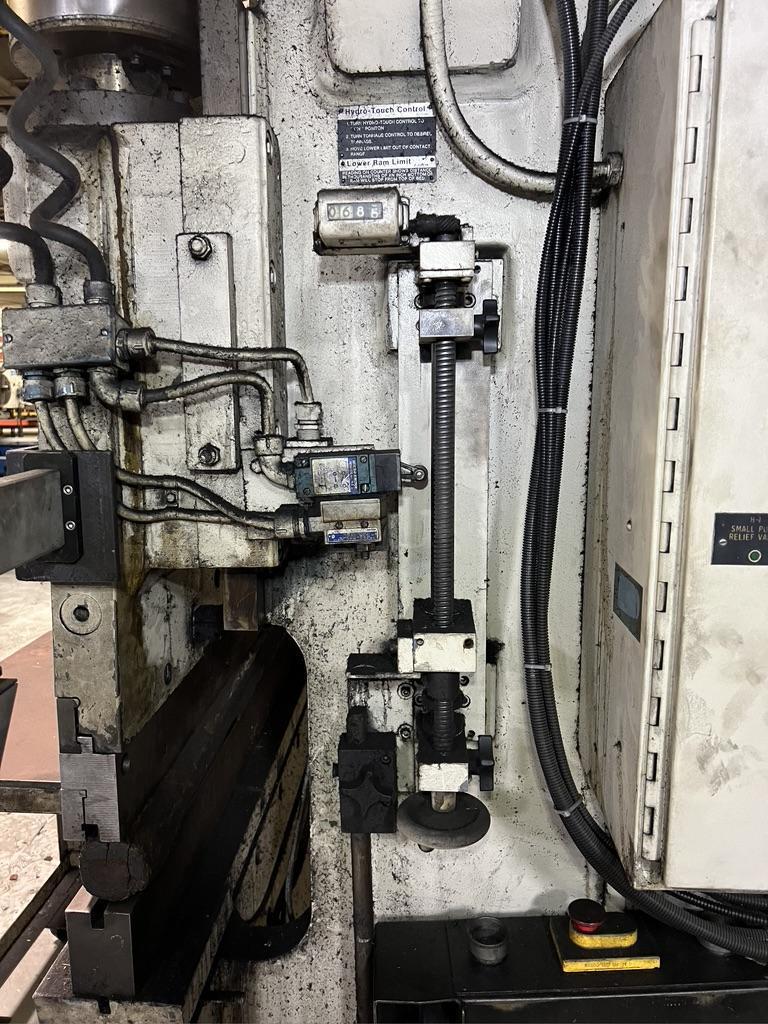

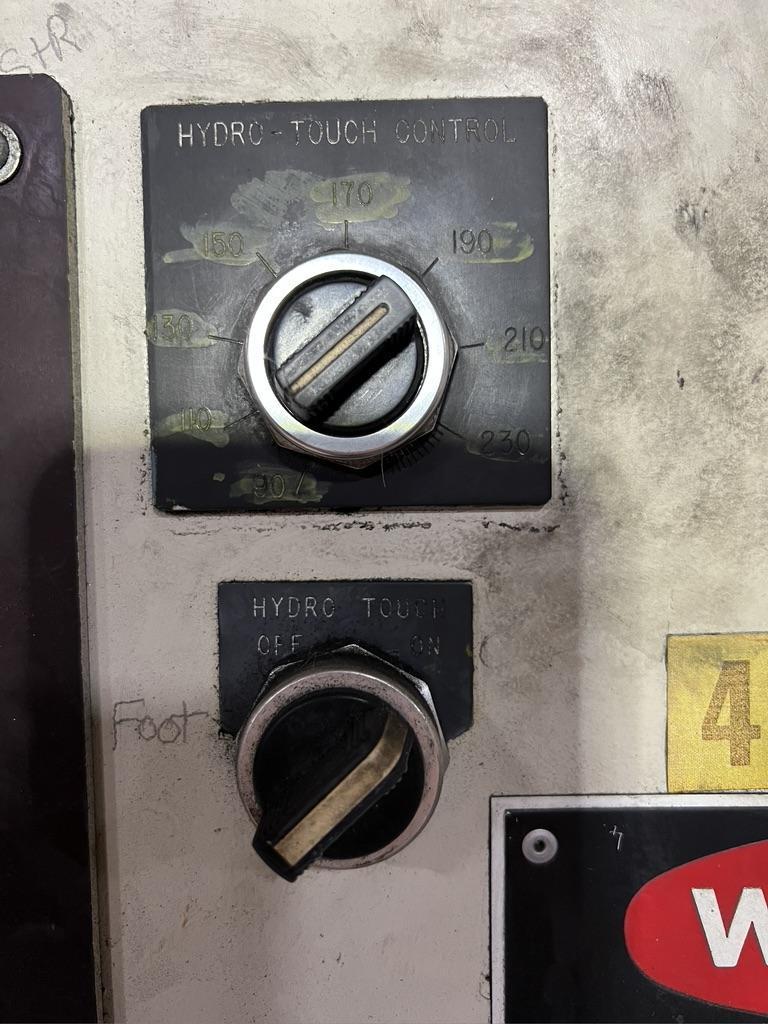

HYDRO TOUCH CONTROL
FOOT PEDAL
DUAL PALM BUTTONS
STROKE LENGTH
FLUSH FLOOR (NO PIT)
