Specifications
Equipped With

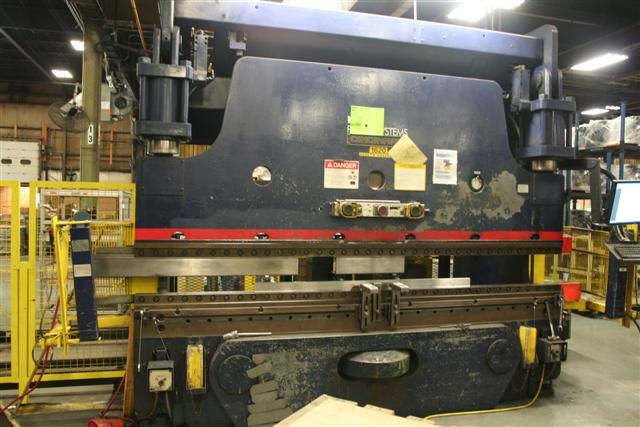

MANUFACTURER CINCINNATI
MODEL# 230AS10/12
SERIAL# 44863
AGE APPROX. 1987
TONNAGE 230
CAPACITY 1/4" X 12 9"
3/8" X 8'2"
1/2" X 8'
OVERALL LENGTH 12'
DISTANCE BETWEEN HOUSINGS 10'6"
THROAT 8"
STROKE 10"
OPEN HEIGHT 17"
SHUT HEIGHT 12"
MOTOR 35 HP
WEIGHT APPROX. 30,000 LBS
EQUIPPED WITH:

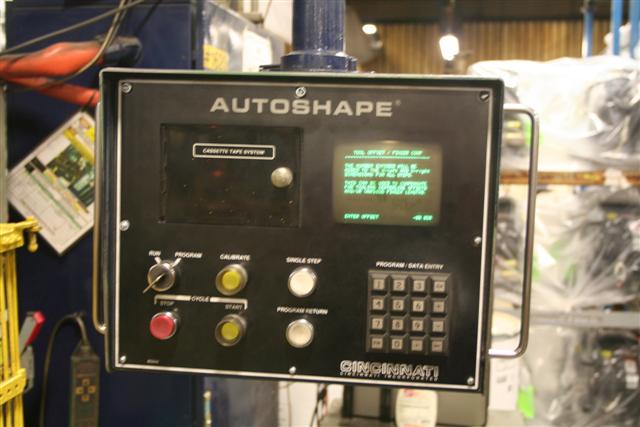

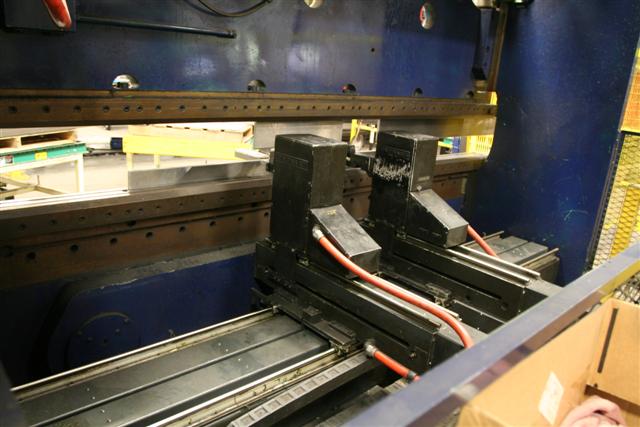

AUTOSHAPE 6 AXIS CNC BACK GAUGE-2 INDEPENDENTLY POSITIONED GAGE FINGERS. THEY CAN BE PROGRAMMED IN THREE DIRECTIONS.
R-UP AND DOWN
X-FRONT TO BACK
Z-LEFT TO RIGHT
FLUSH FLOOR
POWER DIE CLAMPING FOR QUICK CHANGE OF TOOLING
AUTO-CROWN SYSTEM BUILT IN THE BED
DIE RAIL
RS-232 INTERFACE FOR OFF LINE COMMUNICATION
LIGHT CURTAIN
OPERATION, SAFTEY, AND MAINTENANCE MANUALS AND ELEC. SCHEMATICS
FLOOR SPACE REQUIRED IS 7' X 20' X 11' 3" TALL
REQUIRES 40 KVA OF POWER AT 460 V
