GENERAL SPECIFICATIONS:
MANUFACTURER...................................... CINCINNATI

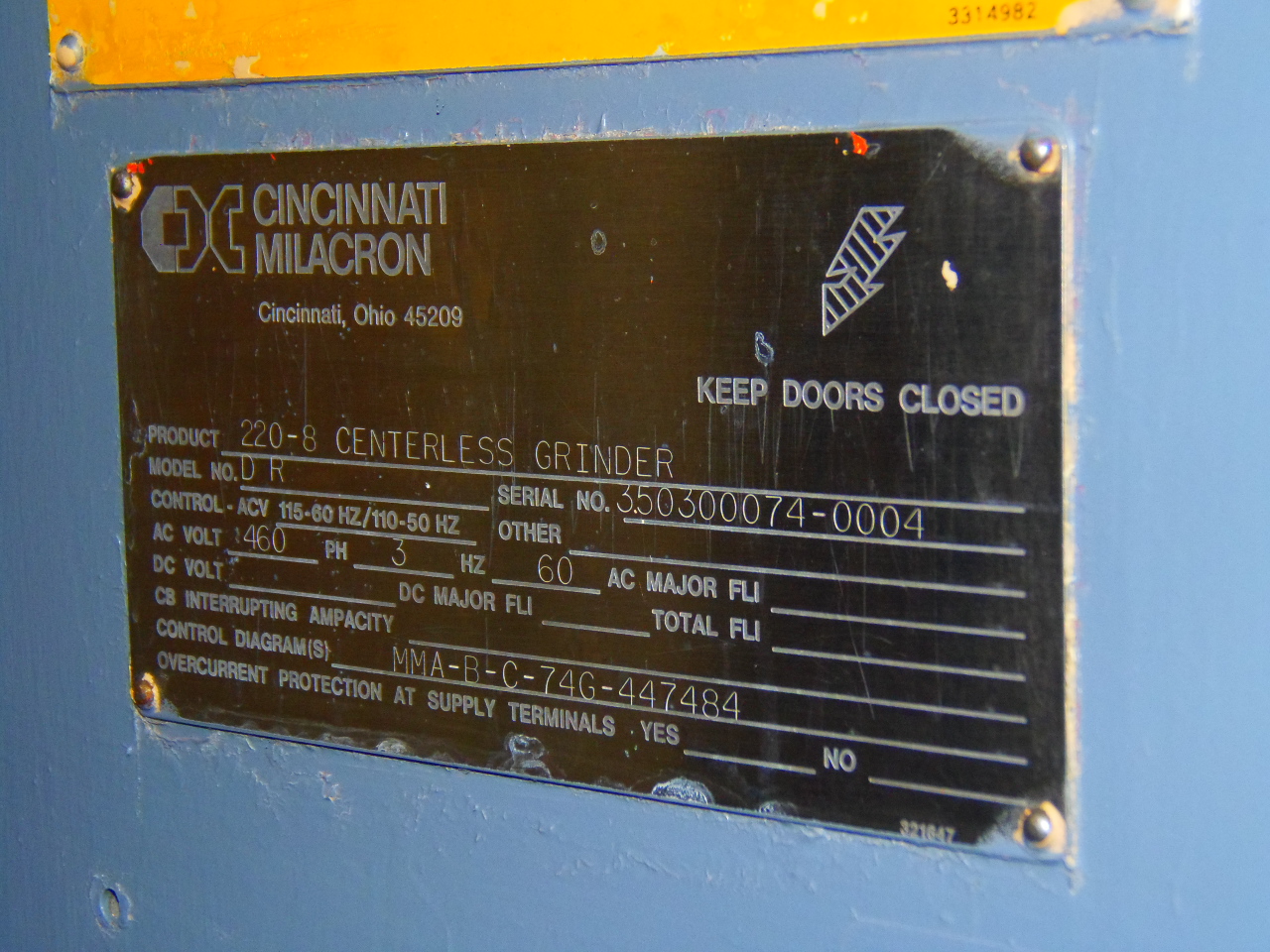

SERIAL#........................................... 350300074-0004

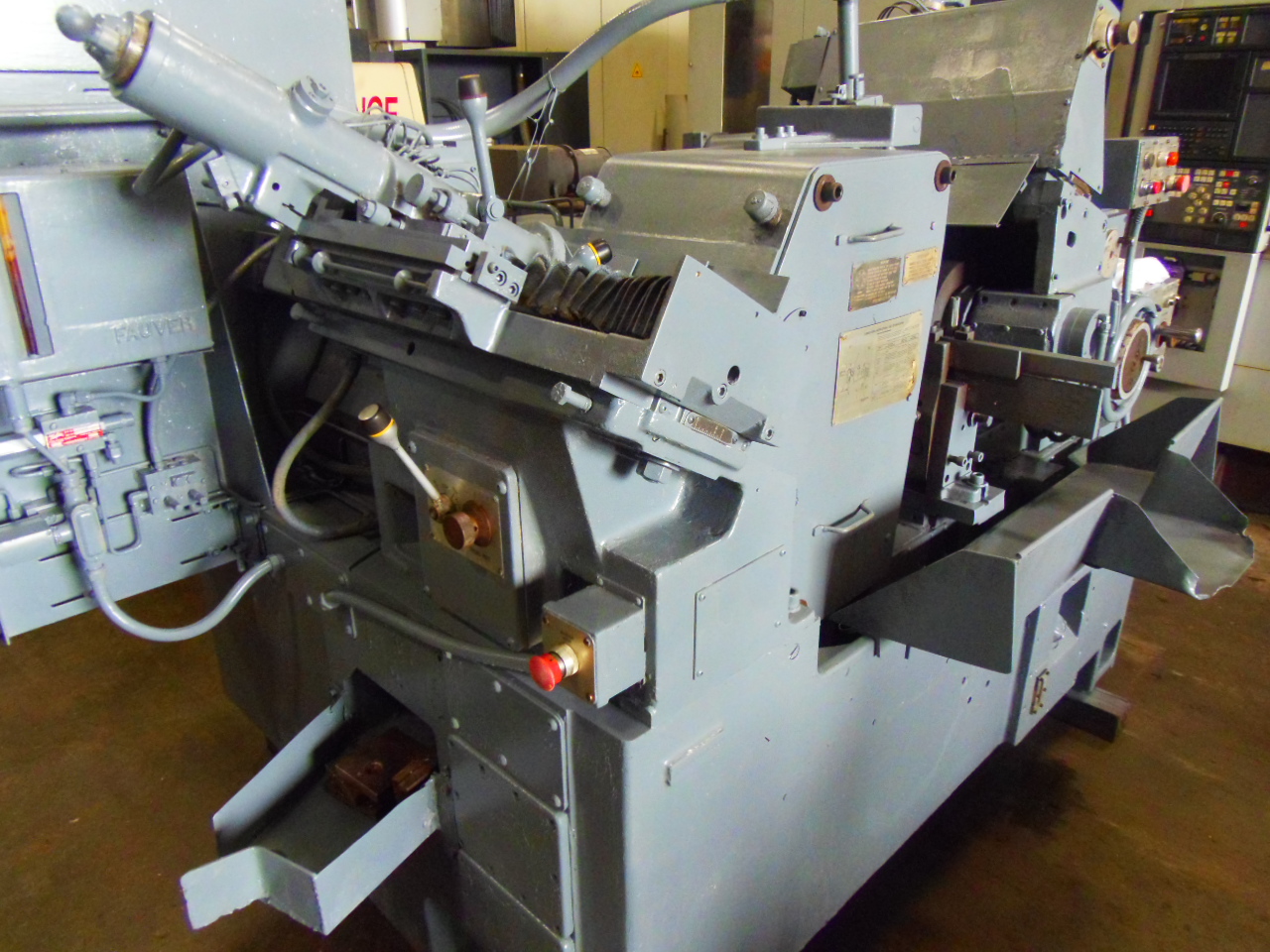

MODEL............................................. 220-8 CENTURMATIC
YEAR.............................................. 1974
WORK DIA. W/STD. THRUFEED......................... 0.063 - 3"
MAX. WORK DIAMETER................................ 4.75"
GRINDING WHEEL DIAMETER (MAX)..................... 24"
GRINDING WHEEL DIAMETER (MIN)..................... 17"
DIAMETER OF WHEEL ON MACHINE...................... 24"
GRINDING WHEEL HOLE DIAMETER...................... 12"
REG. WHEEL DIAMETER (MAX)......................... 12"
REG. WHEEL DIAMETER (MIN)......................... 10"
REG. WHEEL HOLE DIAMETER.......................... 5"
REG.WHEEL SPEEDS
LOW............................................ 15 - 56 RPM
HIGH........................................... 56 - 300 RPM
MAX. LOWER SLIDE TRAVEL........................... 6.375"
MAX. UPPER SLIDE TRAVEL........................... 2.875"
GRINDING WHEEL MOTOR.............................. 20 HP
REG. WHEEL MOTOR.................................. 1 1/2 HP
ELECTRICS.........................................460/3/60
APPROXIMATE MACHINE WEIGHT........................ 13,500 LBS.
EQUIPPED WITH:
AUTOMATIC GRINDING WHEEL BALANCING SYSTEM

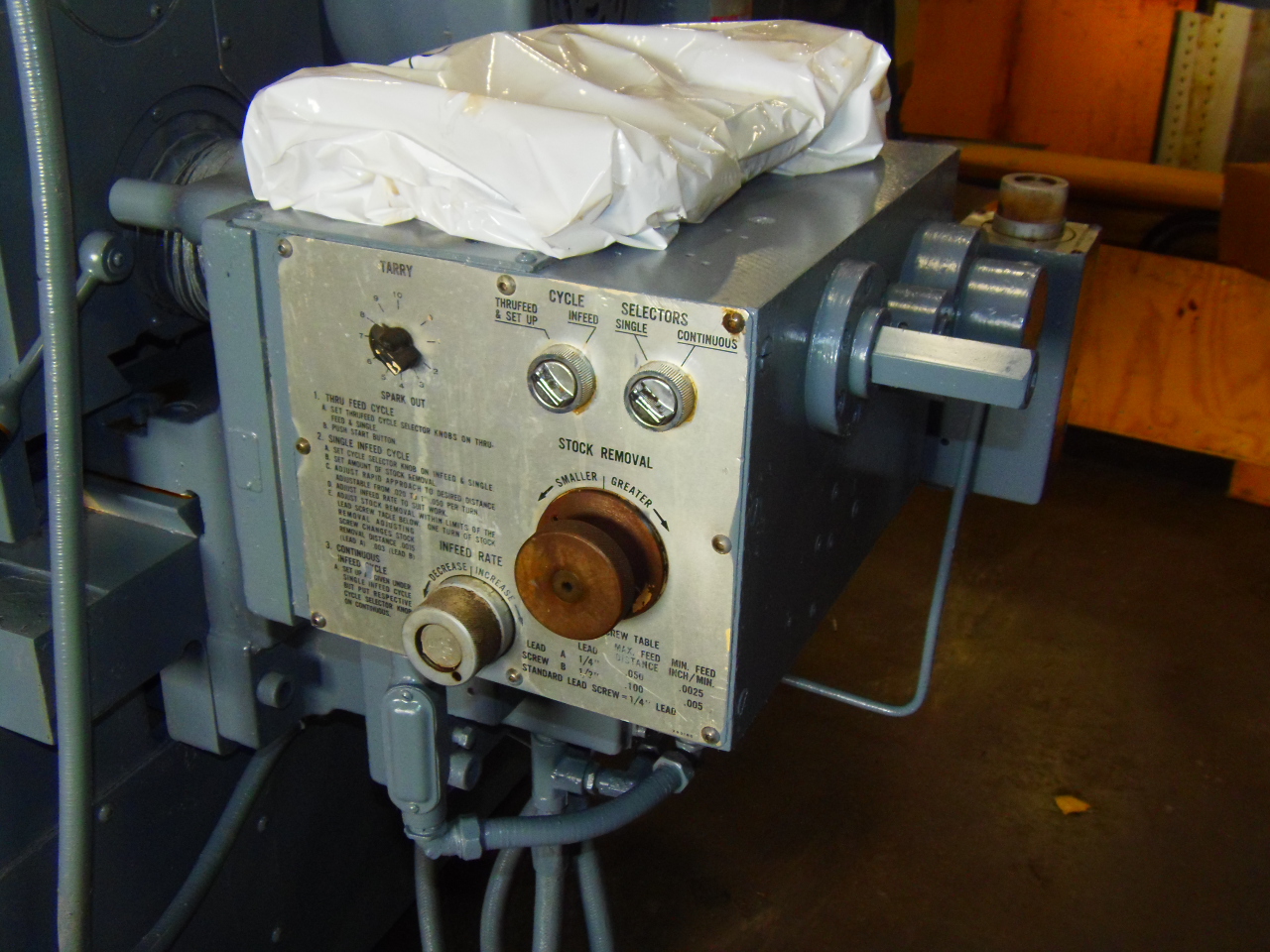

ELECTRO-HYDRAULIC AUTOMATIC INFEED ATTACHMENT WITH SINGLE OR CONTINUOUS CYCLES
REGULATING WHEEL PROFILE TRUING UNIT
AUTOMATIC GAP ELIMINATOR

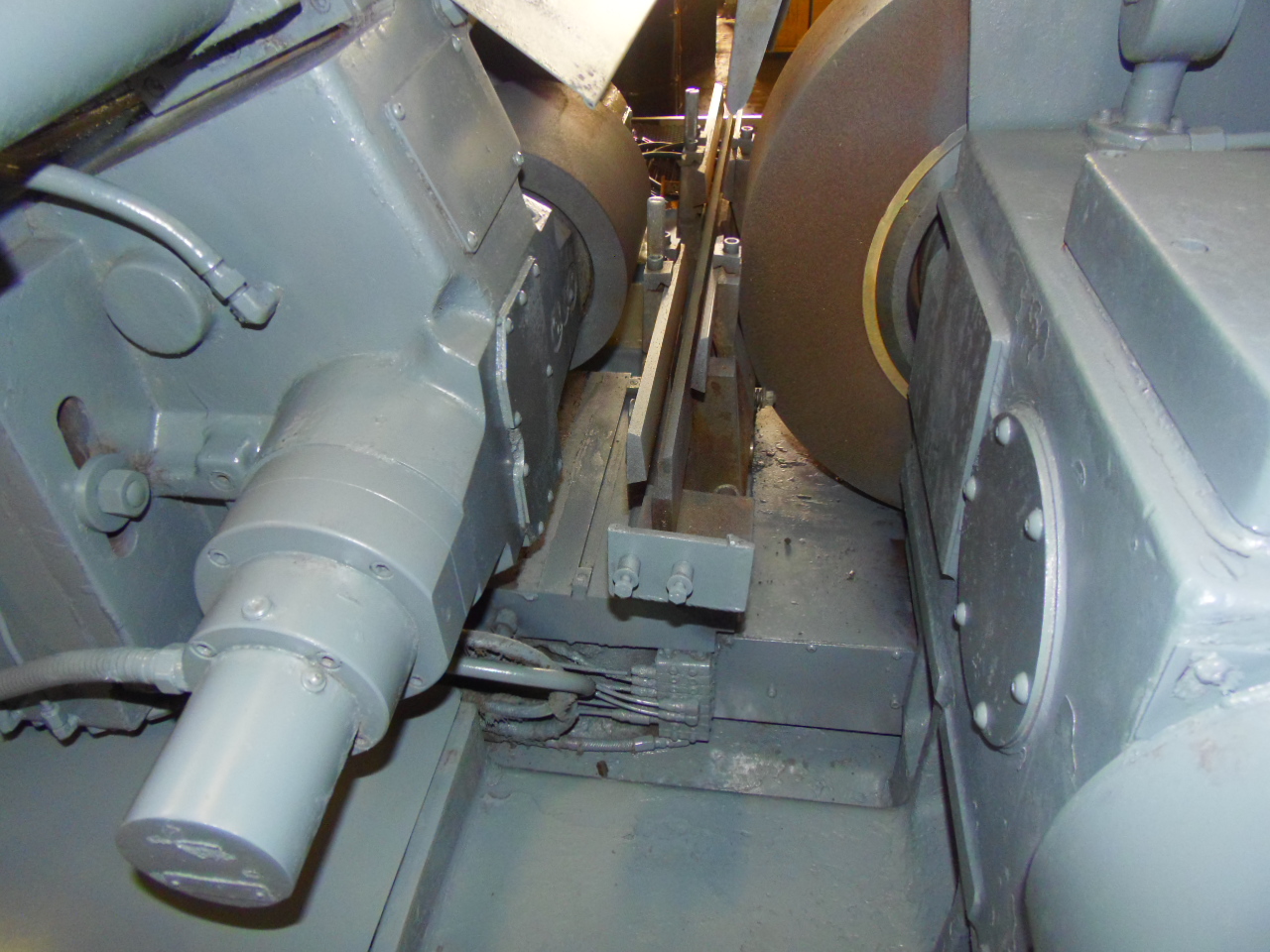

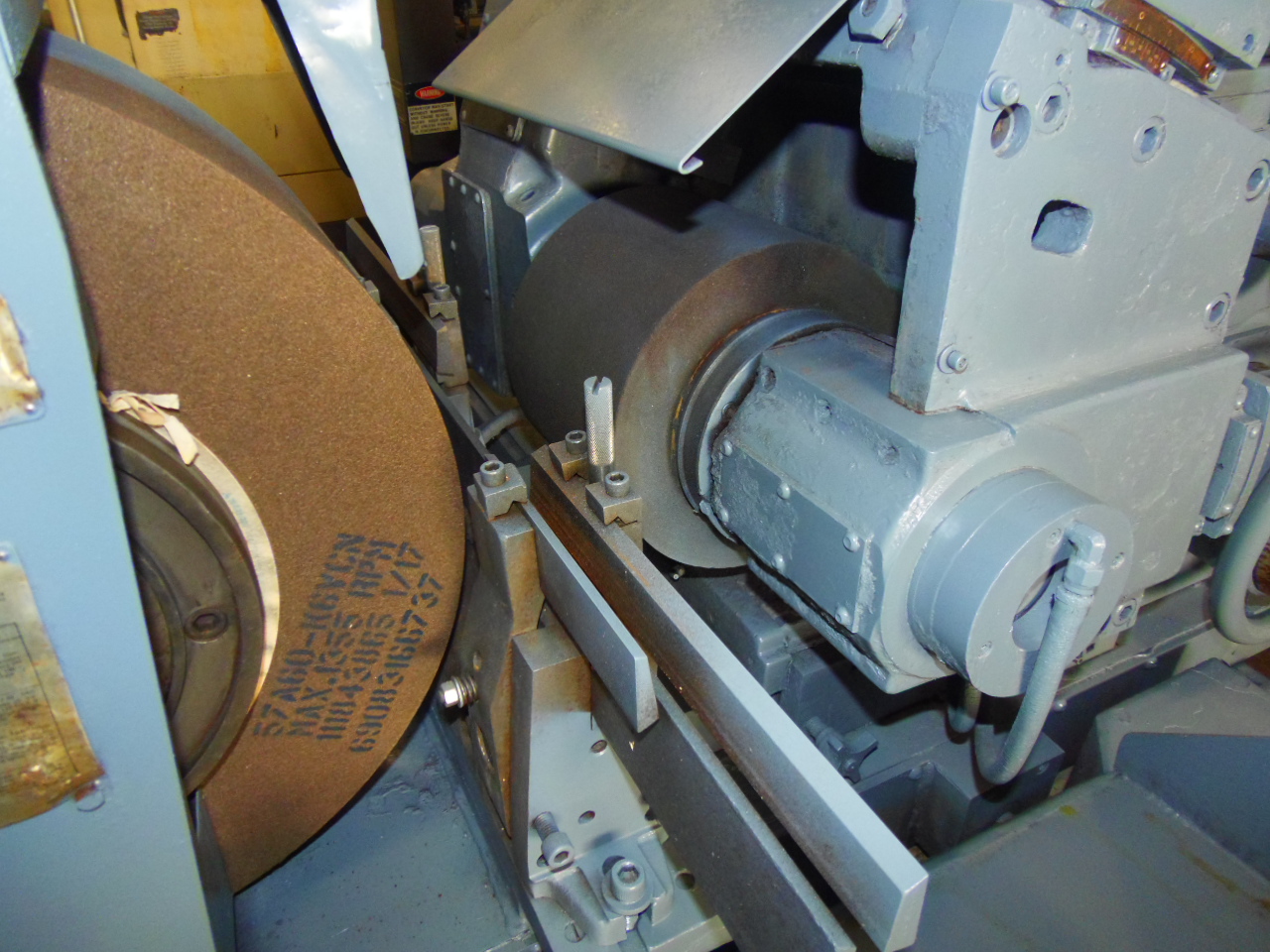

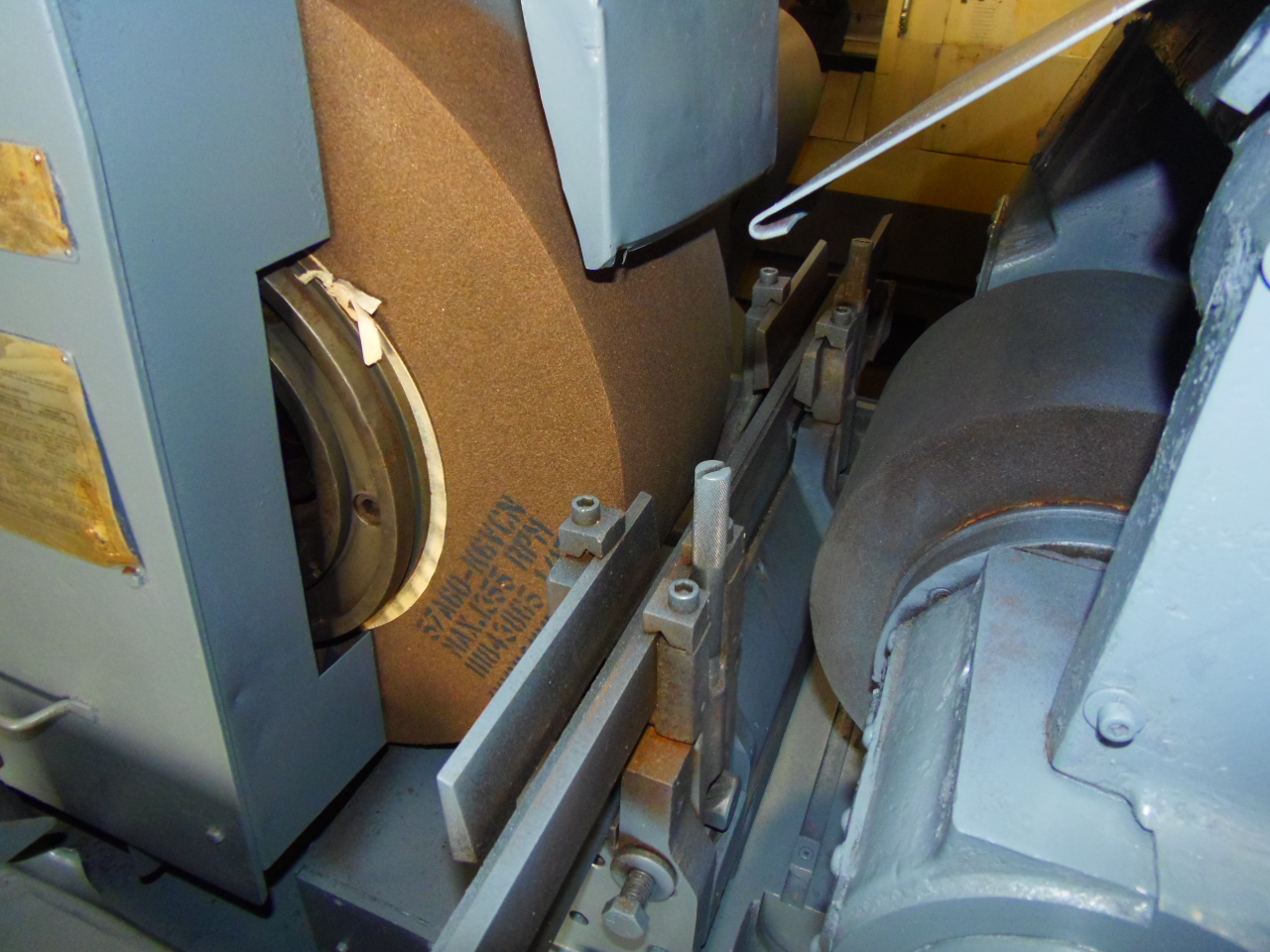

THRUFEED WORKRESTS
MISC BLADES, WHEELS, AND SPARE PARTS

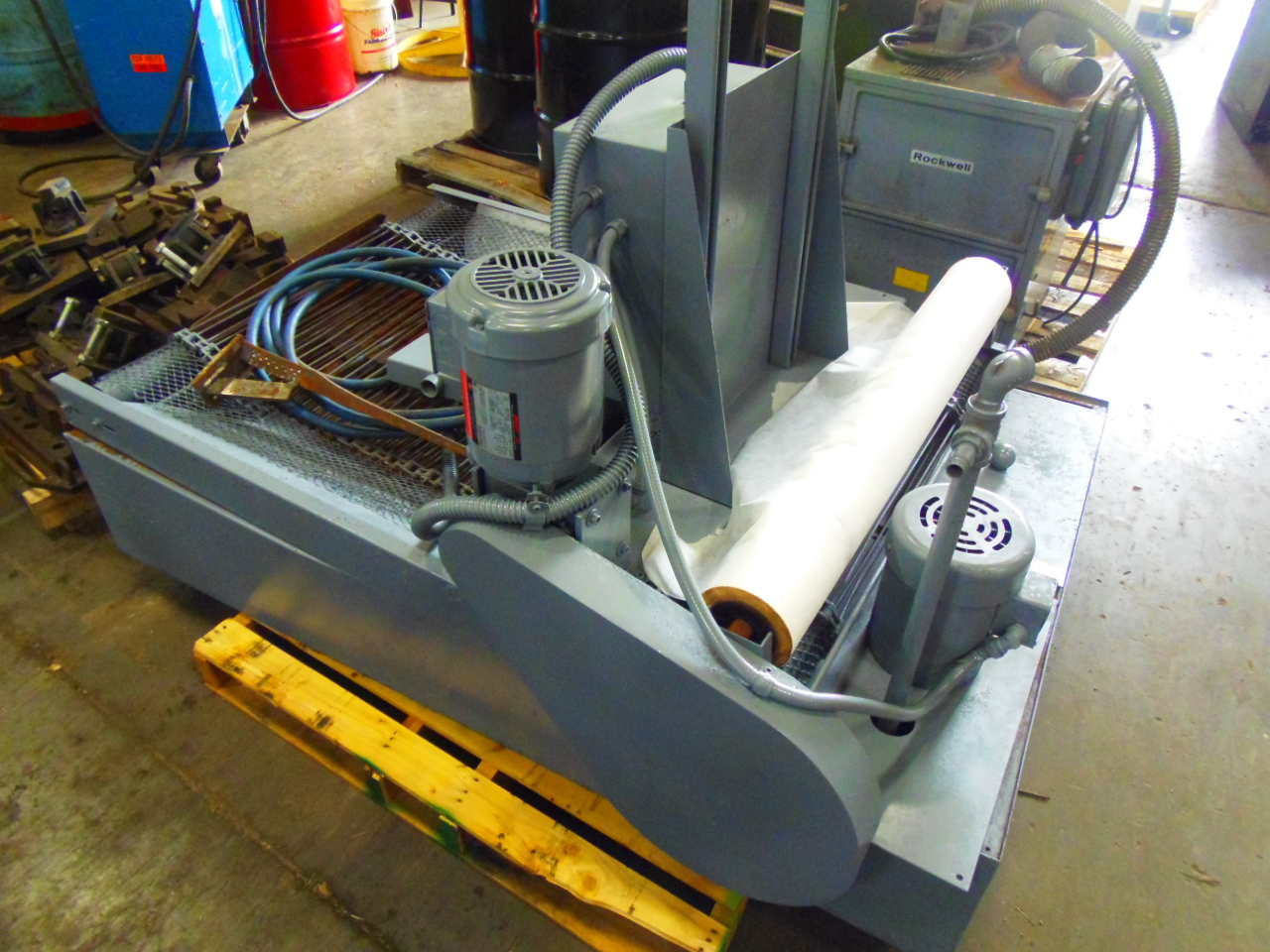

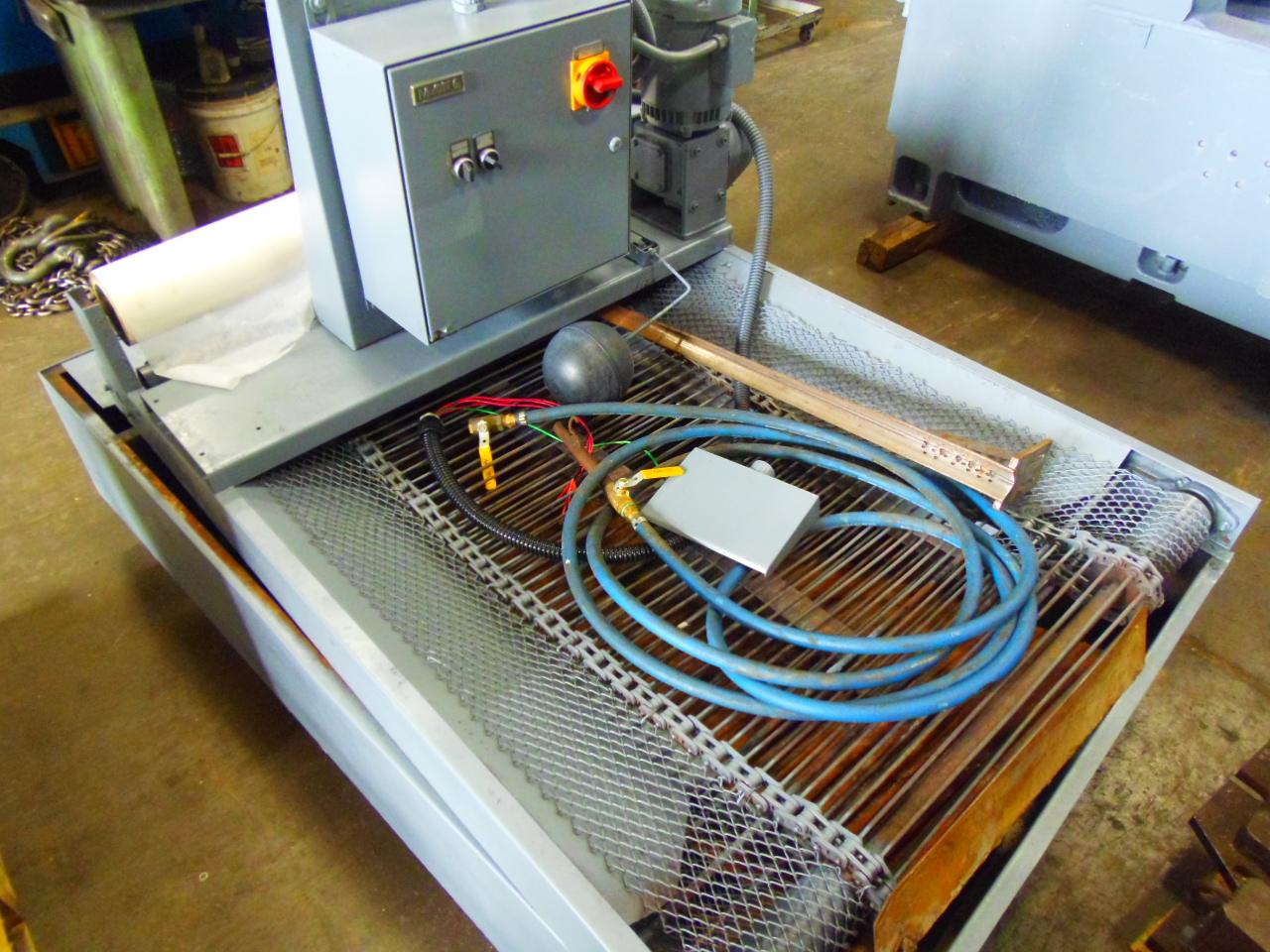

COOLANT SYSTEM
MISC. MANUALS AND PRINTS
