Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE......................... YANG
MODEL........................ CL56250G
SERIAL NUMBER................ B92651
AGE (APPROX)................. 1995
SWING........................ 22"
SWING OVER CROSS SLIDE....... 14.7"
SWING IN GAP................. 29.3"
DIST. BETWEEN CENTERS........ 98"
SPINDLE NOSE................. D1-CAMLOCK
HOLE THRU SPINDLE............ 2.28"
RPM RANGE.................... 25,51,68,133,166,237,330,
425,590,840,1500
INCH THREADING RANGE......... 4-80 TPI 32 STEPS
METRIC THREADING RANGE....... .25-7mm 32 STEPS
EQUIPPED WITH:
3 JAW CHUCK

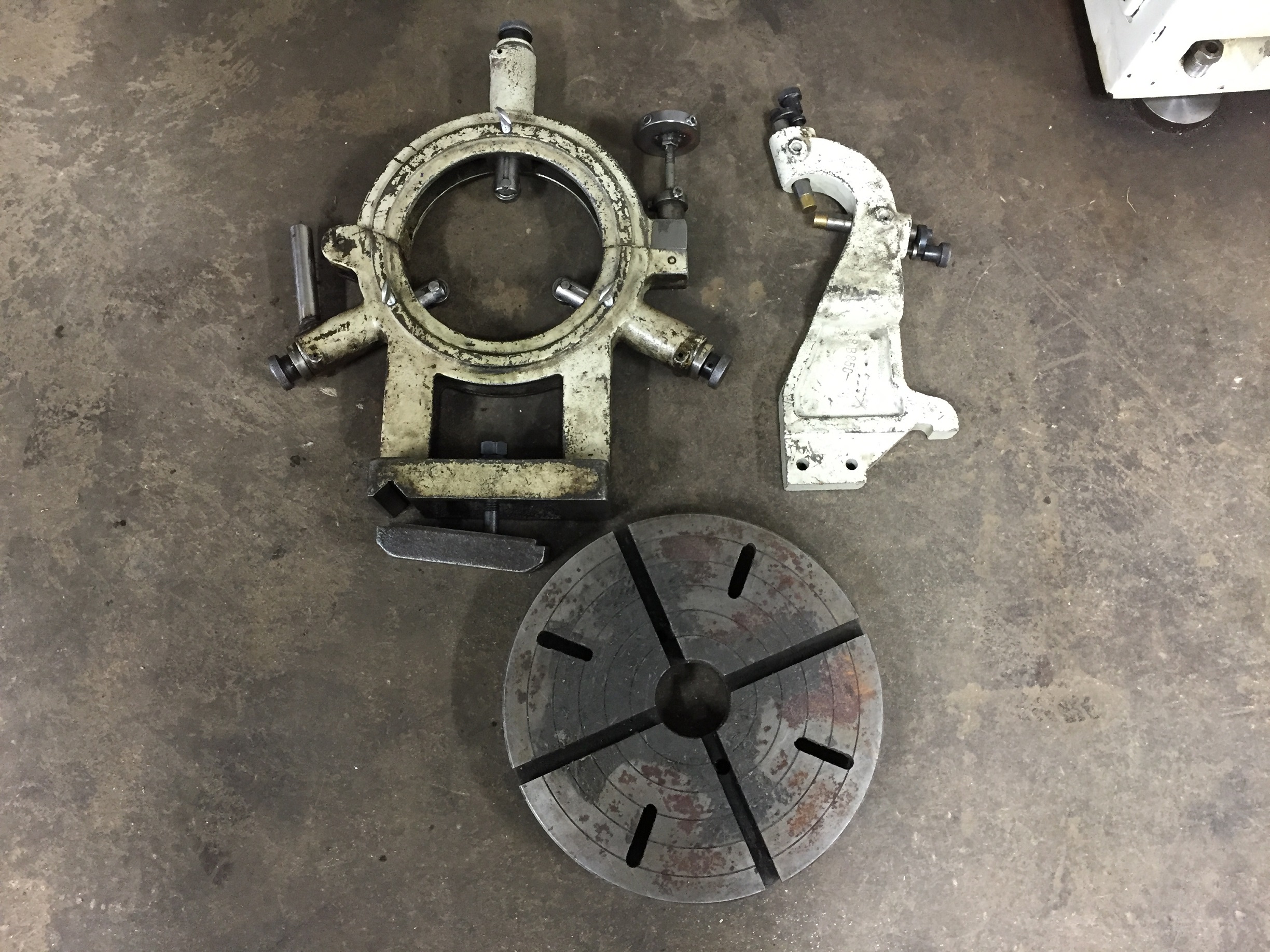

ROLLER STEADY REST
FOLLOW REST

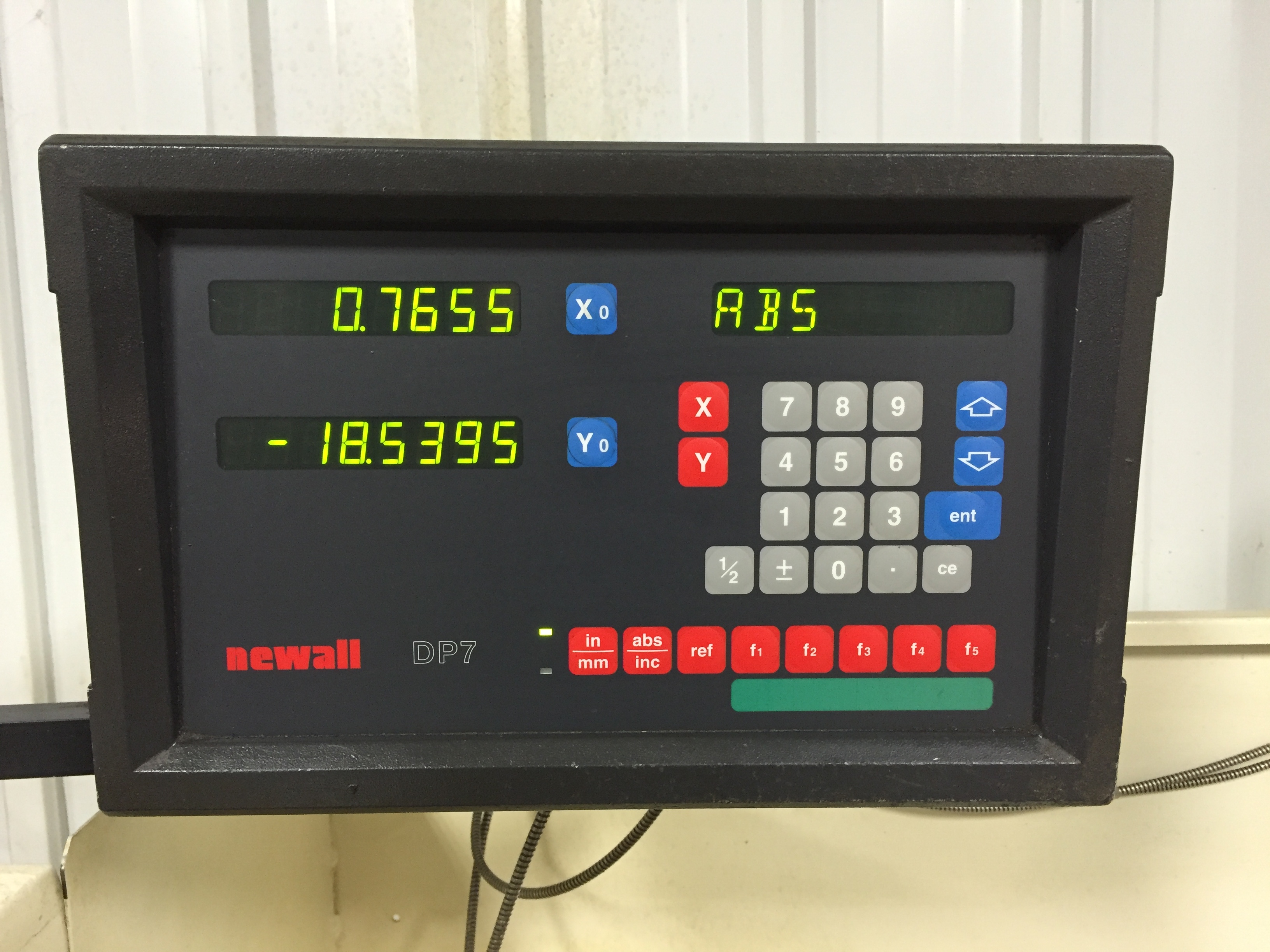

NEWALL DP7 DIGITAL READOUT
TAILSTOCK
INCH/METRIC THREADING
FULL LENGTH SPLASH GUARD
COOLANT
SPECIFICATIONS SUBJECT TO VERIFICATION
