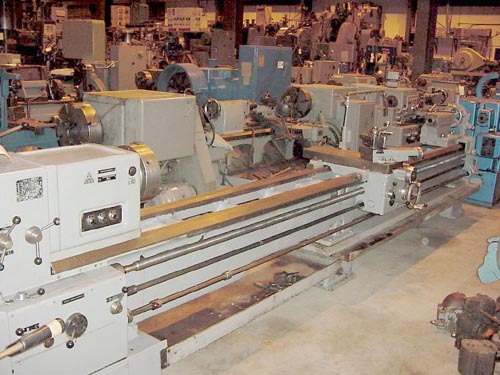

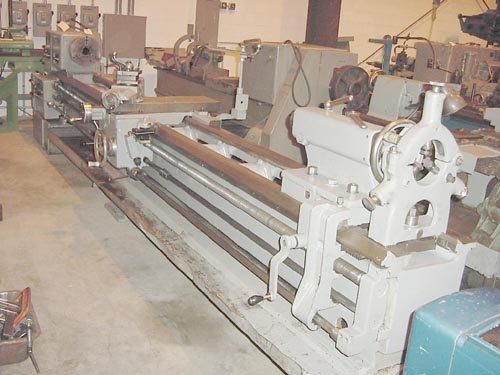

22" X 160" TOS #55, 2-5/8" HOLE, 10-1000 RPM, 10 HP, 12" 3-JAW CHK

GENERAL SPECIFICATIONS:
SERIAL # 5540792
NEW APPROXIMATELY 1969
MAX. SWING (OVER BED) 22"
(OVER CROSS SLIDE) 12.5"
(IN GAP) 32"
MAX. DIST. BETWEEN CENTERS 160"
HOLE THRU SPINDLE 2-5/8"
SPINDLE SPEEDS (16) 10-1000 RPM
MAIN MOTOR 15 HP
DIMENSIONS (APPROX.) 19.5'L X 4'W X 4.5'H
WEIGHT (APPROX.) 16,000 LBS.

EQUIPPED WITH:
12" 3-JAW CUSHMAN CHUCK
6" X 6" TOOL POST
6" CAPACITY 3-POINT STEADY REST
TAILSTOCK
INCH/METRIC THREADING
COOLANT/CHIP PAN
TRAV-A-DIAL INDICATOR
