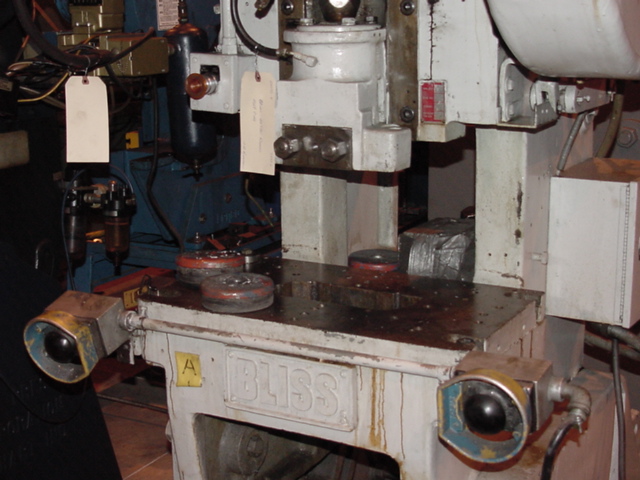

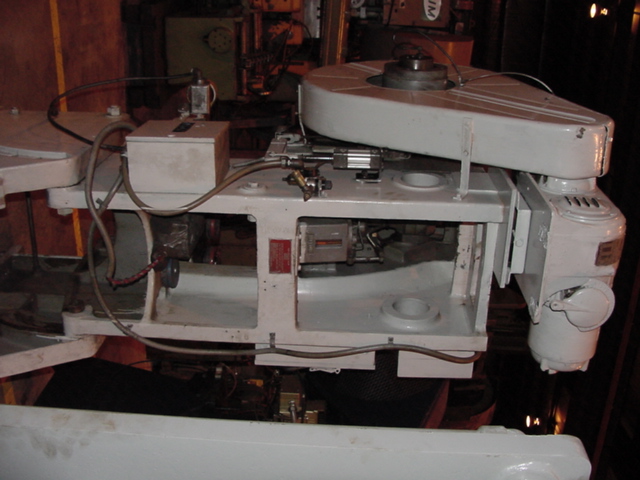

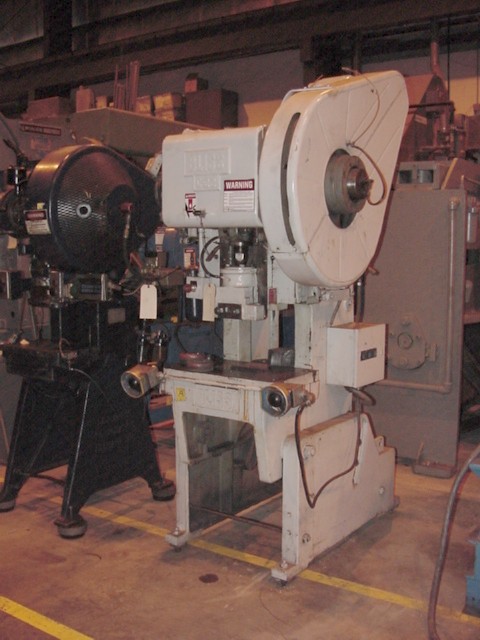

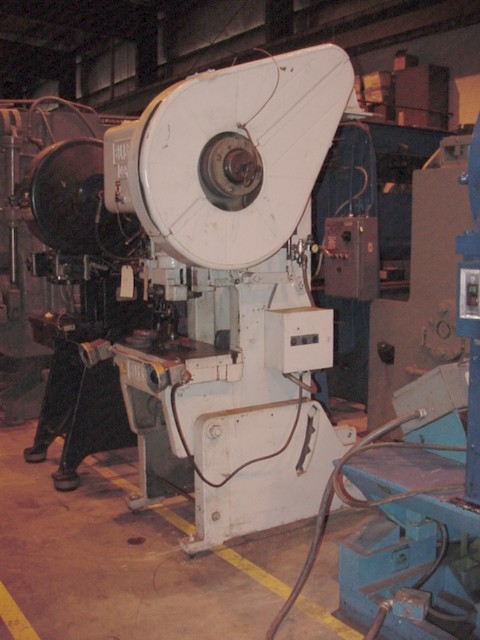

22 TON BLISS C-22, 2.5" STR., 2.25" SLIDE ADJ., 7.5" THROAT, 9.25" SH

GENERAL SPECIFICATIONS:
MANUFACTUER BLISS
MODEL C-22
CAPACITY 22 TONS
CRANKSHAFT DIA. MAIN BEARING 2.5"
DIA. AT CRANK PIN 3.75"
STROKES (MAX.) 250/MIN.
STROKE OF SLIDE 2.5"
ADJUSTMENT OF SLIDE 2.25"
SLIDE AREA ACROSS BOLT LUGS 10-1/4"LR x 8-1/8"FB
STEM HOLE IN SLIDE (DIA. x DEPTH) 1-1/2" x 2-1/2"
BED AREA 23-1/2"LR x 14"FB
BED OPENING 13"LR x 9"FB
DIA./INTERSECTING CIRCLE IN BED 10-1/2"
DEPTH OF THROAT 7-1/2"
WIDTH OF BACK OPENING 12"
BOLSTER THICKNESS 1-3/4"
SHUTHEIGHT 9-1/4"
DIST. FLOOR TO BED 31-1/2"
OVERALL HEIGHT W/MOTOR 94"
FLOOR SPACE OF LEGS 26-1/2"LR x 44-1/2"FB
WEIGHT (APPROX.) 3,650 LBS.
