Specifications
Equipped With
SPECIFICATIONS:

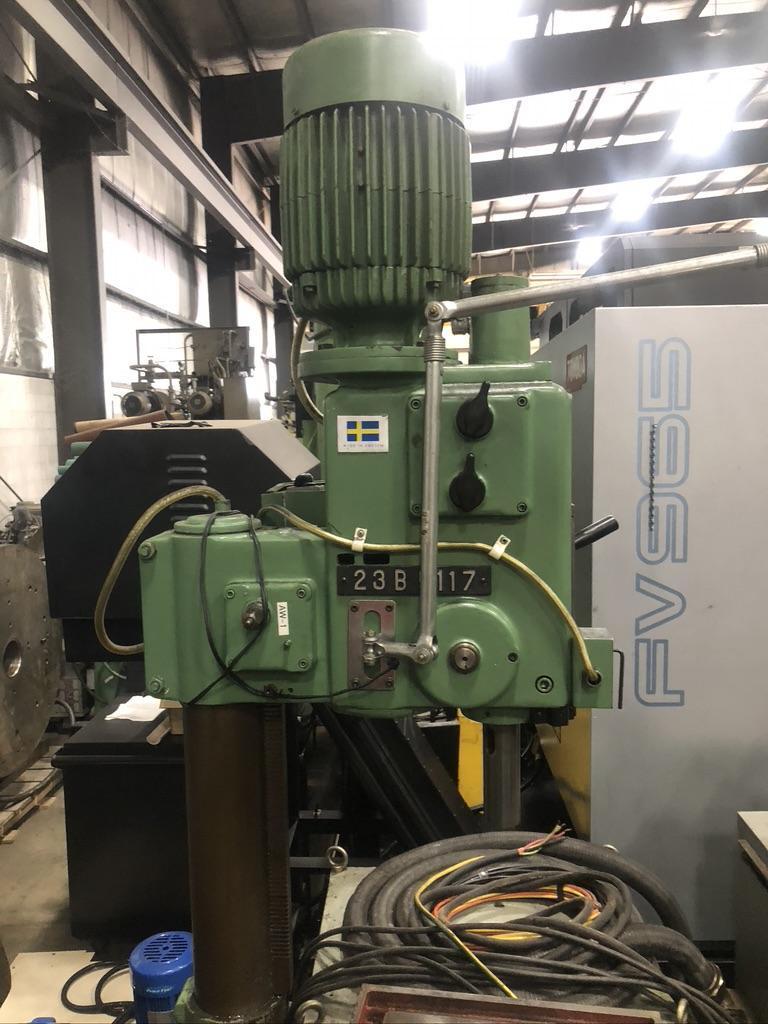

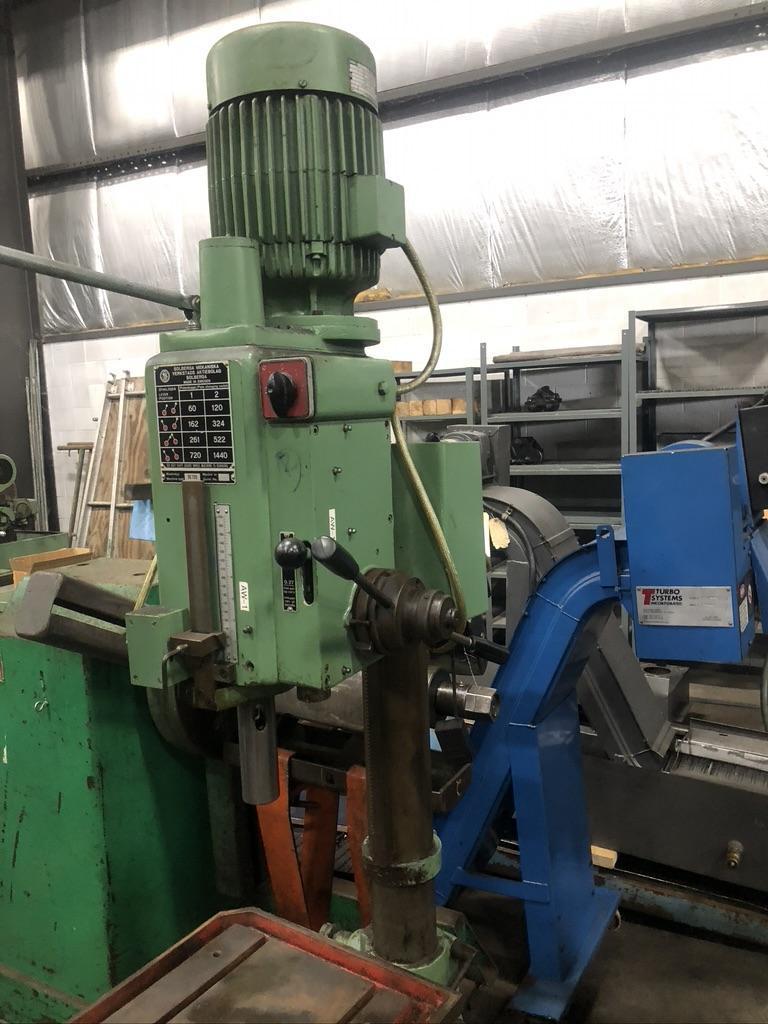

MANUFACTURER................... SOLBERGA
TYPE........................... GEAR HEAD DRILL PRESS
MODEL NUMBER................... SE725
SERIAL NUMBER.................. 6961

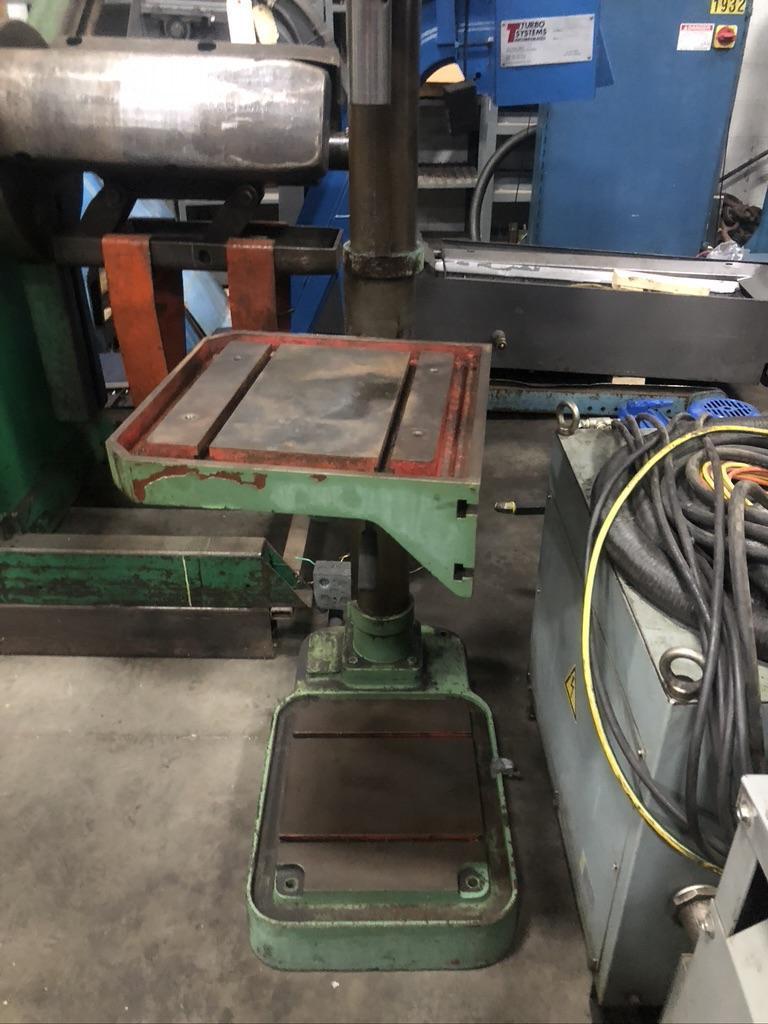

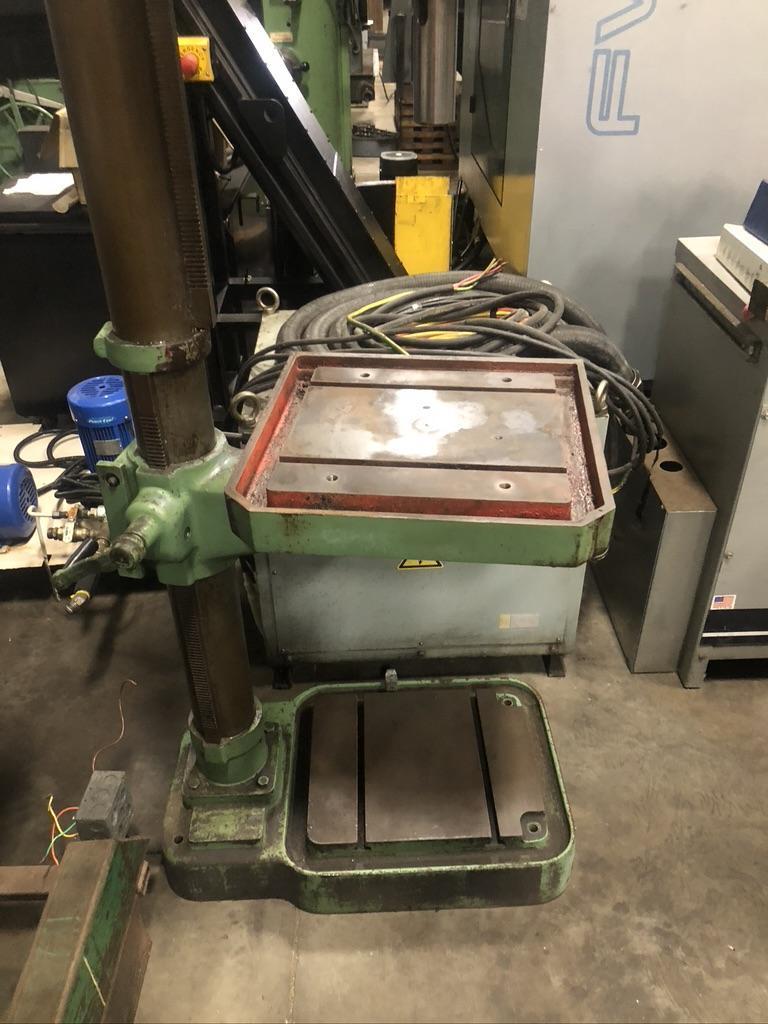

TABLE SIZE..................... 14 X 14
HEAD ADJUSTMENT................ 14"
TABLE ADJUSTMENT............... 18"
SPINDLE SPEEDS................. 60/120, 162/324,261/522,720/1440
SPINDLE TAPER.................. #3MT
DRILLS TO CTR. OF CIRCLE....... 22 INCH.
SPINDLE STROKE................. 7 INCH.

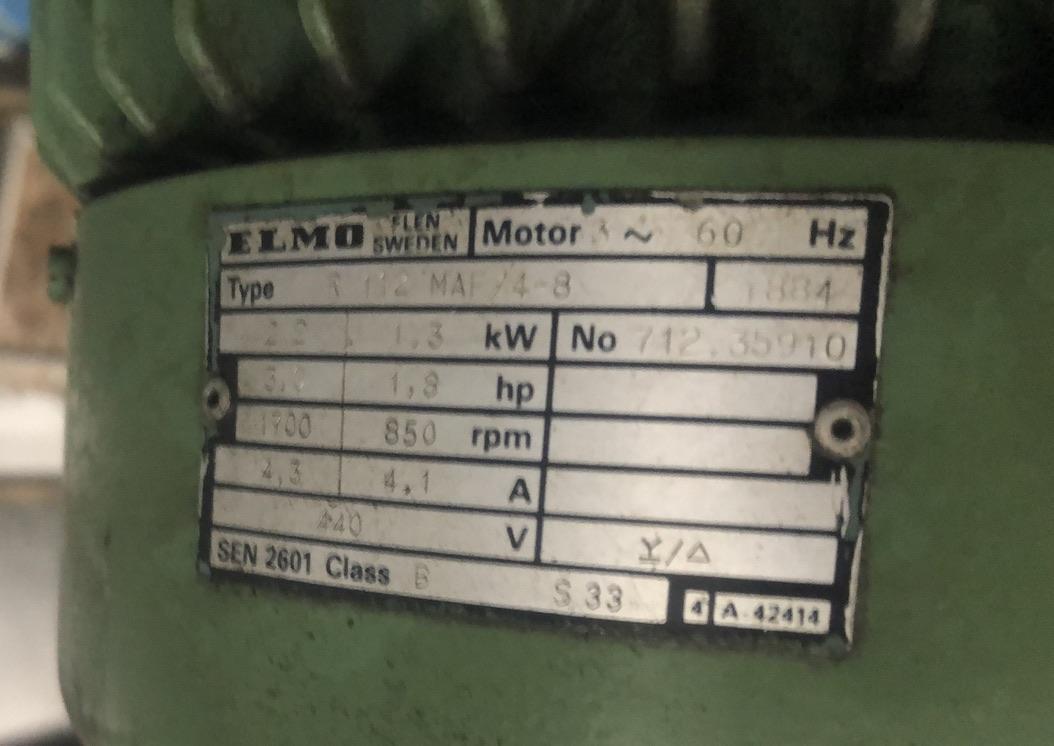

MOTOR.......................... 3 HP 440/3/60
EQUIPPED WITH:
T-SLOTS ON TOP AND SIDE OF TABLE
0.10, 0.17, 0.27 POWER FEEDS
