Specifications
Equipped With
GENERAL SPECIFICATIONS:

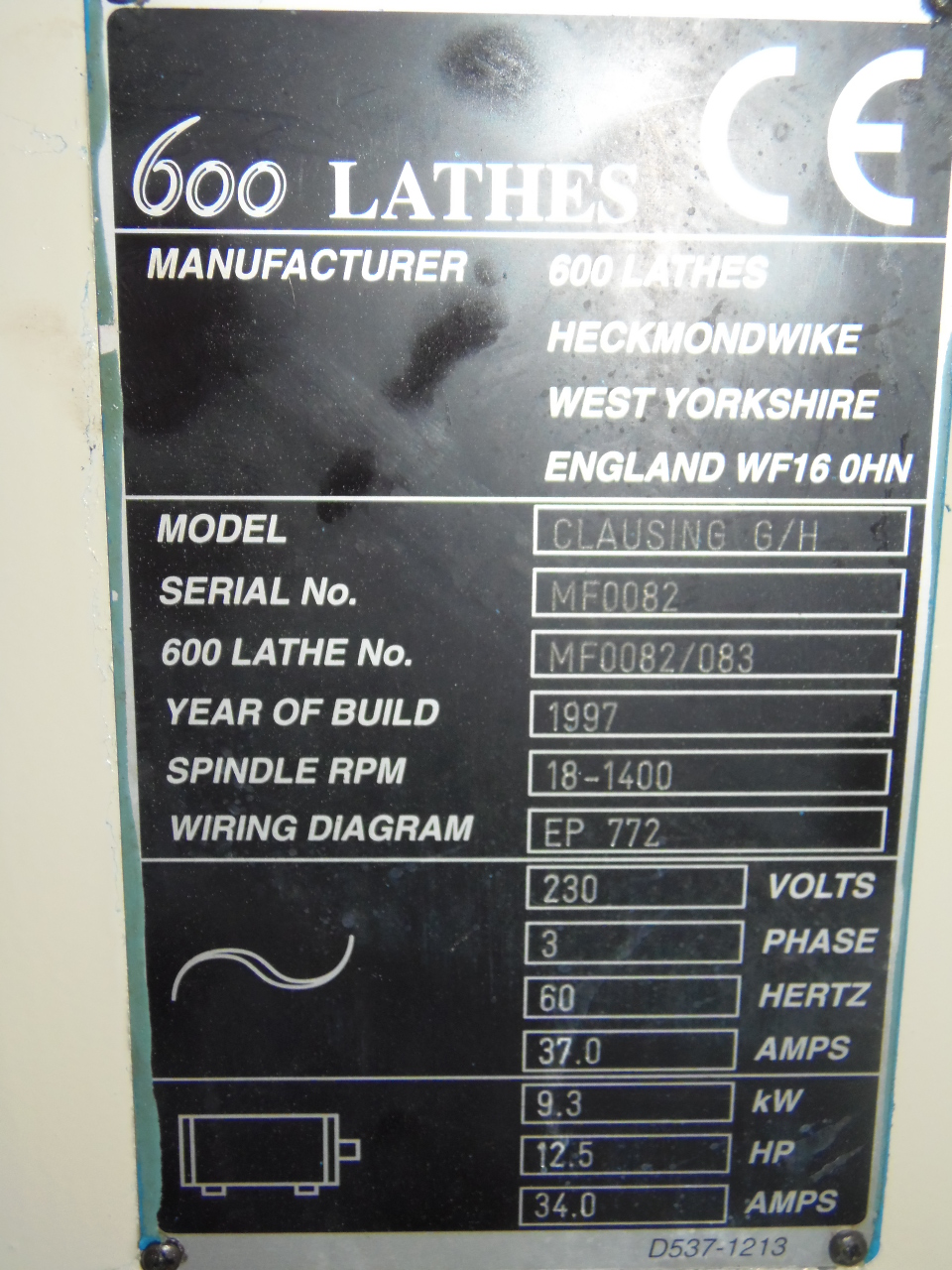

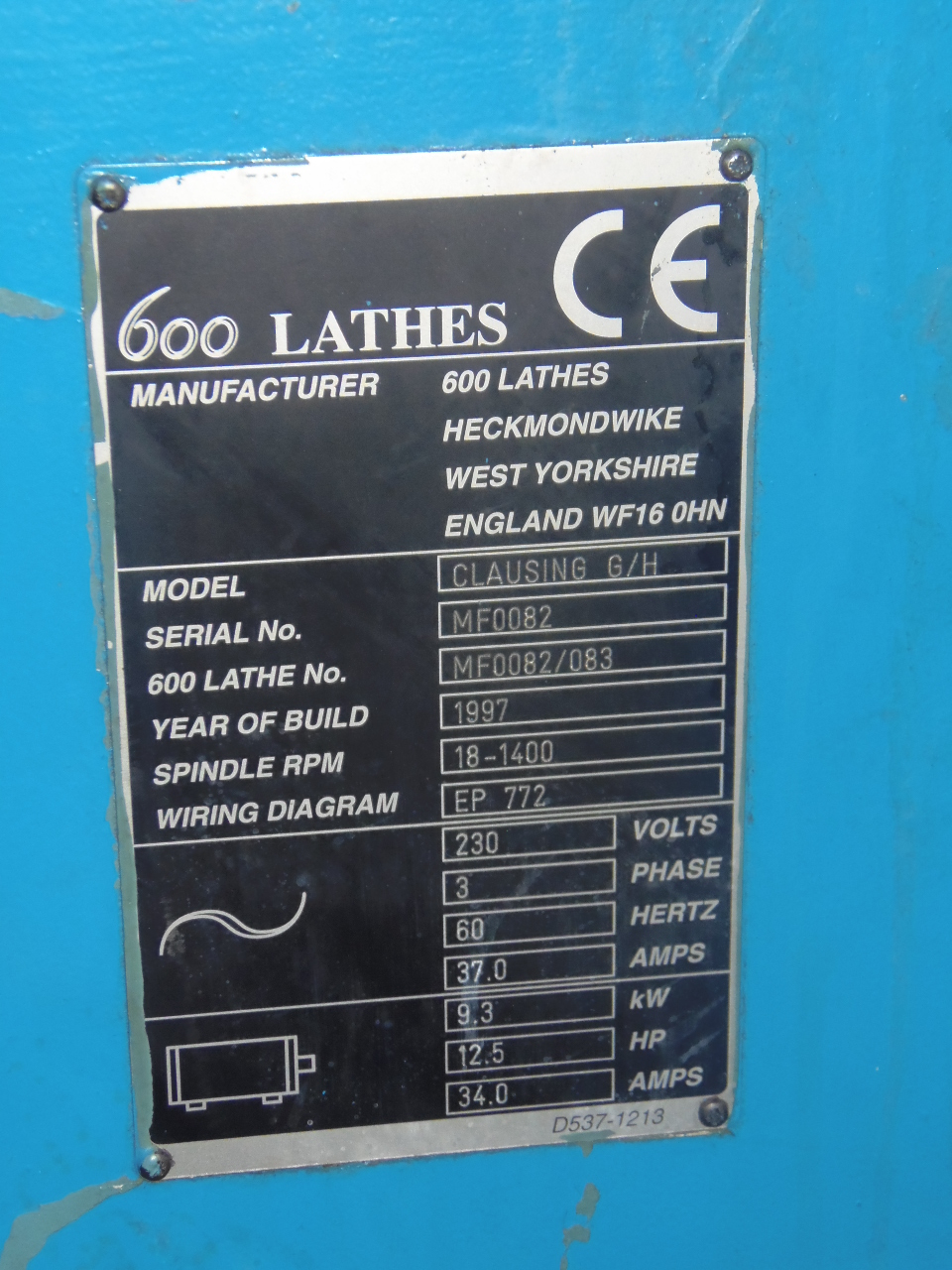

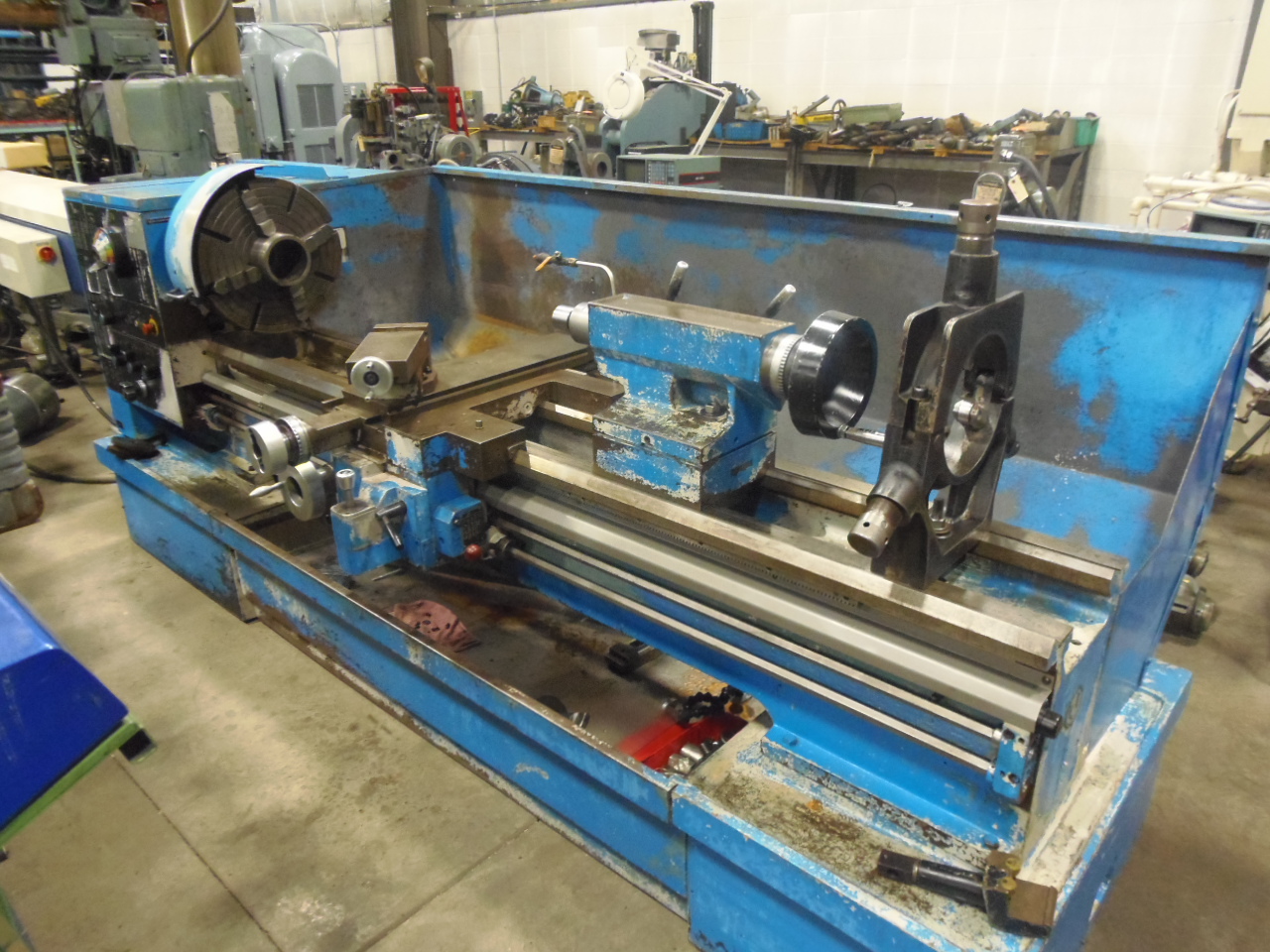

MAKE...................... CLAUSING COLCHESTOR
MODEL..................... 600 G/H
SERIAL NUMBER............. MF0082
AGE....................... 1997
SWING..................... 21"
SWING OVER CROSS SLIDE.... 14.57"
SWING IN GAP.............. 32.6"
LENGTH OF GAP............. 8.5"
DIST. BETWEEN CENTERS..... 80"

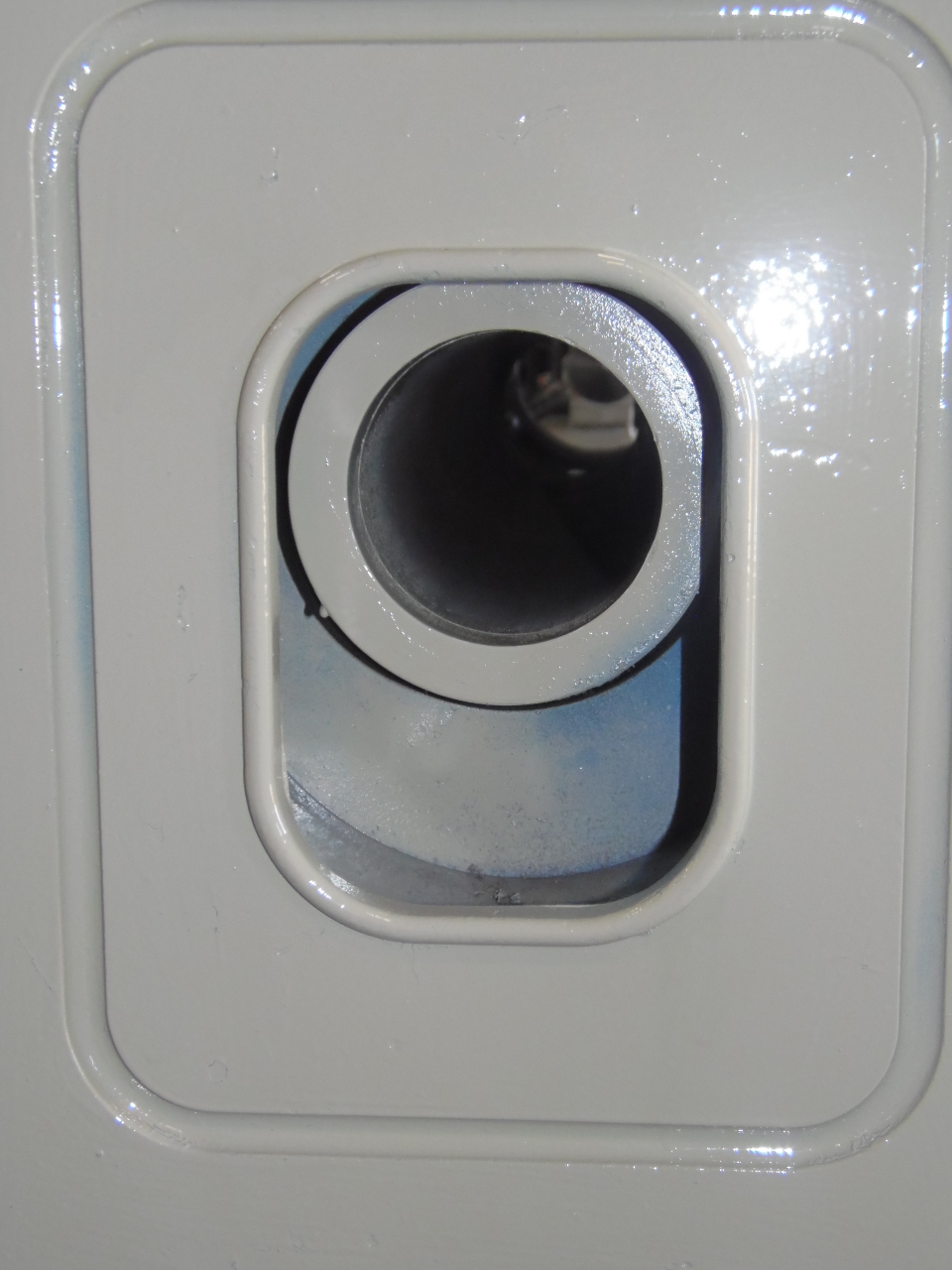

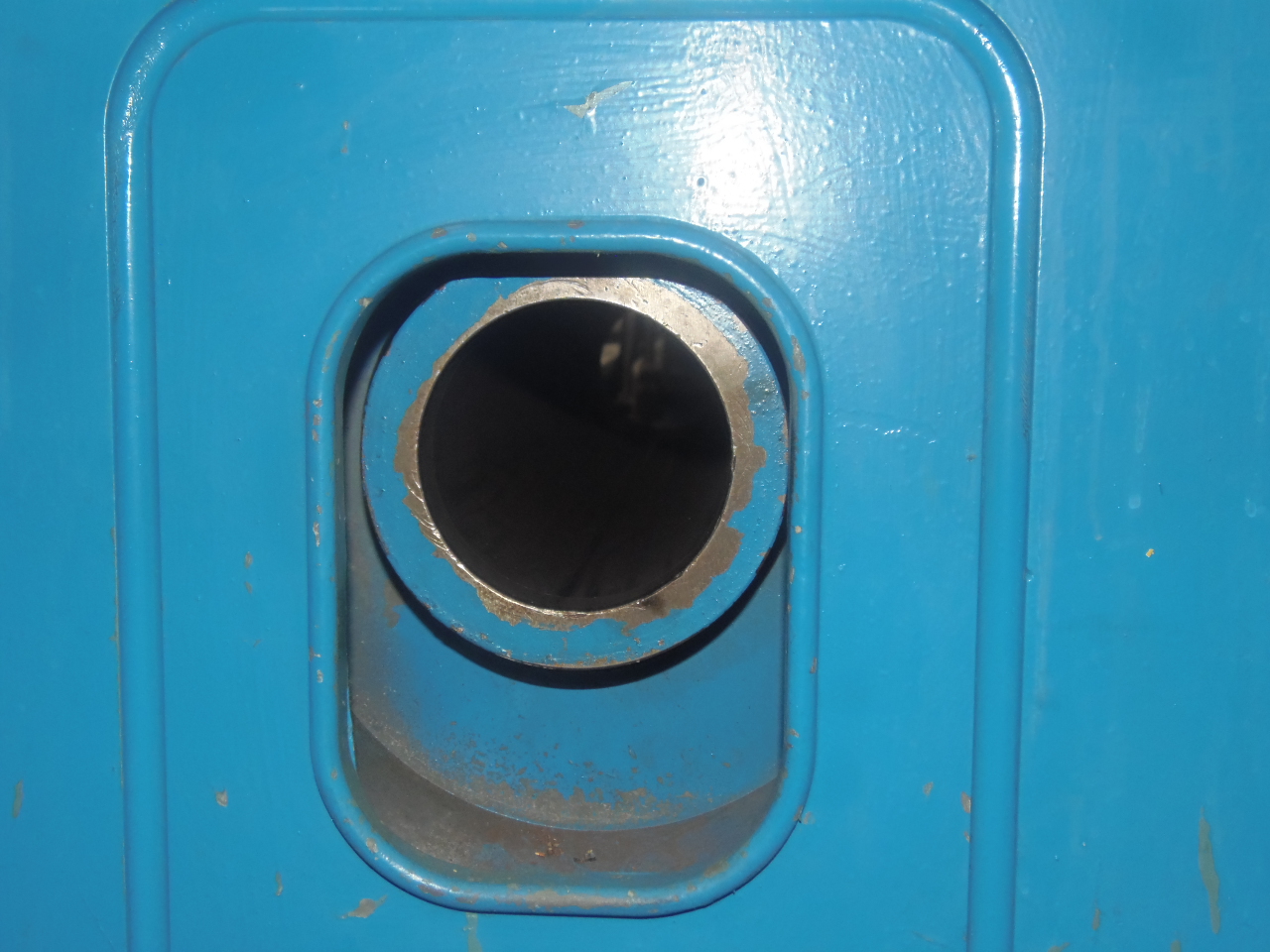

HOLE THRU SPINDLE......... 3.5"
INCH THREADING (73)....... 2 TO 84 TPI
DIAMETRAL THREADING (27).. 8 TO 72
METRIC THREADING (51)..... 0.2 TO 9 mm
MODULE THREADING (51)..... 0.2 TO 3.5
TAILSTOCK SPINDLE TAPER... MT-6
TAILSTOCK SPINDLE TRAVEL.. 7"
SPINDLE NOSE.............. D1-11 CAMLOCK

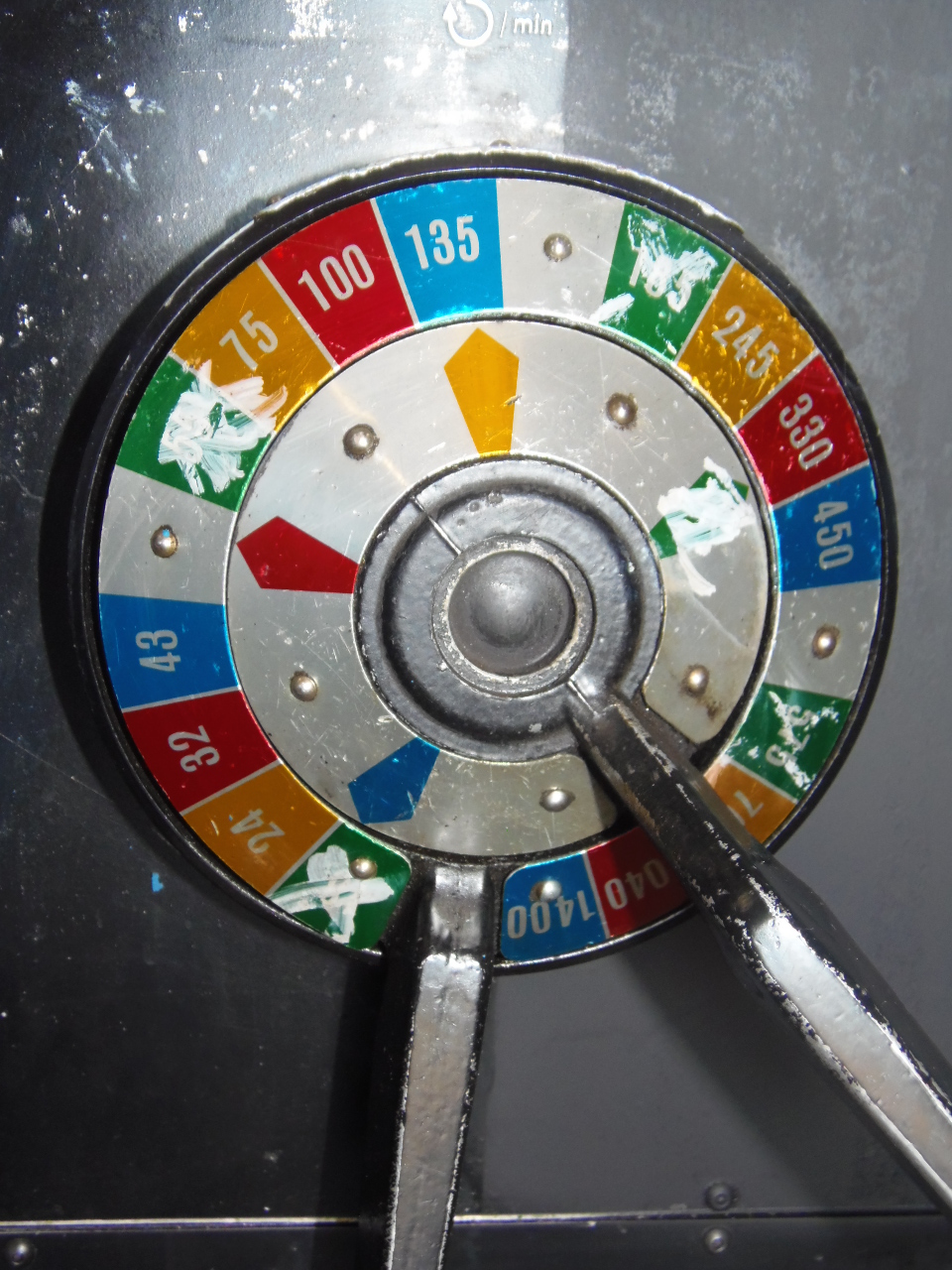

SPEED RANGE............... 18-1400 RPM
SPINDLE SPEEDS FOR/REV.... 18
MOTOR..................... 12.5 HP
WEIGHT.................... 6300 LBS.
EQUIPPED WITH:
RAPID TRAVERSE

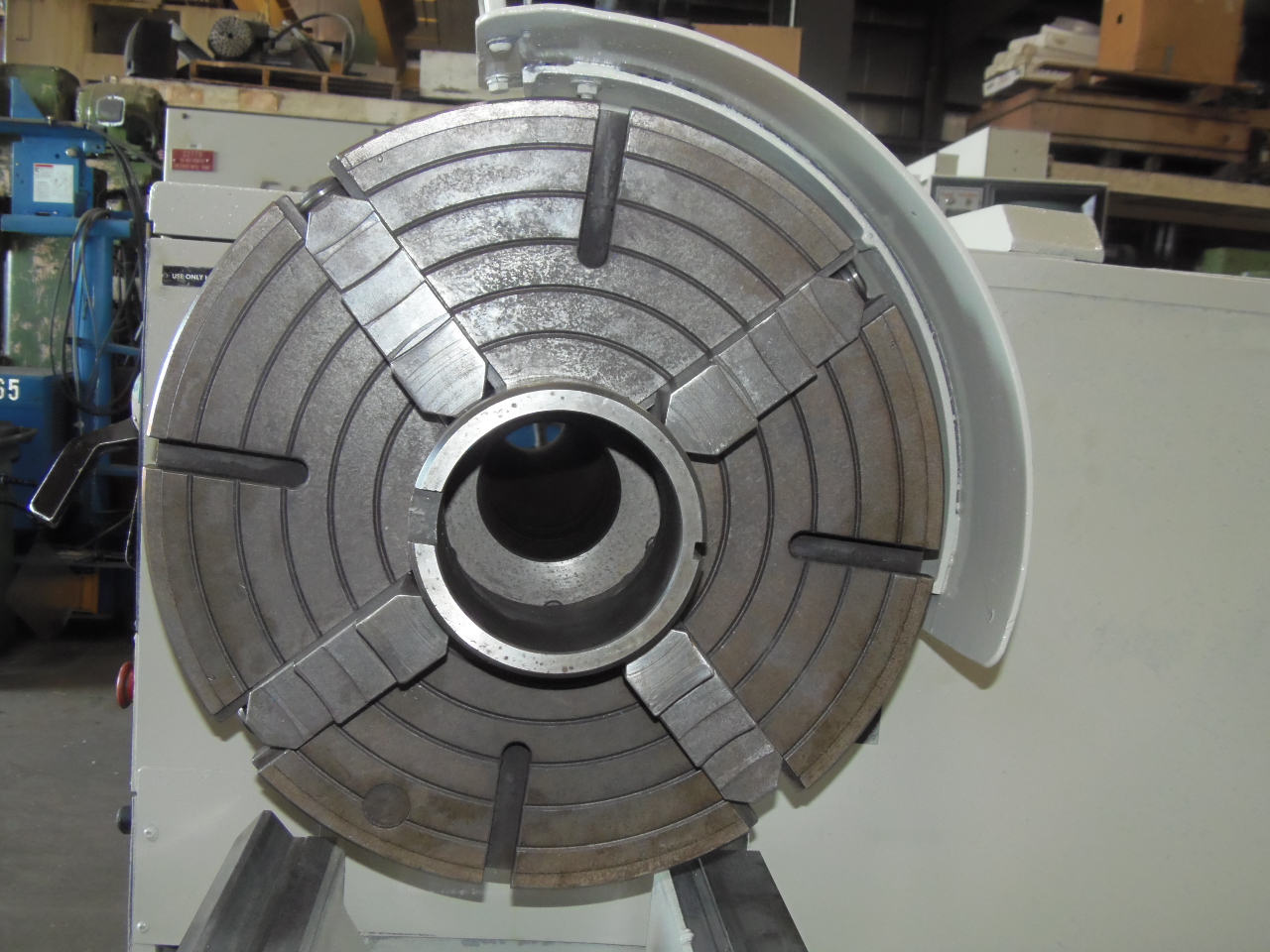

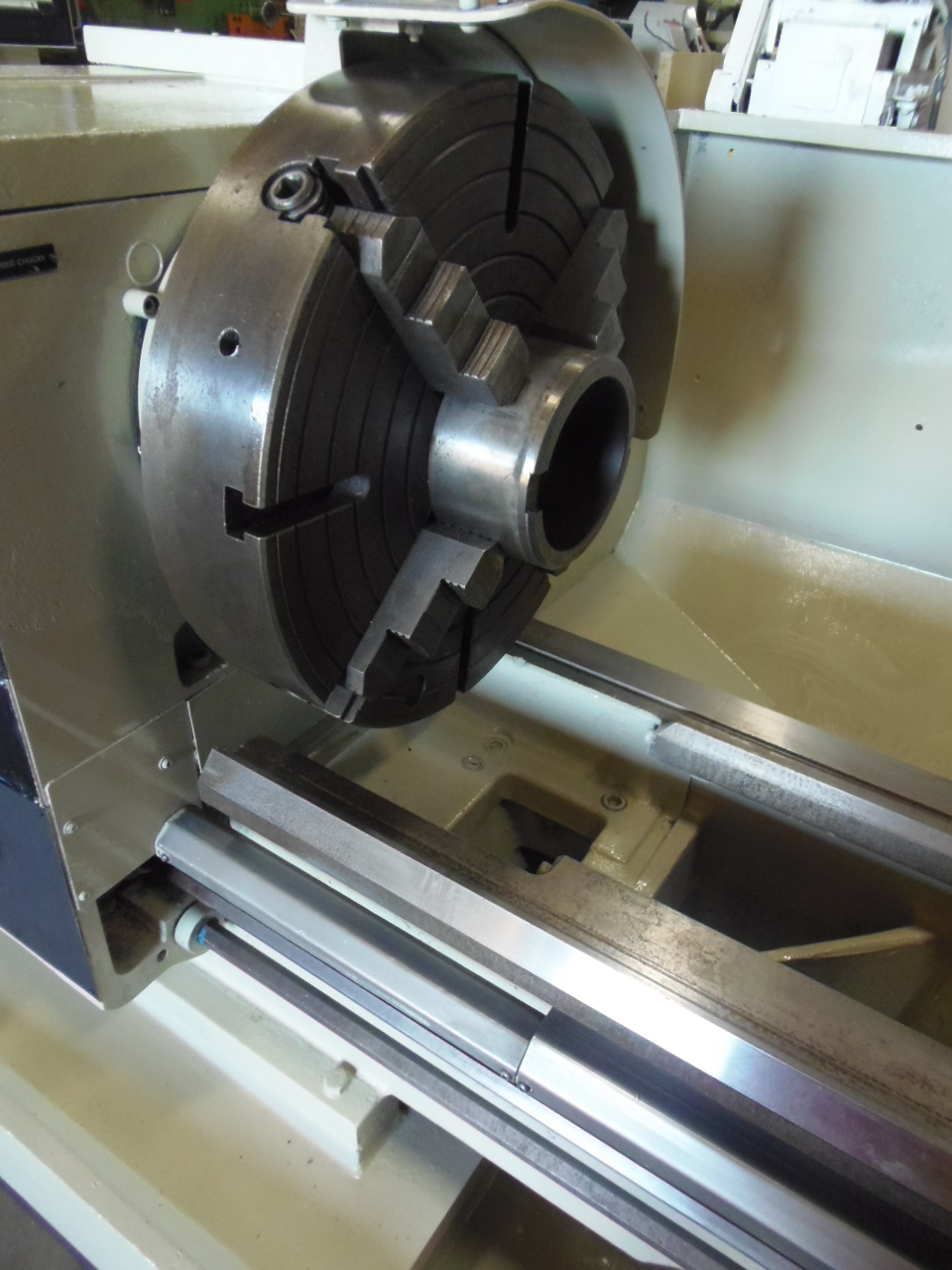

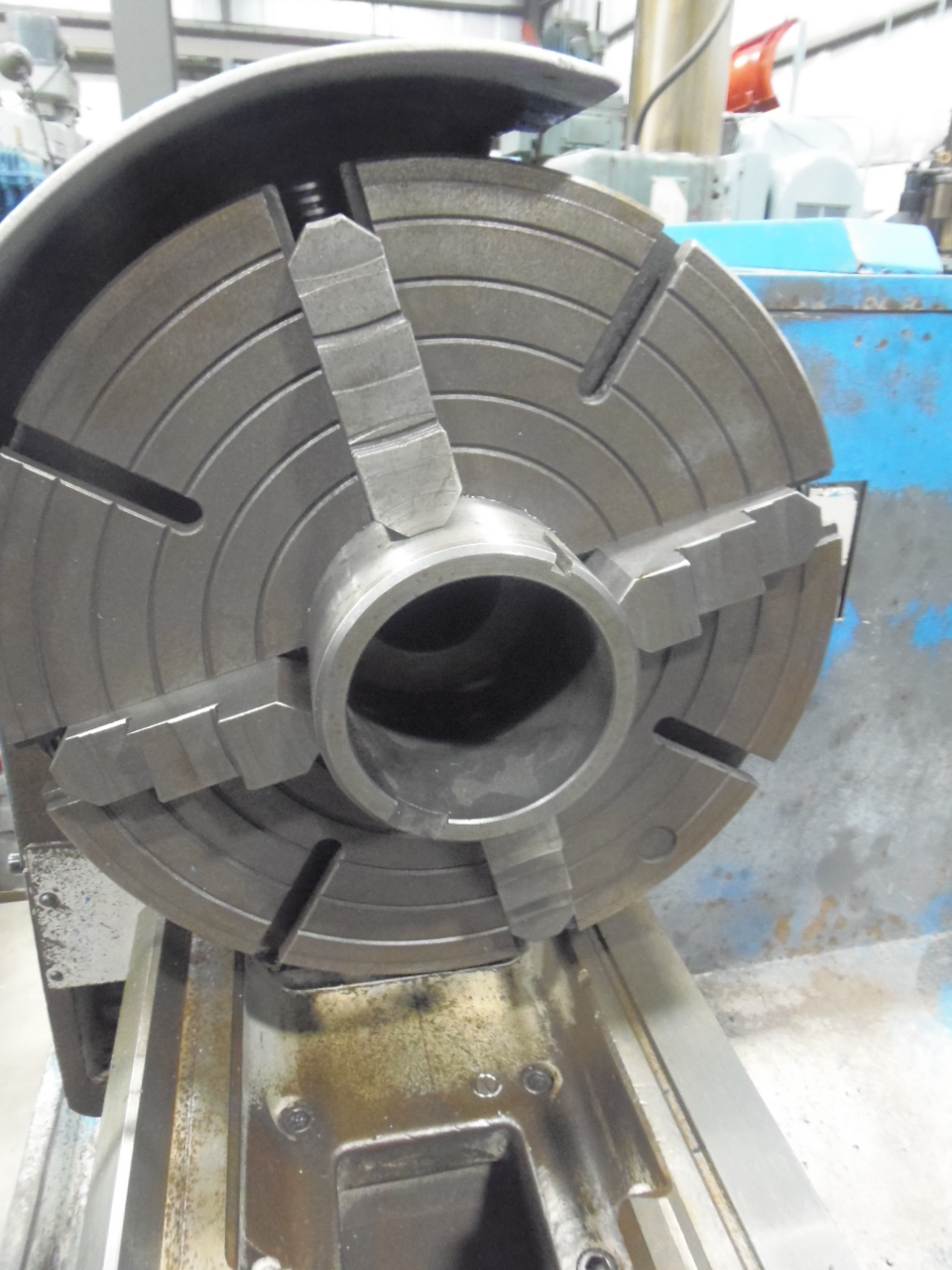

20" 4-JAW CHUCK

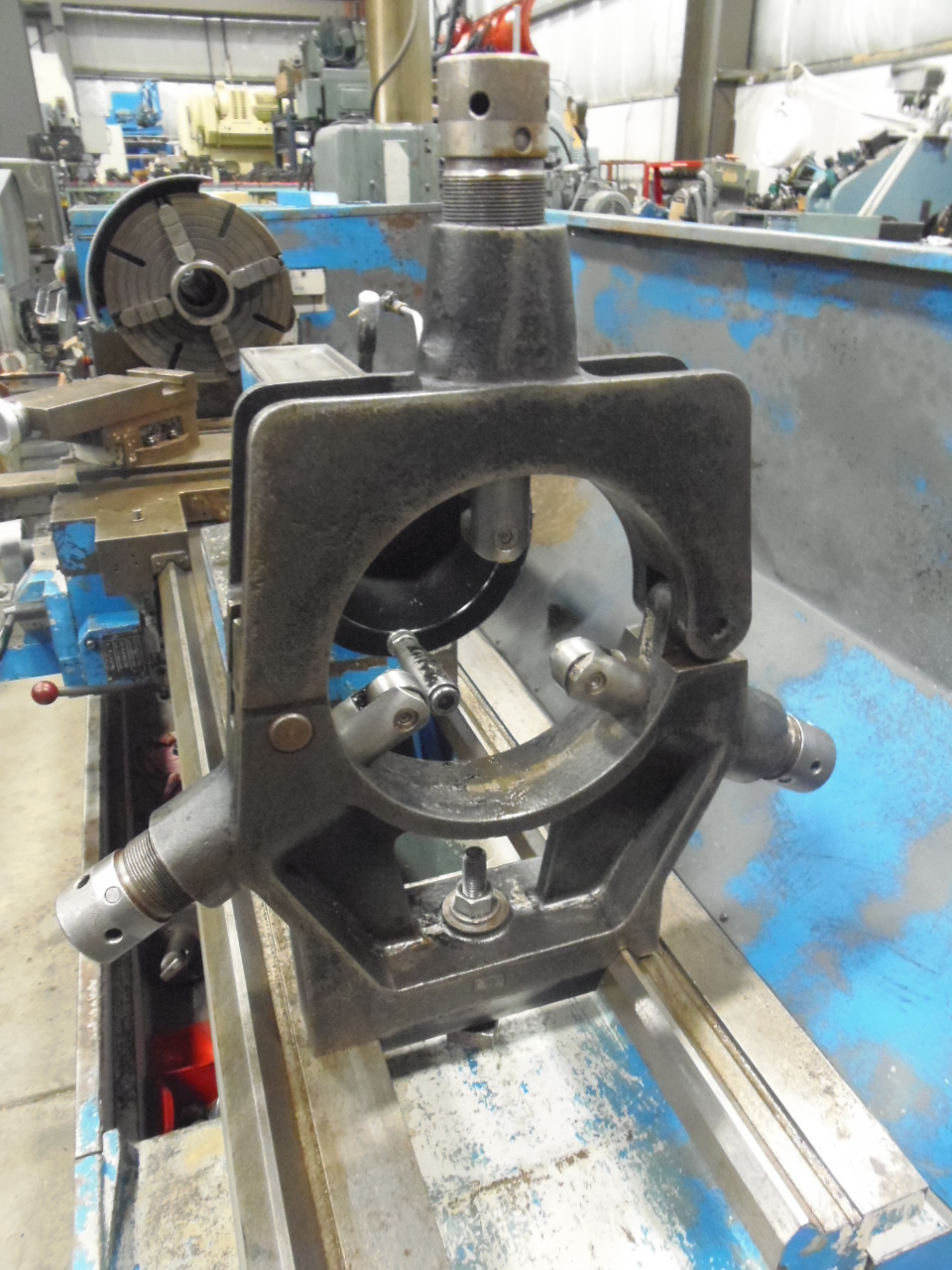

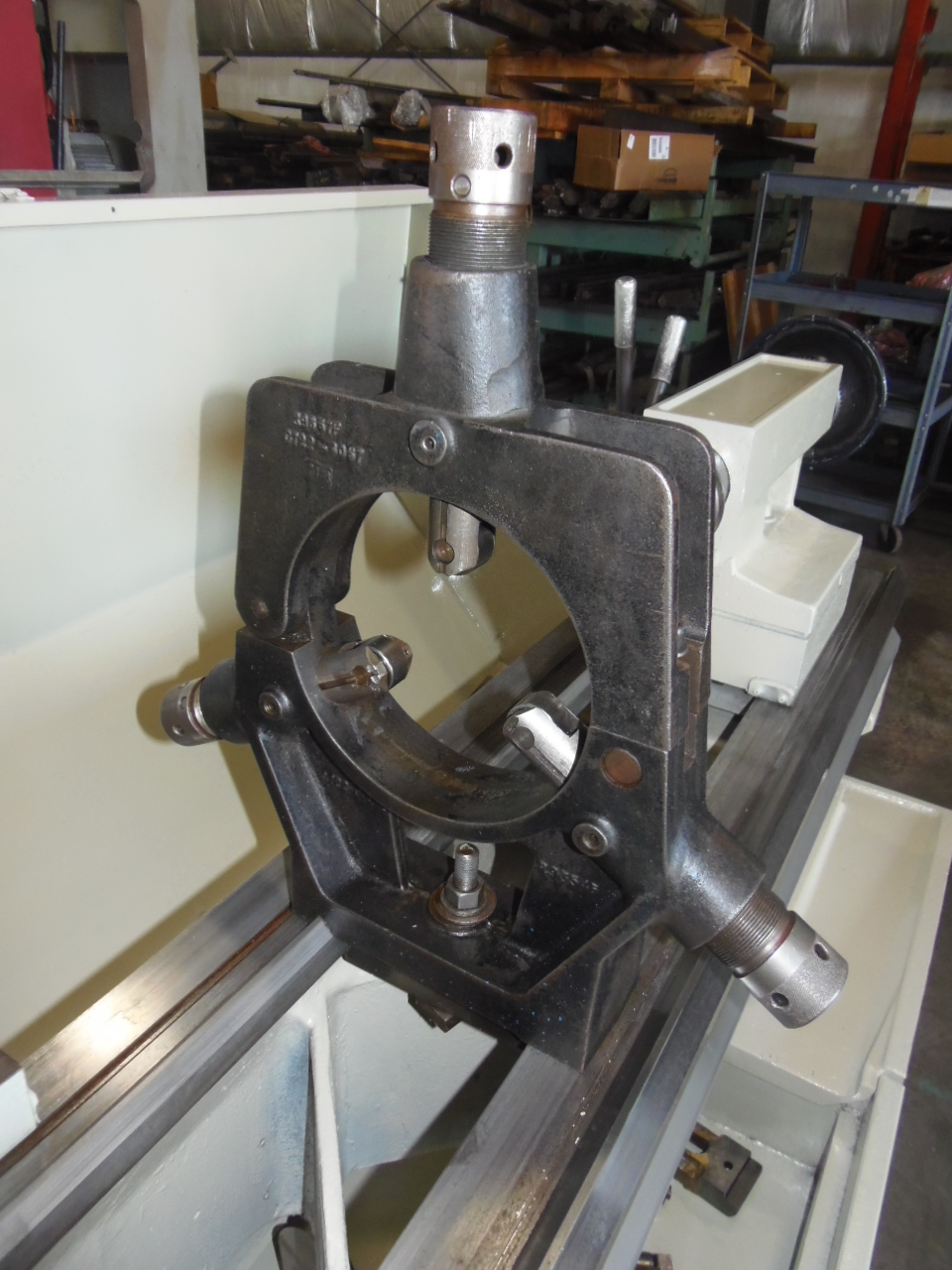

9" ROLLER STEADY REST

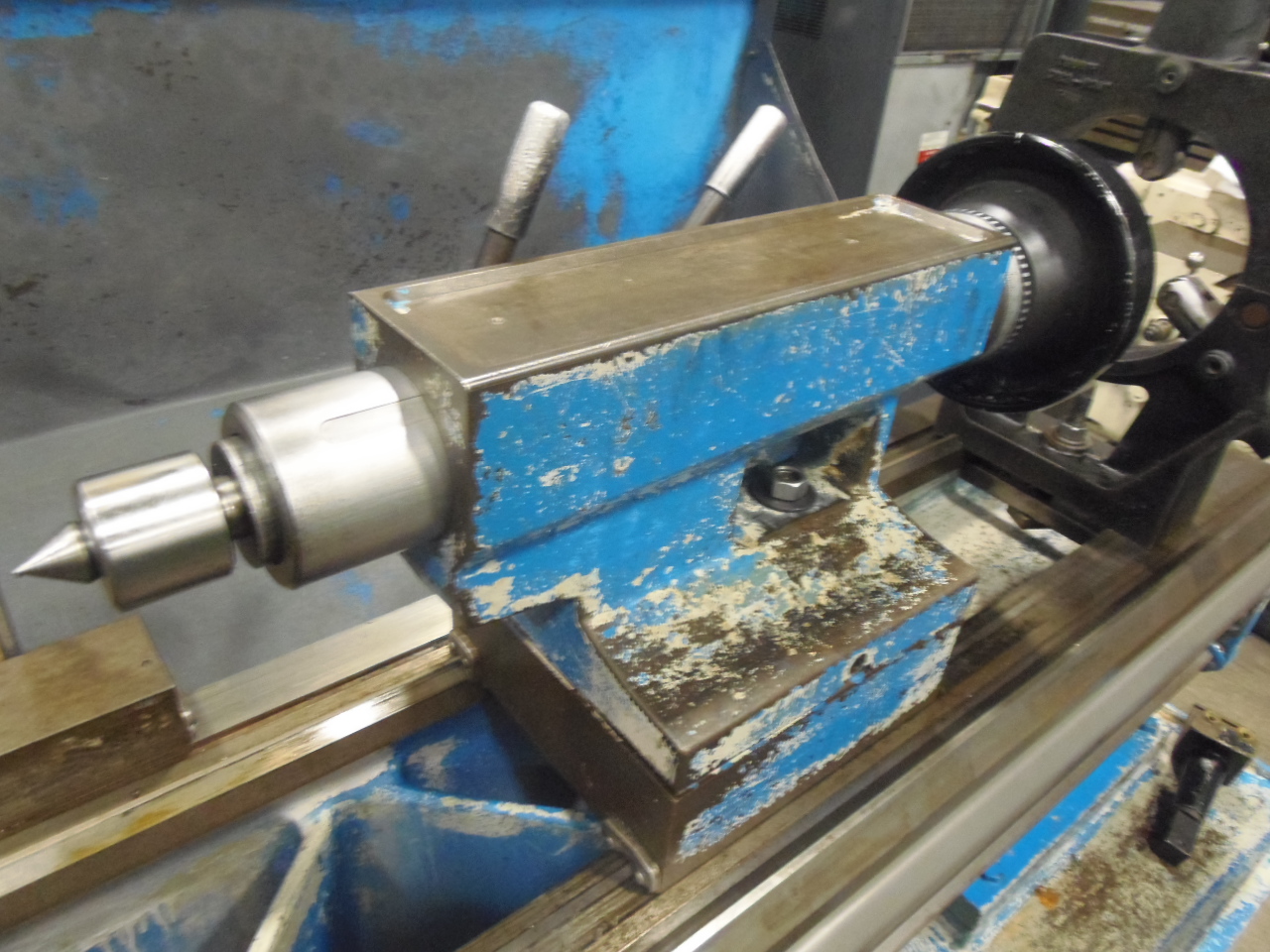

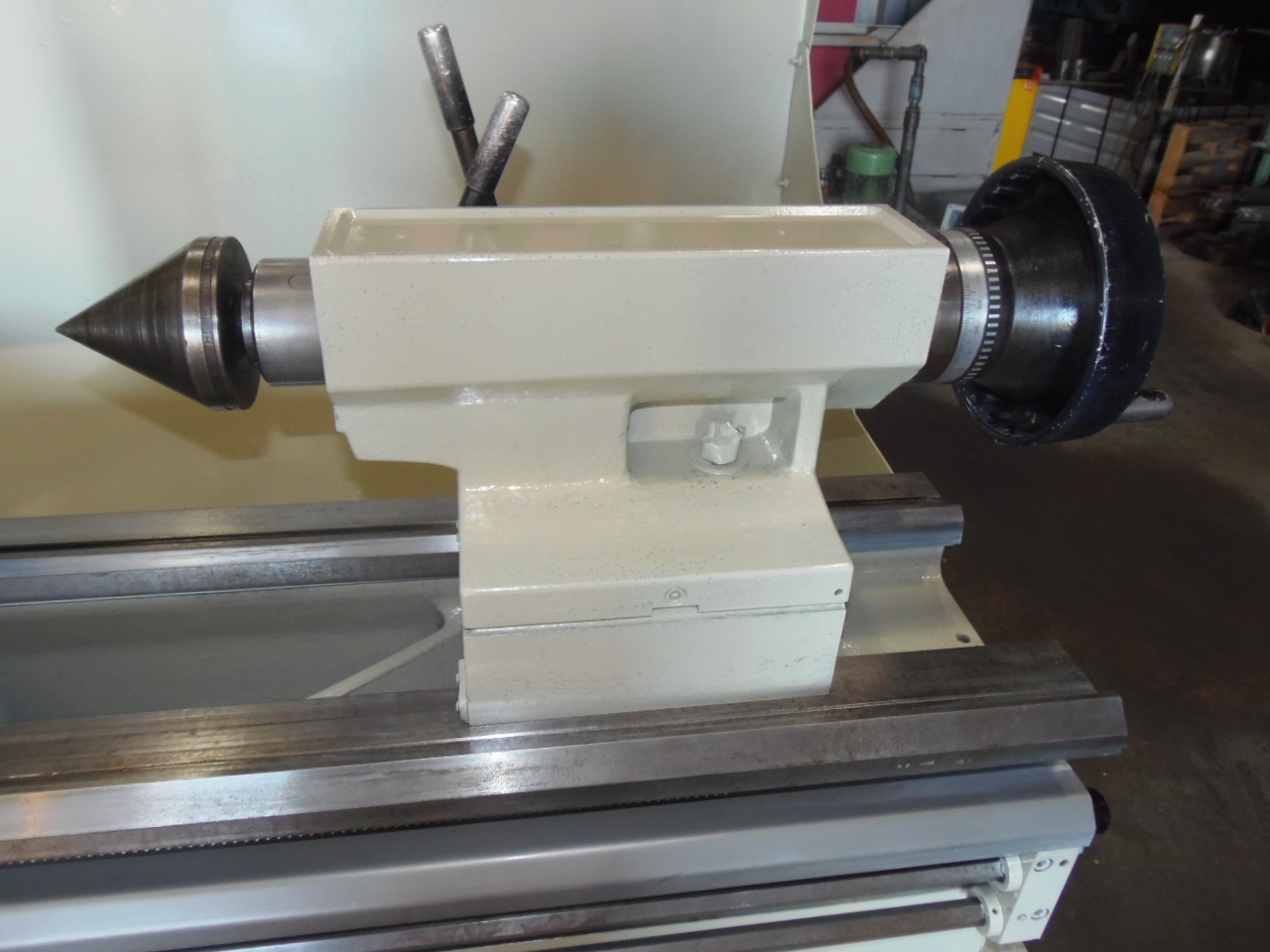

TAILSTOCK

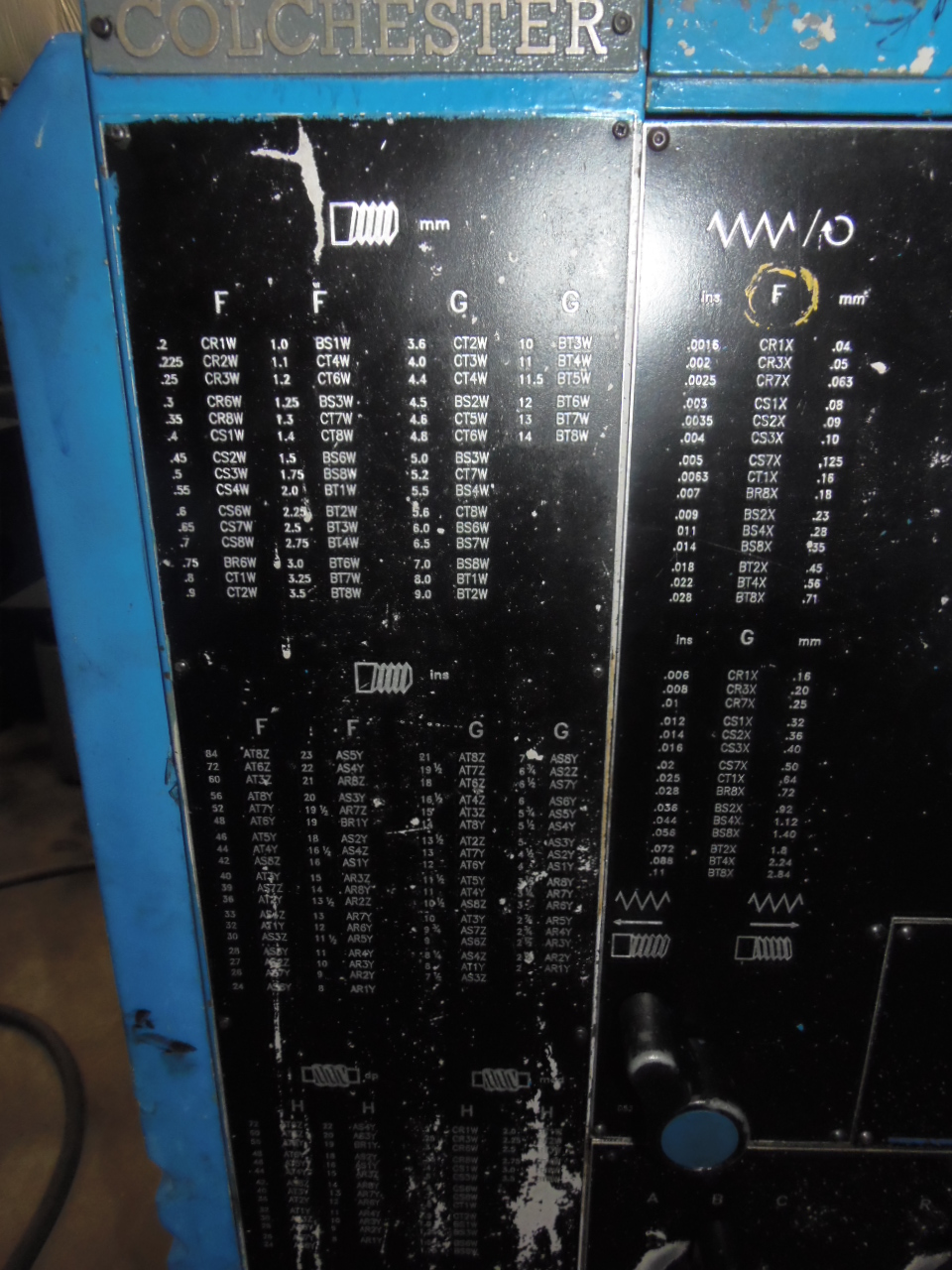

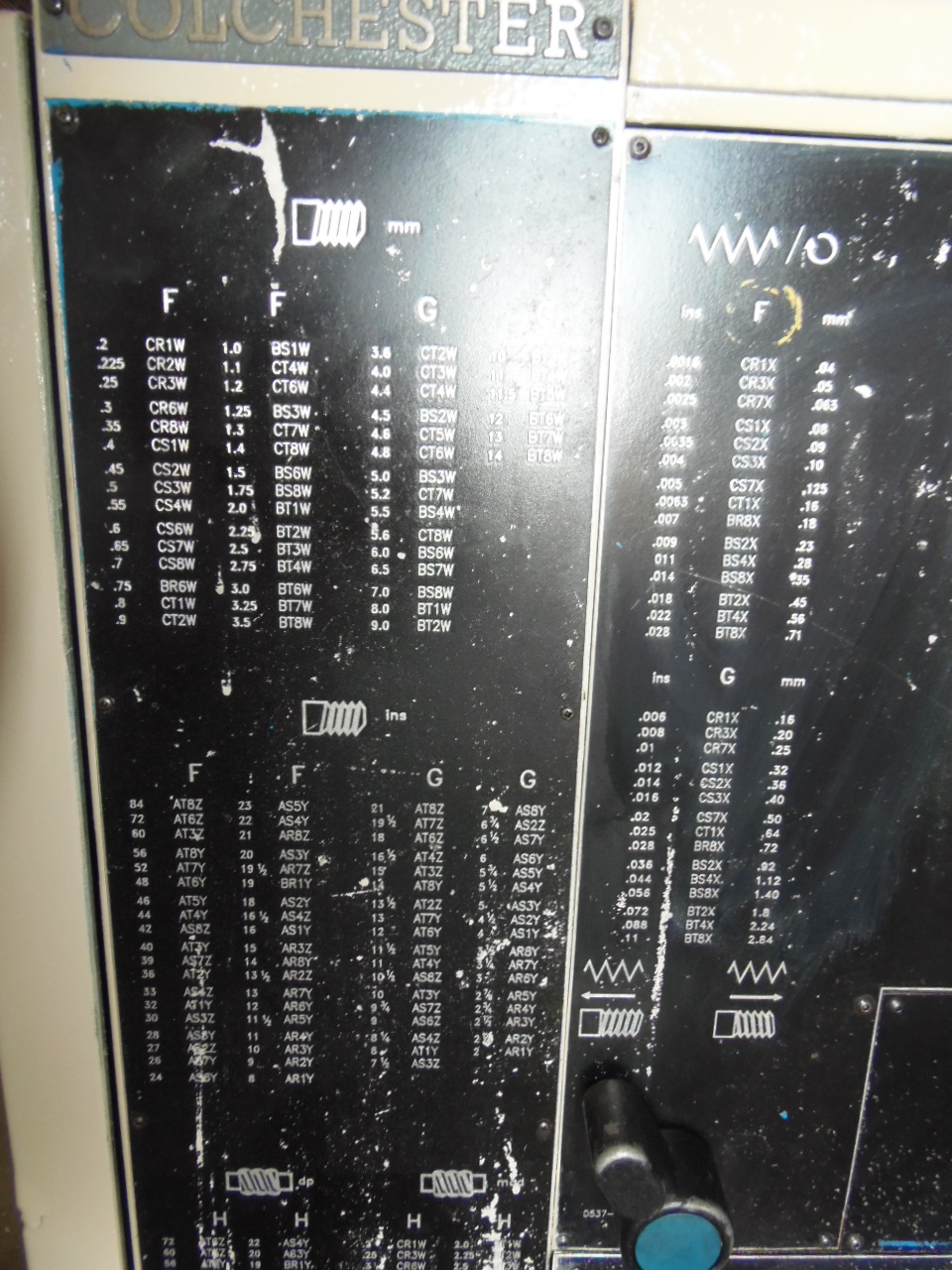

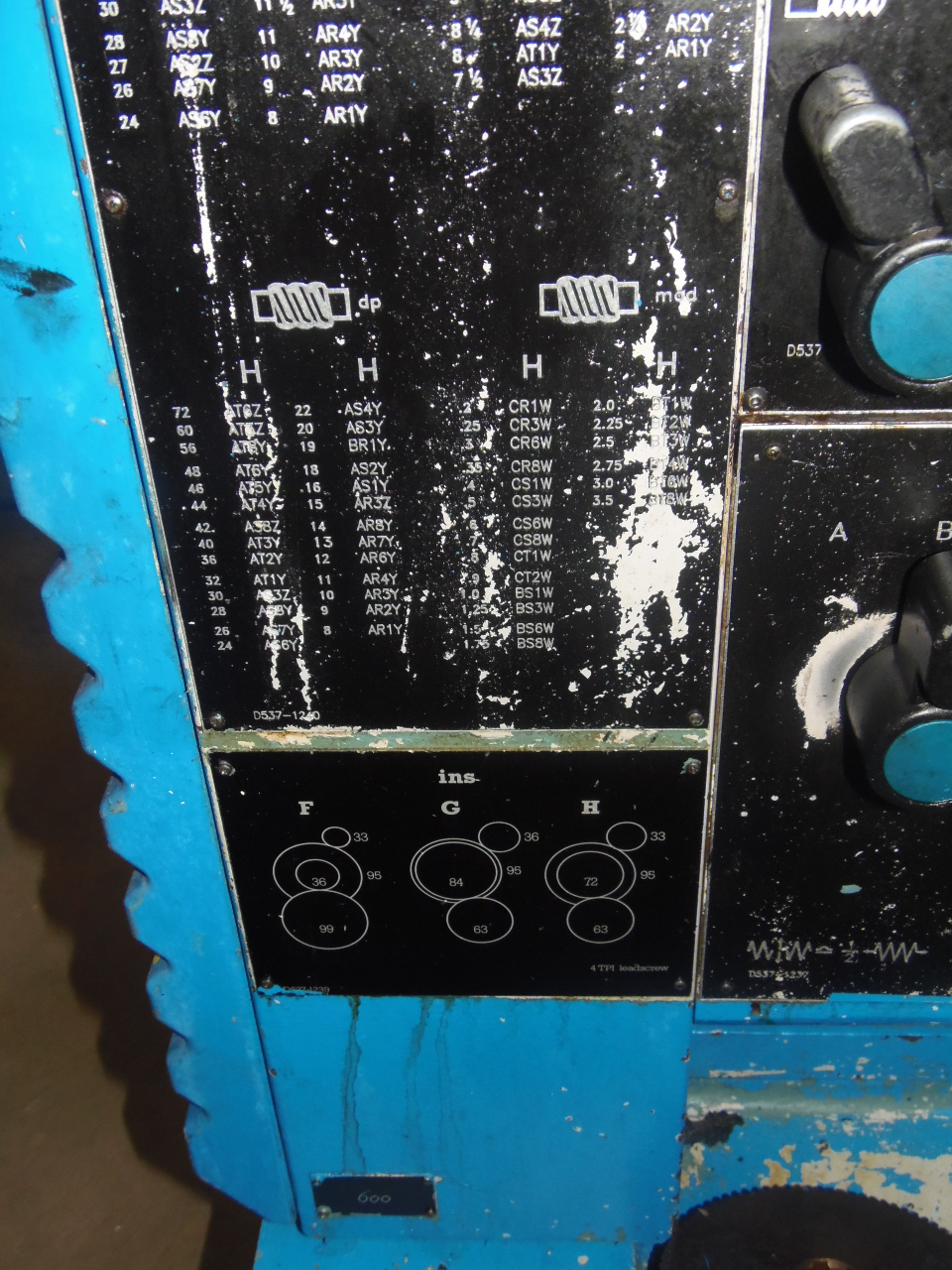

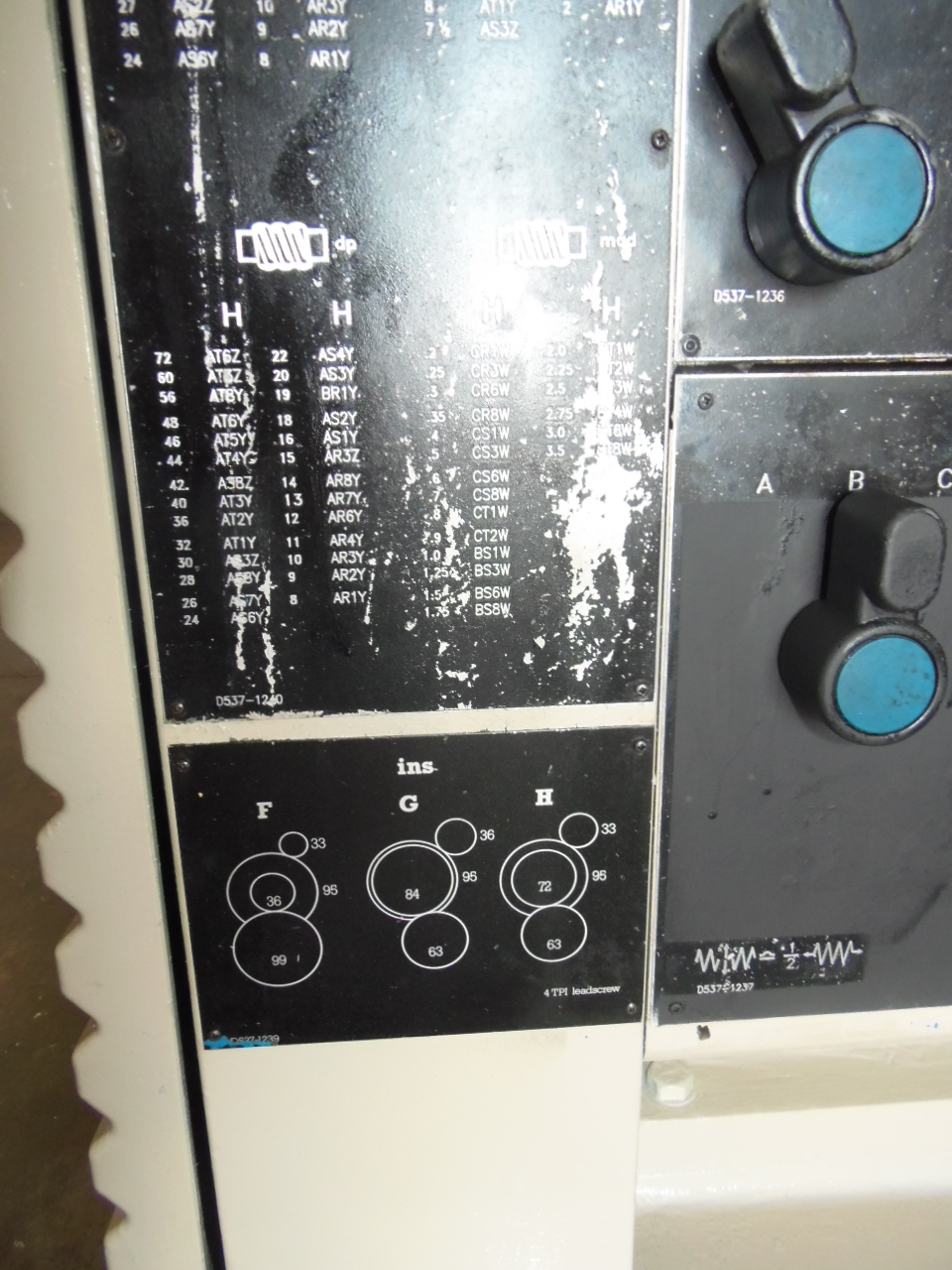

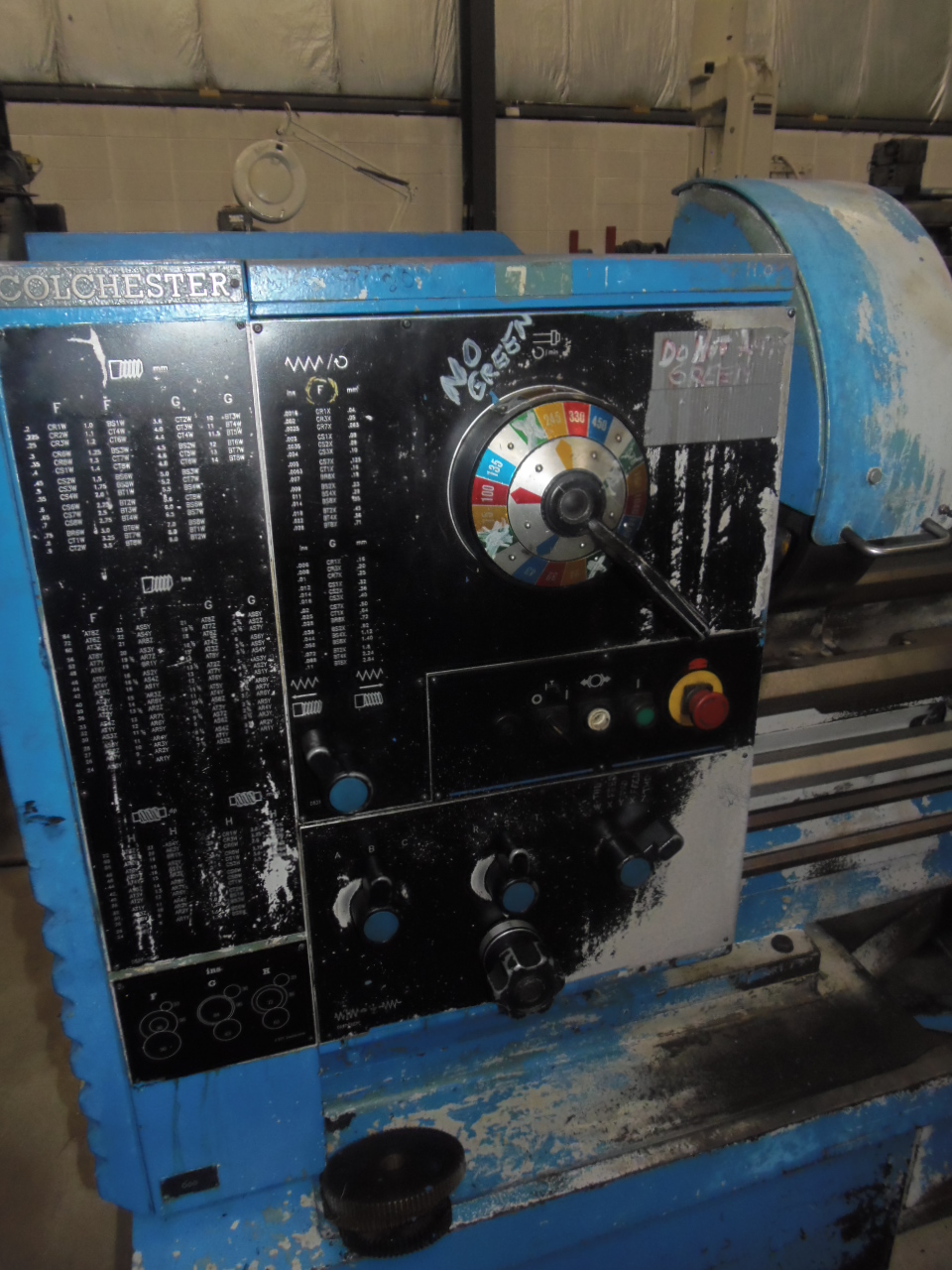

INCH/METRIC THREADING

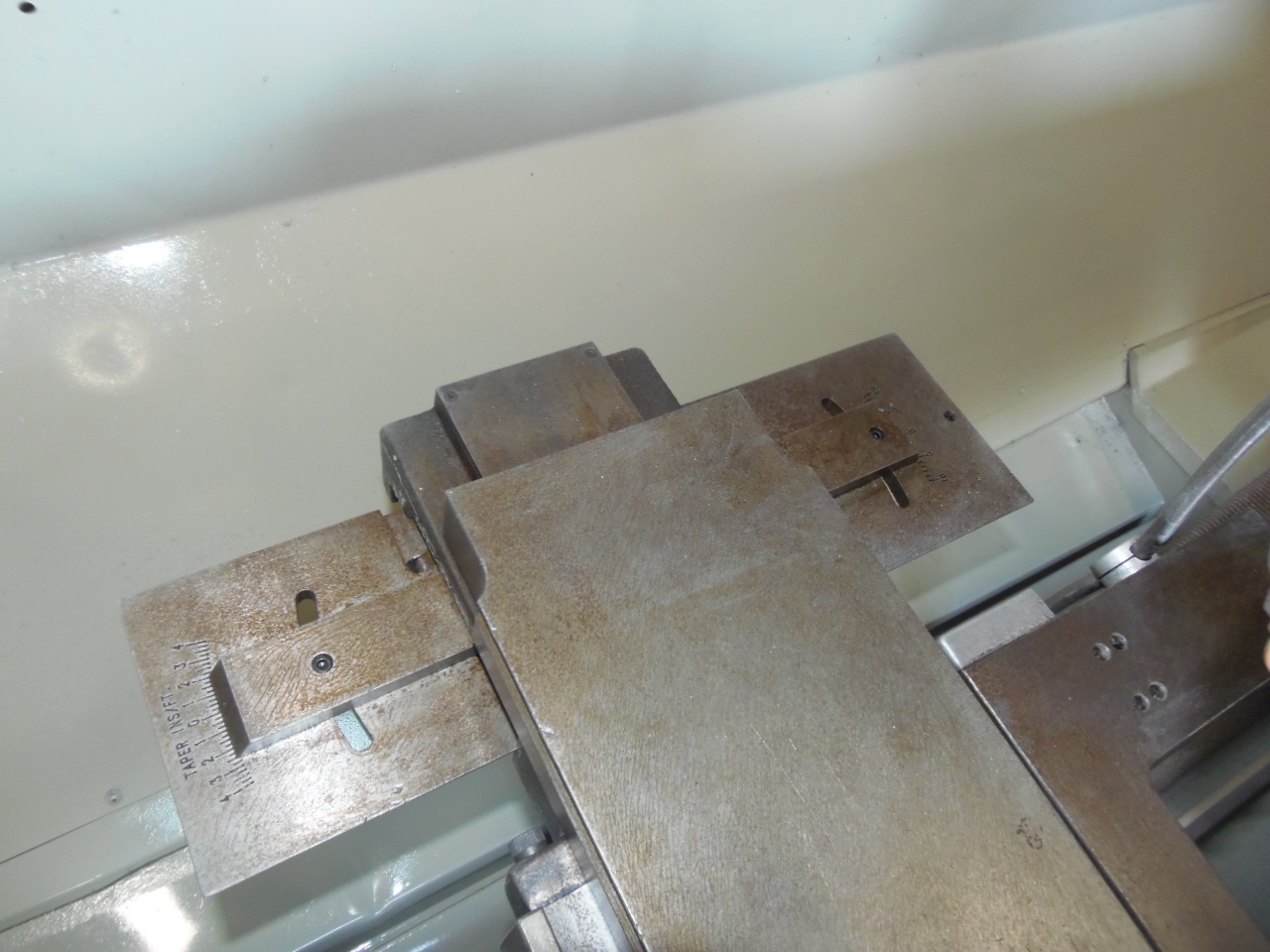

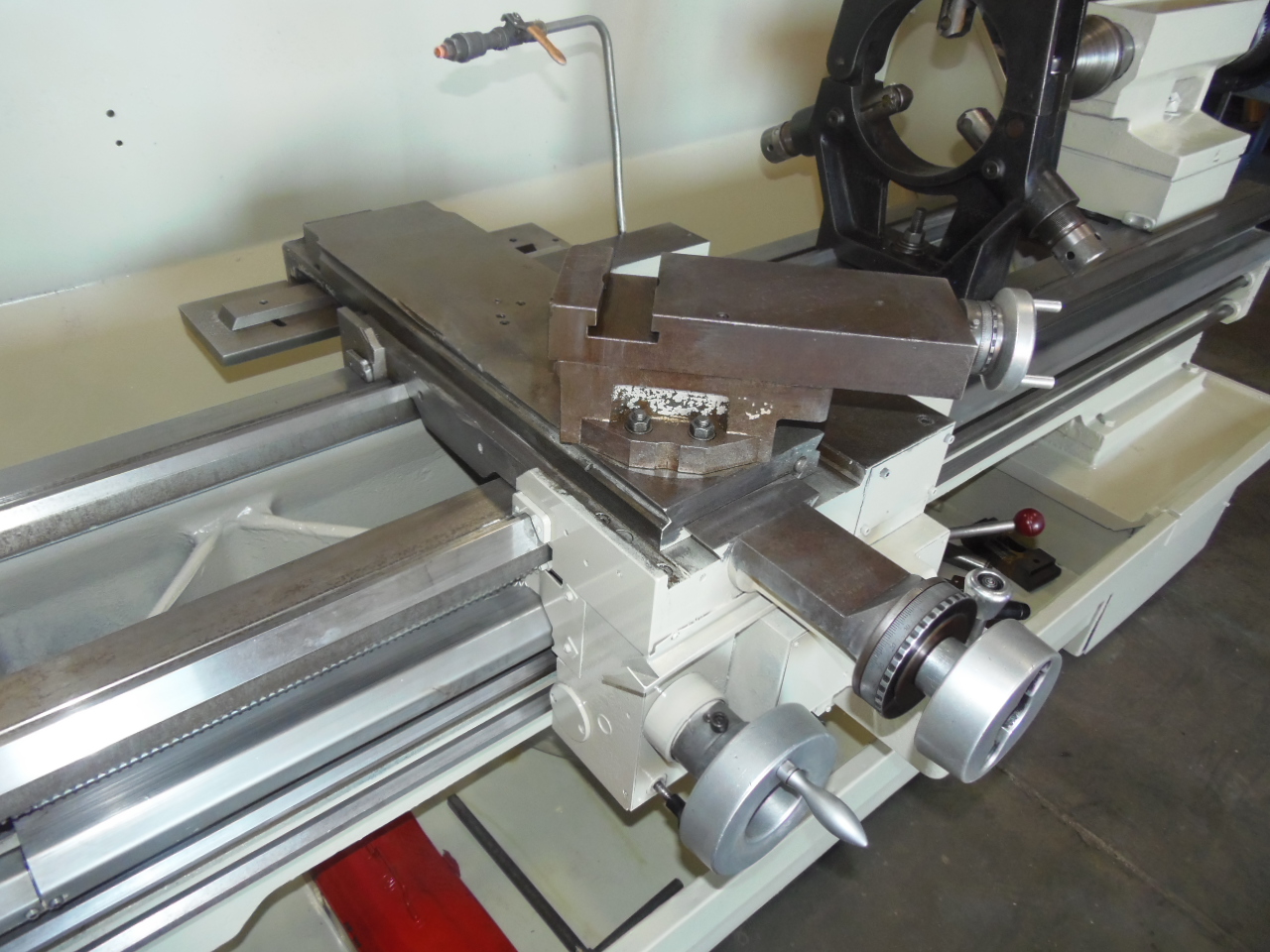

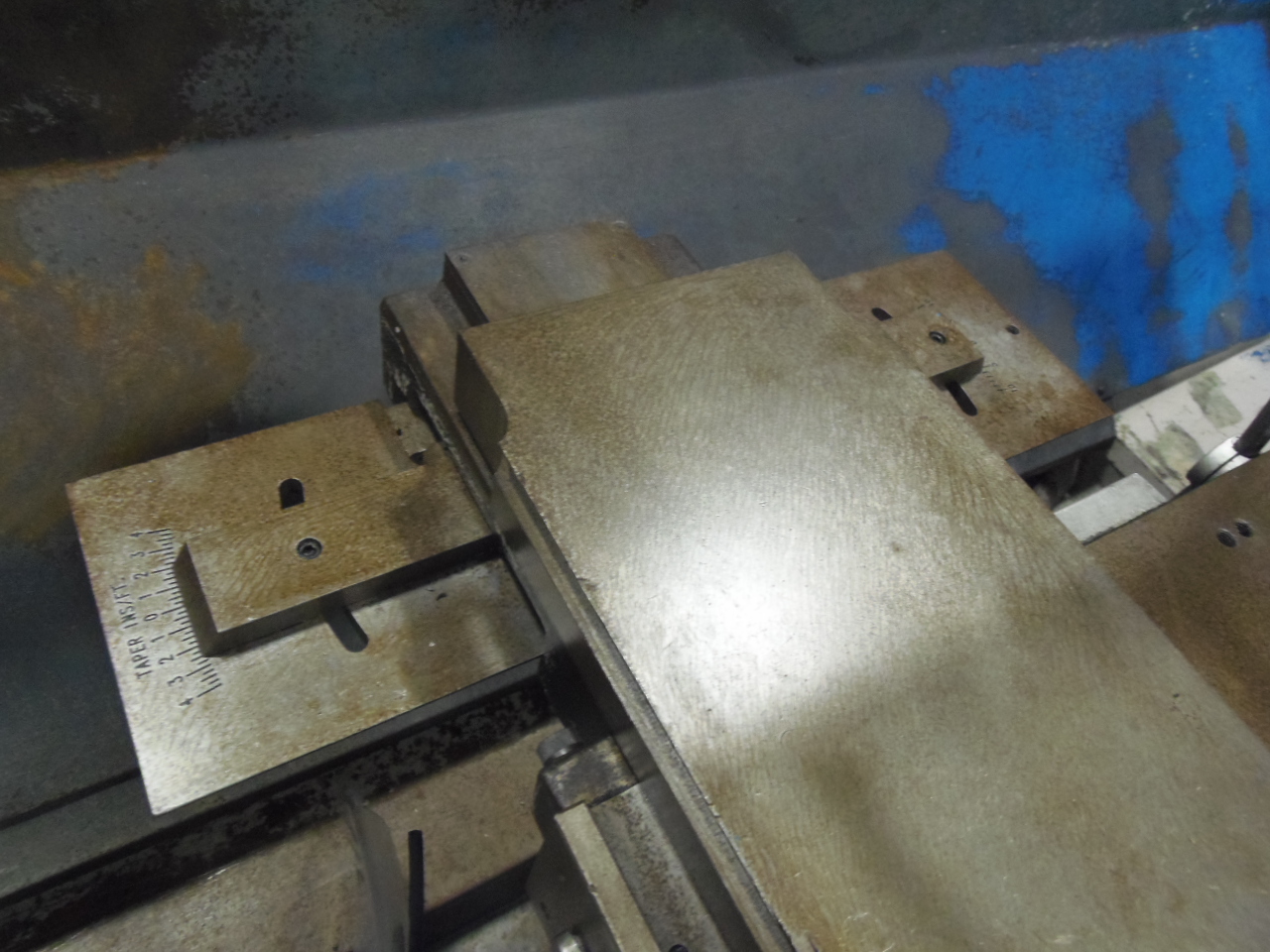

TAPER ATTACHMENT

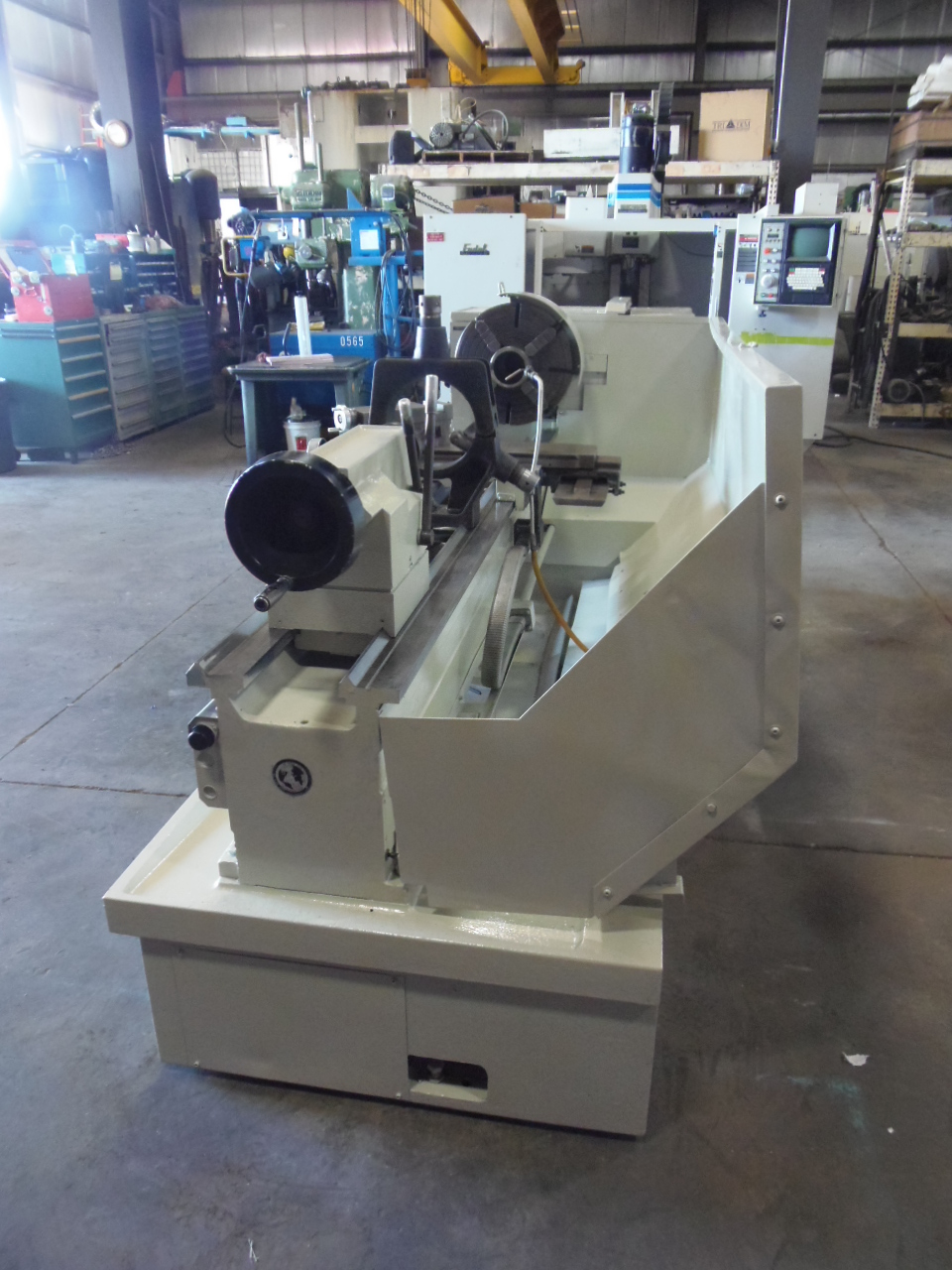

FULL LENGTH SPLASH GUARD
COOLANT
SPECIFICATIONS SUBJECT TO VERIFICATION
