Specifications
Equipped With

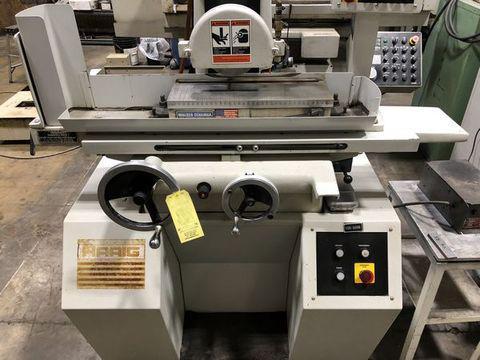

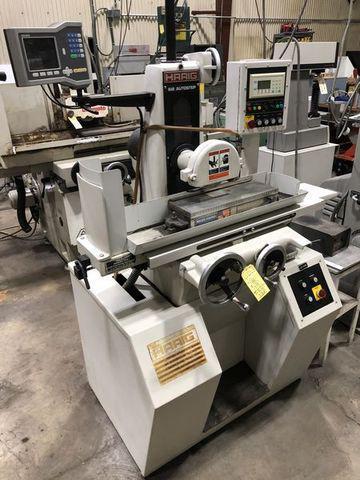

MAKE............................ HARIG
MODEL........................... 618 AUTOSTEP

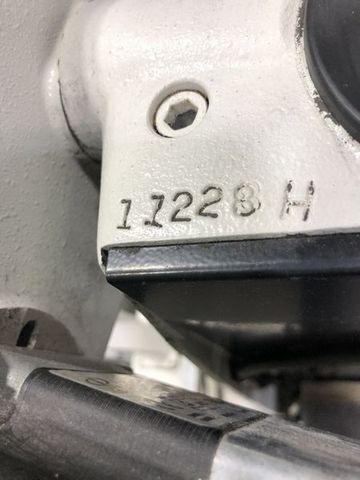

SERIAL NUMBER................... 11228H
AGE (YEAR) APPROX............... 2008
CHUCK SIZE...................... 6" x 18"
STANDARD GRINDING WHEEL SIZE.... 7" x 0.5" X 1.25"
MAXIMUM GRINDING WHEEL SIZE..... 8" x 1.25" x 1.25"
LONGITUDINAL TRAVEL............. 20"
CROSS TRAVEL.................... 6.75"
VERTICAL TRAVEL................. 12"
VERTICAL WORKING HEIGHT......... 11.75"
RAPID TRAVERSE RATE Y & Z AXES.. 100 IPM
LONGITUDINAL SPEEDS 3 - 70...... FPM
SPINDLE SPEEDS.................. 3,450 RPM

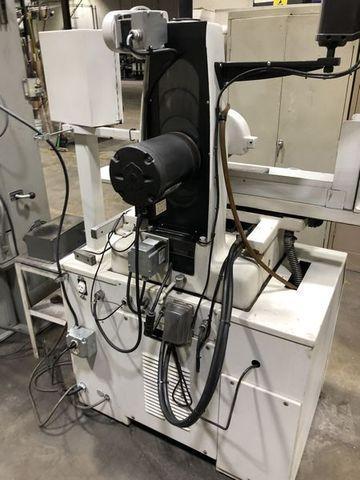

SPINDLE MOTOR................... 3 HP
MACHINE WEIGHT.................. 3,000 LBS
FLOOR SPACE..................... 70" x 65"
ELECTRICAL...................... 440V 3 PHASE
EQUIPPED WITH:

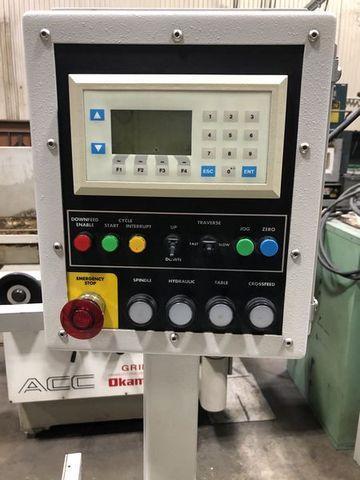

HARIG TOUCH PAD CONTROL FOR PROGRAMMABLE OPERATION IN SURFACE OR PLUNGE GRINDING WITH AUTOMATIC INCREMENTAL DOWNFEED

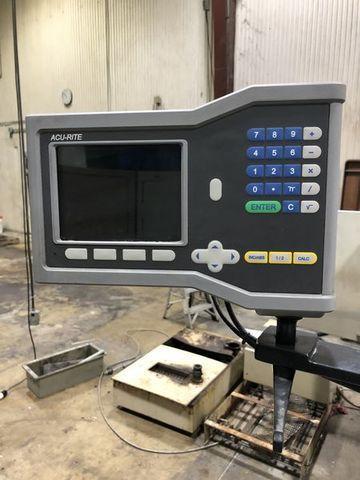

ACCU-RITE VUE DIGITAL READOUTS
6" x 18" WALKER PERMANENT MAGNETIC CHUCK WITH CLAMPS & BOLTS
WET GRINDING ATTACHMENT WITH PUMP, TANK & SPLASH GUARDS
PROGRAMMING, PARTS, ELECTRICAL AND HYDRAULIC MANUALS OR PRINTS
