Specifications
Equipped With

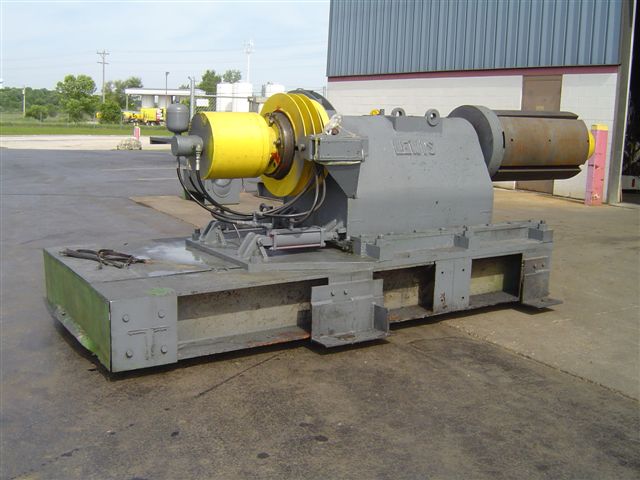

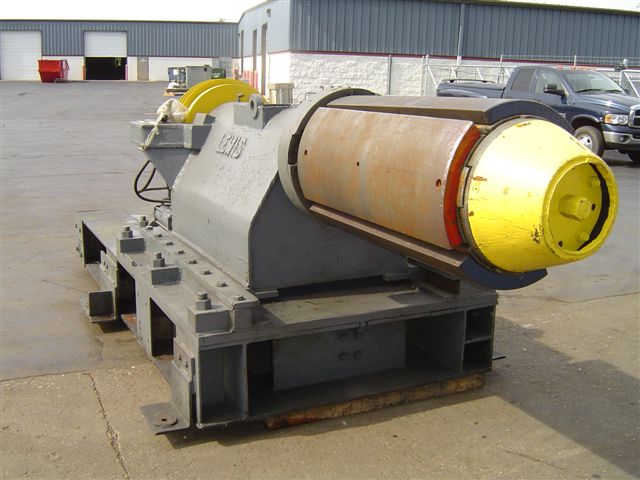

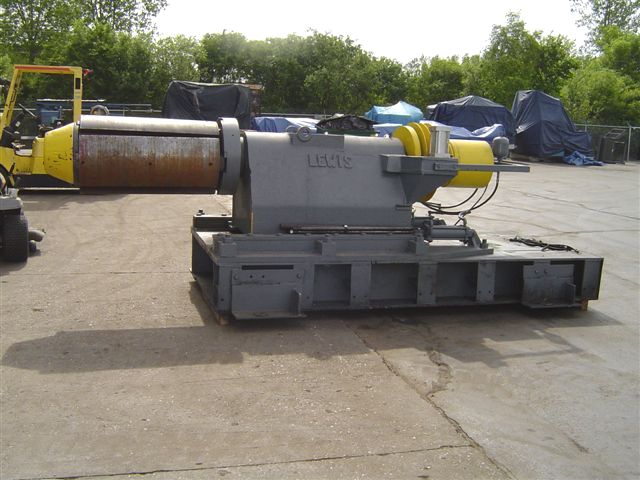

GENERAL SPECIFICATIONS:
MANUFACTURER................................LEWIS
CAPACITY....................................20,000 LBS
MAX COIL WIDTH..............................48"
HDYDRAULIC MANDREL EXPANSION (ID)...........18" TO 22"
WITH FILLER PLATES......................22" TO 26"
OD MAX......................................72"
CENTER-LINE OF MANDREL TO FLOOR.............42"
OVERALL DIMENSIONS OF COIL..................15'L X 6'W X 6'H
POWERED HOLD DOWN ROLL DIMENSIONS...........8'L X 6'W X 6'H
OVERALL WEIGHT APPROX.......................20,000 LB
EQUIPPED WITH:

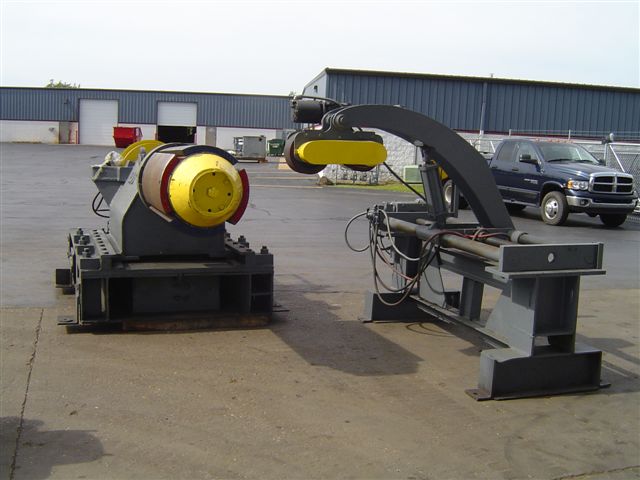

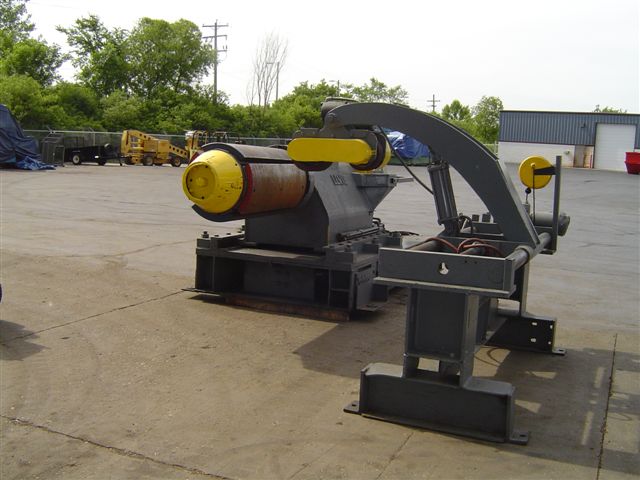

FLOORED MOUNTED HYDRAULIC HOLD DOWN ROLL
HYDRAULIC MANDREL EXPANSION
FULL RADIUS RISER BLOCKS
**ORIGINALLY USED AS A TAKE UP REEL FOR A SLITTING LINE**
SPECIFICATIONS SUBJECT TO VERIFICATION
