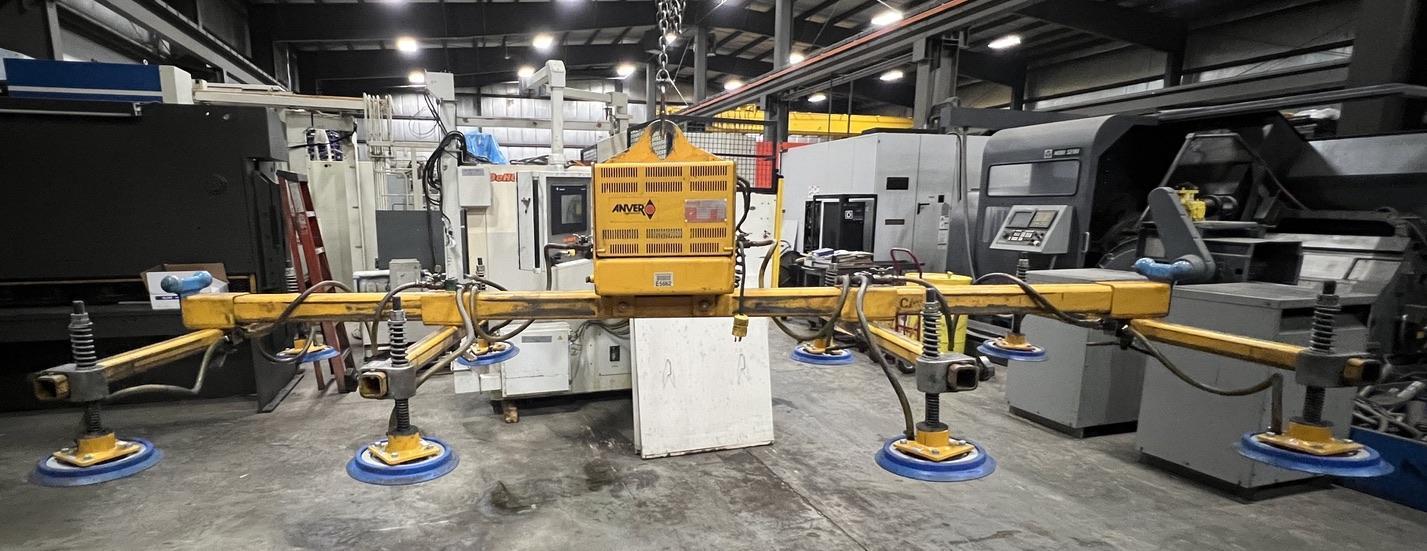

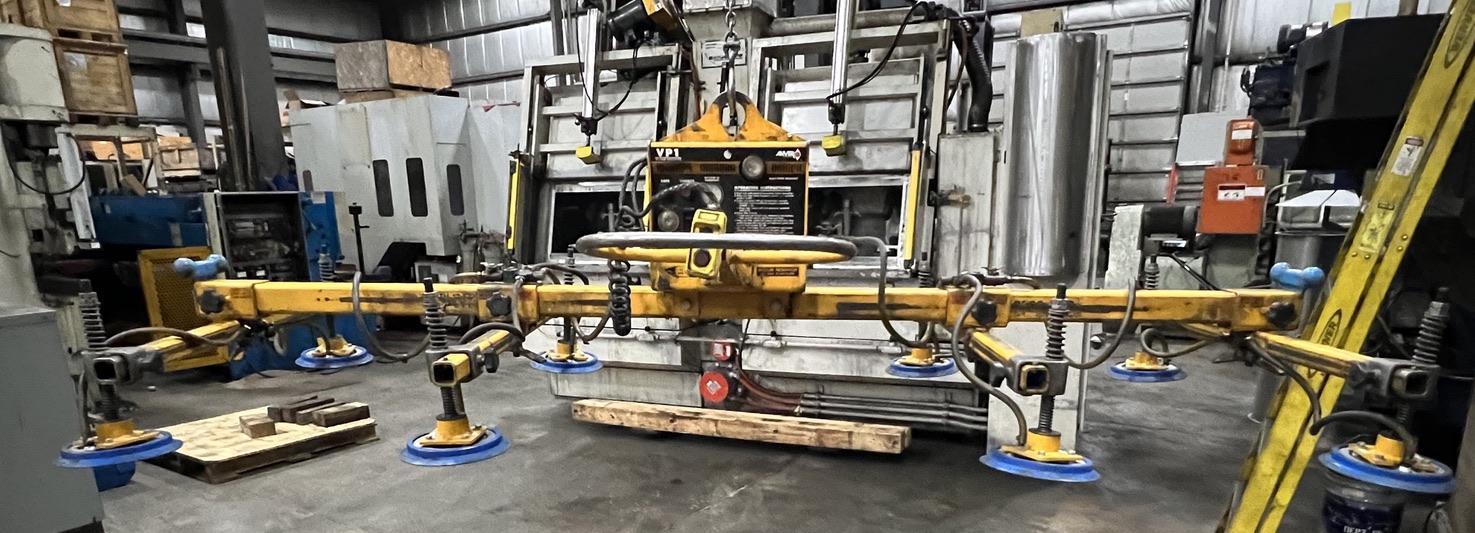

2,000 ANVER VACUUM SHEET LIFTING SYSTEM WITH VP1 GENERATOR PUMP AND 8 SUCTION PADS.

2,000 ANVER VACUUM SHEET LIFTING SYSTEM WITH VP1 GENERATOR PUMP AND 8 SUCTION PADS.

Brand
ANVER

Model
E200-8-110

Type
Lifters, Sheet

Stock #
10764

Condition
Used

Year
1997

Request a Quote

Specifications

Equipped With

General Specifications:

Manufacturer..................... Anver

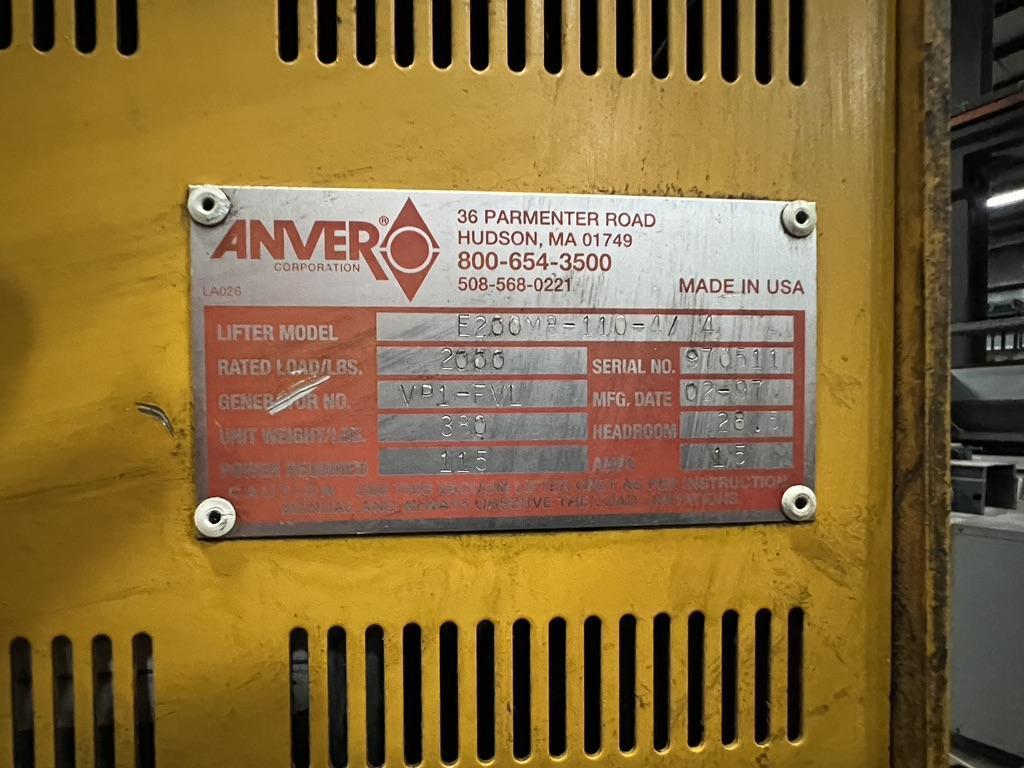

Lifter Model..................... E200-8-110

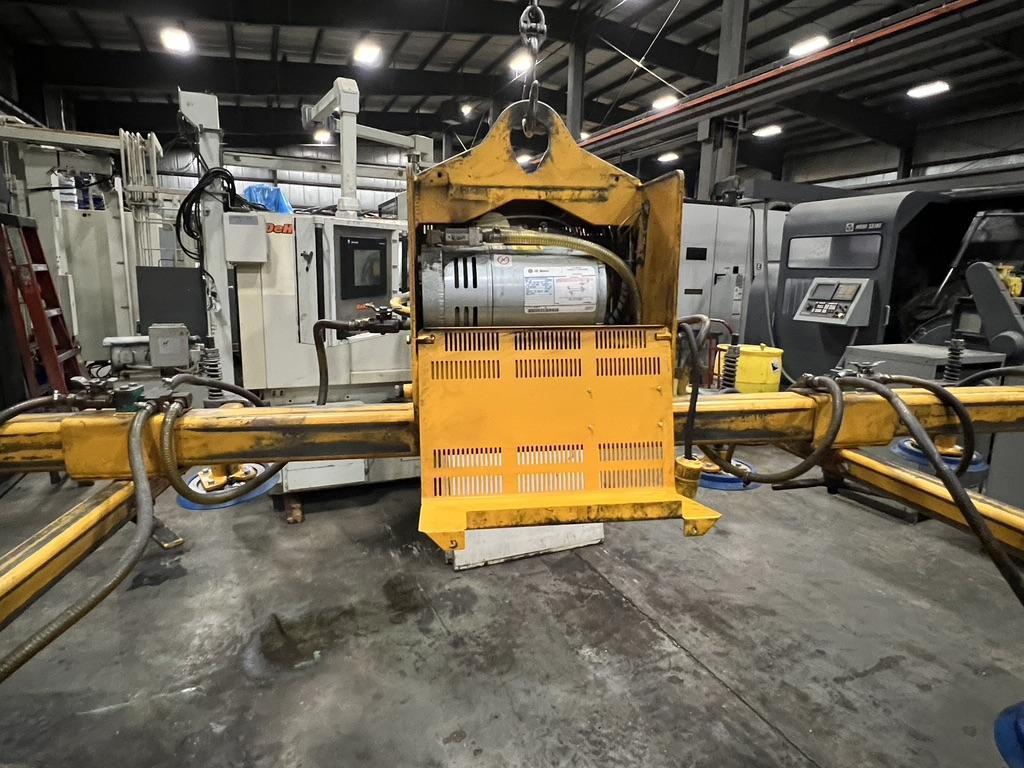

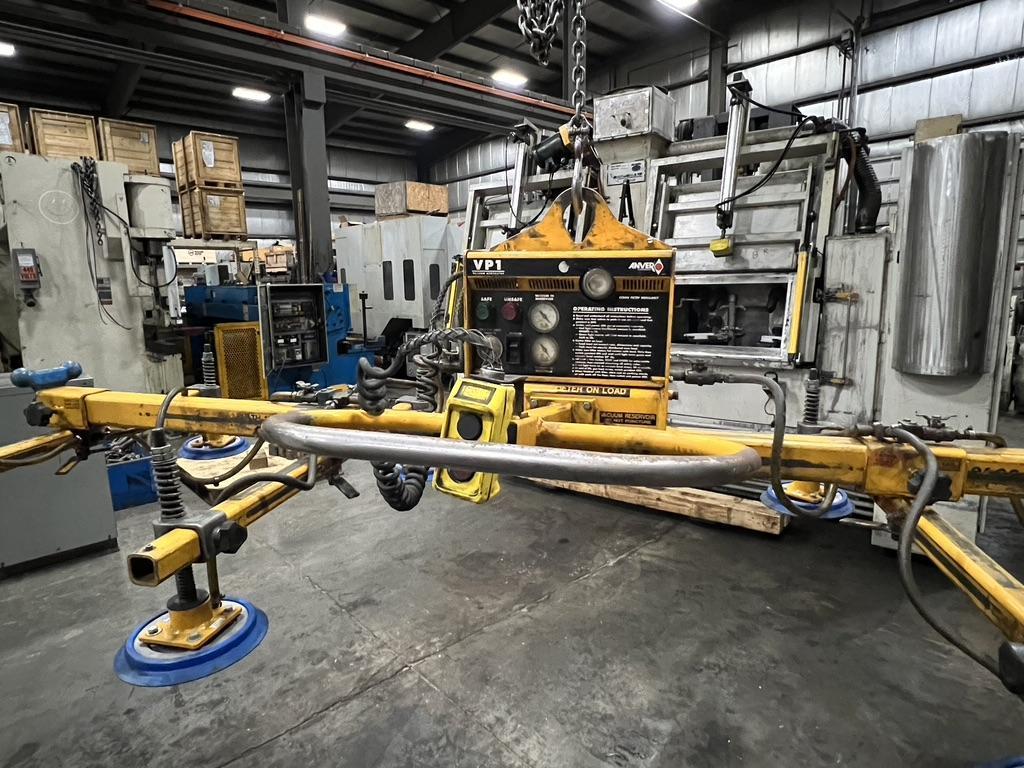

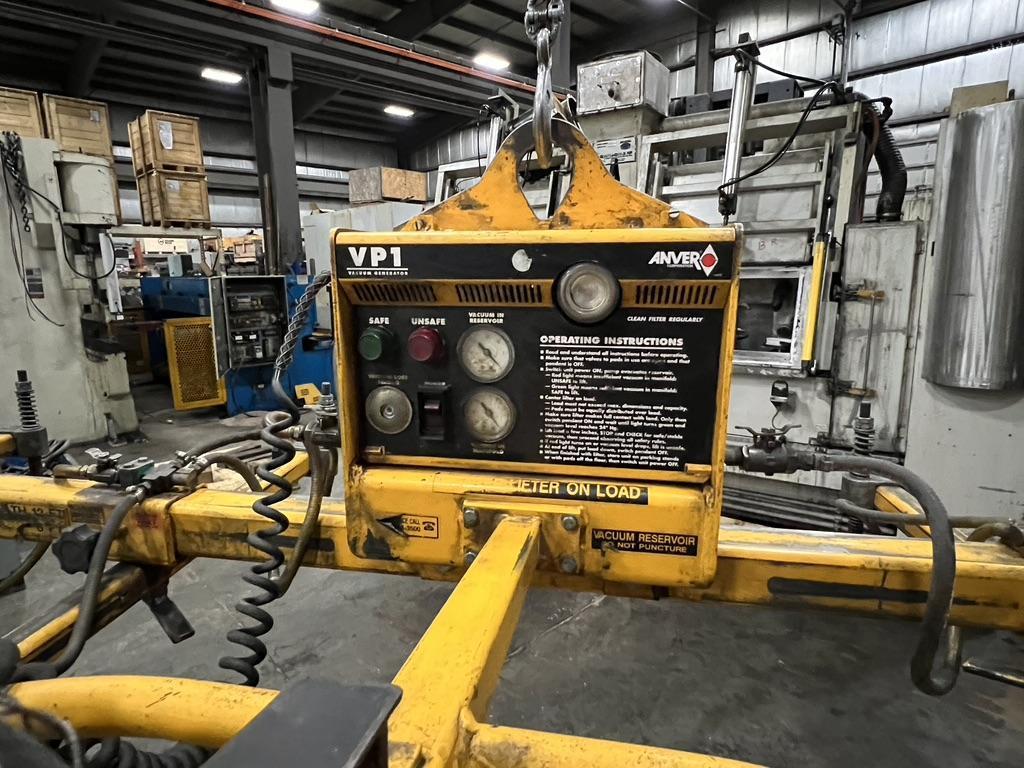

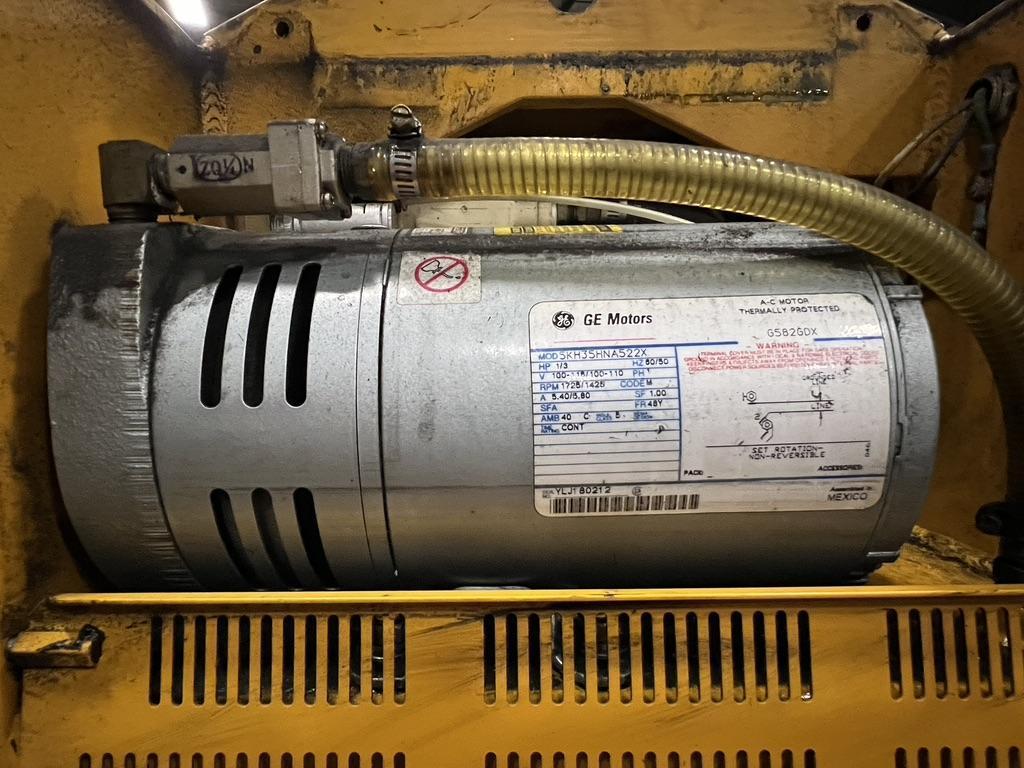

Generator Model.................. VP1-FVL

Max. Sheet Size.................. 6' x 12'

Total Weight Capacity............ 2000 lbs

Rated Weight Capacity per arm.... 500 lbs.

Max Arm Width.................... 40"

Max. Arm Length.................. 108"

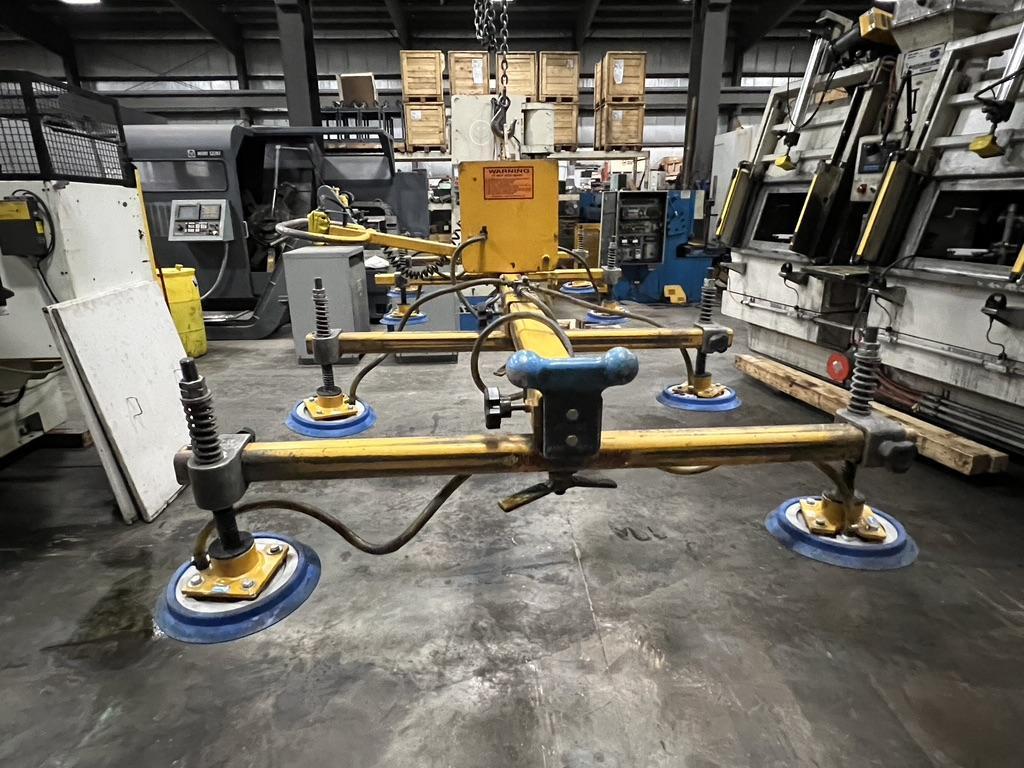

Number of Suction Pads........... 8
