Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER............................. HTC
MODEL.................................... 200M
SERIAL #................................. 480G1989
NEW APPROXIMATELY........................ 1990

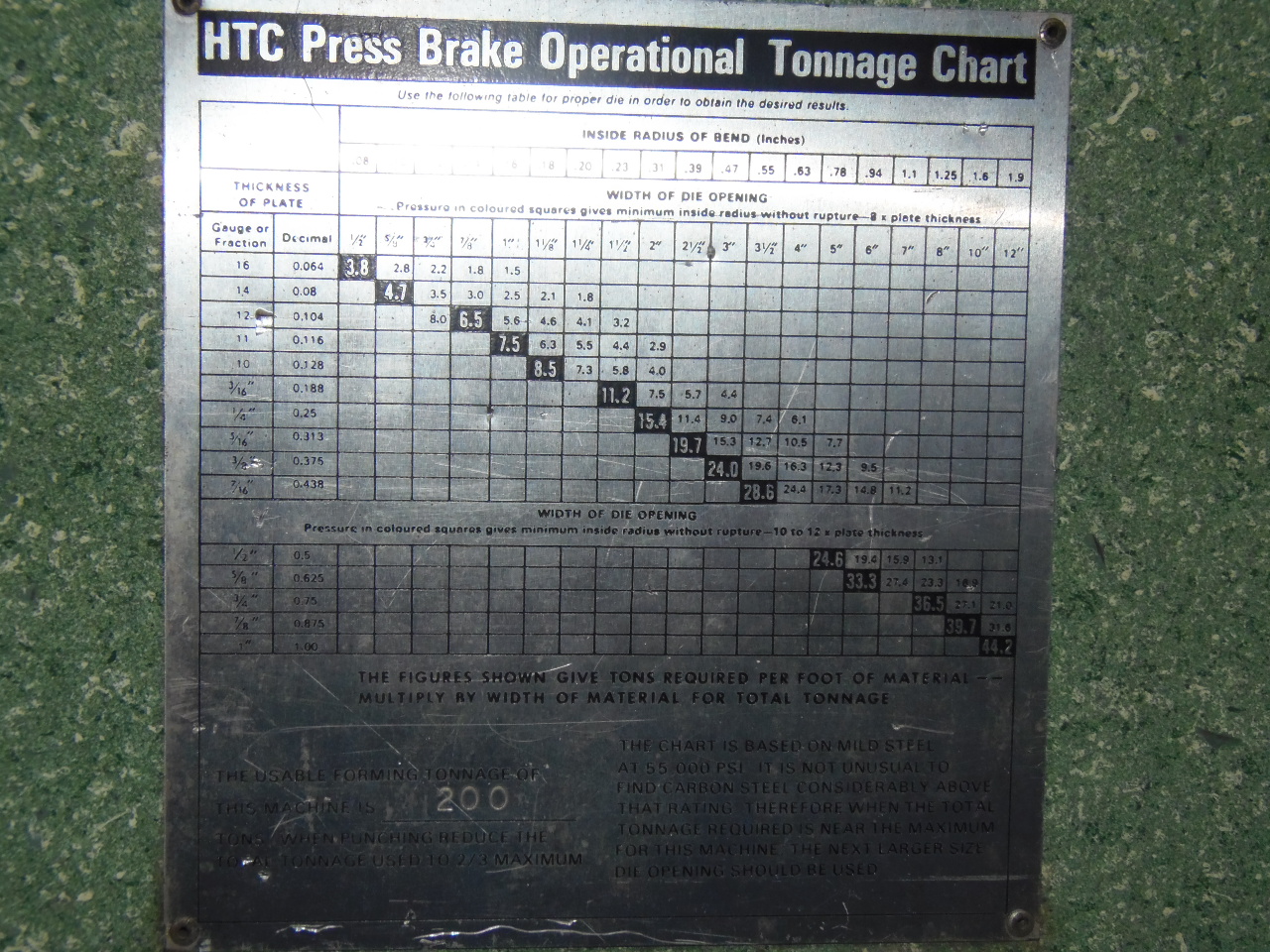

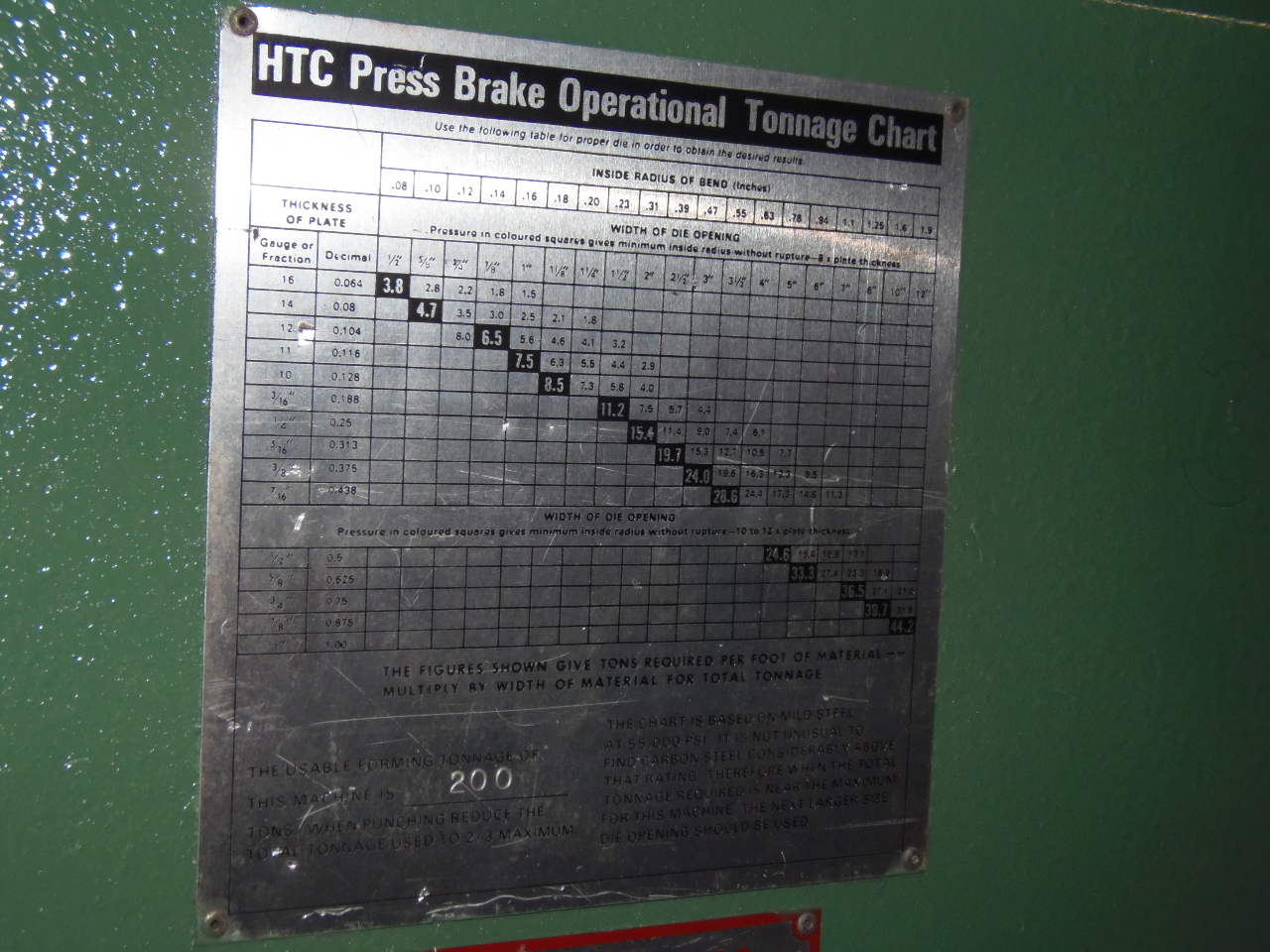

TONNAGE CAPACITY......................... 200
OVERALL LENGTH........................... 12'
DIST. BETWEEN HOUSINGS................... 10'6"
OVERALL RATING WITH 2" DIE............... 1/4" x 12'
RATING BETWEEN HOUSINGS WITH 2.5" DIE.... 5/16" x 10'
RAM STROKE............................... 5"
OPEN HEIGHT.............................. 12.5"
CLOSED HEIGHT............................ 7.5"
MOTOR.................................... 20 HP
DIMENSIONS............................... 152 x 65 x 132 H”
APPROX. WEIGHT........................... 31,000 LBS.
EQUIPPED WITH:

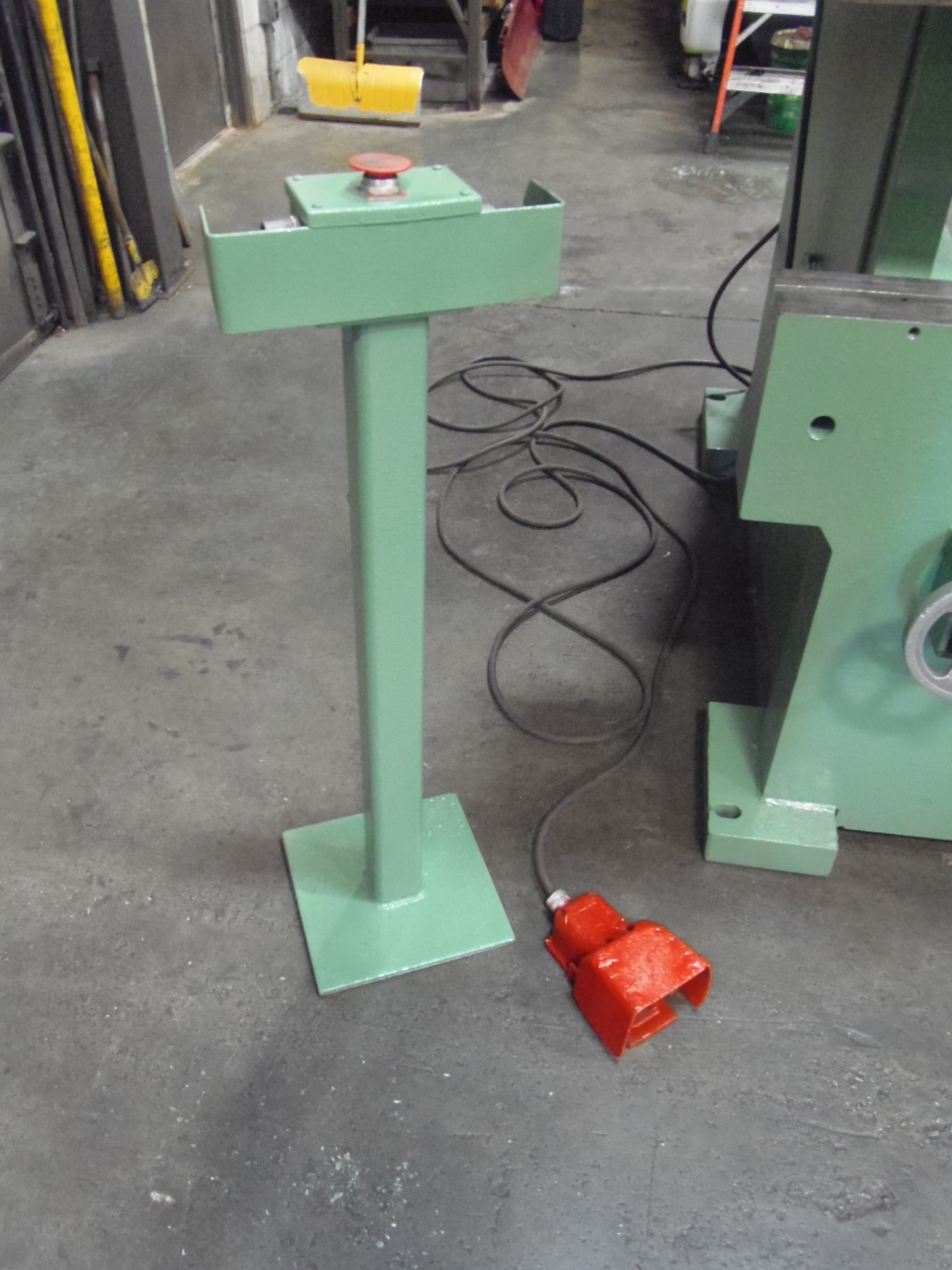

ELECTRIC FOOT SWITCH

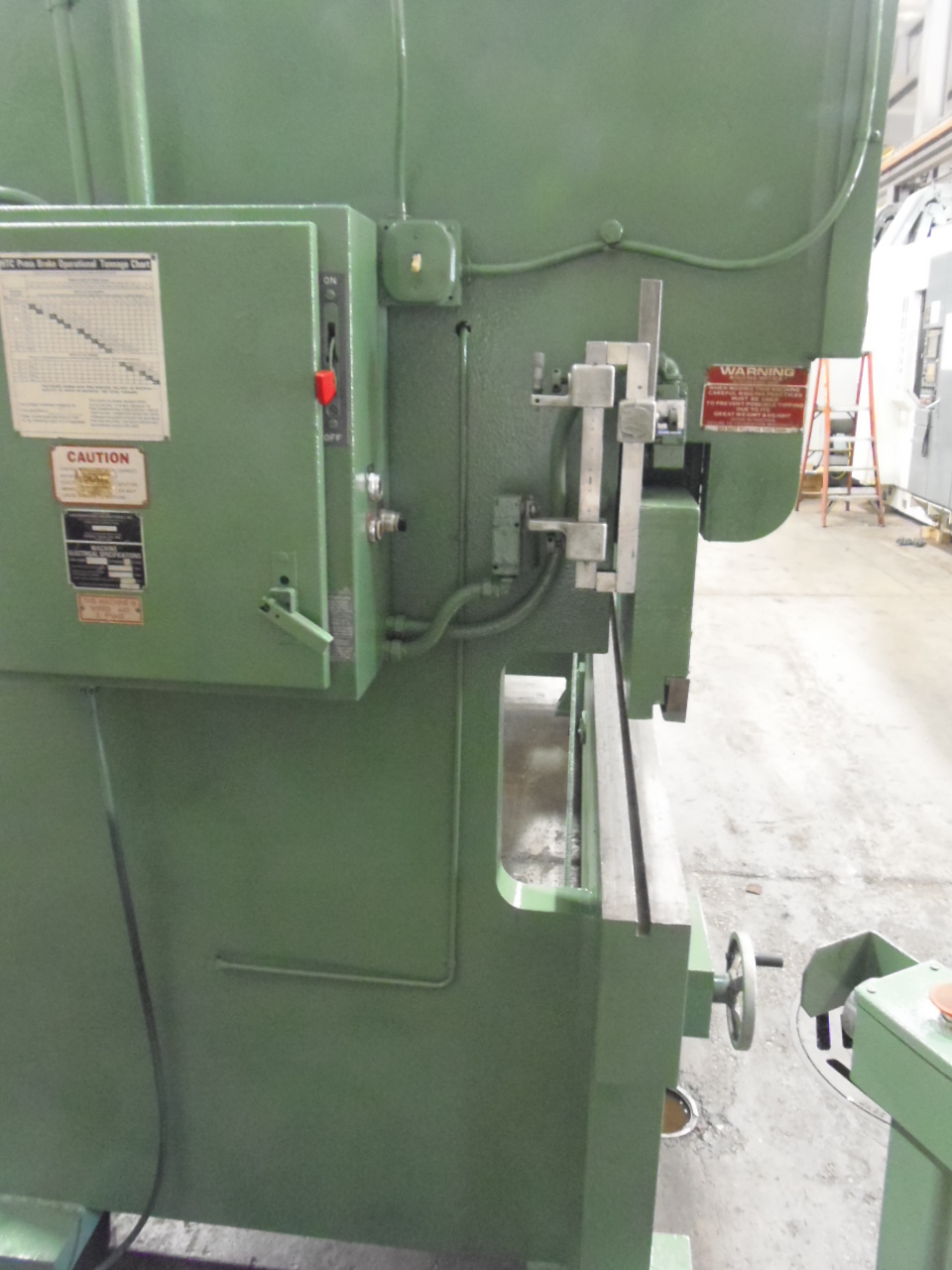

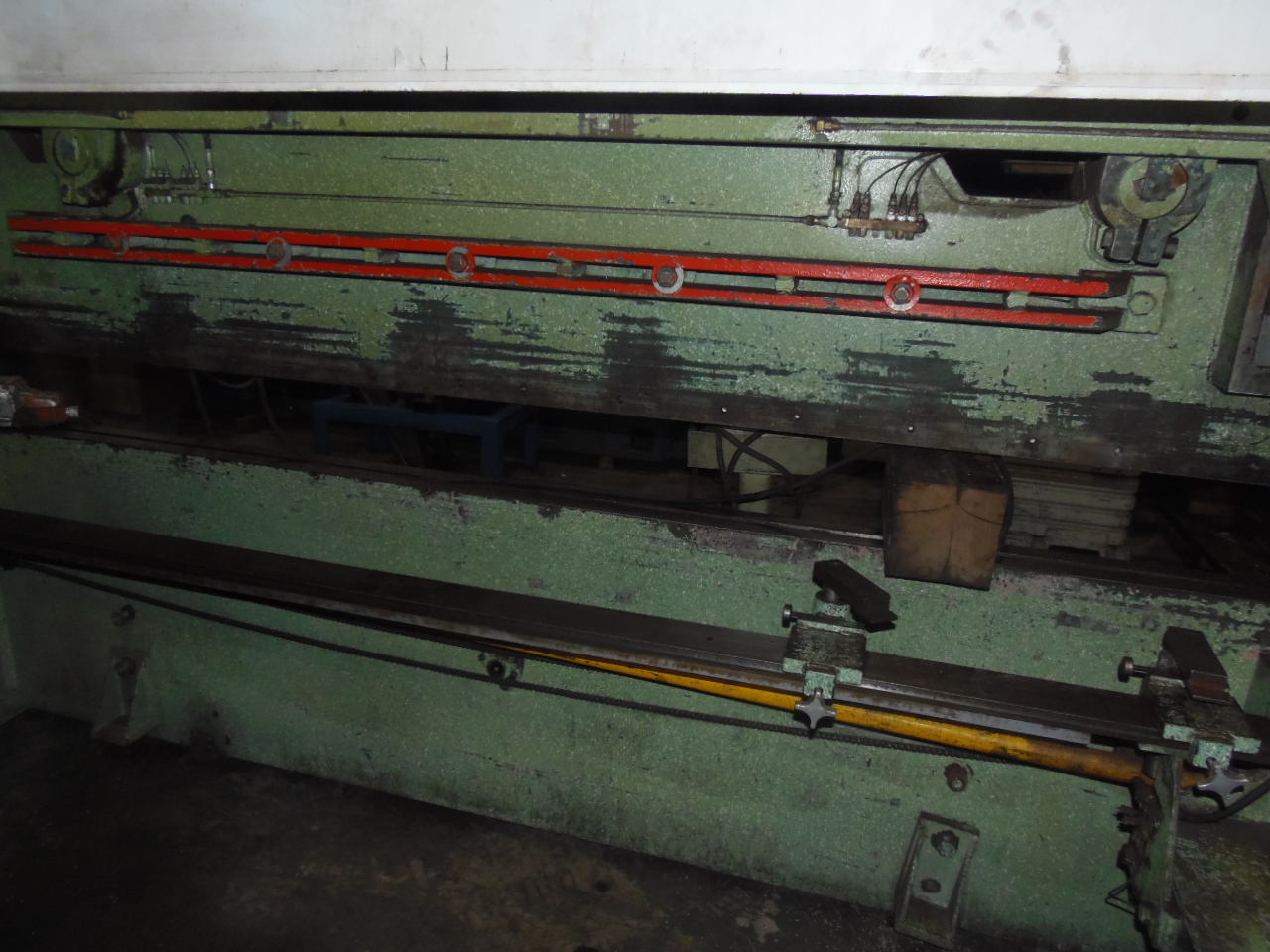

24" FRONT OPERATED MANUAL BACK GAUGE WITH ADJUSTABLE FINGERS

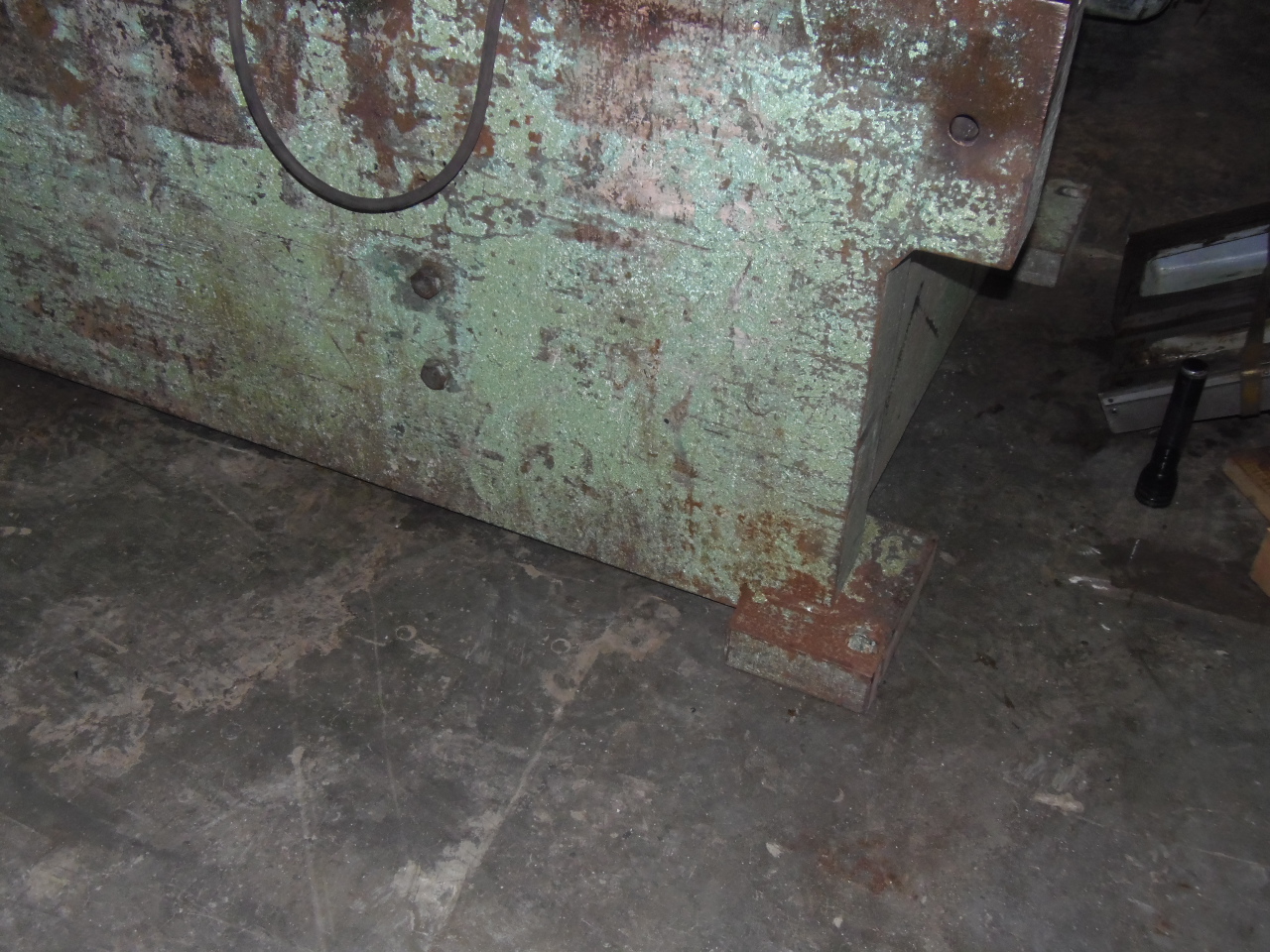

FLUSH FLOOR MOUNT

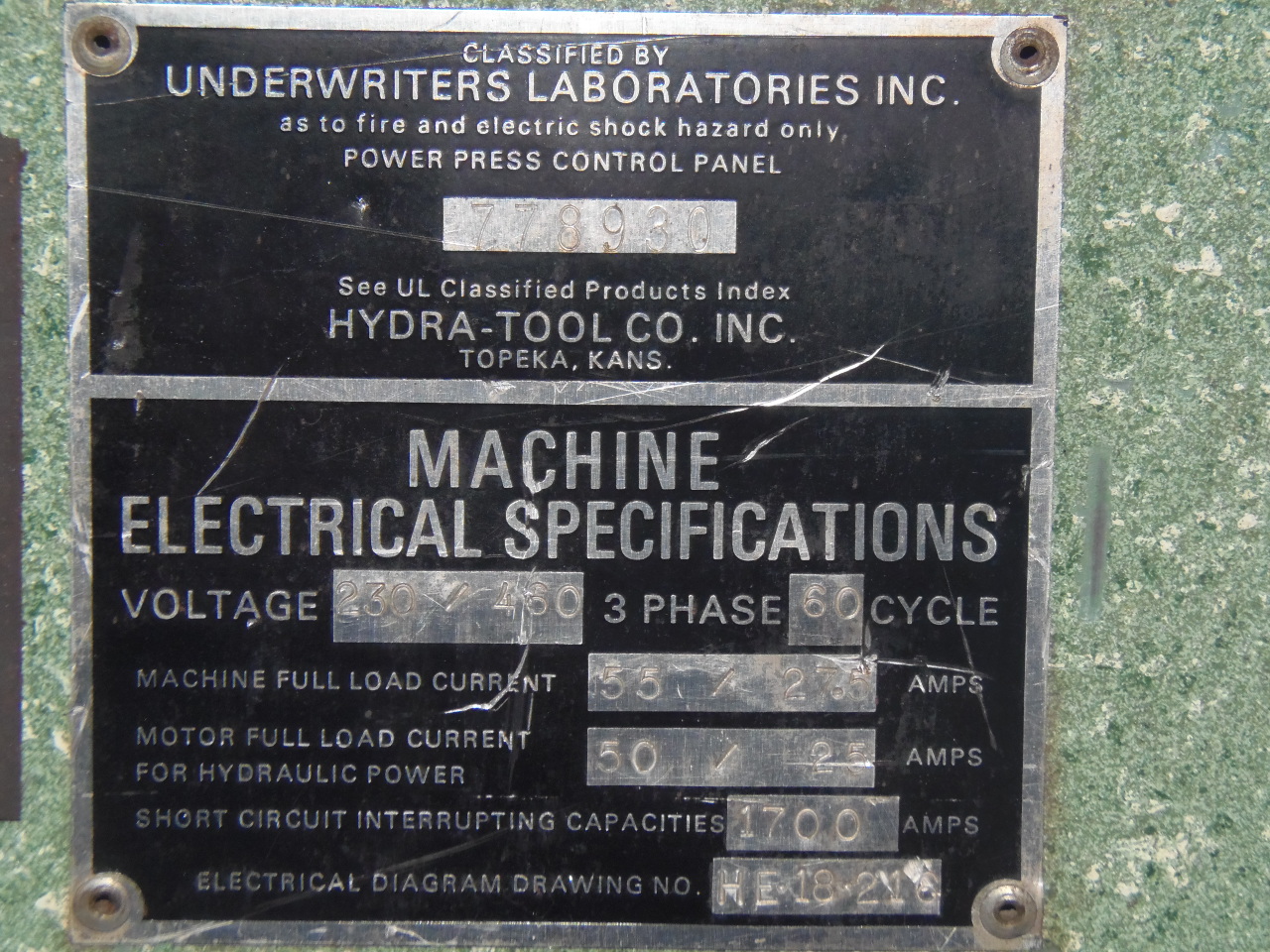

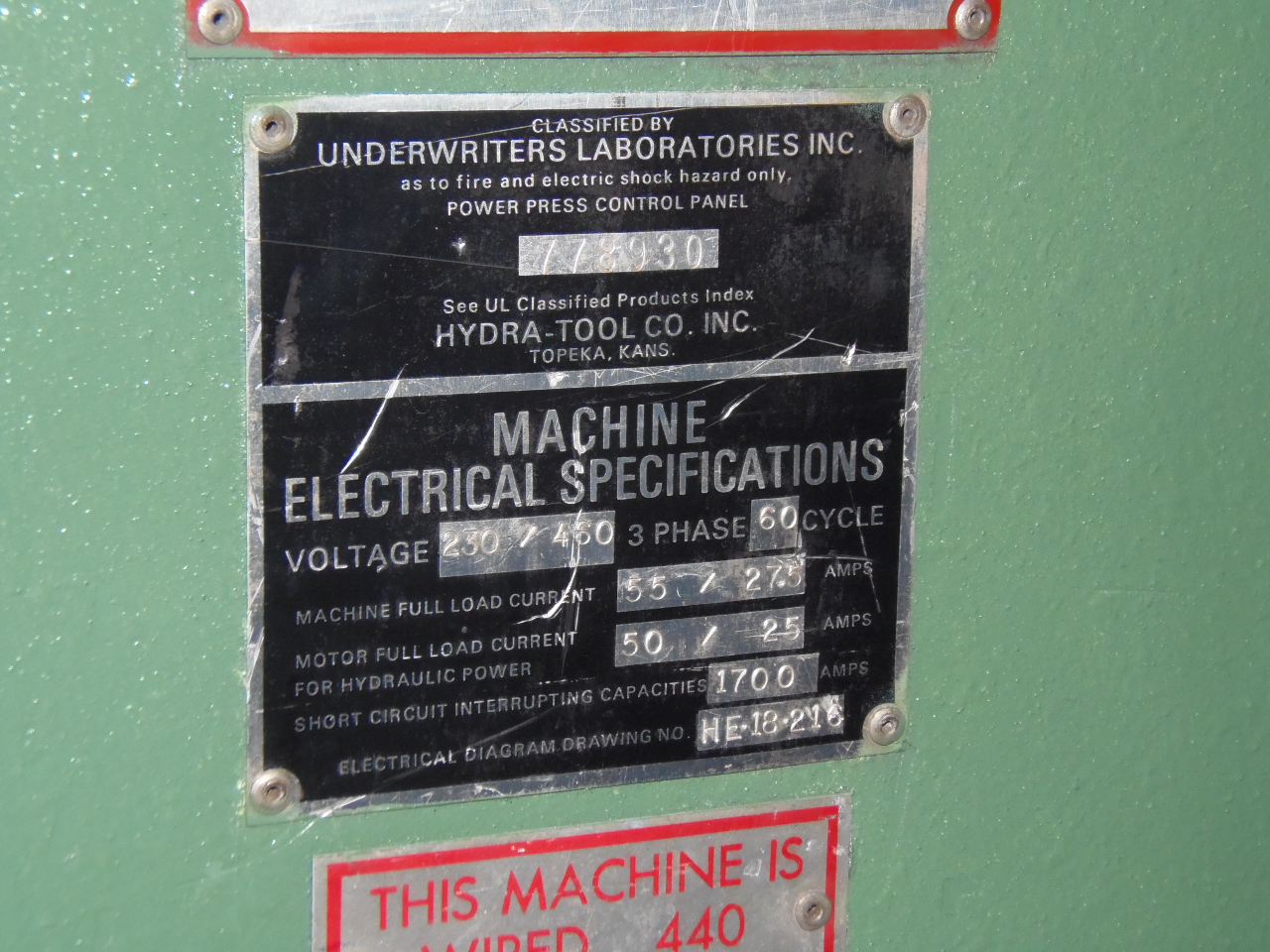

ELECTRICS: DUAL VOLTAGE MOTOR 230/460
CURRENTLY WIRED FOR 220V
