GENERAL SPECIFICATIONS:

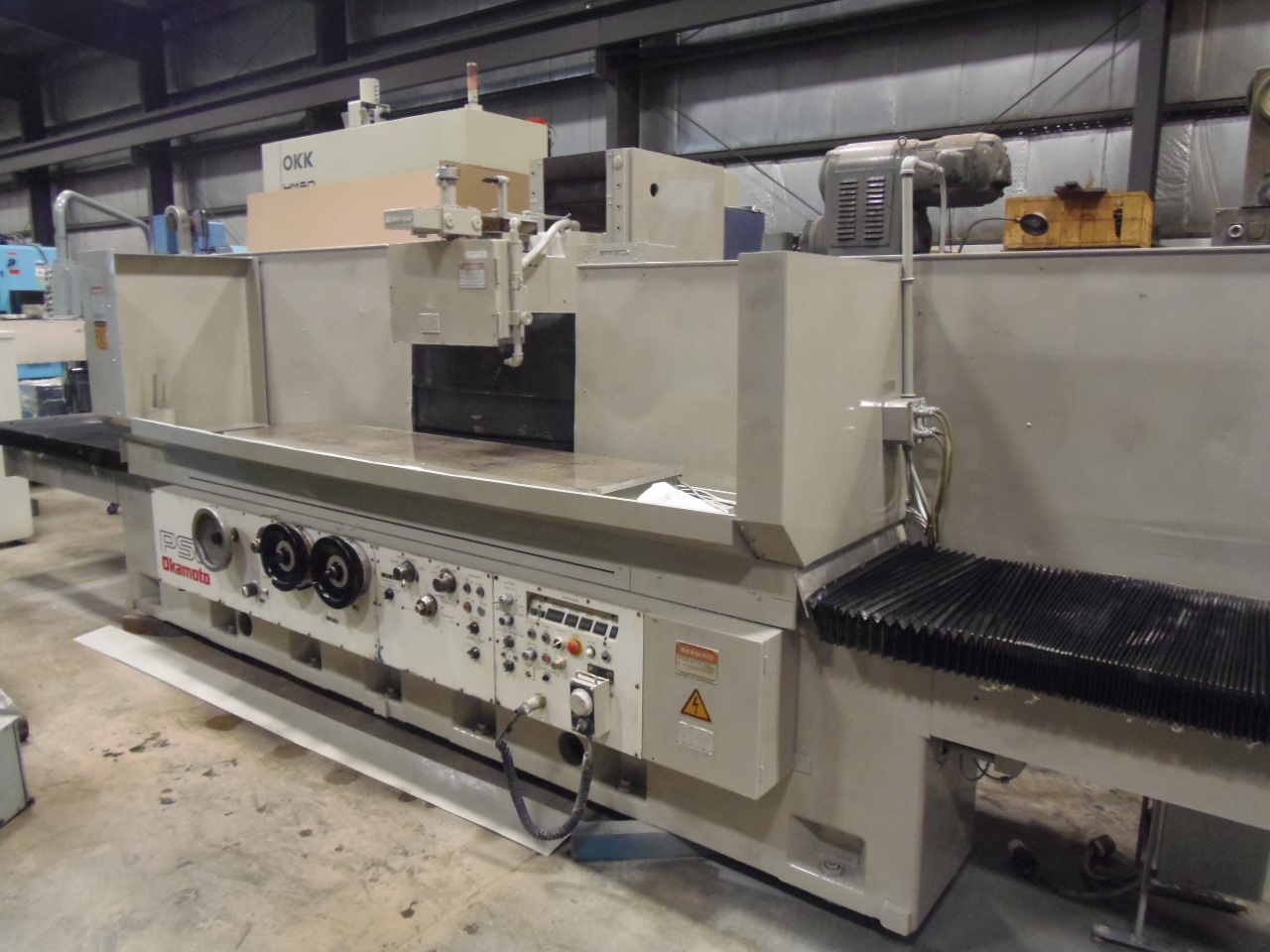

MANUFACTURER........................... OKAMOTO
MODEL.................................. PSG-205 DX

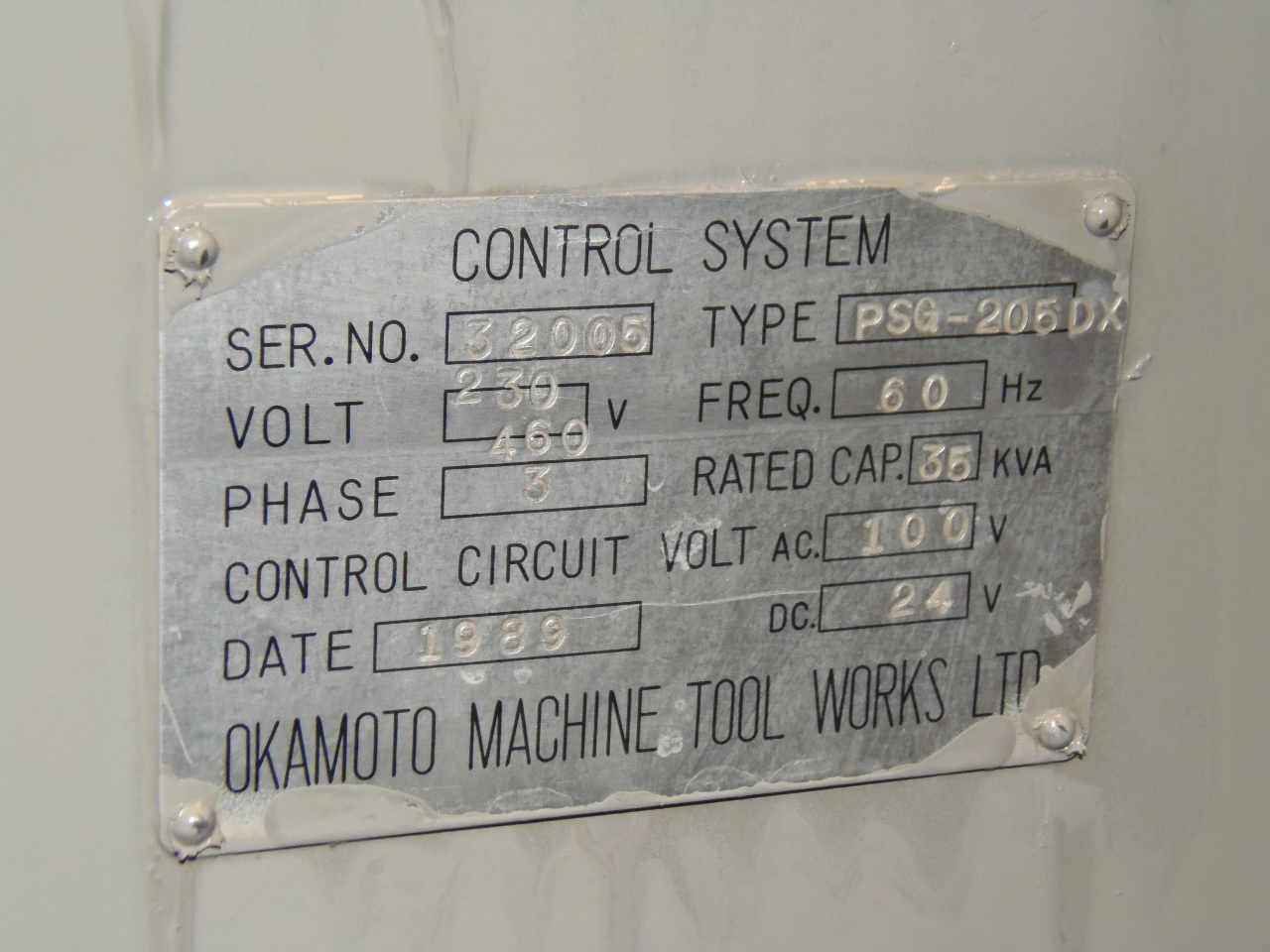

SERIAL................................. 32005
NEW (APPROX.).......................... 1989
GRINDING CAPACITY...................... 20"W x 80.7"L
VERTICAL CLEARANCE..................... 23.4" (W/20" WHEEL)
MAGNETIC CHUCK SIZE.................... 20" X 79"
MAX. MANUAL CROSS TRAVEL............... 20.8"
MAX. MANUAL LONGITUDINAL TRAVEL........ 84.6"
FEEDS
LONGITUDINAL MOVEMENT OF TABLE
HYDRAULIC FEED PER MIN.............. 1-100'
HAND FEED PER REV................... .984
CROSS MOVEMENT OF COLUMN
HYDRAULIC INTERMITTENT FEED......... .20 - 1.37"
HYDRAULIC CONTINUOUS FEED PER MIN... 1 - 16.4'
HAND FEED PER REVOLUTION............ .984"
GRADUATION OF HAND WHEEL............. .001"
VERTICAL MOVEMENT OF WHEEL HEAD
AUTOMATIC FEED PER TABLE STROKE...... .0002 - .002"
AUTOMATIC FEED PER COLUMN REVERSAL... .0002 - .002"
GRADUATION OF HAND WHEEL............. .0002"
HAND FED PER REVOLUTION.............. .04"
VERTICAL RAPID FEED.................. 12"
GRINDING WHEEL............................ 20" x 2" x 5"
SPINDLE SPEED............................. 1,100 RPM
GRINDING WHEEL MOTOR................. 10 HP
DIMENSIONS (APPROX.)................. 275" X 109"
WEIGHT (APPROX.)..................... 19,800 LBS.
EQUIPPED WITH:
AUTO INCREMENTAL DOWN FEED

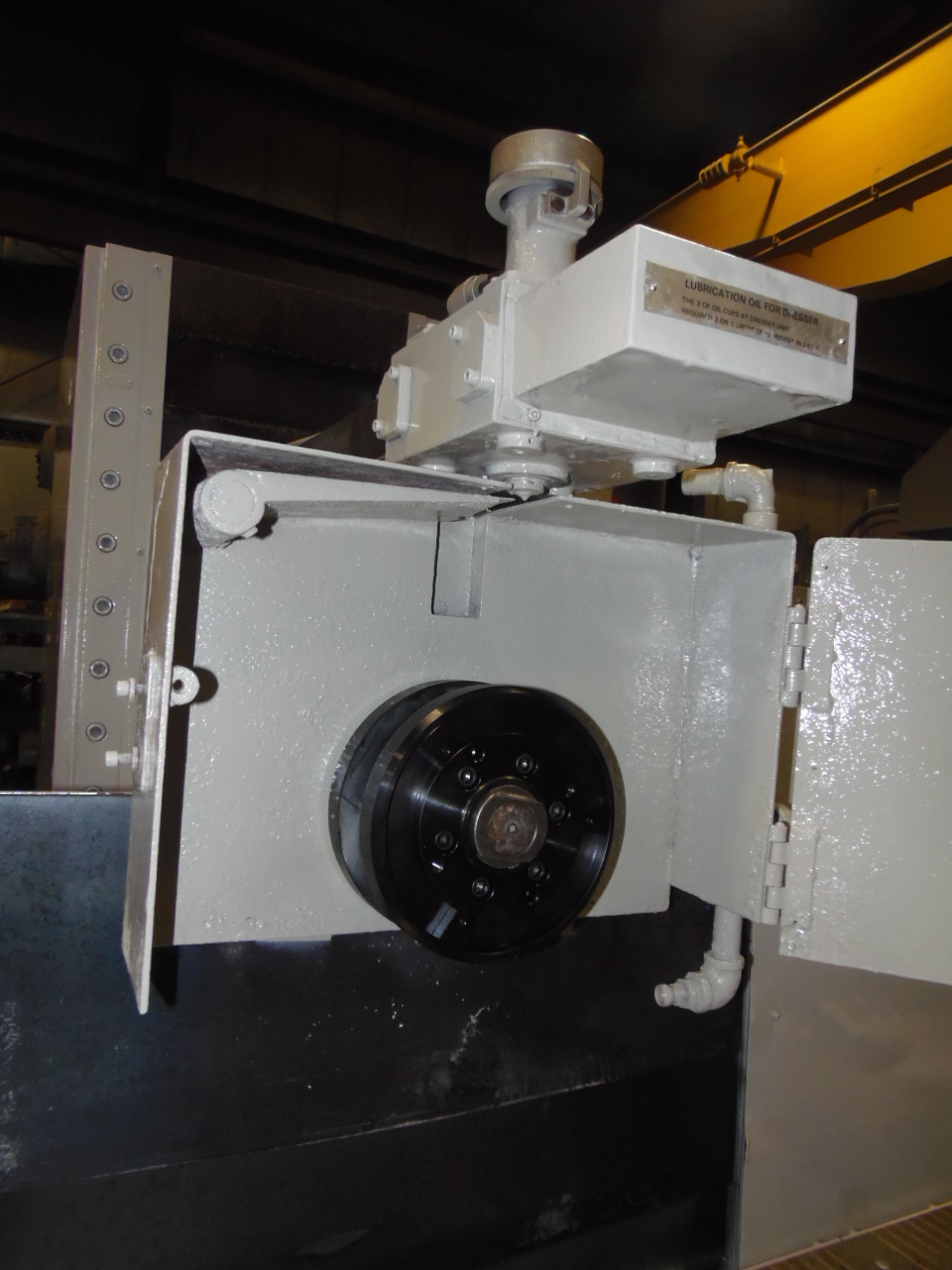

OVER THE WHEEL HYDRAULIC DRESSER

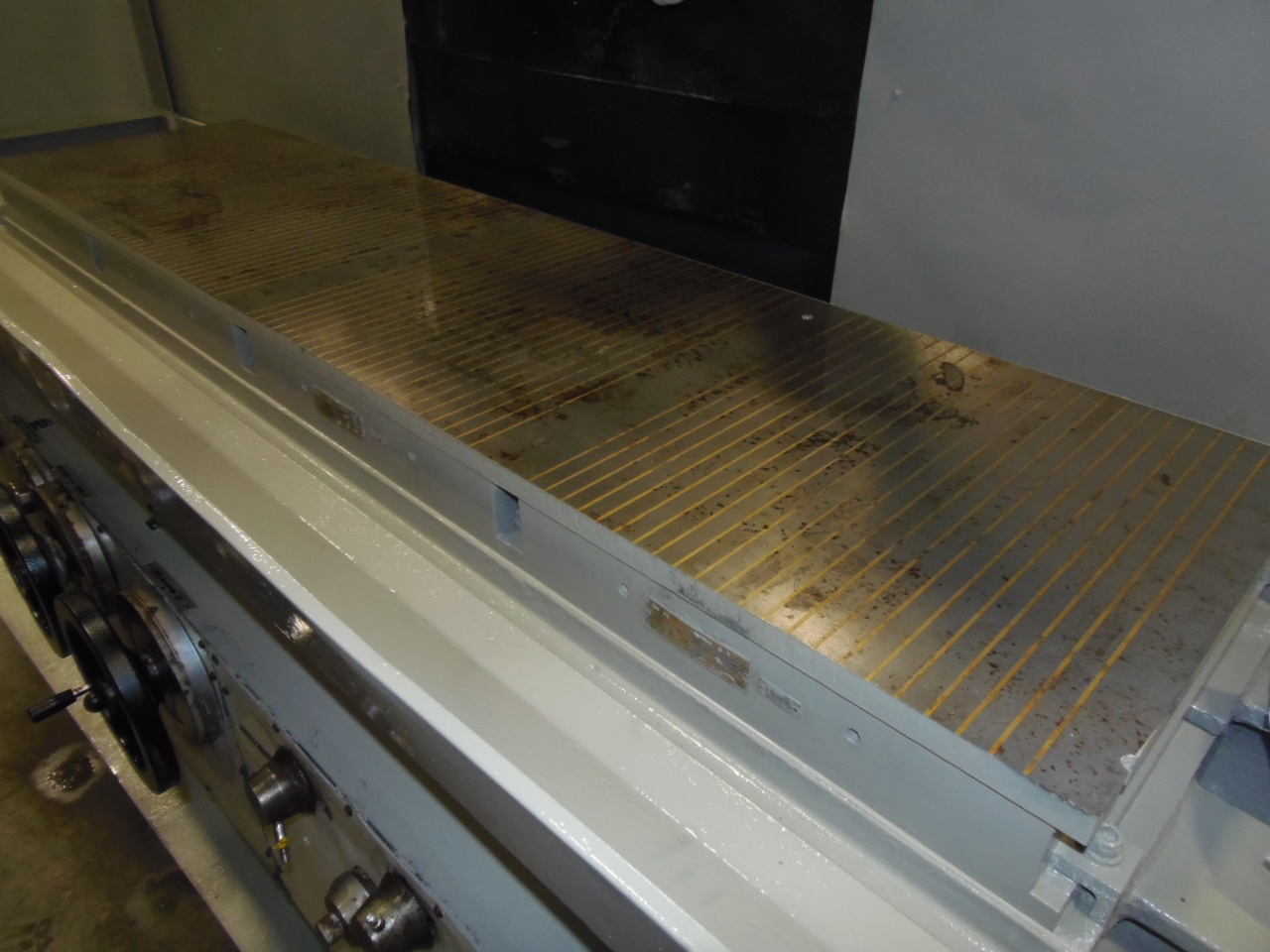

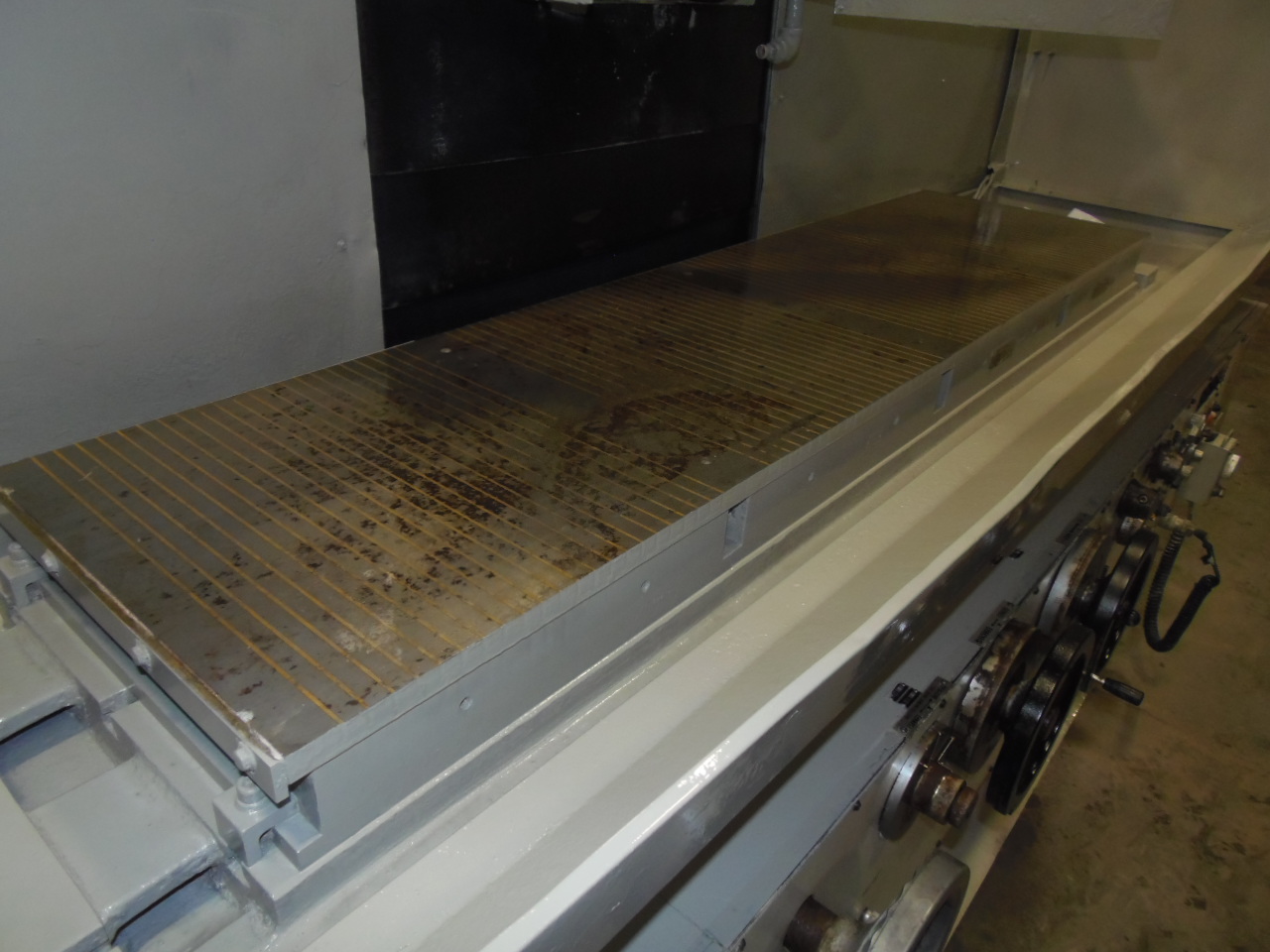

20" X 79" ELECTRO MAGNETIC CHUCK

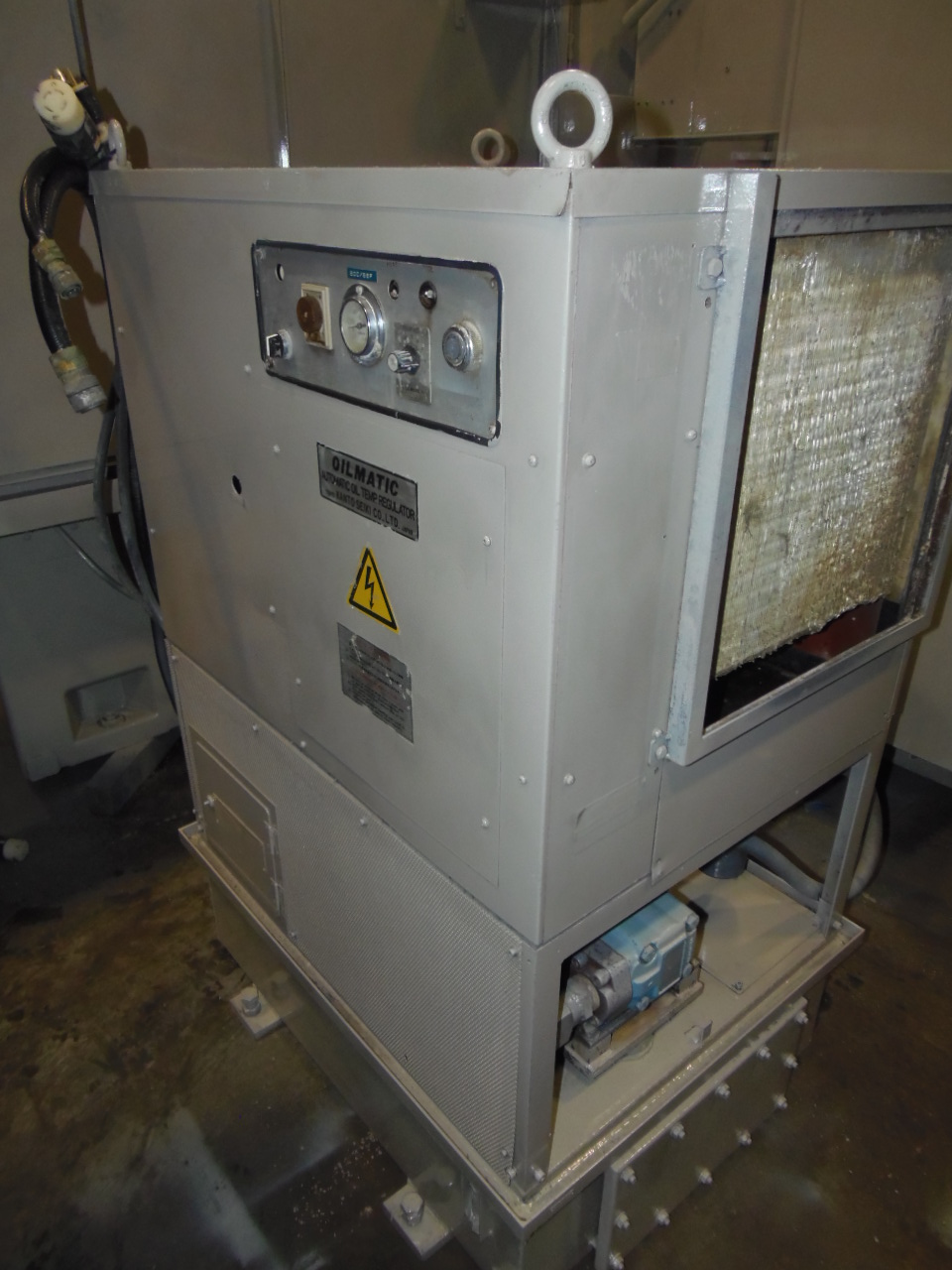

COOLANT SYSTEM
