Specifications
Equipped With
GENERAL SPECIFICATIONS:

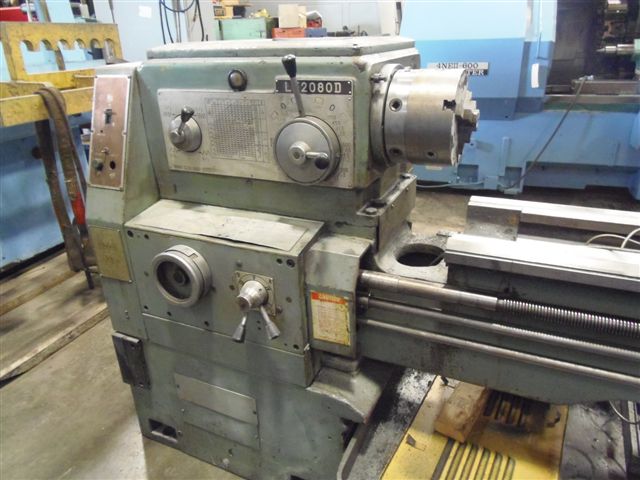

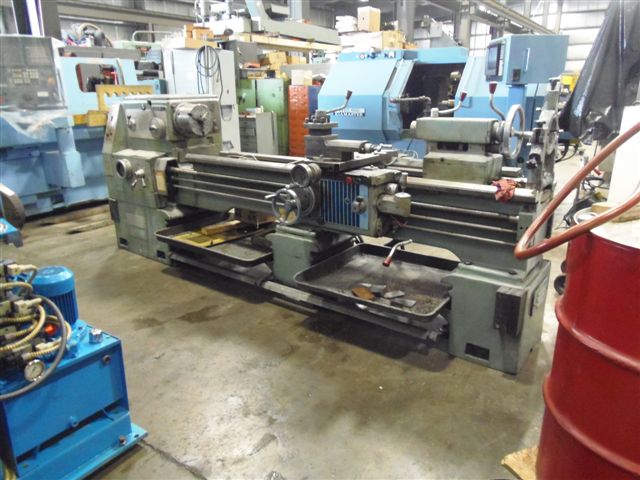

MANUFACTURER....................................ENCO
MODEL...........................................LG2080
AGE APPROXIMATELY...............................1993
SERIAL#.........................................930789
TYPE............................................GAP BED LATHE
SWING...........................................20"
SWING OVER CROSS SLIDE..........................13"
SWING OVER GAP..................................28 1/2"
GAP WIDTH.......................................12 1/4"
BED WIDTH.......................................13 3/8"
DISTANCE BETWEEN CENTERS........................80"
TAILSTOCK.......................................MT#5
TOOL HOLDER SIZE................................1.25"
SPINDLE NOSE....................................D1-8
SPINDLE BORE....................................3 1/8"
SPINDLE SPEEDS..................................14-1600 RPM
HORSEPOWER......................................10
CROSSLIDE TRAVEL................................10"
ELECTRICS.......................................220/440 3PHS 60HZ
DIMENSIONS......................................140" X 40" X 50"H
EQUIPPED WITH:
SARGON 2 AXIS DRO
TAPER ATTACHMENT
9" 3 JAW CHUCK
COOLANT
STEADY REST
