Specifications
Equipped With
GENERAL SPECIFICATIONS:

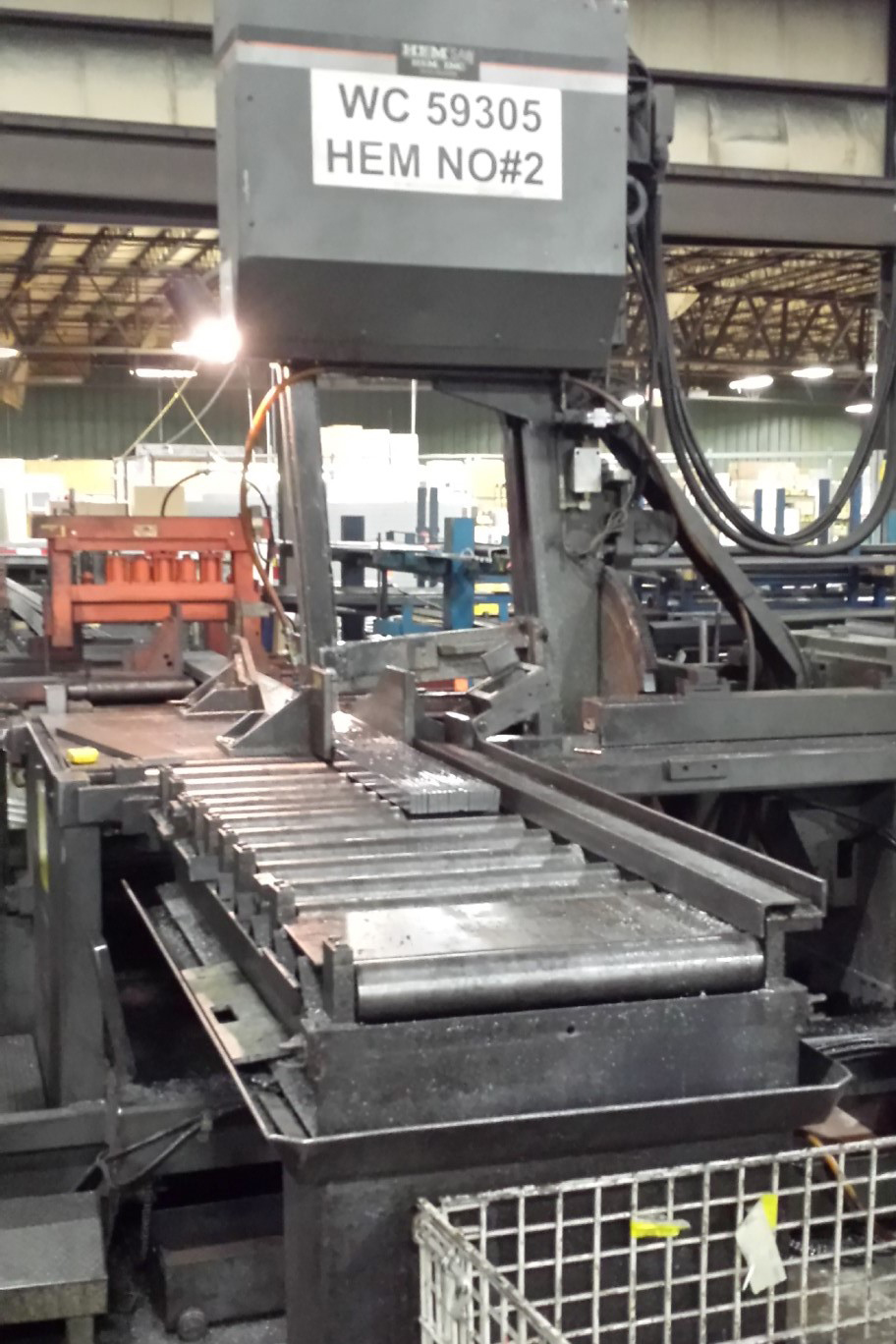

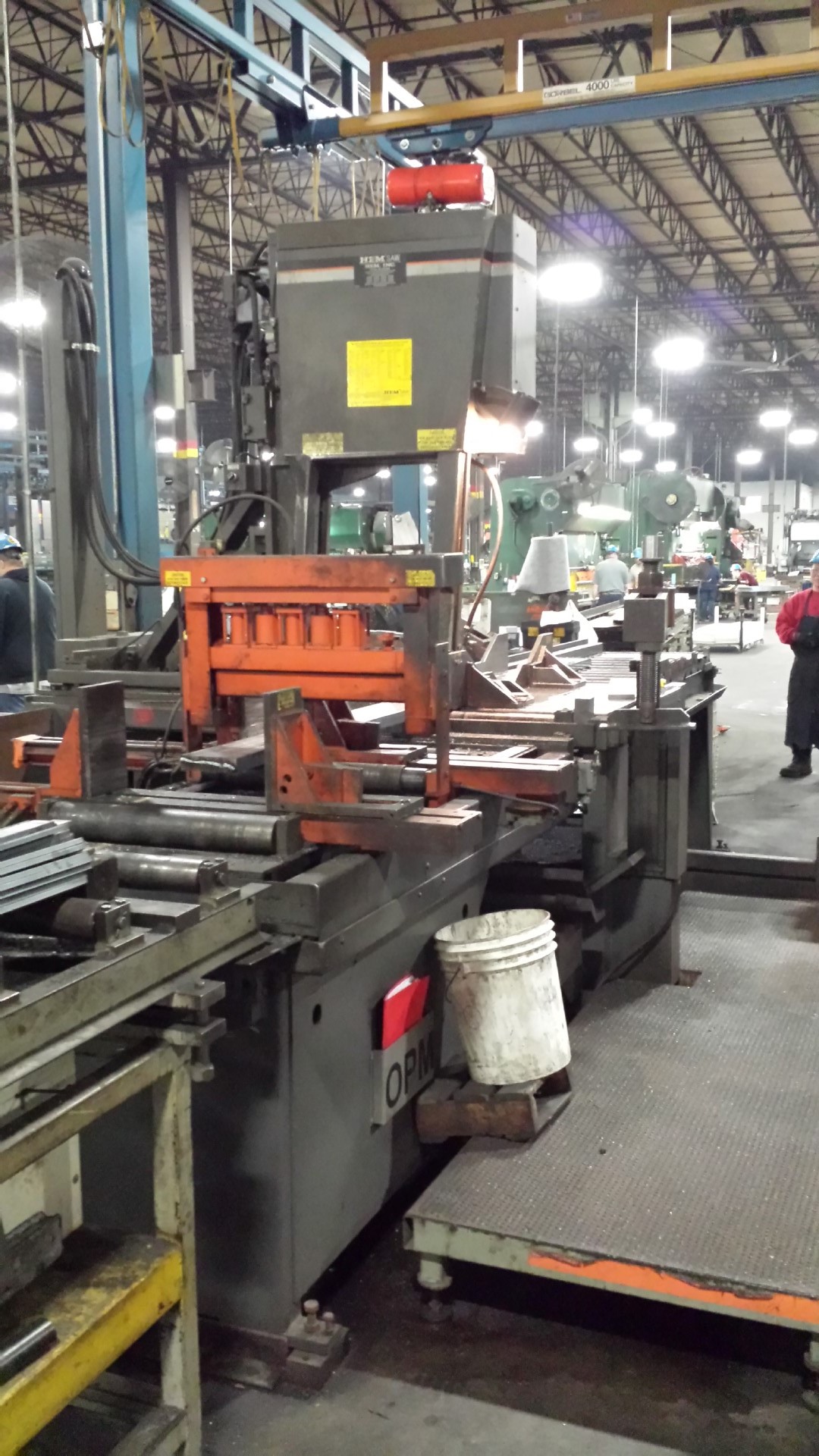

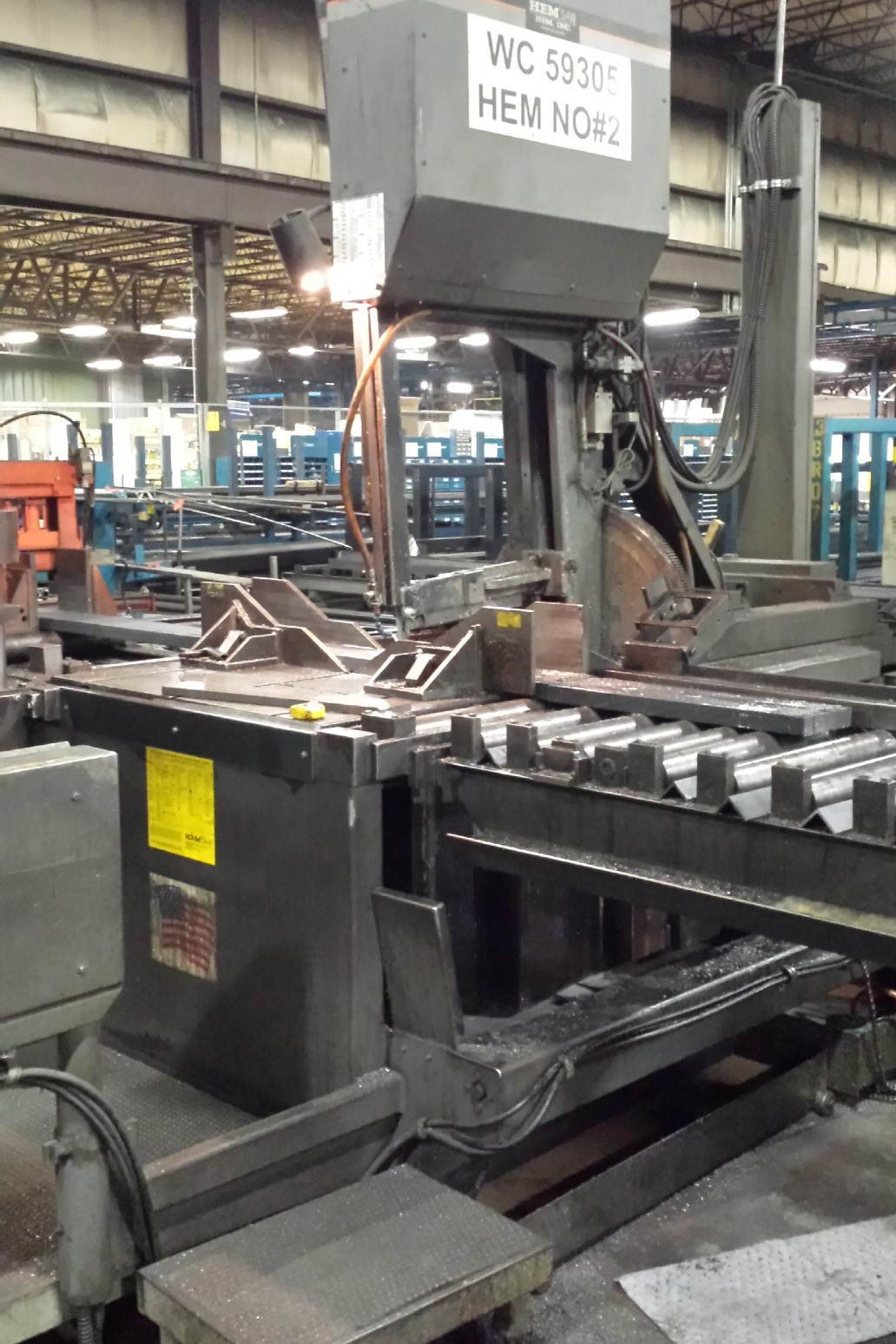

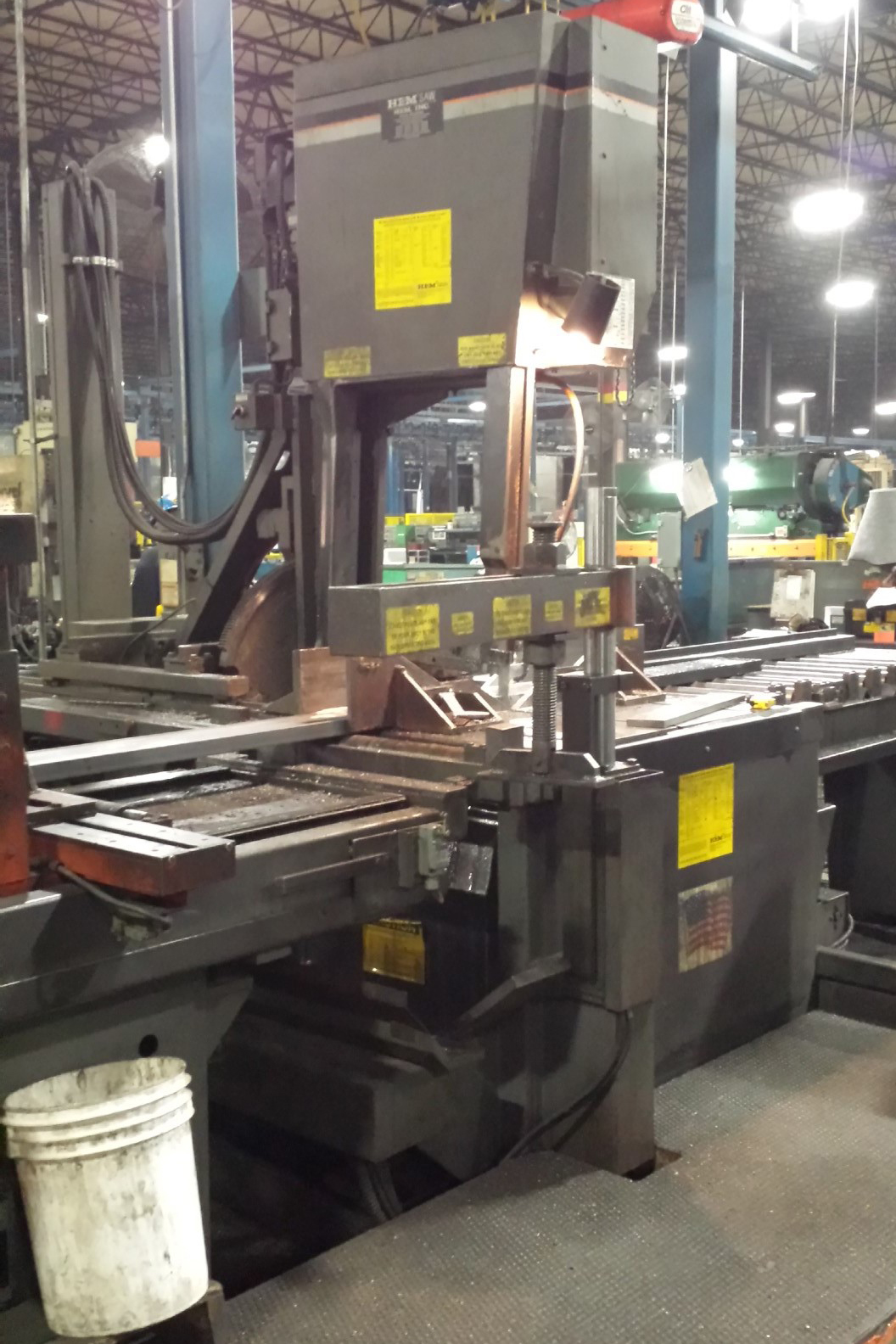

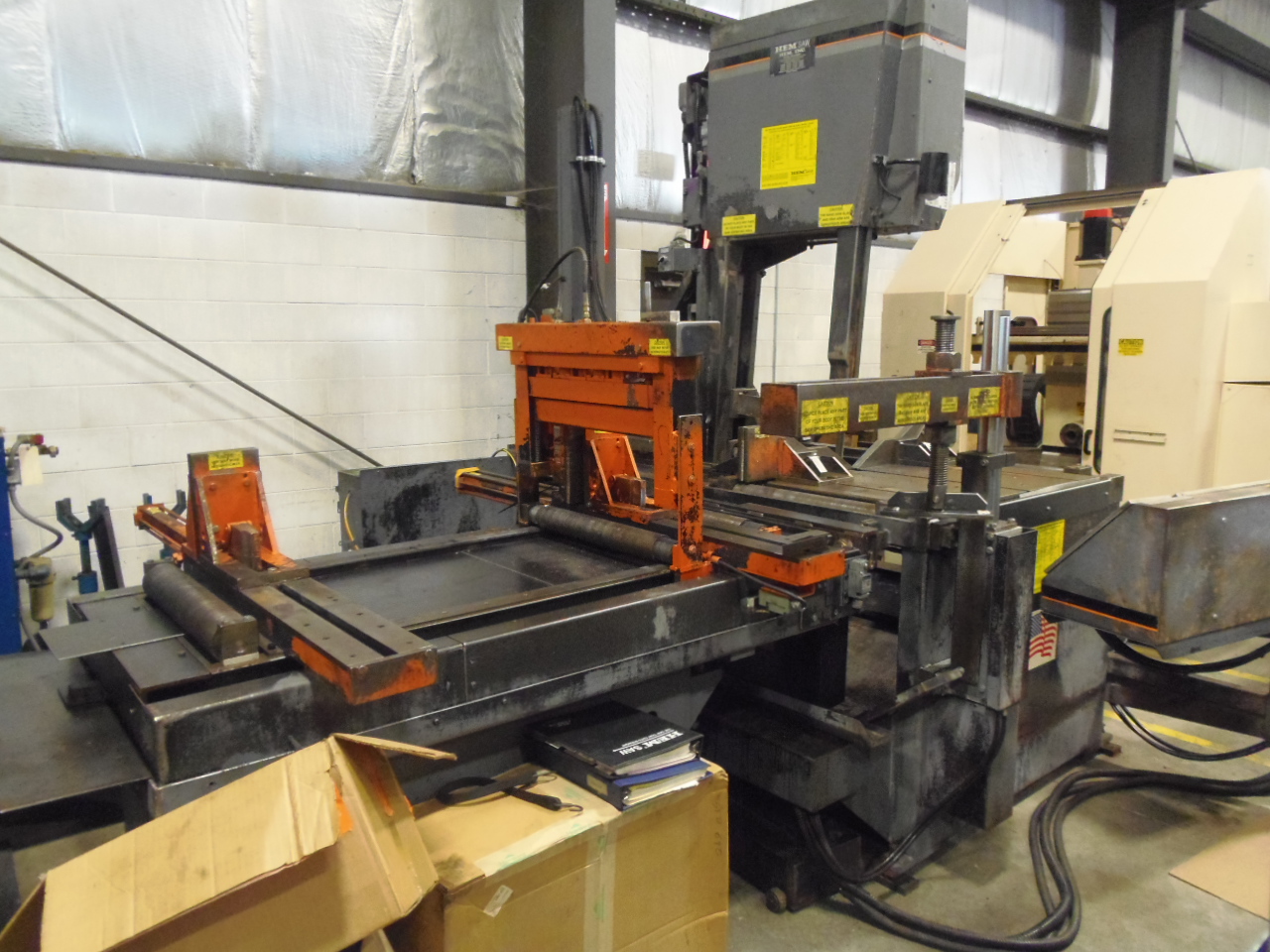

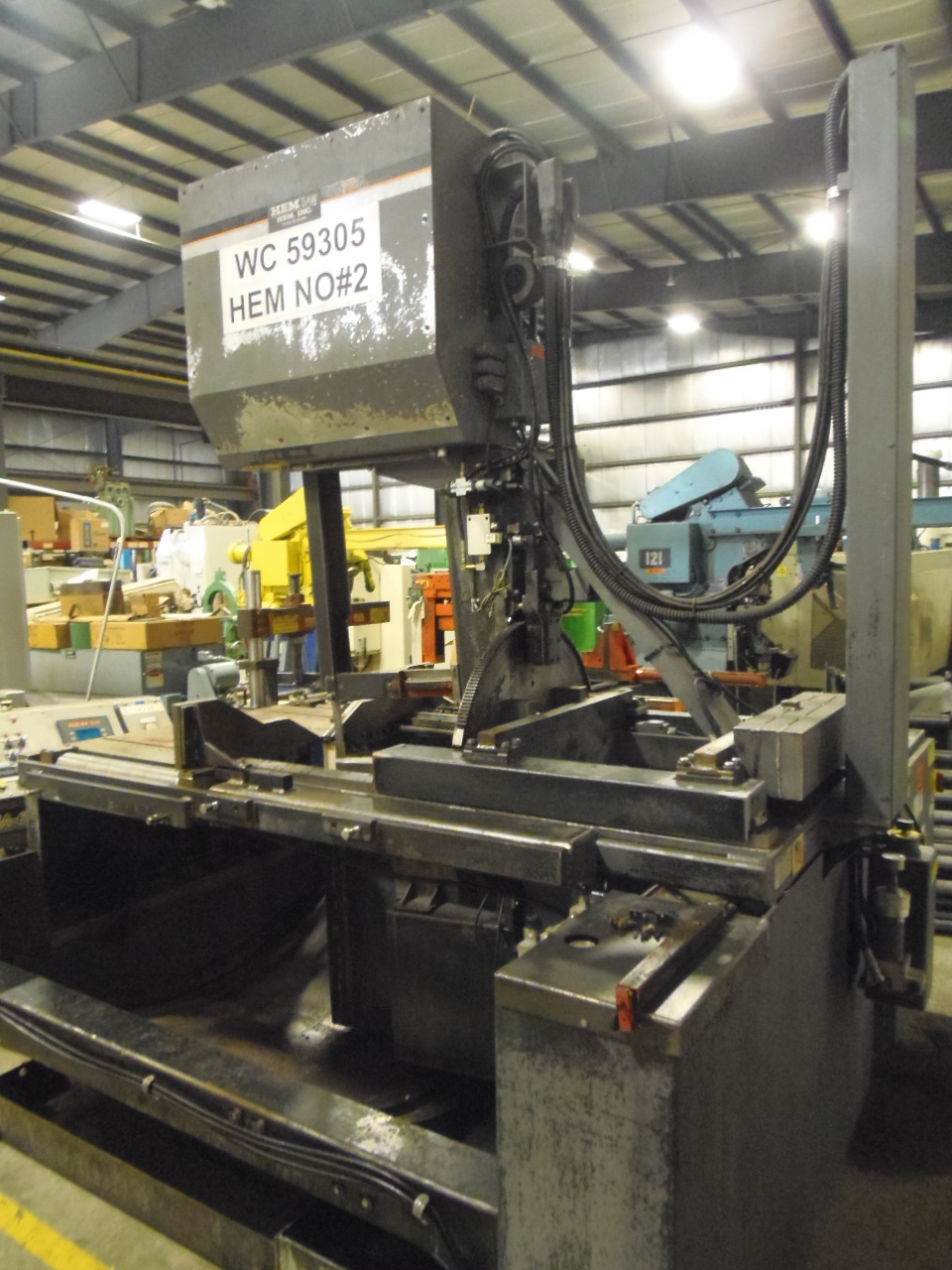

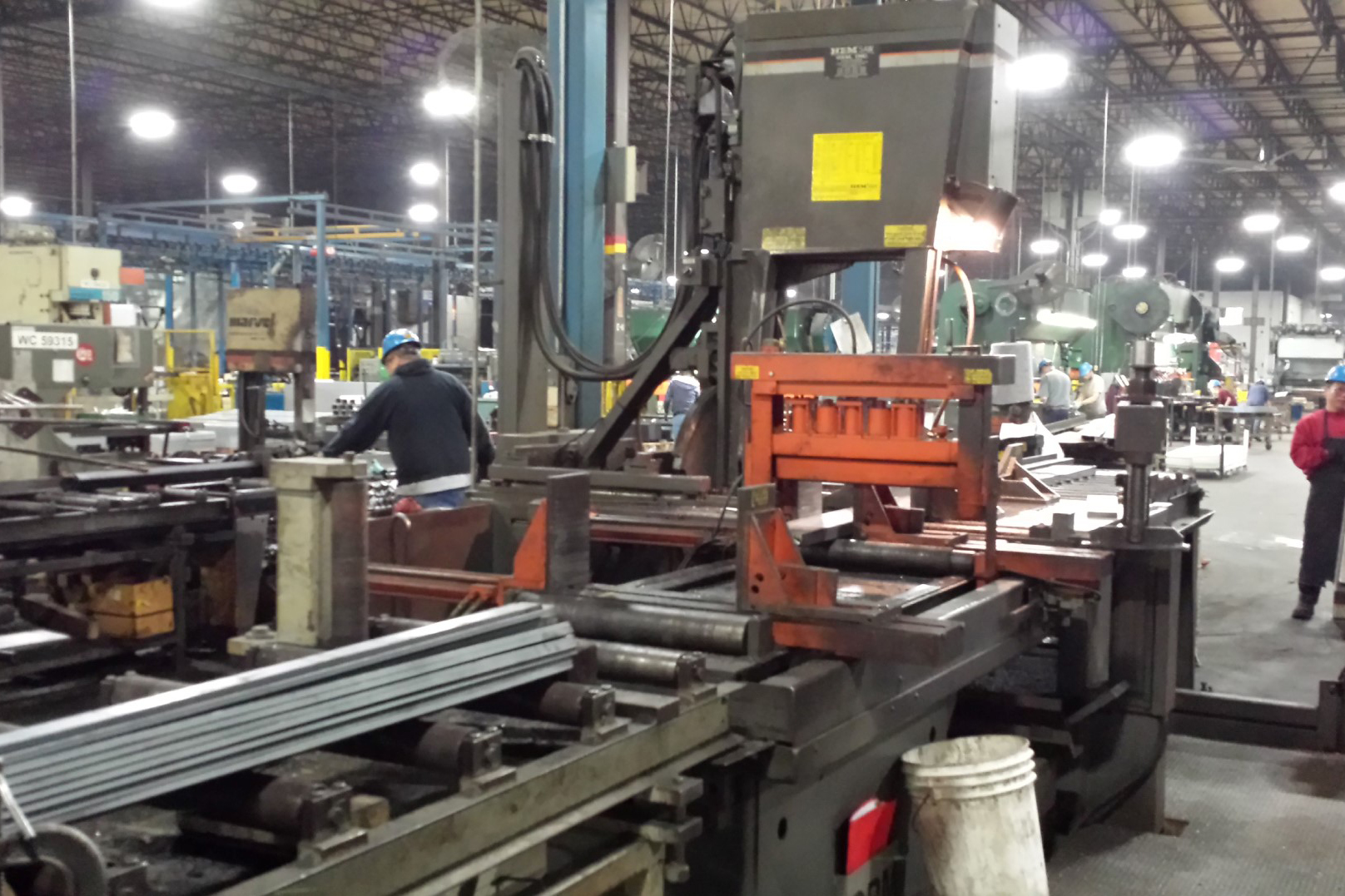

MAKE...................... HEM
MODEL..................... VT130HA-60
AGE (YEAR)................ 2005

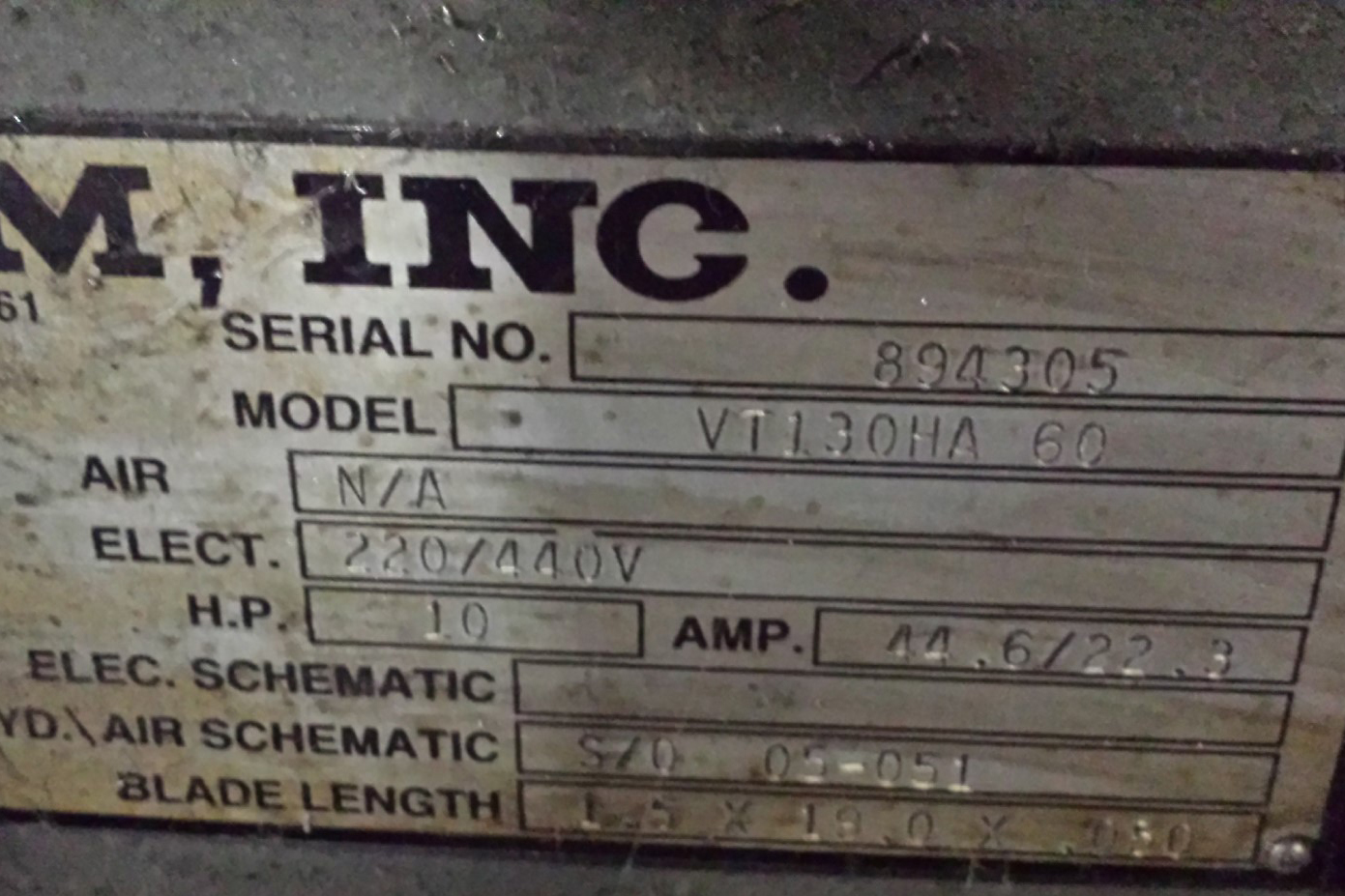

SERIAL NUMBER............. 894305
BLADE SIZE................ 1.5" X .050" X 19'0"
PART CAPACITY ............ 20" X 24"
PART CAPACITY @ 45........ 20" X 16" (BOTH DIRECTIONS)
PART CAPACITY @ 60........ 20" X 10" (BOTH DIRECTIONS)
BLADE DRIVE MOTOR......... 10 HP
HYDRAULIC MOTOR........... 5 HP
BLADE SPEED............... 75-400 SFPM WITH LED READOUT
CUTTING PRESSURE.......... 0-400 PSI
BLADE FEED RATE........... 0-3 INCHES/SECOND
POWER TILT ARM............ 60 DEGREES LEFT OR RIGHT
AUTOMATIC FEED STROKE..... 0-48"
ELECTRICS................. 460V/3PH/60HZ
EQUIPPED WITH:

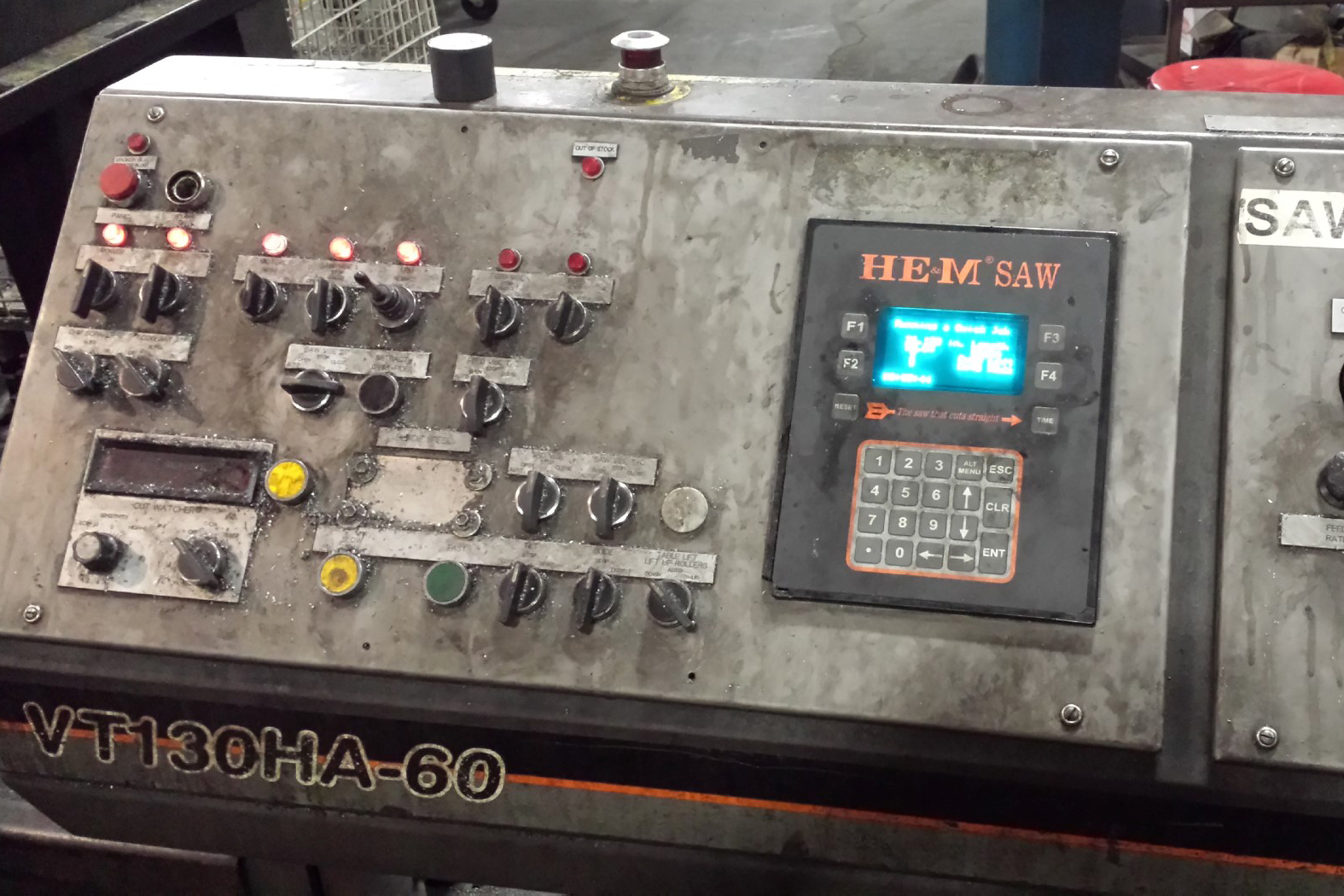

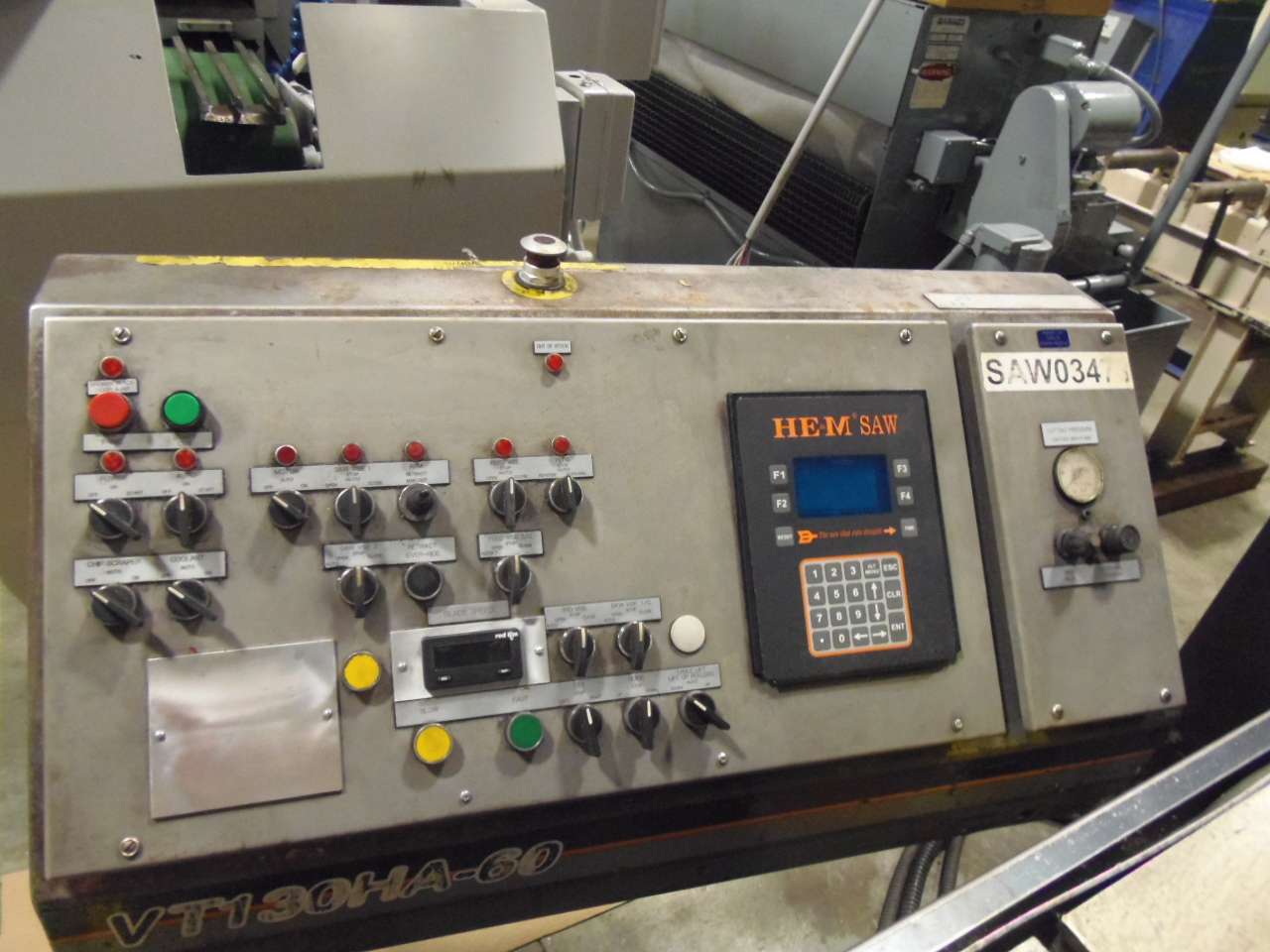

COMPUTER CONTROLLED FEED SYSTEM (CCFT)
PROGRAMMABLE FEED AND MITER
500 DIFFERENT JOBS CAN BE HELD IN MEMORY CONSISTING OF PART LENGTH UP TO 999.99", MITER ANGLE, AND QUANTITY. COMPENSATES FOR BLADE KERF AUTOMATICALLY WHEN INDEXING.
OFF-SET FEATURE FOR CAN ALLOW FOR FEED-LENGTH CORRECTION FOR BLADE WEAR
JOGGING FEATURE FOR SINGLE CUT OR SETUP
POWERED CHIP CONVEYOR

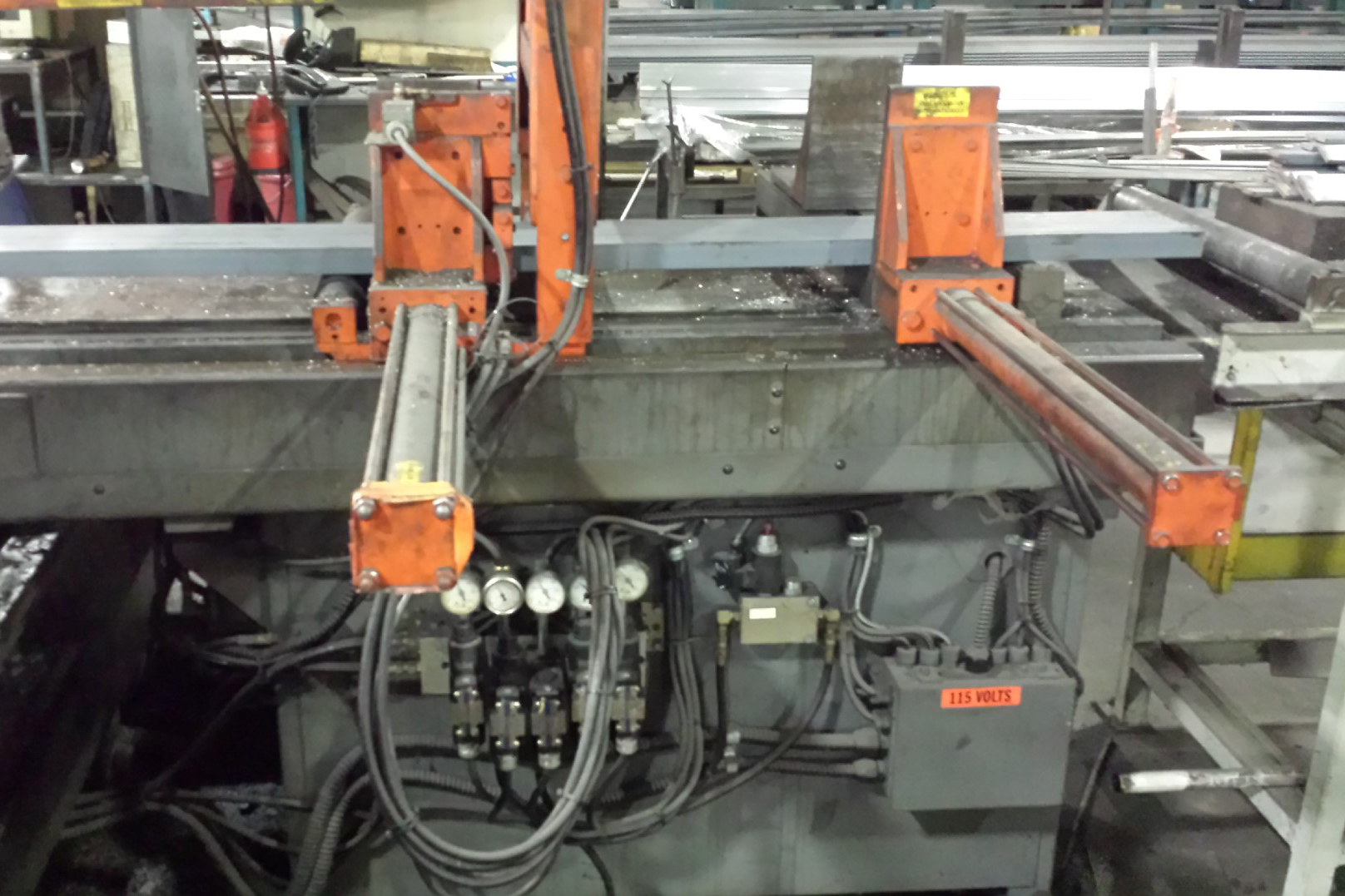

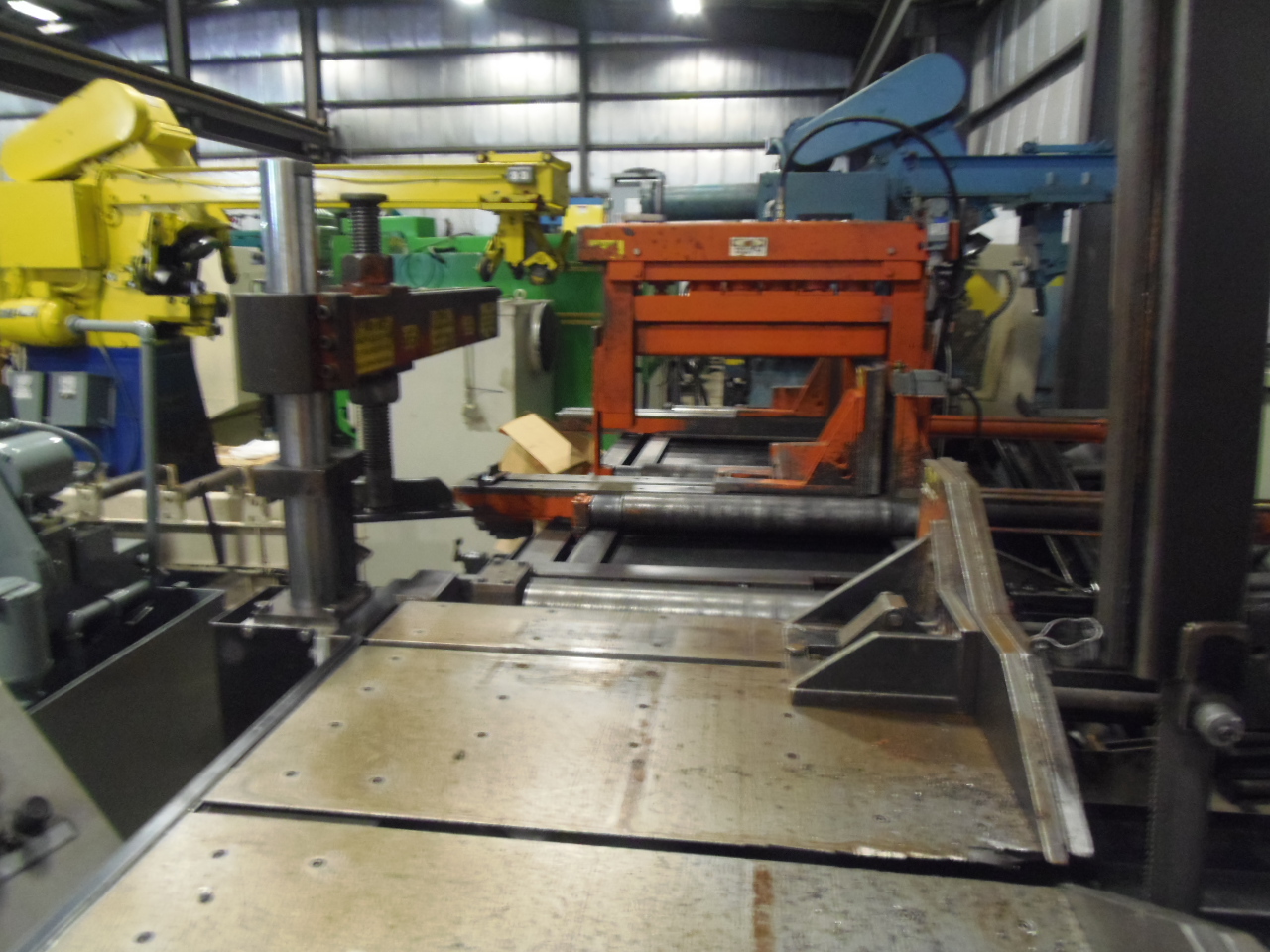

SECOND MAIN MACHINE VISE ON THE DISCHARGE SIDE OF THE BLADE.
THIRD HOLDING VISE TO ASSURE POSITIVE ALIGNMENT OF THE MATERIAL
FULL CAPACITY TOP CLAMPS ON THE MAIN VISE AND FEED VISE FOR CUTTING ENTIRE MILL BUNDLES

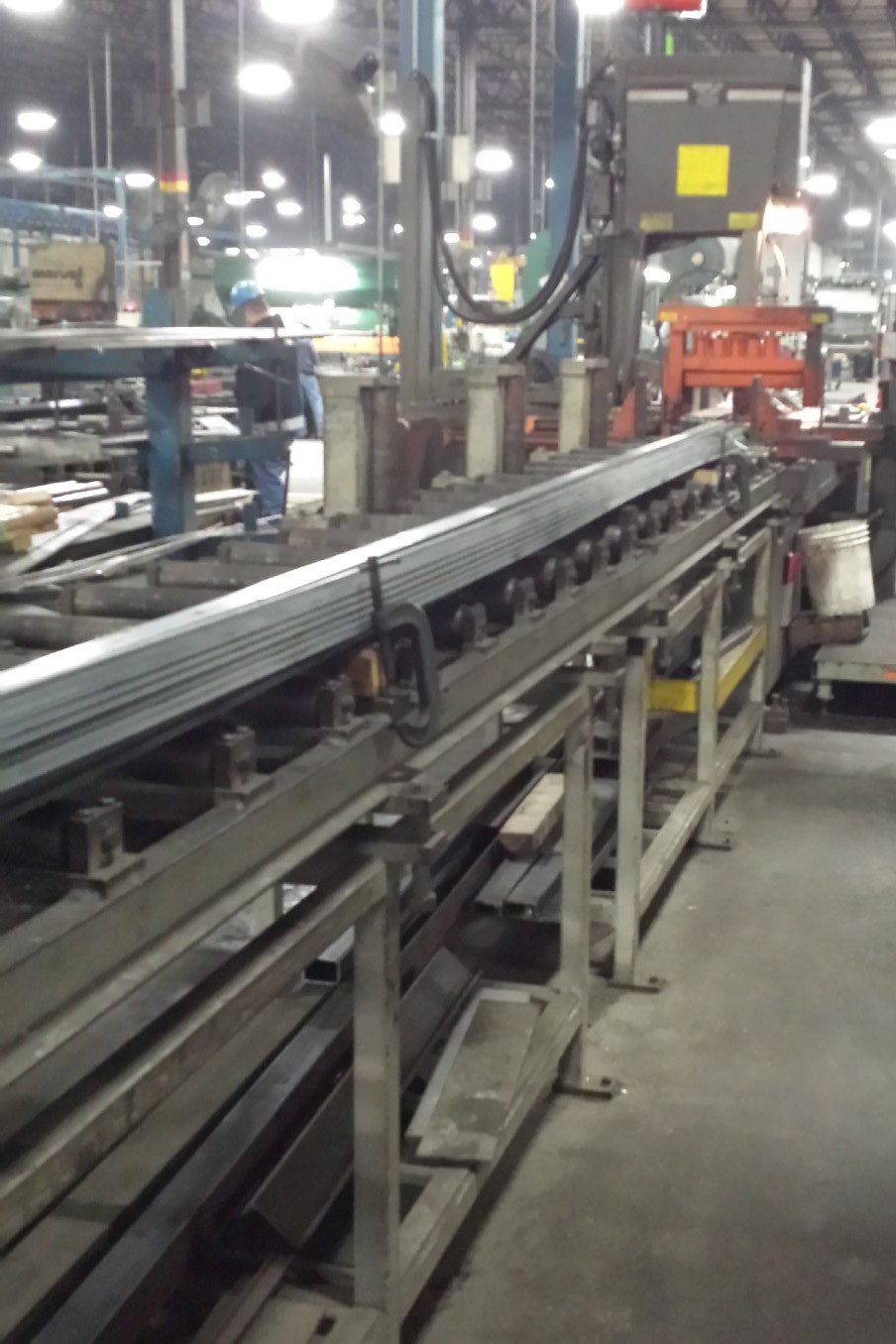

20' INFEED CONVEYOR
10' OUTFEED CONVEYOR
DIGITAL BLADE SPEED READOUT
SPECIFICATIONS SUBJECT TO VERIFICATION
