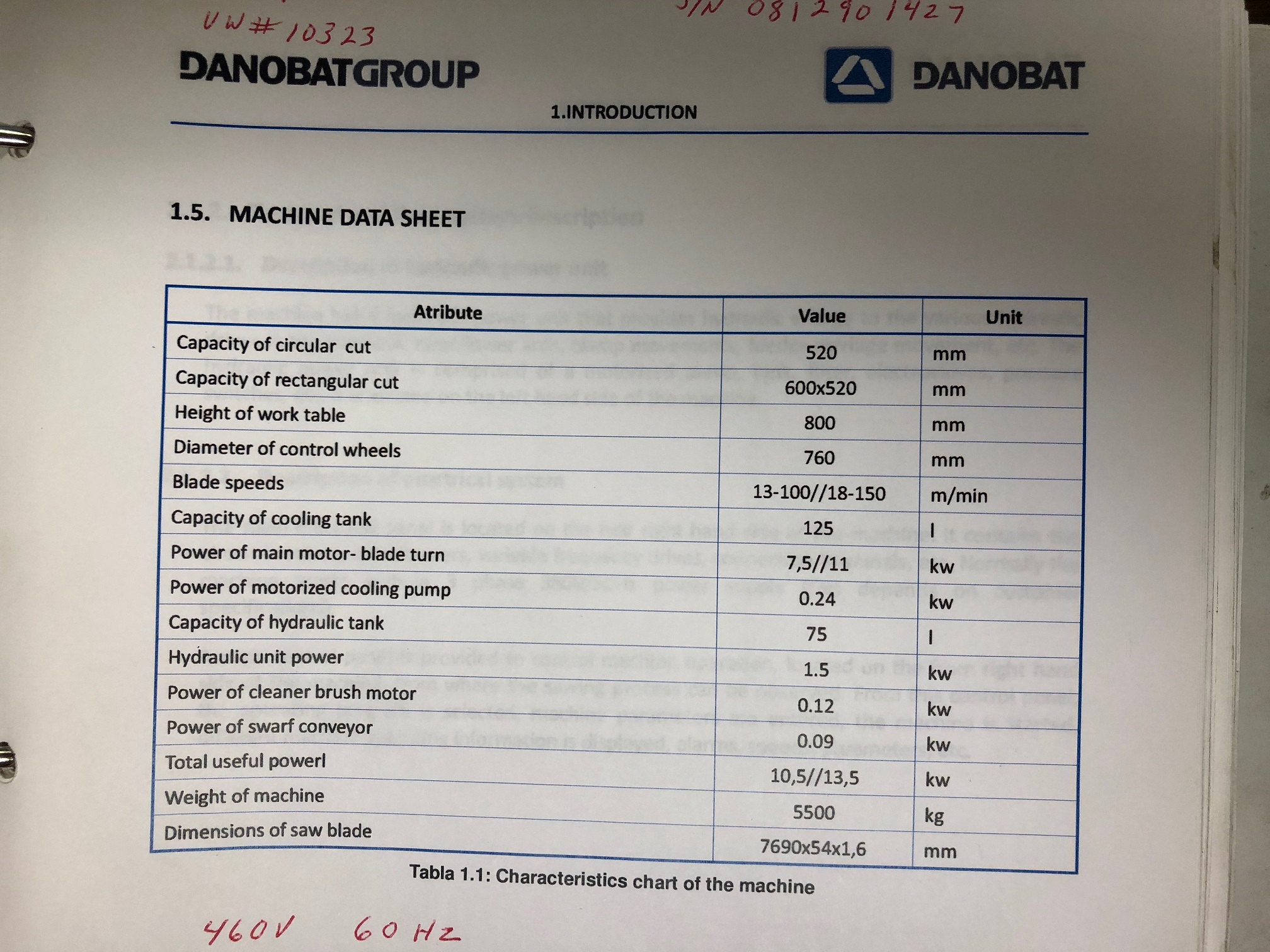

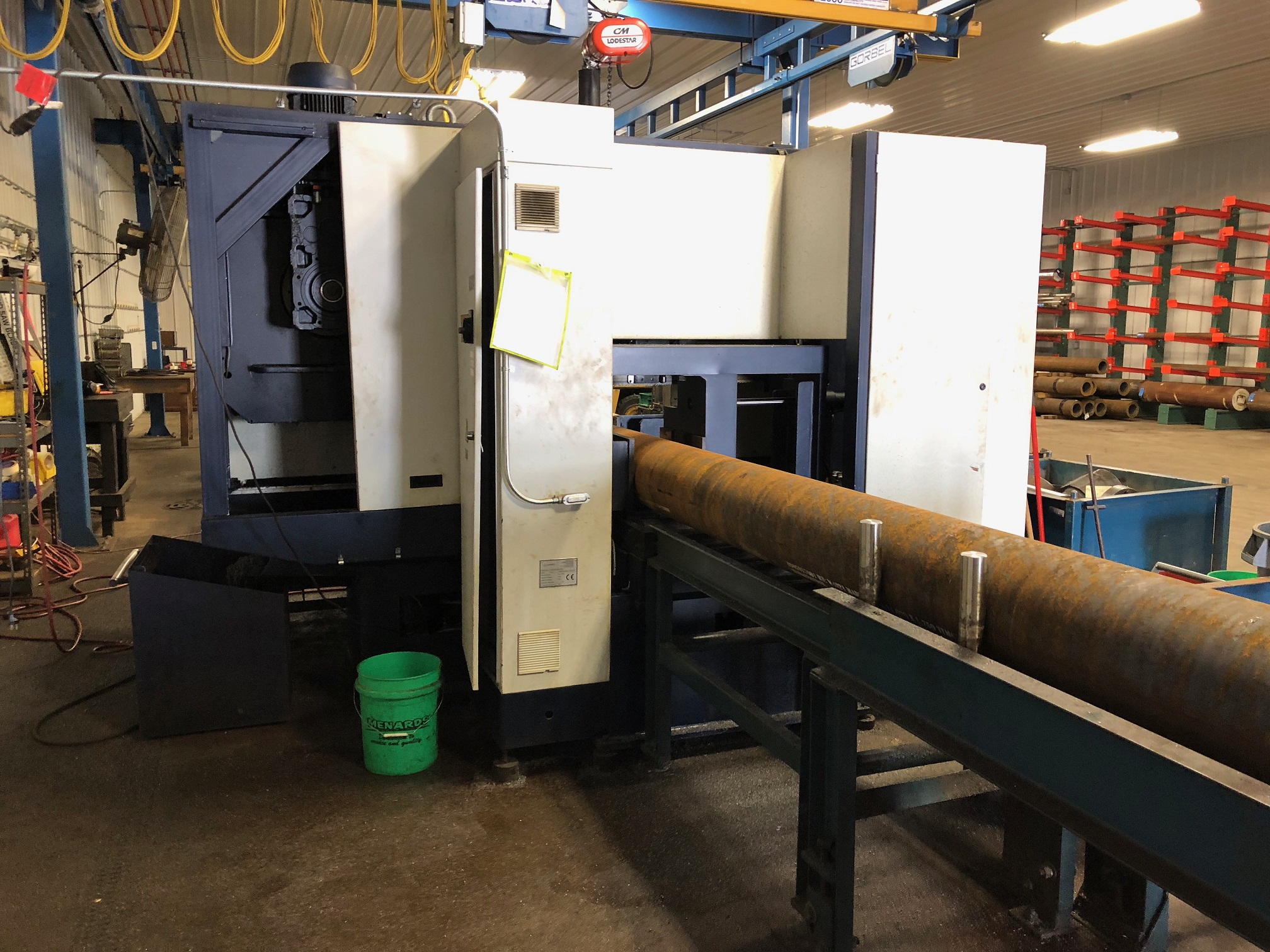

GENERAL SPECIFICATIONS:

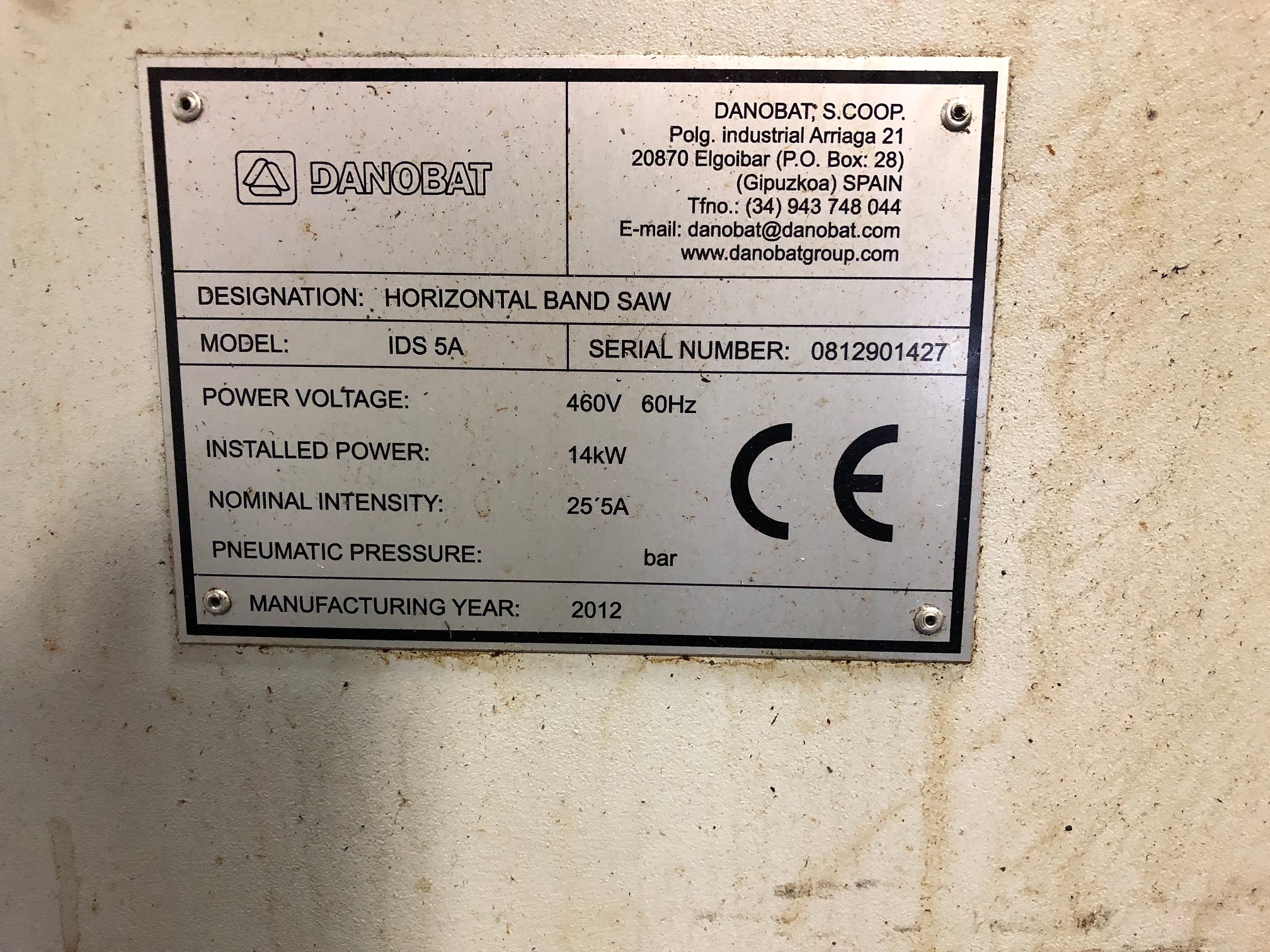

MAKE.................................. DANOBAT
MODEL................................. IDS 5A
SERIAL NUMBER......................... 0812901427
NEW................................... 2012
CAPACITY ROUND AT 90 DEGREES.......... 20.5"
RECTANGULAR.................. 23.6" X 20.5"
BLADE SPEEDS INF. VARIABLE............ 60 - 492 FPM
BLADE SIZE............................ 302" X 2" X 0.063"
BLADE TENSION......................... HYDRAULIC
BLADE GUIDES.......................... CARBIDE
MAIN MOTOR............................ 15 HP
VISE CONTROL.......................... HYDRAULIC
SHUTTLE STROKE........................ 0 - 40" SINGLE STROKE
MULTI SHUTTLE CAPABILITY.............. UP TO 99 STROKES
INFEED IDLER CONVEYOR................. 27" LONG X 28" WIDE
OUTFEED TABLE......................... 32" LONG X 29.5" WIDE
CURRENT VOLTAGE....................... 440 VOLTS
WEIGHT APPROX......................... 12,100 LBS.
ADDITIONAL FEATURES
- Automatic swarf conveyor

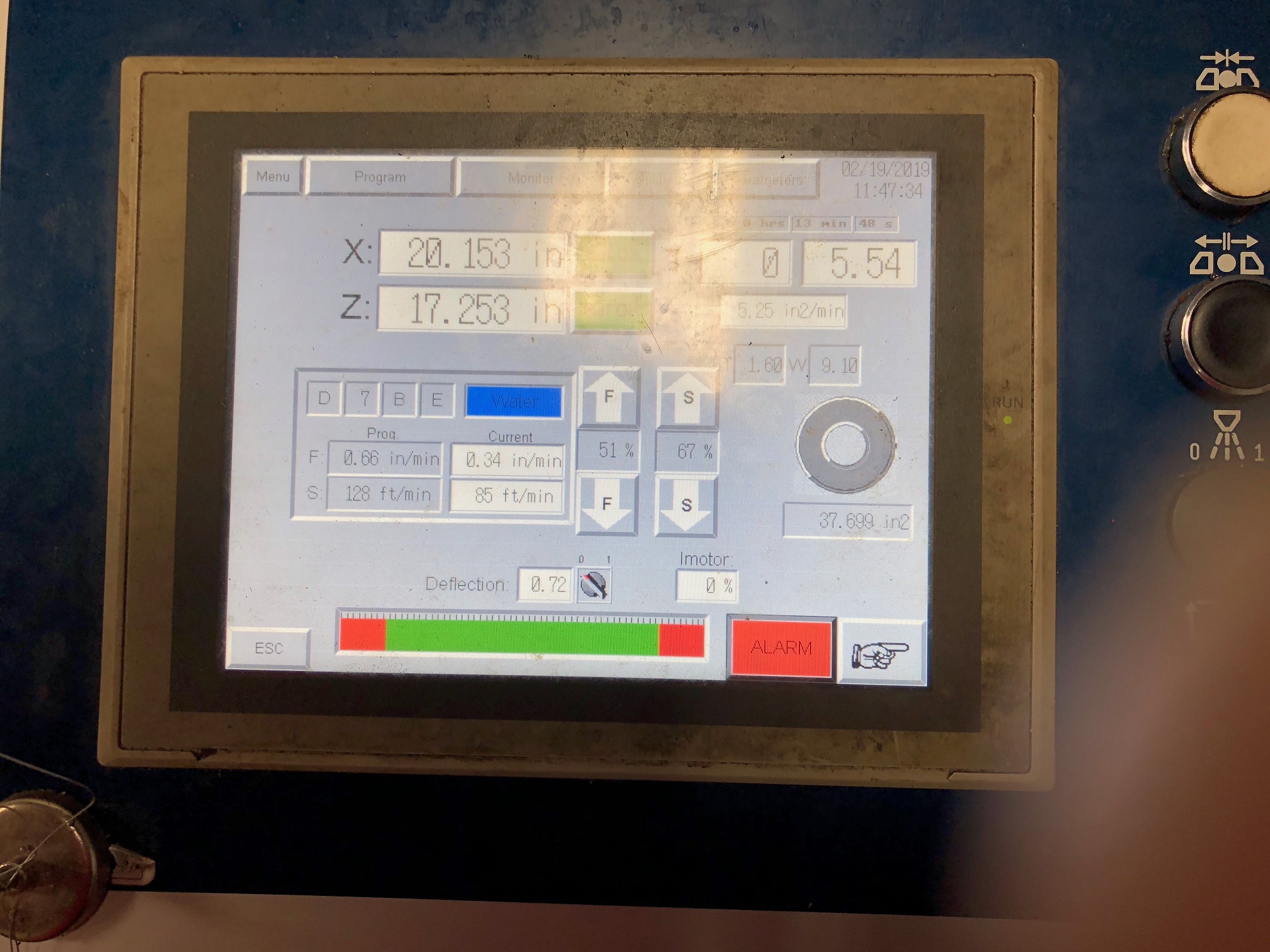

- CNC length programmer
- Automatic tensioning
- Downfeed speed control
- Laser fast approach
- Hydraulic arm blockage

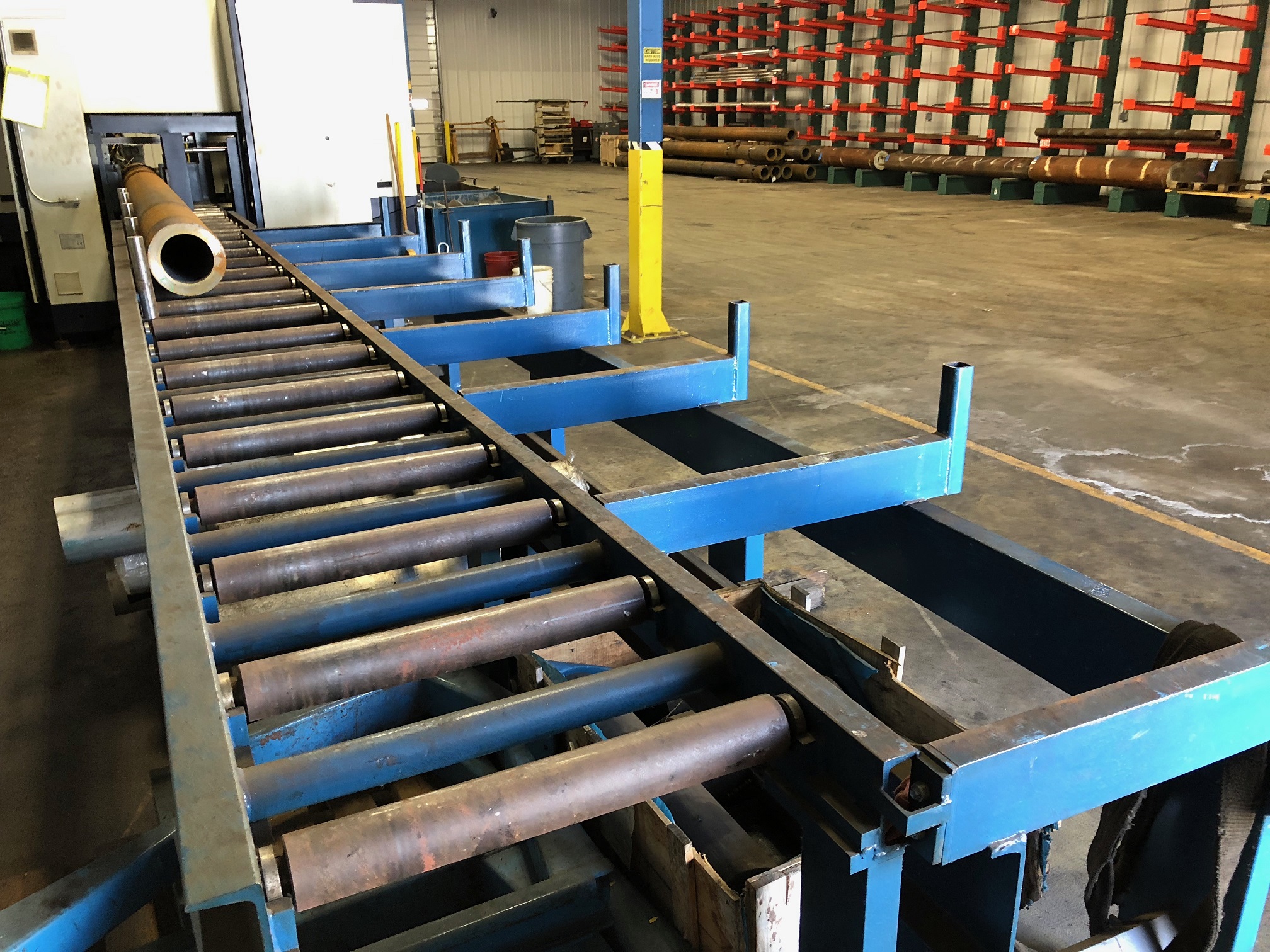

- Material Handling system including a 24" x 24' roller table with a 32" staging area
