Specifications
Equipped With
GENERAL SPECIFICATIONS:

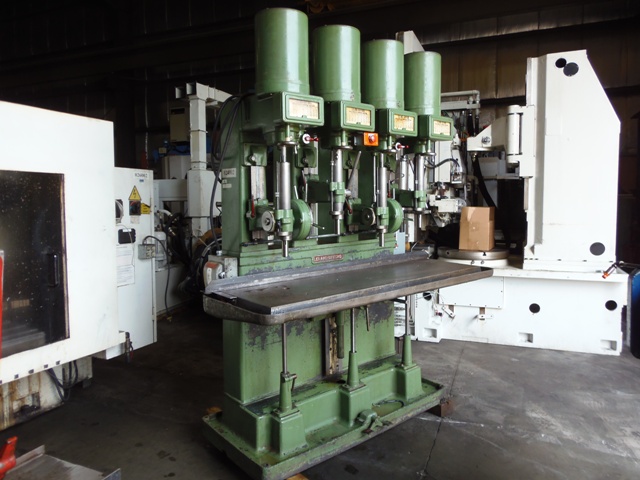

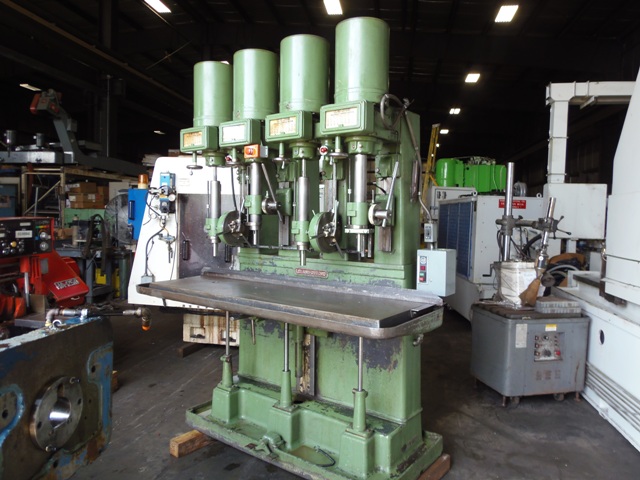

MANUFACTURER...................... LELAND-GIFFORD
MODEL#............................ #2 MLS
SERIAL#........................... 9747
AGE APPROXIMATELY................. 1952
QUILL STROKE...................... 4 TO 5"
SWING............................. 20"
NO. OF HEADS...................... 4 (2 POWER / 2 MANUAL)

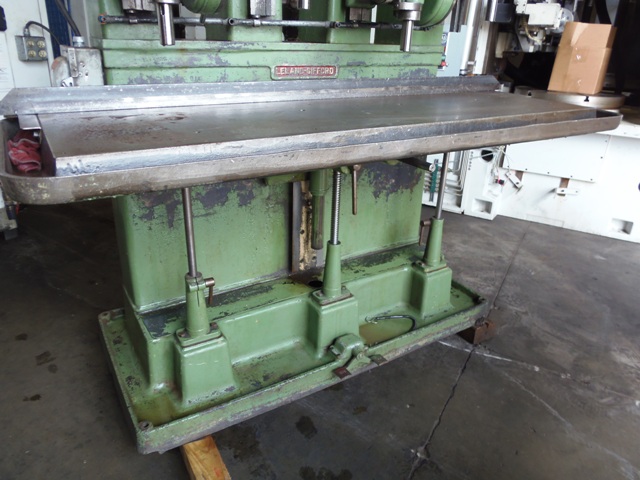

TABLE SIZE........................ 24" X 72"
VERTICAL HEAD ADJUSTMENT.......... 9"

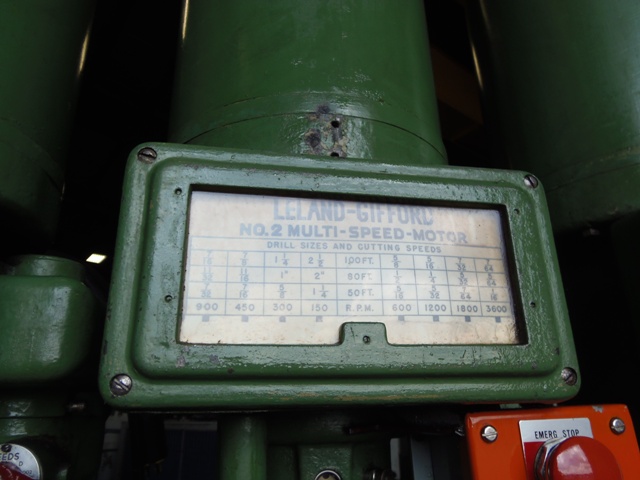

MOTOR............................. #2 MULTI SPEED
SPINDLE SPEEDS.................... 150 - 3600 RPM
SPINDLE TAPER..................... MT#2
MAX HEIGHT FROM FLOOR............. 39.5" (TABLE TOP)
MIN HEIGHT FROM FLOOR............. 25" (TABLE TOP)
EQUIPPED WITH:
ADJUSTABLE KNEE

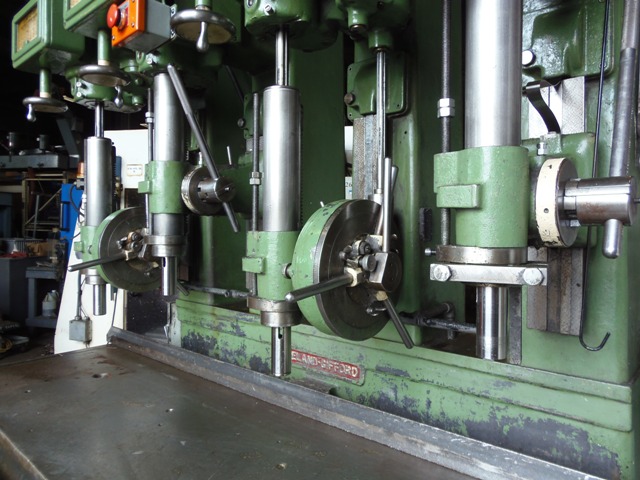

2 POWER FEED SPINDLES AND 2 MANUAL FEED SPINDLES
FOOT PEDAL
SPECIFICATIONS SUBJECT TO VERIFICATION
