Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE...................... MONARCH
MODEL..................... 2013T
SERIAL NUMBER............. 50724
AGE (APPROX).............. 1971
SWING..................... 20"
SWING OVER CROSS SLIDE.... 13"
DIST. BETWEEN CENTERS..... 54"
SPINDLE NOSE.............. D1-6
SPEED RANGE............... 12 - 1500 RPM
SPINDLE SPEEDS FOR/REV.... 18
FEED RANGE................ .001 - .068
THREAD AND FEED CHANGES... 66
MOTOR..................... 10 HP
WEIGHT.................... 10,400 LBS.
EQUIPPED WITH:
HEIDENHAIN DIGITAL READOUT INSTALLED 2004

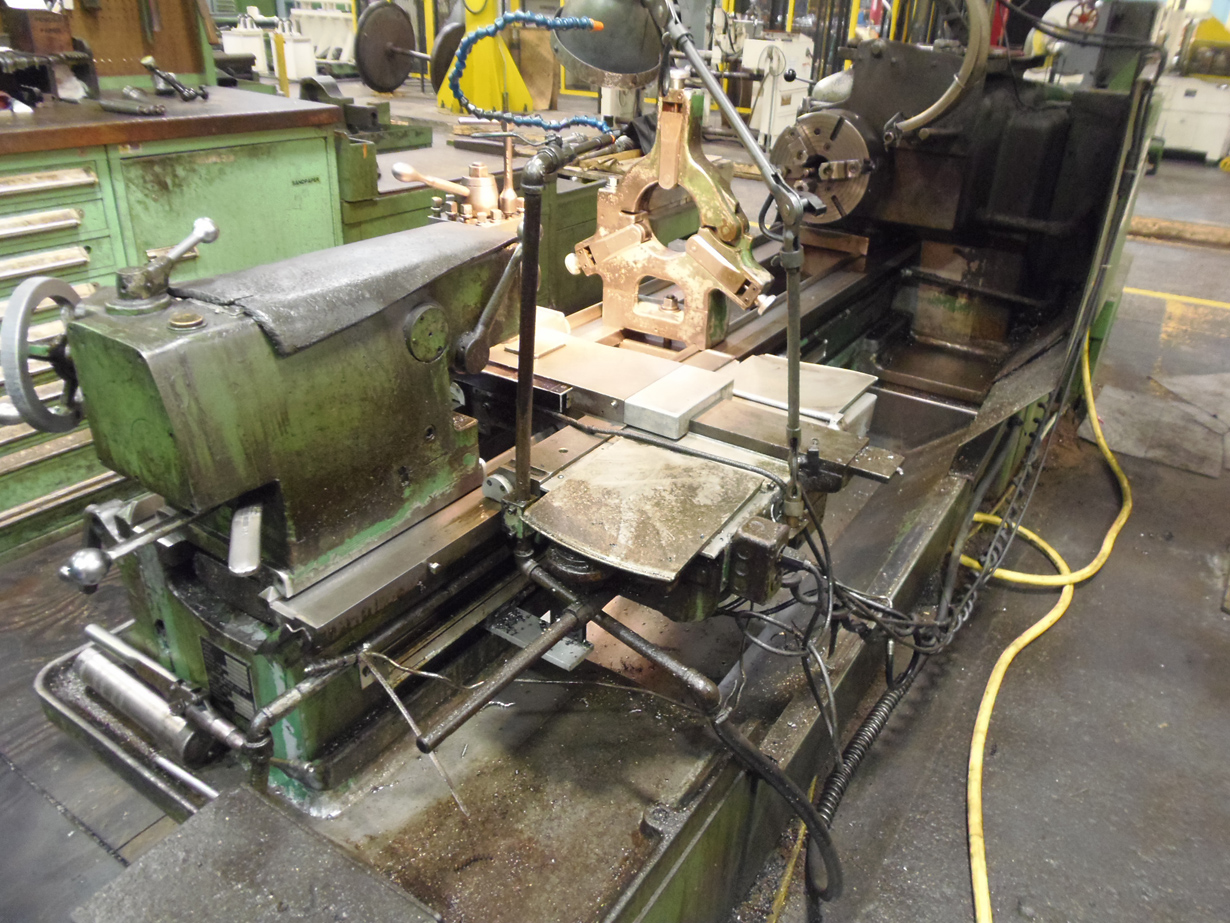

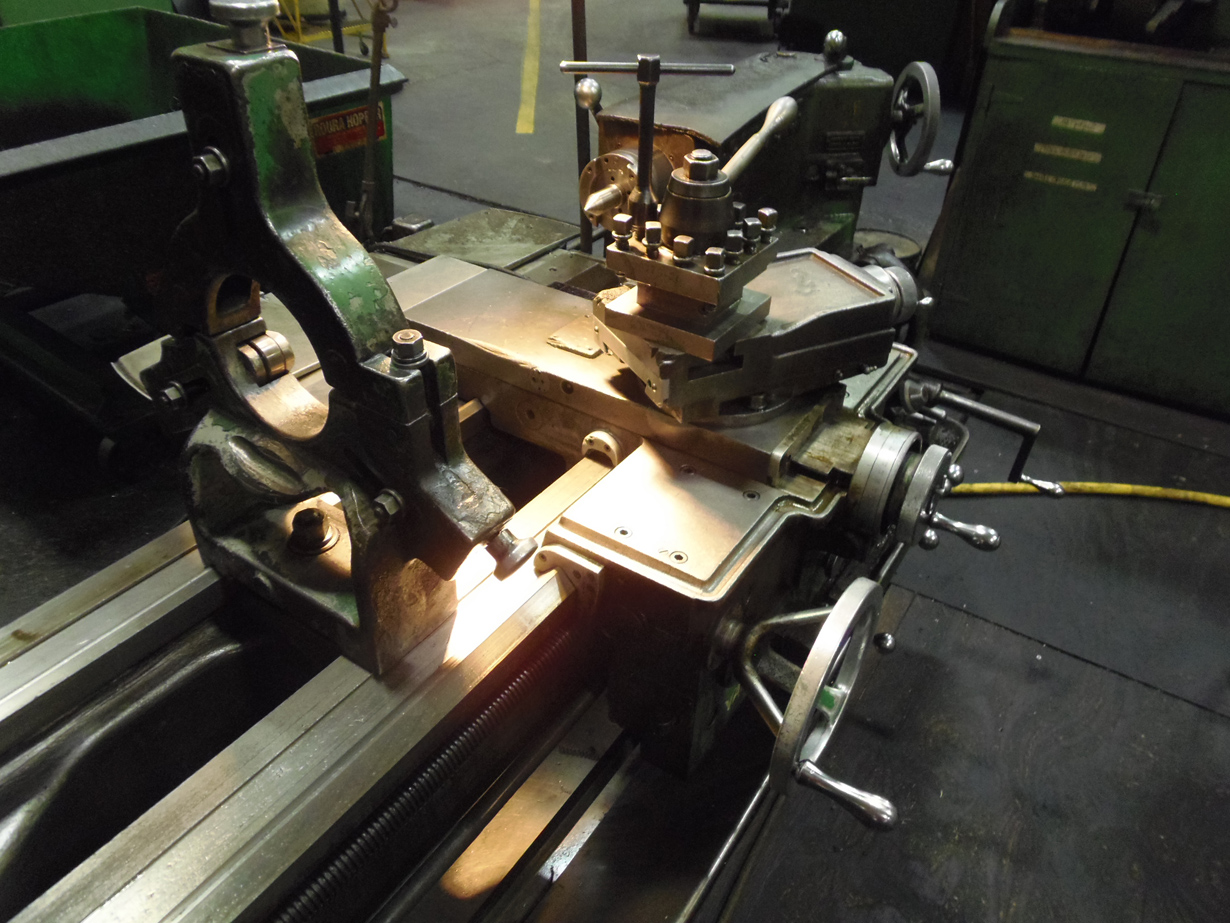

STEADY REST
2 SPEED TAIL STOCK WITH LIVE QUILL
INCH/METRIC THREADING
TAPER ATTACHMENT
MISC. MANUALS
WORK LIGHT
