Specifications
Equipped With
GENERAL SPECIFICATIONS:

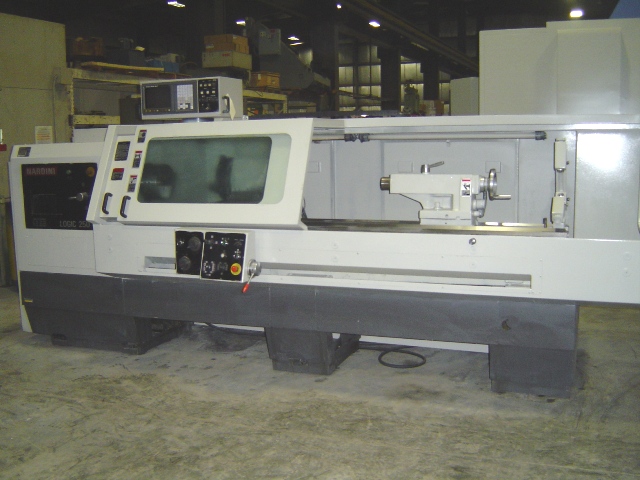

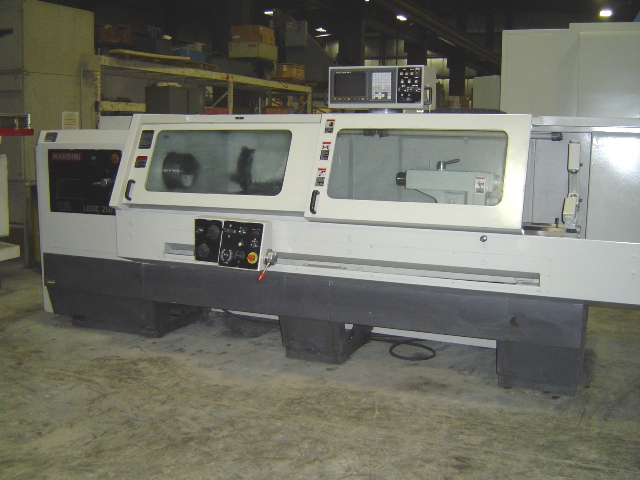

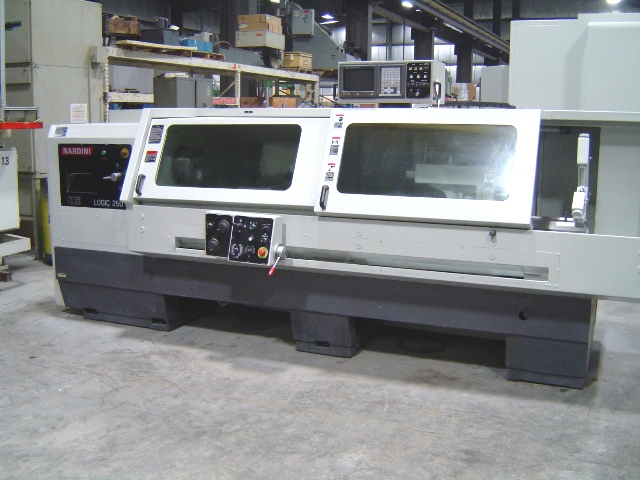

MANUFACTURER NARDINI
MODEL LOGIC 250 G
SERIAL # D5JFS770
NEW (APPROX.) 1997
MAX. SWING OVER BEDWAYS 20"
MAX. SWING OVER SADDLE WINGS 17.7"
MAX. SWING OVER CROSS SLIDE 10.23"
DISTANCE BETWEEN CENTERS 80"
SPINDLE BORE 3.125"
SPINDLE SPEEDS 20-3000 RPM
RANGE I 20-780 RPM
RANGE II 42-1570 RPM
RANGE III 80-3000 RPM
SPINDLE NOSE A1-8"

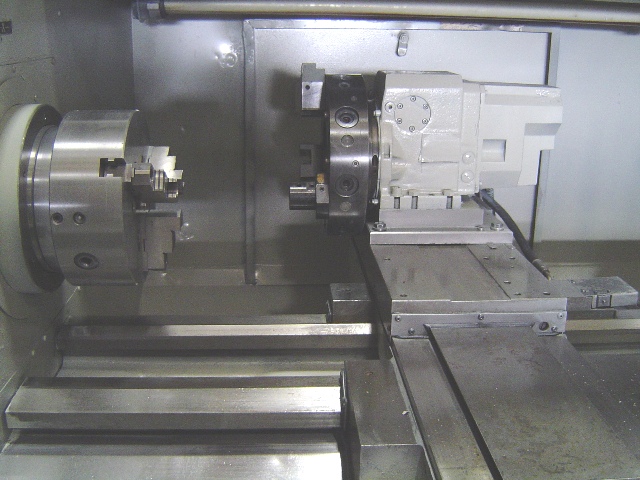

# OF TURRET STATIONS 8 POSITION
WEIGHT (APPROX) 8000 LBS
ELECTRICS 220V / 60HZ / 3PHS
EQUIPPED WITH:

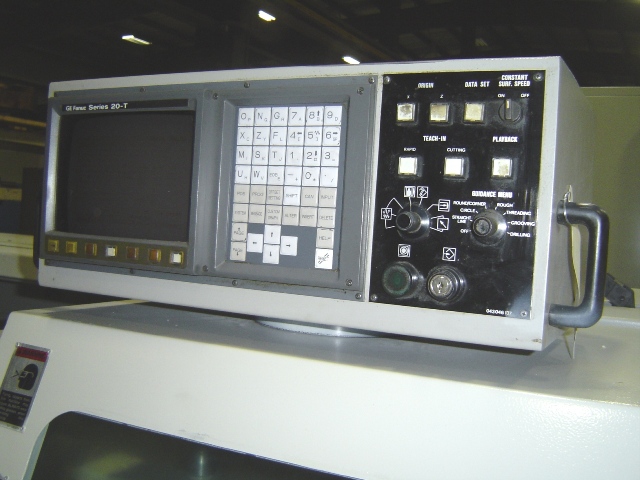

FANUC 20 T CONTROL
10" 3-JAW CHUCK
10" 4-JAW CHUCK
STEADY REST
CONSTANT SURFACE FEED
TAILSTOCK. TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
