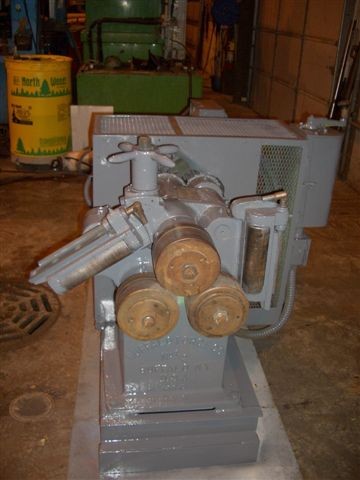

2" x 2" x 1/4" BUFFALO NO. 1/2, VERTICAL, 18 RPM, 33'/MIN., DRUM CONTROLLER

GENERAL SPECIFICAITONS:
MANUFACTURER BUFFALO
MODEL NO. 1/2
MOTOR 5 HP
CAPACITY ANGLE LEG OUT 2" x 2" x 1/4"
MIN. DIAMETER ANGLE LEG OUT 20"
CAPACITY ANGLE LEG IN 1-1/2" x 1-1/2" x 1/4"
MIN. DIAMETER ANGLE LEG IN 18"
CAPACITY SMALLEST ANGLE LEG OUT 3/4" x 3/4" x 1/8"
MIN. DIAMETER SMALLEST ANGLE LEG OUT 8"
CAPACITY CHANNELS FLANGES OUT 3" - 4"
MIN. DIAMETER CHANNELS FLANGES OUT 16"
CAPACITY FLAT ON EDGE 2" x 3/8"
MIN. DIAMETER FLAT ON EDGE 24"
CAPACITGY FLAT ON FLAT 3" x 3/4"
MIN. DIAMETER FLAT ON FLAT 20"
CAPACITY ROUNDS & SQUARES 1-1/2" x 1-1/4"
MIN. DIAMETER ROUNDS & SQUARES 20"
CENTERS LOWER ROLLS 8"

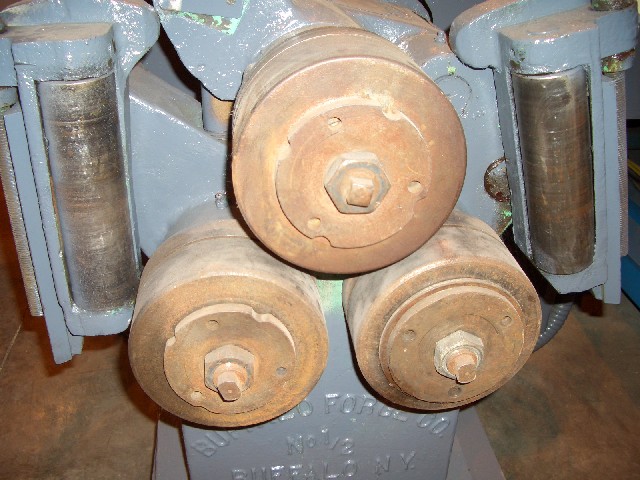

DIAMETER ANGLE ROLLS 7"
ROLL SPEED 18 RPM
FEET PER MINUTE 33
WEIGHT (APPROX.) 2,600 LBS.
ELECTRICS 220/3/60

EQUIPPED WITH:

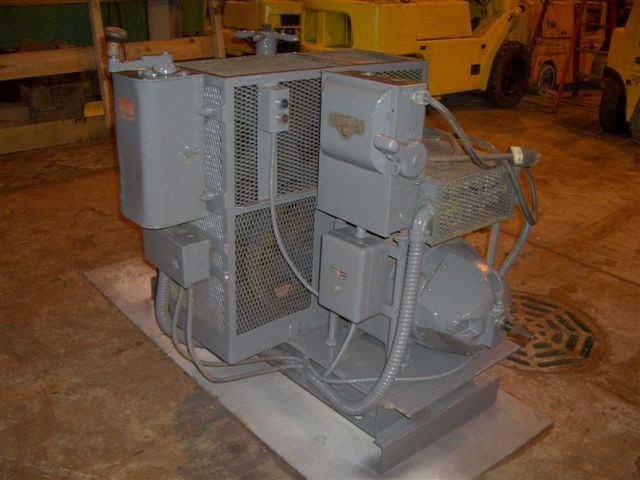

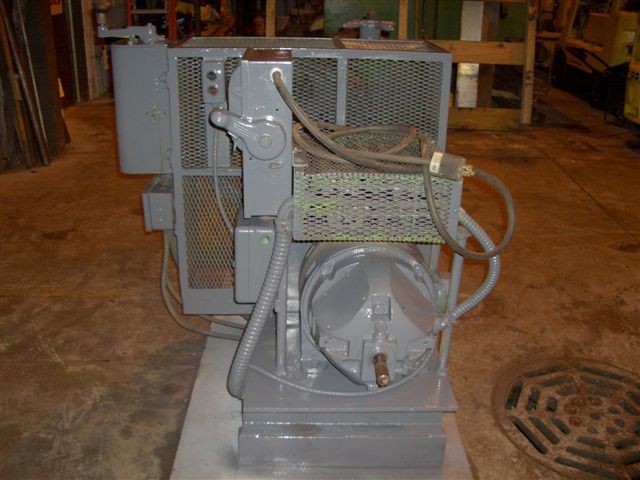

MOTOR AND CONTROLS
DRUM CONTROLLER

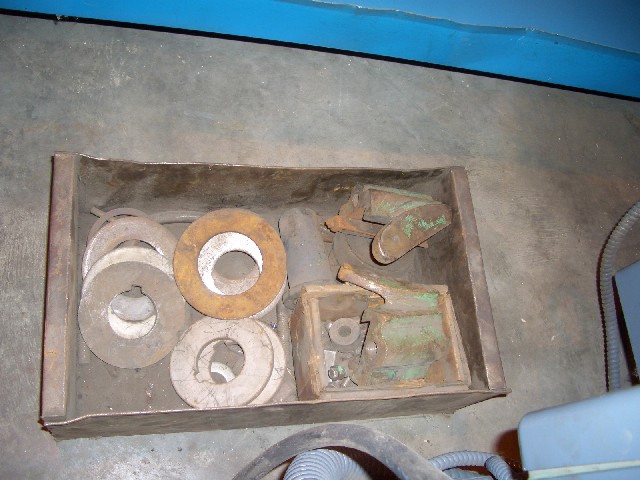

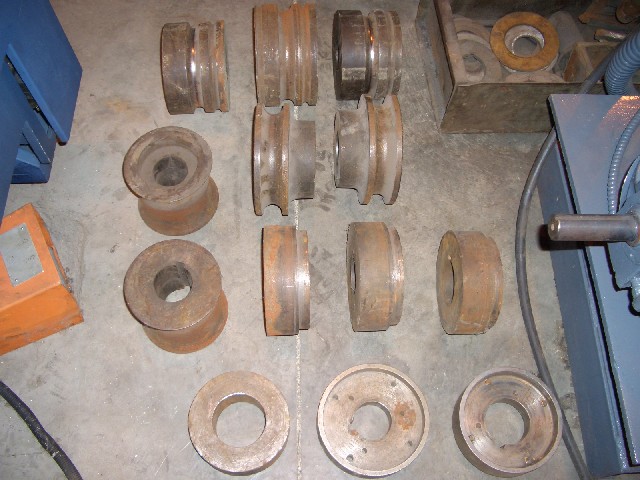

13 ASSORTED ROLLING DIES PLUS MOUNTING HARDWARE TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
