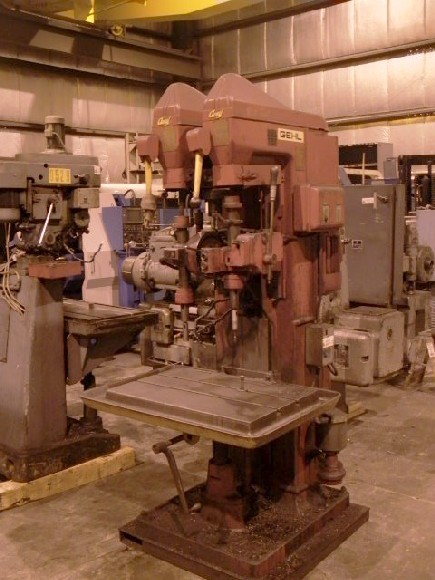

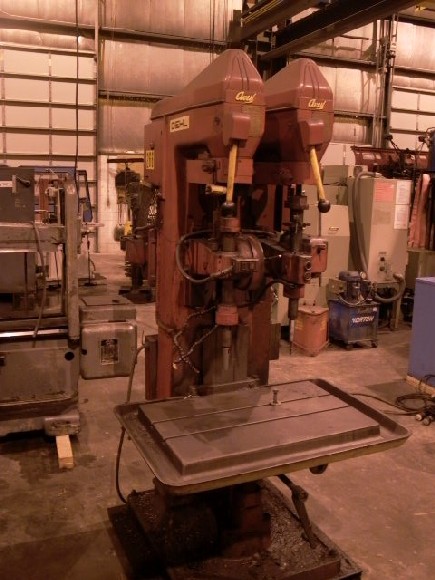

2 SPDL, AVEY MDL BMA-6, 22" x 34" TBL, #4 TAPER, 12" DIST BETWEEN SPDL, AVEYMATIC

GENERAL SPECIFICATIONS:
MANUFACTURER AVEY
MODEL BMA-6
SERIAL # 33109-1
TABLE SIZE 22" x 34"
SPINDLE TAPER NO. 4
# OF T-SLOTS 2
SPINDLE SPEEDS 150,300,600,900,1200
SPINDLE FEED 6"
FEEDS PER REV. .004, .008, .012, .020
HEAD ADJUSTMENT 6"
TABLE ADJUSTMENT 16"
SPINDLE TO TABLE 0-26"
DISTANCE BEWEEN SPINDLES 12"

EQUIPPED WITH:
AVEYMATIC POWERFEED
2 HP MOTOR PER SPINDLE 230/460
CURRENTLY WIRED 460 VOLT
SET UP FOR DRILLING ON LEFT & TAPPING ON RIGHT
