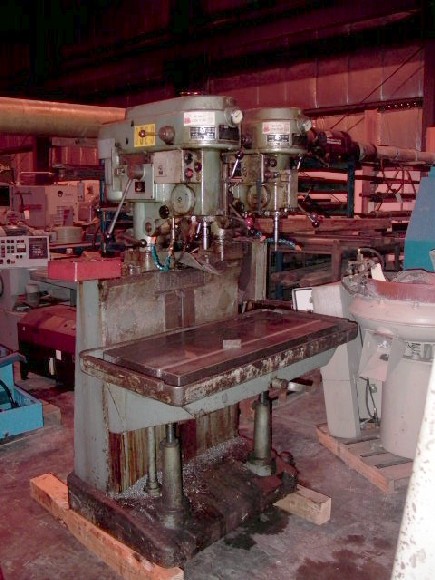

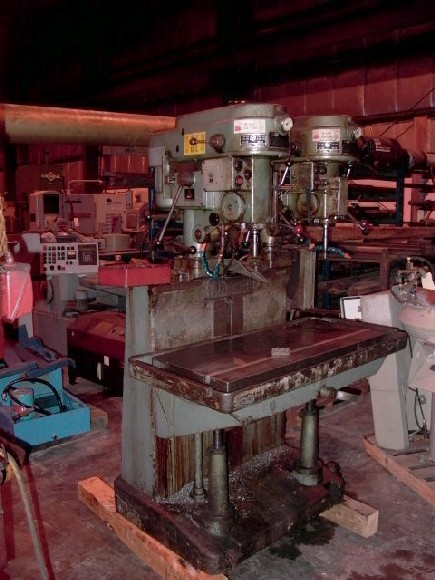

2 SPDL, ALZMETALL #ESV, #4 TAPER, 18" x 43" TBL, 6" FEED, 30" SPDL TO TBL, 19" DIST. BETWEEN SPDLS (ADJ)

GENERAL SPECIFICATIONS:
MANUFACTURER ALZMETALL
MODEL ESV
TYPE AB3
TABLE SIZE 18" x 43"
SPINDLE TAPER NO. 4
# OF T-SLOTS 2
SPINDLE SPEEDS (LEFT HEAD) 95-1700
SPINDLE SPEEDS (RIGHT HEAD) 190-1700
SPINDLE FEED 6"
TABLE ADJUSTMENT 16"
SPINDLE TO TABLE 30"
DISTANCE BETWEEN SPINDLES 19" (ADJUSTABLE)

EQUIPPED WITH:
POWERFEED
3 HP MOTOR PER SPINDLE 230/460
CURRENTLY WIRED 460 VOLT
SWIVEL HEAD
HEADS ADJUSTABLE ON T-SLOTTED RAM
