Specifications
Equipped With
GENERAL SPECIFICATIONS

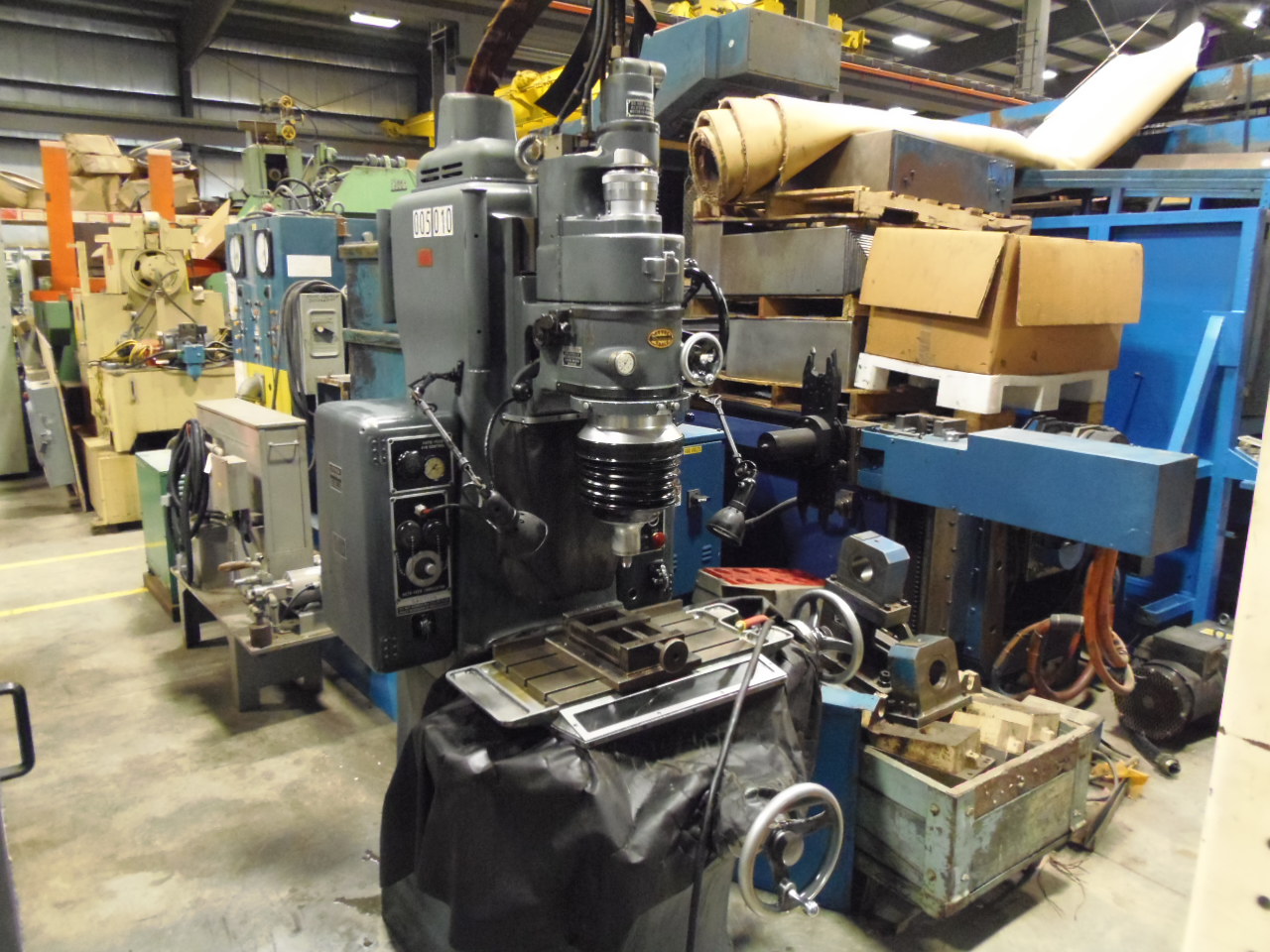

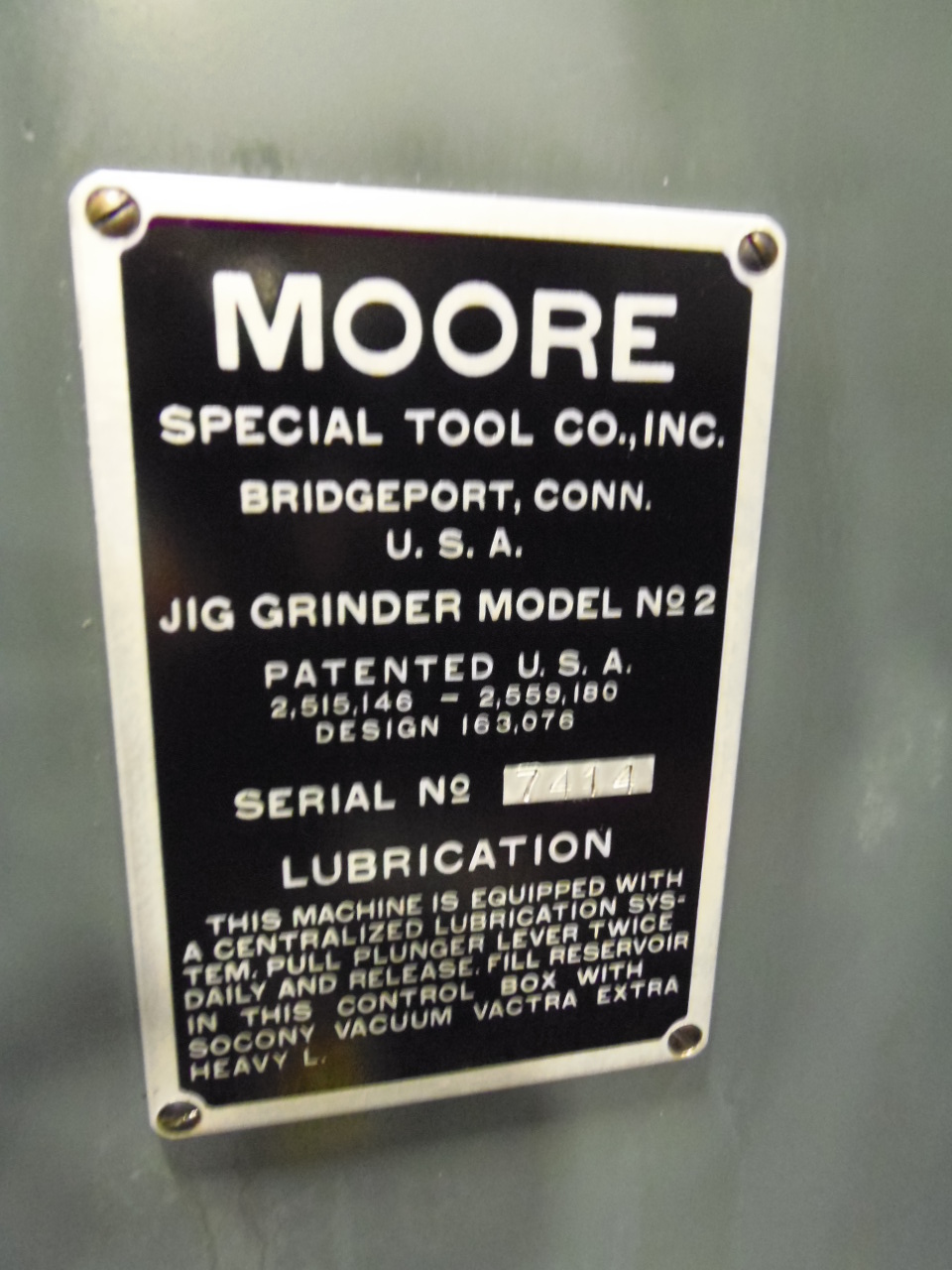

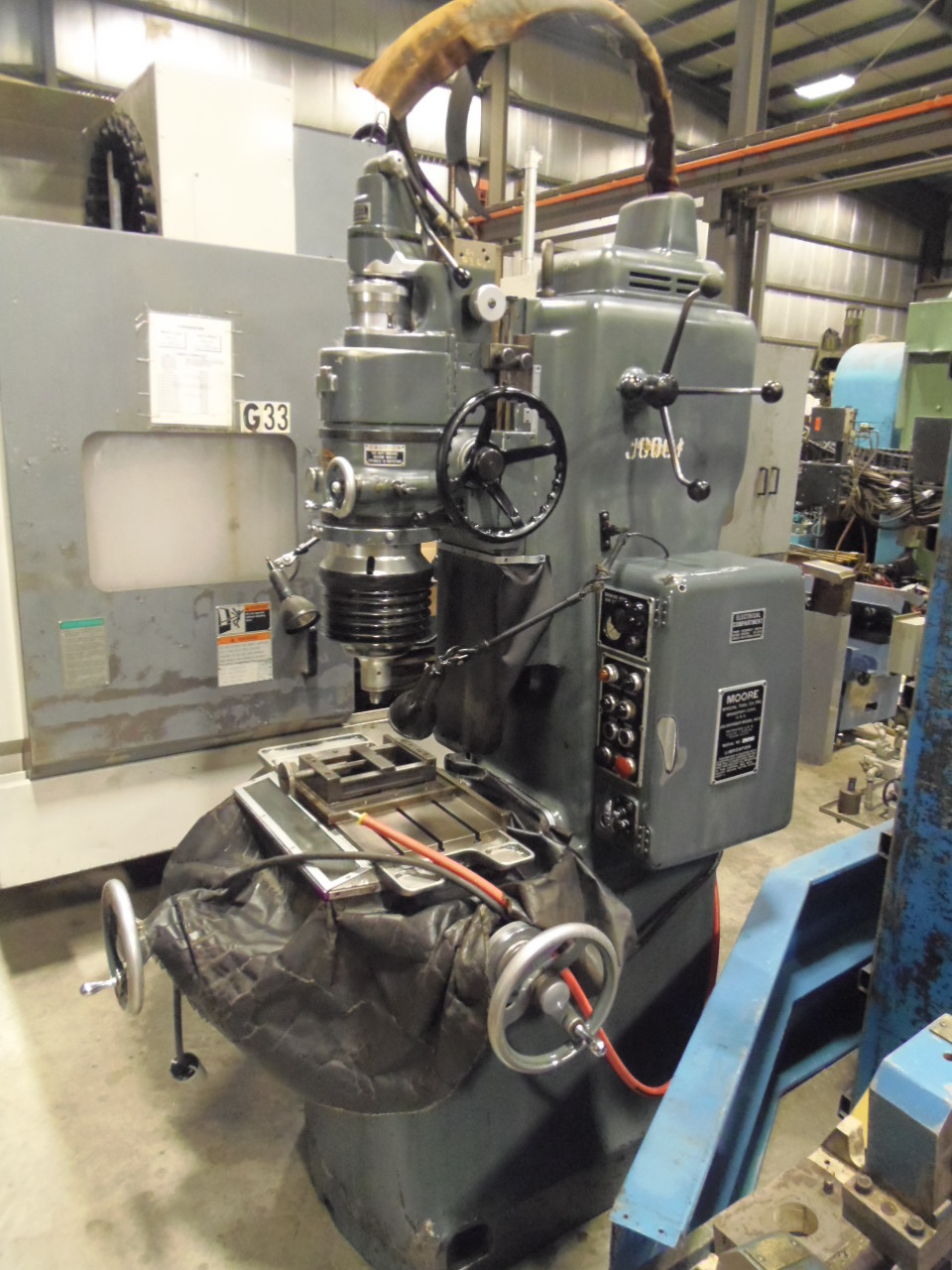

MANUFACTURER....................... MOORE
MODEL.............................. 2
AGE................................ 1955

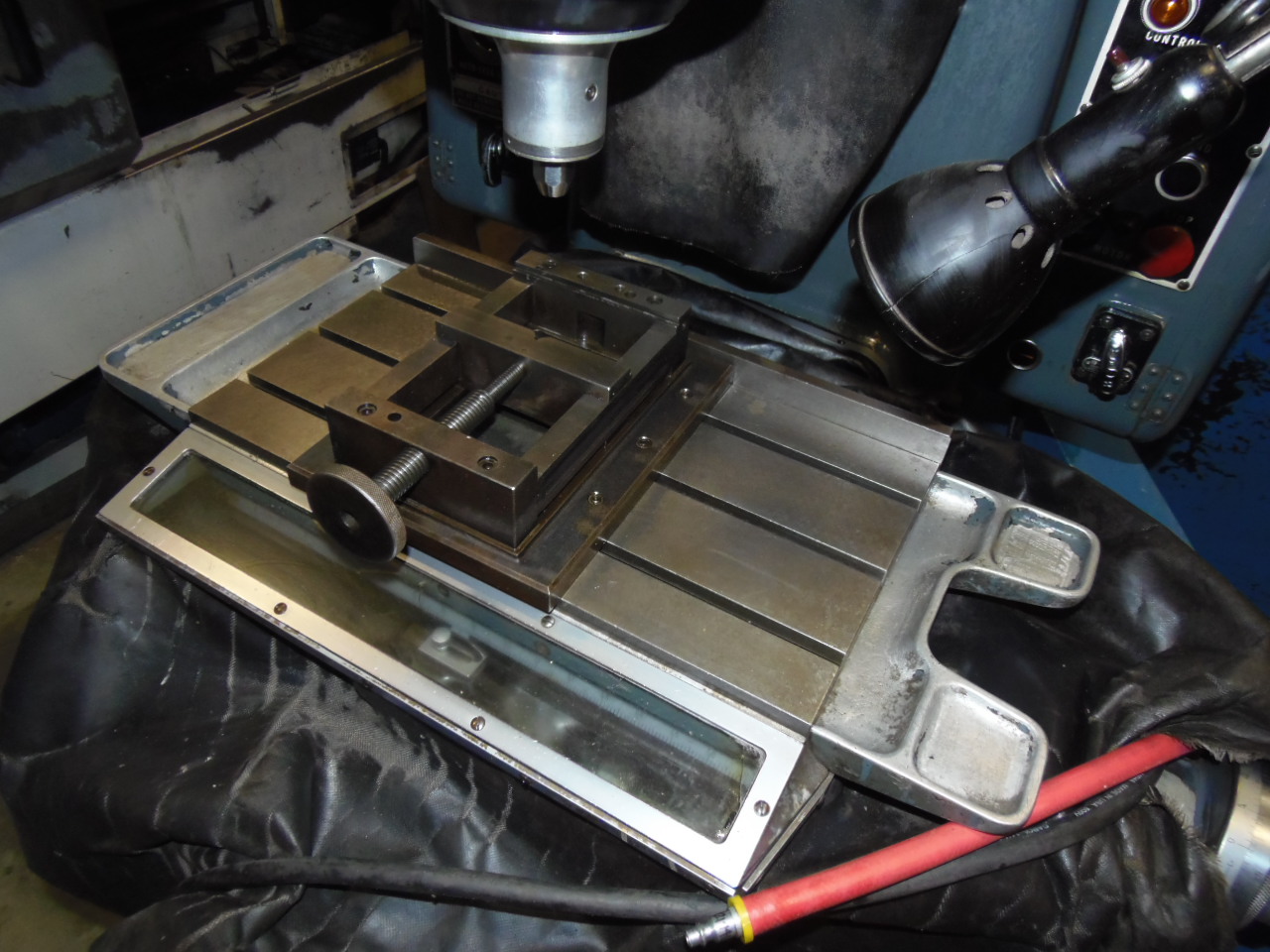

TABLE SIZE......................... 10" X 19"
TABLE TRAVEL
LONGITUDINAL (X)................ 16.5"
CROSSWISE (Y)................... 10.5"
TABLE TOP TO WHEEL COLLET....... 0 - 16"
SPINDLE TO COLUMN WAYS............. 10"
SPINDLE TO COLUMN BELOW WAYS....... 12.5"
FOUR SPINDLE SPEEDS................ 90, 120, 180, 240

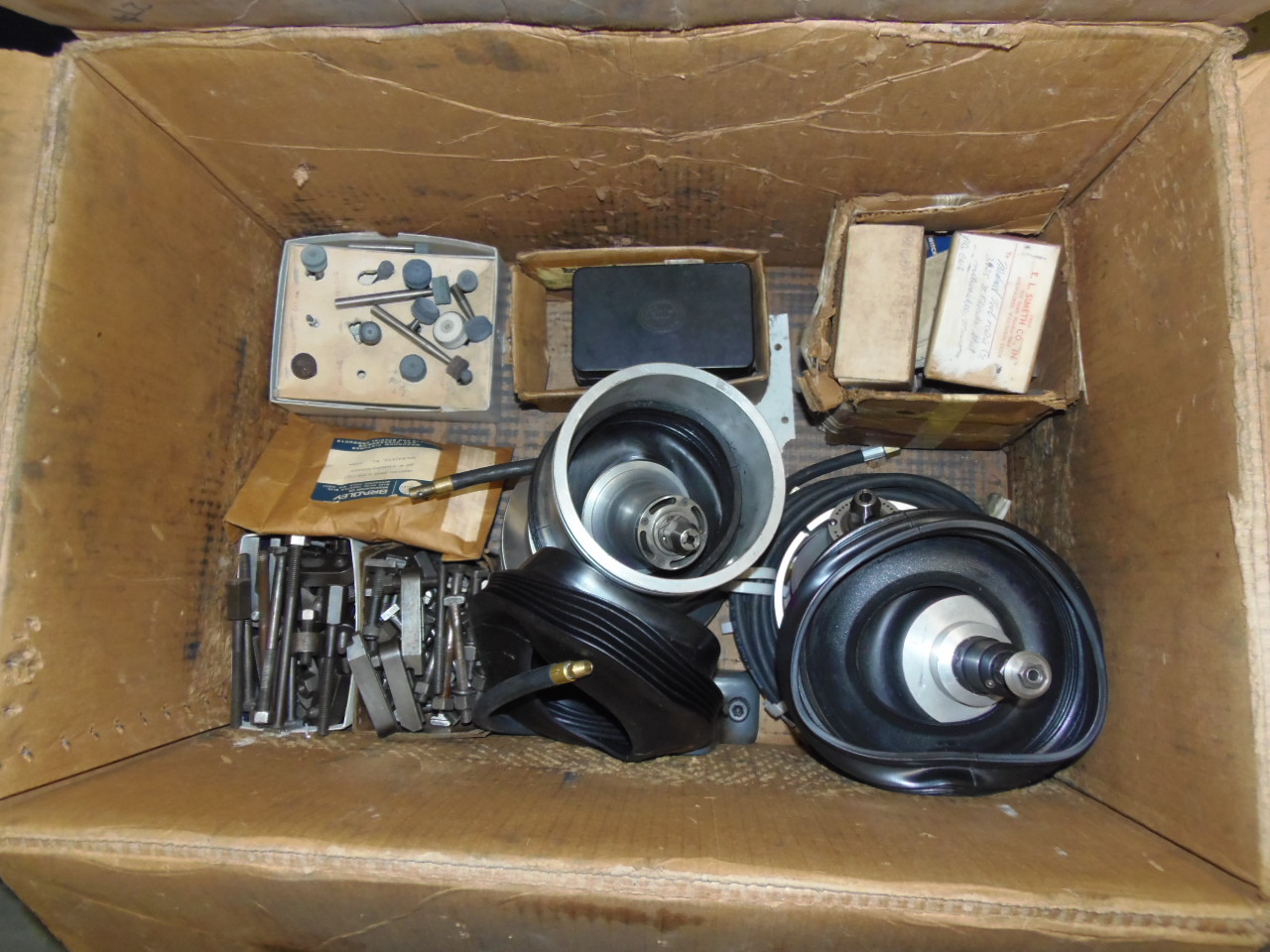

GRINDING SPEEDS WITH 3 HEADS....... 12,000 TO 60,000 RPM
GRINDING CAPACITY
WITH GRINDING WHEELS............ 3/16" TO 5" (8" W/ADAPTER)
WITH DIAMOND MANDRELS........... 1/64" TO 3/16"
TRAVEL MAIN SPINDLE................ 3 5/8"
ANGULAR ADJUSTMENT OF SPINDLE...... 1 1/2 DEG. EITHER WAY OR 3 DEG. INCLUDED ANGLE
MACHINE WEIGHT..................... 3,800 LBS
FLOOR SPACE........................ 48" X 59" X 100" TALL
SPECIFICATIONS SUBJECT TO VERIFICATION
