2-1/4" MORTON, 30" STR., TOOLING, BIJUR LUBE, OUTBOARD SUPPORT

GENERAL SPECIFICATIONS:
SERIAL # 2688
NEW APPROXIMATELY 1956
CAPACITY 2-1/4"
STROKE 30"
TABLE SIZE WITH EXTENSIONS 30" LR X 82" FB
TABLE SIZE WITHOUT EXTENSIONS 30" LR X 36" FB
MAX DIST. UNDER CUTTER SUPPORT 40"
DIMENSIONS: 110"H X 90"L X 36"W (MAY BE LAID DOWN FOR SHIPPING)

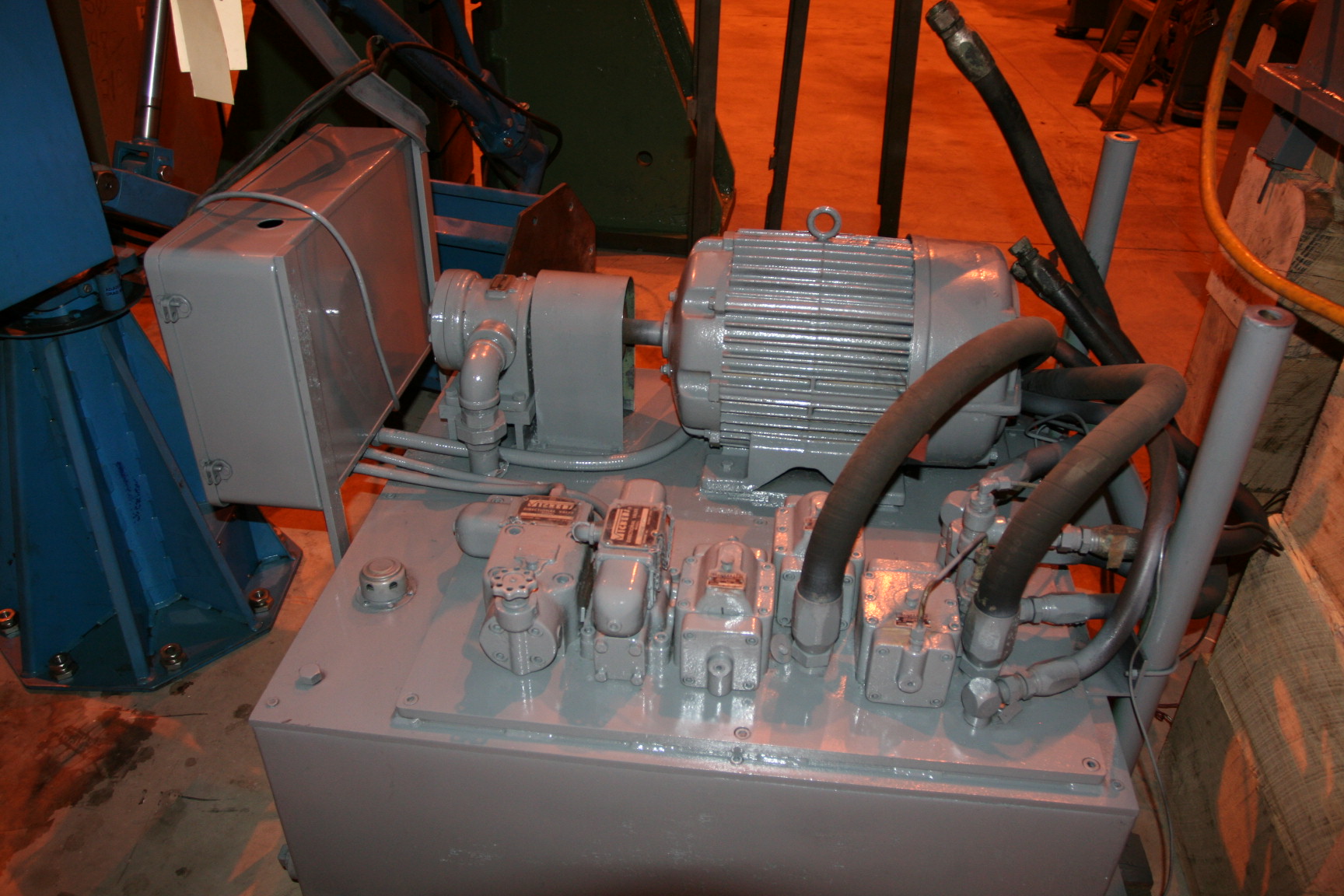

                           HYDRAULICS 48" X 48" X 48"
WEIGHT APPROXIMATELY: 10,000 LBS.


EQUIPPED WITH:
OUTBOARD SUPPORT
4 CUTTING TOOL BARS
BIJUR LUBE
VICKERS VALVES AND PUMP
LOUIS ALLIS 10 HP ELECTRIC MOTOR 220/440 VOLTS
DISCHARGE CHUTE TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
