Specifications
Equipped With
GENERAL SPECIFICATIONS:

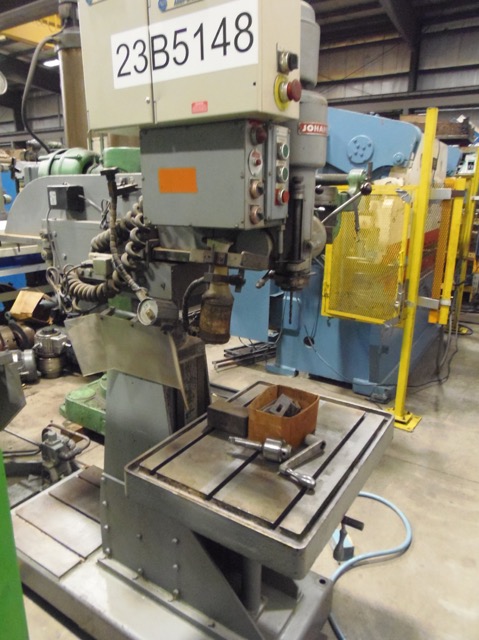

MANUFACTURER............................. JOHANNSON
SERIAL #................................. 22189
ARM LENGTH............................... 2-1/2'
COLUMN DIAMETER.......................... 6"
DIAMETER SWING CAPACITY.................. 60"
DRILL IN CAST IRON CAPACITY.............. 1-1/2"
DRILL IN MILD STEEL CAPACITY............. 1-1/4"
TRAVEL OF RAM/ARM........................ 25"
SPINDLE CENTER TO COLUMN MINIMUM......... 5"
SPINDLE CENTER TO COLUMN MAXIMUM......... 36"
DIAMETER OF QUILL........................ 2-3/4"
SPINDLE TAPER............................ #4MT
SPINDLE TRAVEL........................... 6"
SPINDLE SPEEDS (8)....................... 105 - 1200 RPM
SPINDLE TO TABLE MAXIMUM................. 31"
SPINDLE TO TALBE MINIMUM................. 4"
SPINDLE TO BACK MAXIMUM.................. 63"
SPINDLE TO BACK MINIMUM.................. 36"
COLUMN VERTICAL TRAVEL (POWER)........... 12"
TABLE VERTICAL TRAVEL.................... 14-1/2"
TABLE SIZE (SPECIAL)..................... 20" X 40"
BASE WORKING SURFACE..................... 20-1/2" x 24"
BASE HEIGHT.............................. 8"
# OF TEE SLOTS IN BACK OF TABLE.......... 3 EACH
MOTOR 2 SPEED............................ 3 HP/ 1.5 HP
ELECTRICS................................ 220/440/60/3
OVERALL DIMENSIONS....................... 5-1/2' x 3-1/2' x 8'
WEIGHT................................... 2,000 LBS.
EQUIPPED WITH:

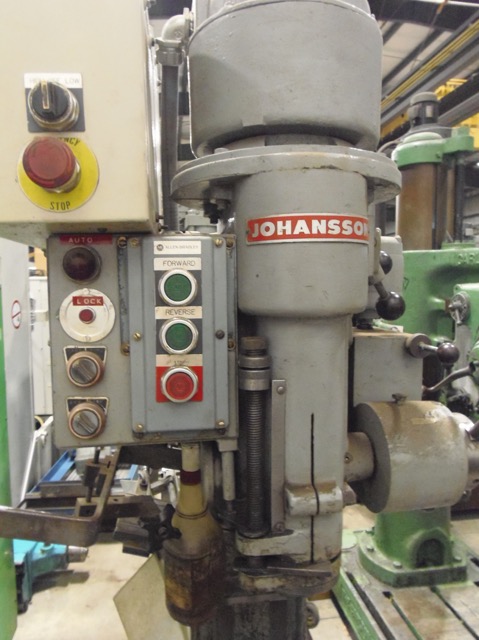

SPINDLE CONTROL FORWARD HI/LO & STOP- REVERSE HI/LO
FEED HAND/AUTO
MANUAL CLAMP
COLUMN/HEAD ELEVATION
TABLE ELEVATION
