Specifications
Equipped With
GENERAL SPECIFICATIONS:

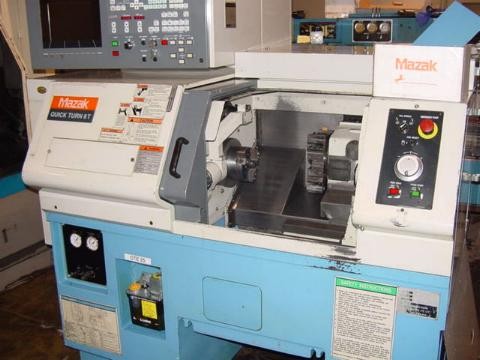

MODEL # QUICK TURN 6T
NEW APPROXIMATELY 1997
MAXIMUM SWING 17.32"
MAXIMUM TURNING DIAMETER 5.12"
MAXIMUM TURNING LENGTH 7.68"
X AXIS TRAVEL 3.19"
Z AXIS TRAVEL 7.88"
RAPID TRAVERSE RATE X AXIS 1181 IPM
RAPID TRAVERSE RATE Z AXIS 1181 IPM
SPINDLE NOSE 115MM Ø FLAT
SPINDLE BORE 1.73"
SPINDLE SPEEDS 35 - 7,000 RPM
SPINDLE MOTOR 7.5 HP AC
TURRET CAPACITY 8 STATION TURRET
TAILSTOCK BODY TRAVEL 10.63"
TAILSTOCK QUILL TAPER MT #3
TAILSTOCK QUILL TRAVEL 3.74"
EQUIPPED WITH:
MAZATROL T-PLUS CONVERSATIONAL CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
5" 3-JAW HYDRAULIC CHUCK WITH JAWS
TOOL EYE (AUTOMATIC TOOL LENGTH MEASUREMENT)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
MULTI-TAP TRANSFORMER, HYDRAULIC INTERLOCK
TAILSTOCK WITH PROGRAMMABLE QUILL
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCK HOLDERS & MANUALS
