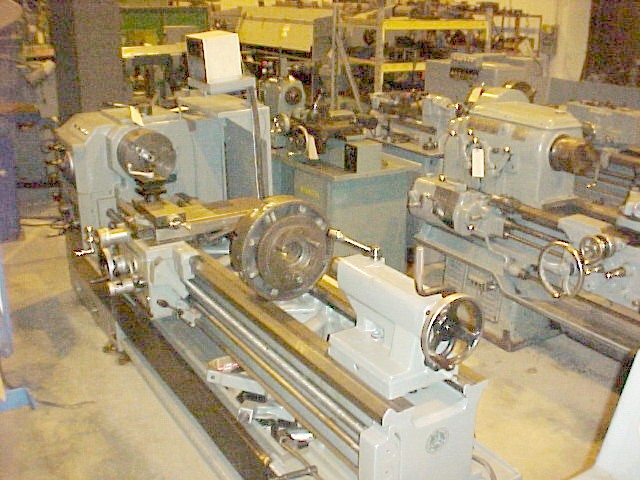

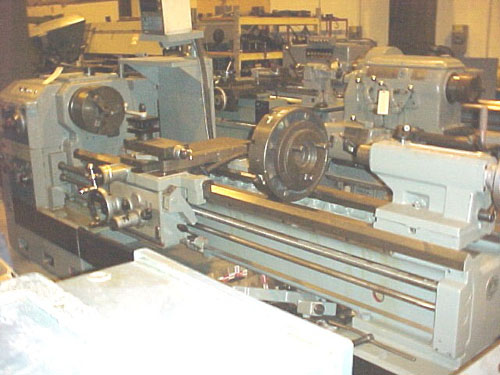

19" x 79" cc, HOWA,3" HOLE THRU SPDL,3"4 JAW CHUCK,FOLLOW REST, 1980,

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY MID 80'S
SERIAL NUMBER 82058
SWING OVER BED 19"
SWING OVER CROSS SLIDE 10"
DISTANCE BETWEEN CENTERS 80"
SPINDLE SPEEDS 13-1500 RPM
HOLE THRU SPINDLE 3"
BED WIDTH 16"
CROSS SLIDE TRAVEL 11.4"
COMPOUND REST TRAVEL 5.5"
48 FEEDS .00157-.04685 IPR
48 THREADS US 2-56
38 THREADS METRIC .05-7
DIMENSIONS 146" x 47" x 54"H
WEIGHT 6,160 LBS.

EQUIPPED WITH:
3 & 4 JAW CHUCKS
FOLLOW REST
MITUTOYA 2 AXIS D.R.O.
