Specifications
Equipped With
GENERAL SPECIFICATIONS:

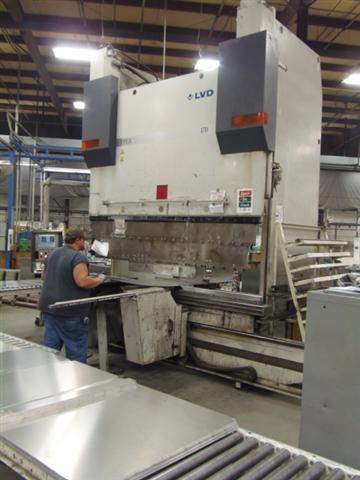

MANUFACTURER........................ LVD
MODEL............................... PPEB 170/30
NEW................................. 2001
TONNAGE............................. 187 U.S. 170 METRIC
WORKING LENGTH...................... 120" 3050mm
DISTANCE BETWEEN UPRIGHTS........... 102.3" 2600mm
STROKE.............................. 23.6" 600mm
OPEN HEIGHT......................... 47.25" 1200mm
CLOSED HEIGHT....................... 23.6" 600mm
THROAT DEPTH........................ 15.94" 405mm
RAM SPEED
RAPID APPROACH................... 236 IPM 100mm/s
WORKING.......................... 30 IPM 12.7mm/s
RETURN SPEED..................... 307 IPM 130mm/s
MAIN MOTOR.......................... 29.5 HP 22kw
CNC CONTROL......................... CADMAN CNC
BACKGAUGE LENGTH.................... 48"
APPROX. WEIGHT...................... 42,000 LBS
APPROX. DIMENSIONS.................. 14'L X 10'2"W X 15'2"TALL
EQUIPPED WITH:

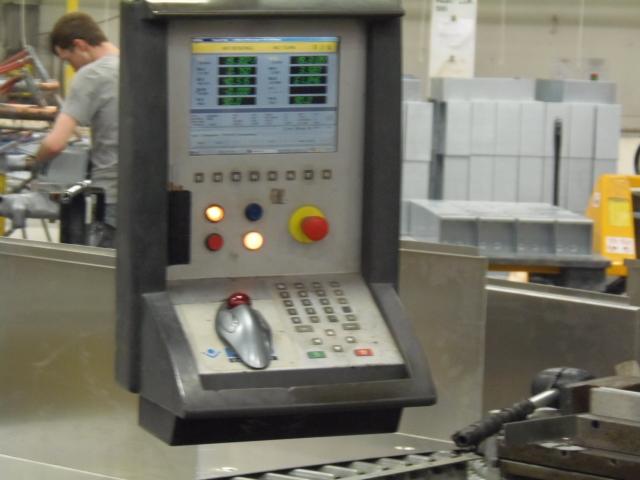

CADMAN MICROSOFT BASED 9 AXIS CNC CONTROL (Y1, Y2, X1, X2, Z1, Z2, T1, T2, & R1)

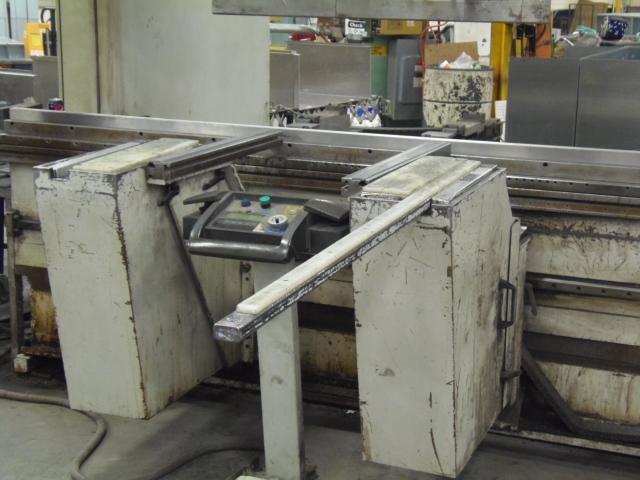

2 SHEET FOLLOWERS
10" & 12" RAM FILLER PLATES (AS SHOWN IN PHOTO)
FLUSH FLOOR MOUNT

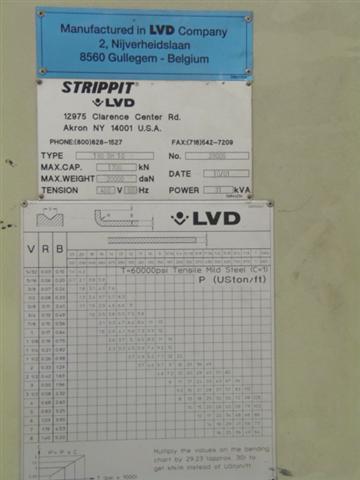

ALSO CALLED STRIPPIT MODEL 190 BH 10
SPECIFICATIONS SUBJECT TO VERIFICATION
