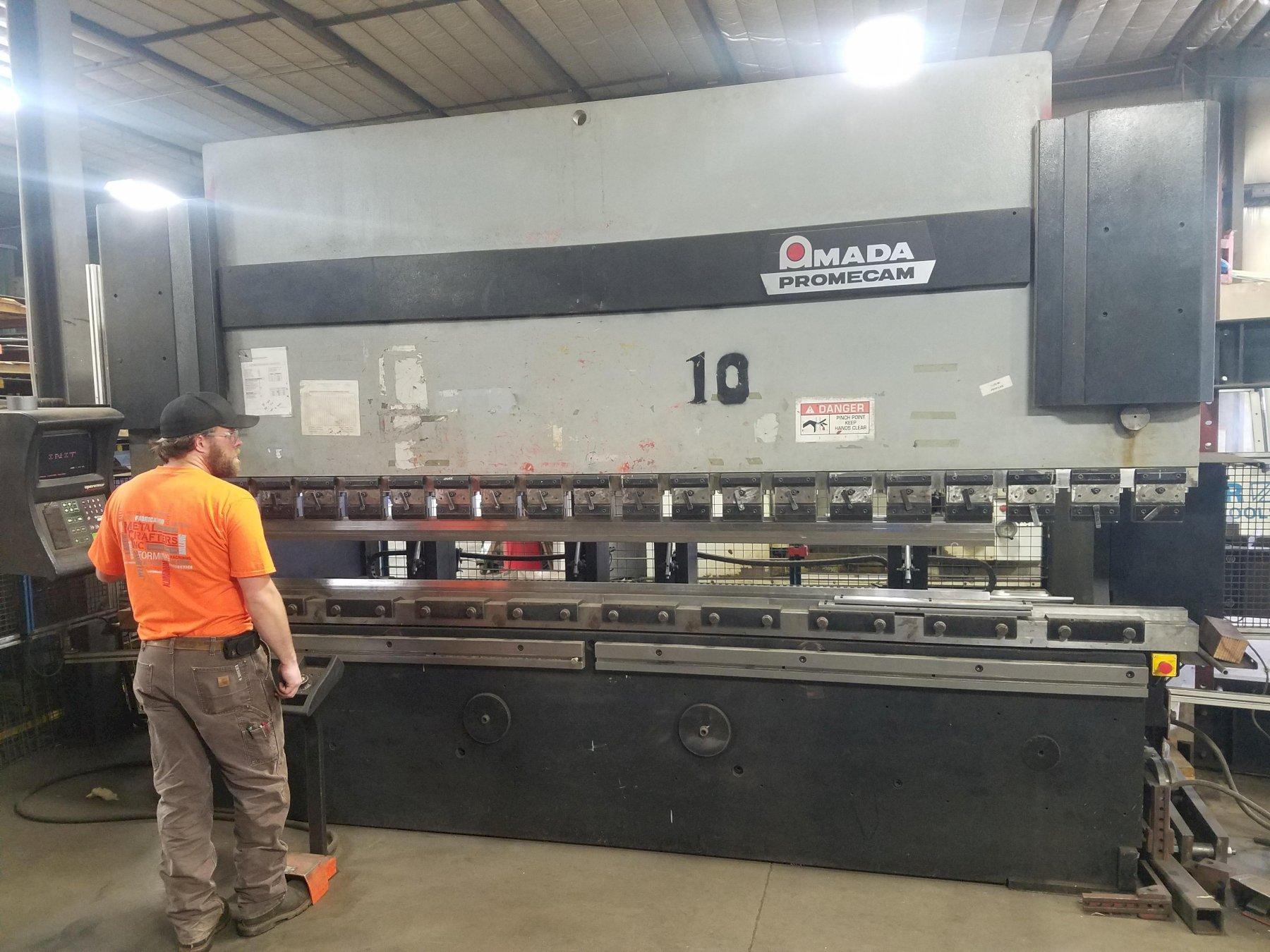

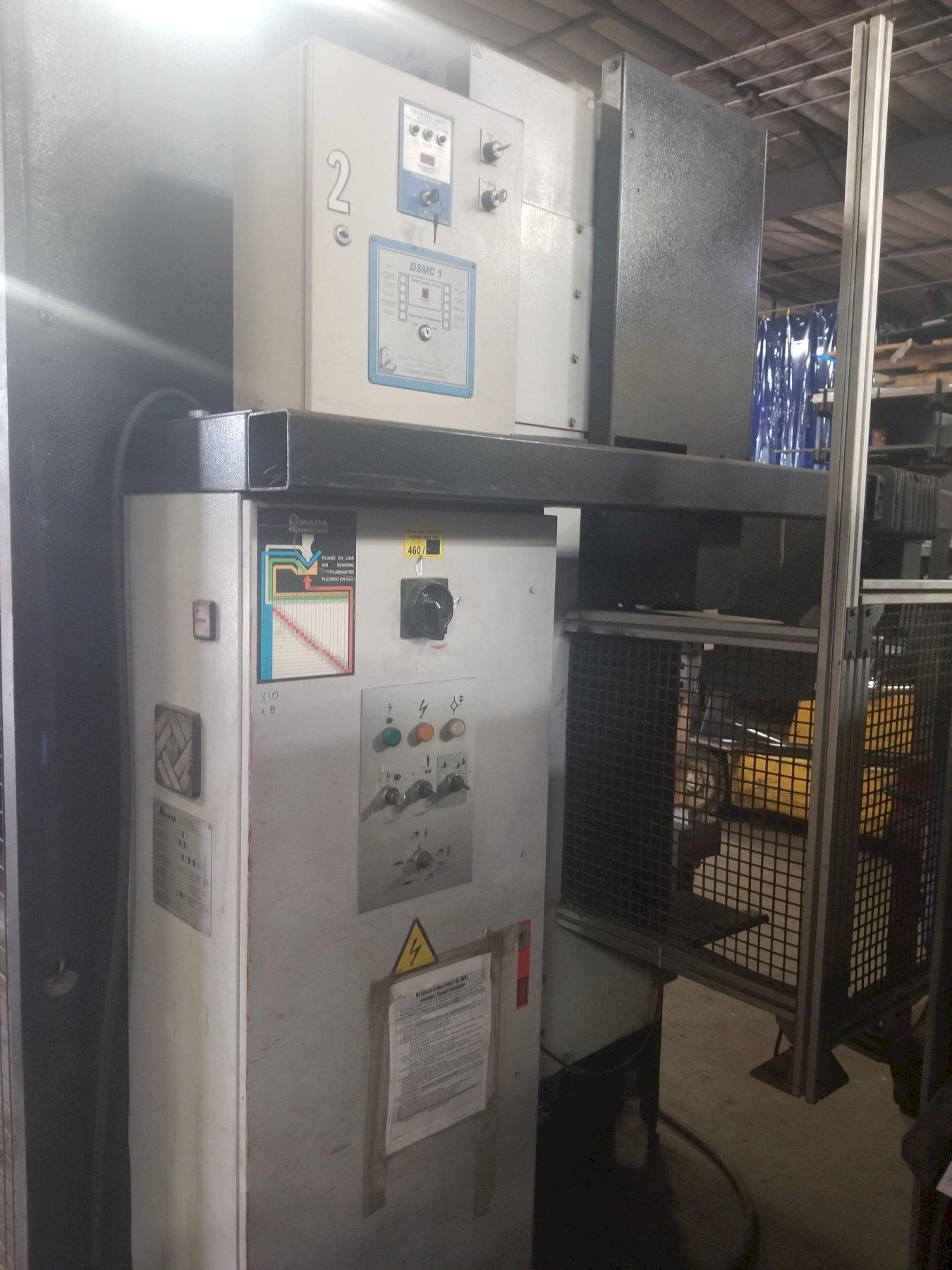

187 TON AMADA HFB 170-40, 167"/148" LENGTH, OPERATOR 8 AXIS CONTROL, 6 AXIS BACK GAUGE, 4 WORK STOPPERS, 1995

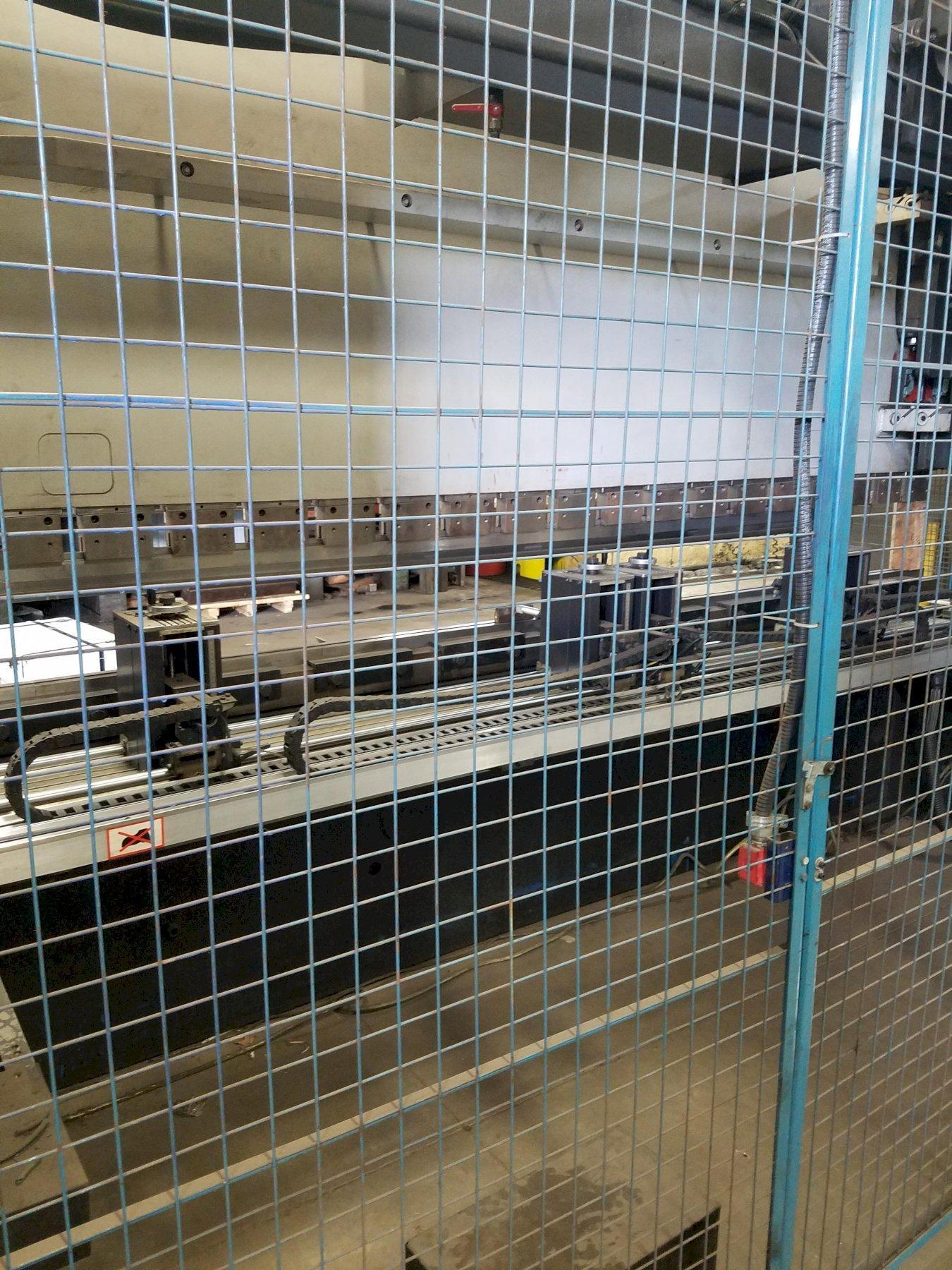

Backgauge
Number of Work Stoppers.......... 4 (manual positioning along the rail)
Repeatability.................... L Axis +/- 0.0004 inches
   Movement Range
X Axis........................... 27.55 inches (cnc control)
R Axis........................... 7.87 inches (manual)
Z Axis........................... 94 inches Feed Speed
X Axis........................... 19.5 inches per second
R Axis........................... 6.2 inches per second
Z Axis........................... 39.3 inches per second
Minimum Command Unit............. 0.0001 inch

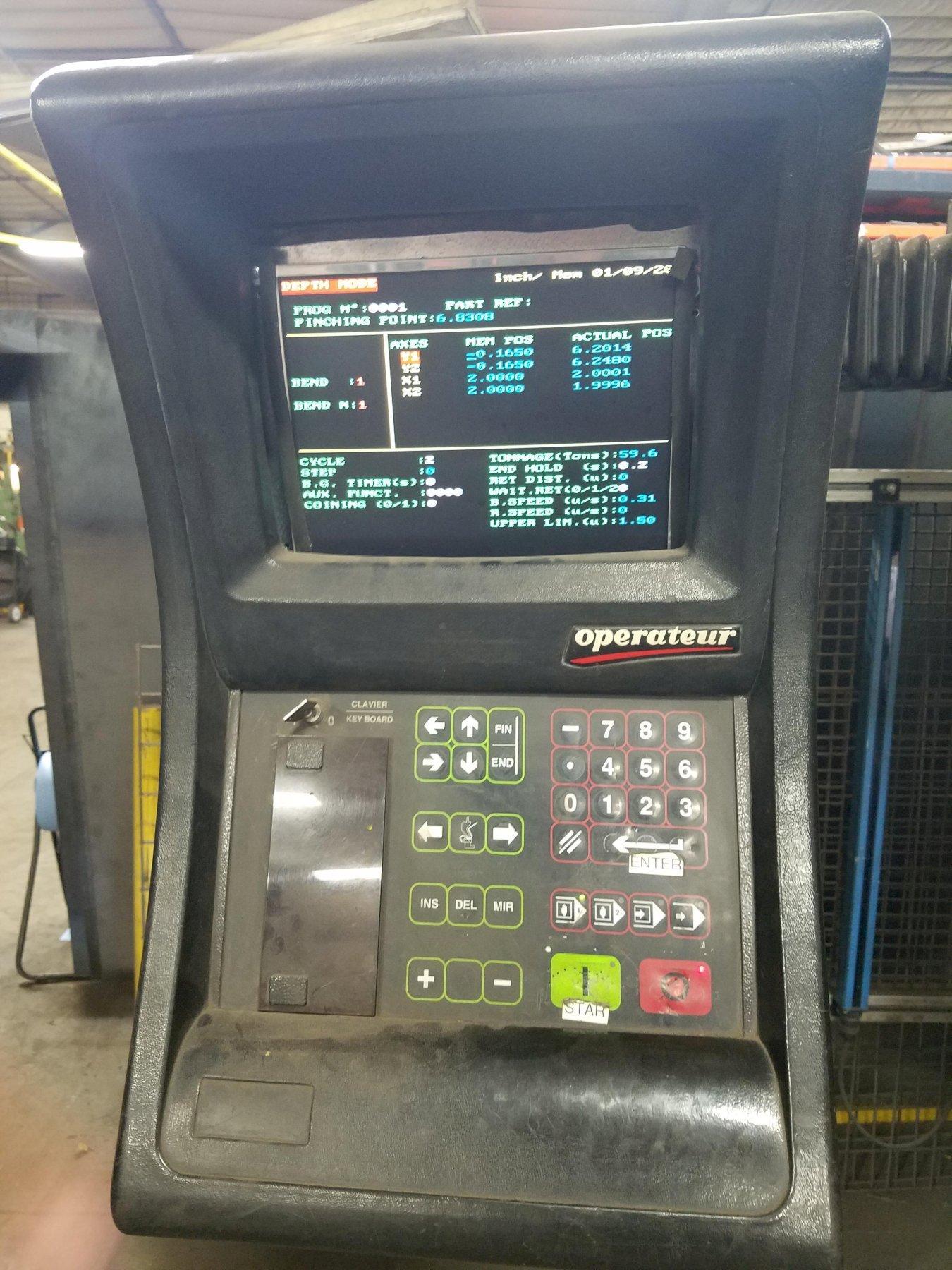

CNC Controller
Model............................ Amada OPERATOR 2 Version 4
Axes of Control.................. 8 standard
    Y1,Y2 Ram depth
    X1,X2 Back gauge
    Z1,Z2 Horizontal finger position of two stoppers
    R1,R2 Vertical finger position of two stoppers
Input Method..................... Keyboard, 3.5" diskette and RS232
Display.......................... 12" Color VGA
Program Storage.................. 60 in active memory plus 30 on diskette
Bends per Program................ 25

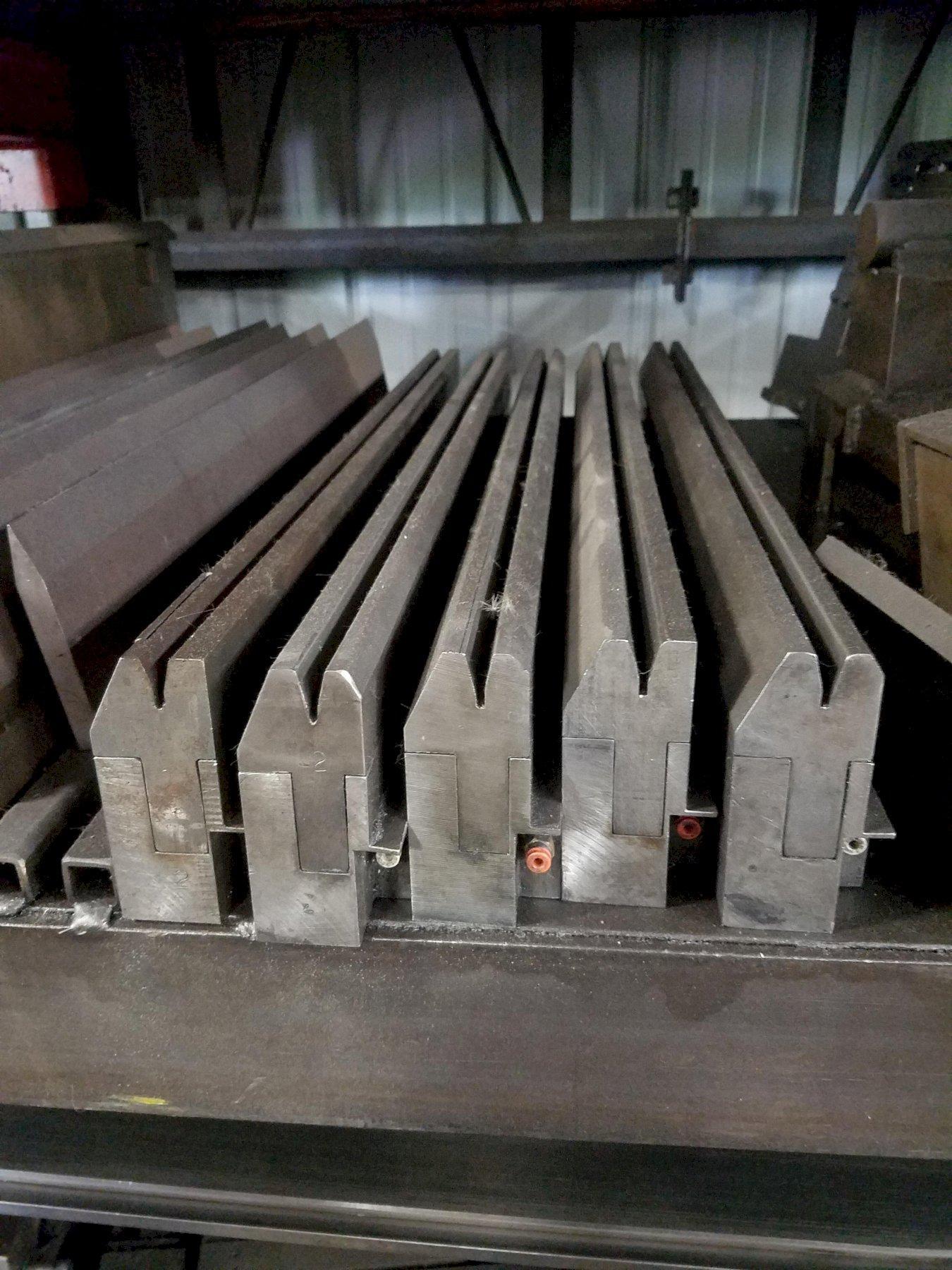

Die Library...................... 70 dies

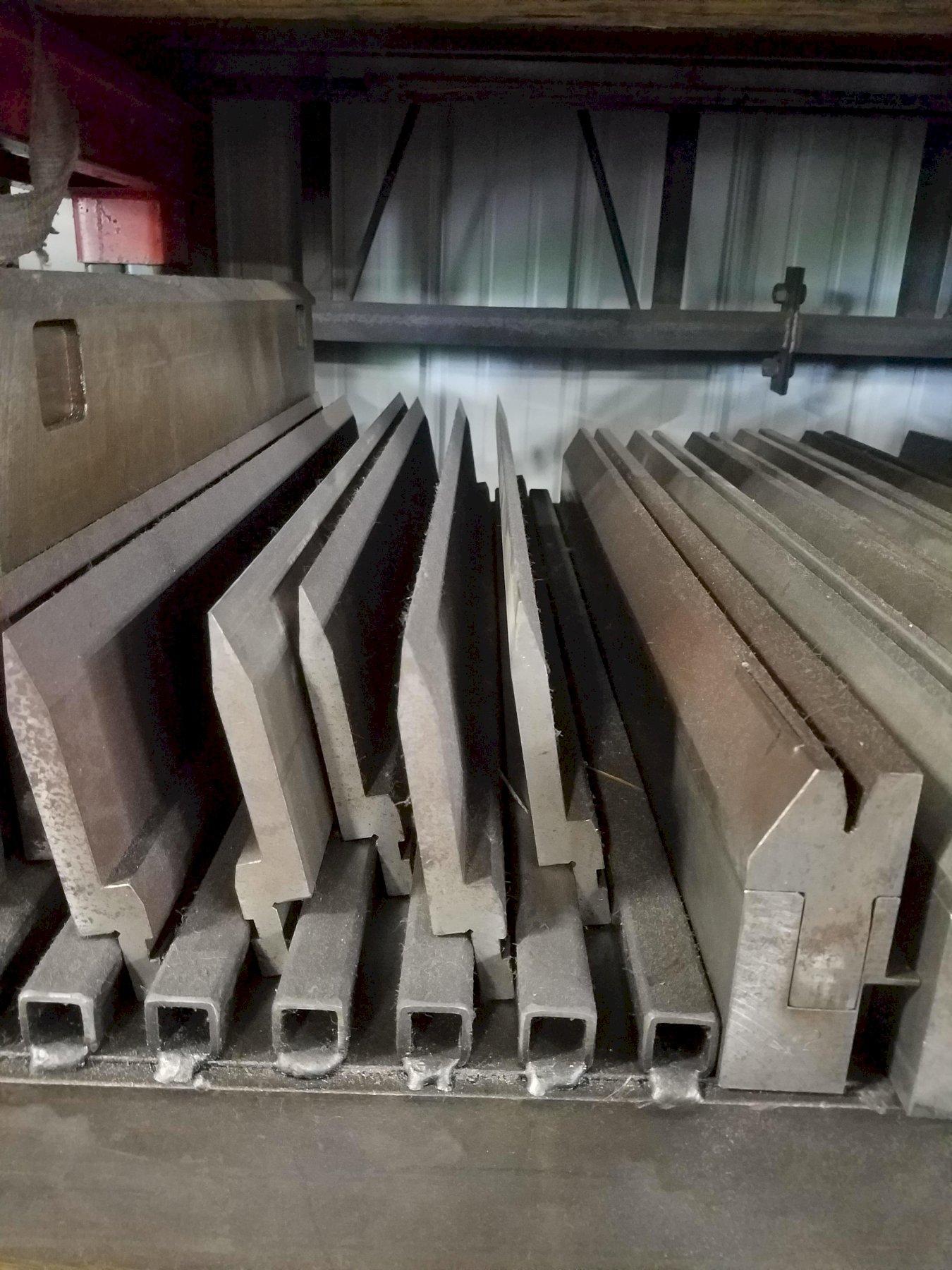

Punch Library.................... 30 punches, 10 spacers, 10 holders
