Specifications
Equipped With
GENERAL SPECIFICATIONS:

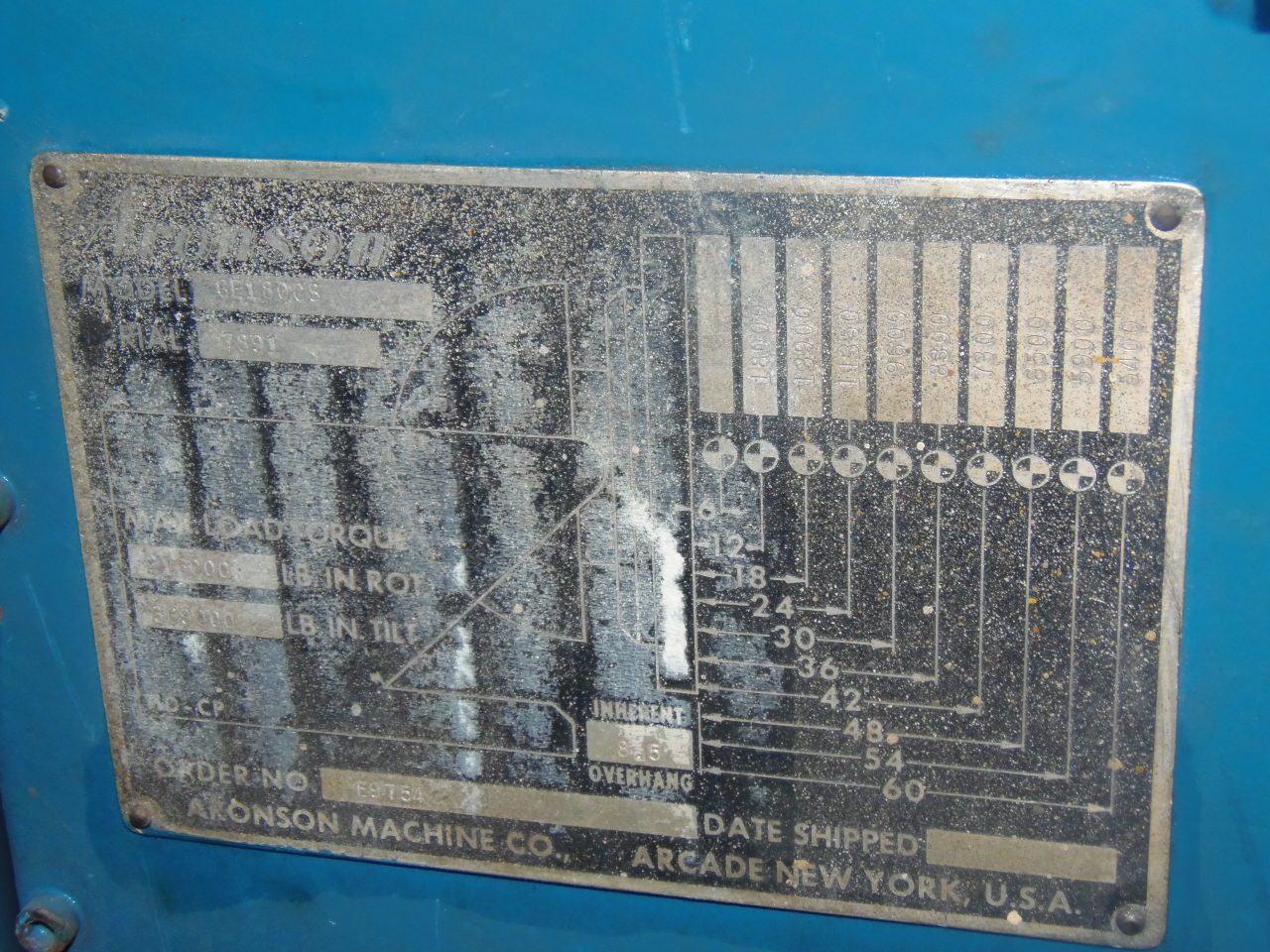

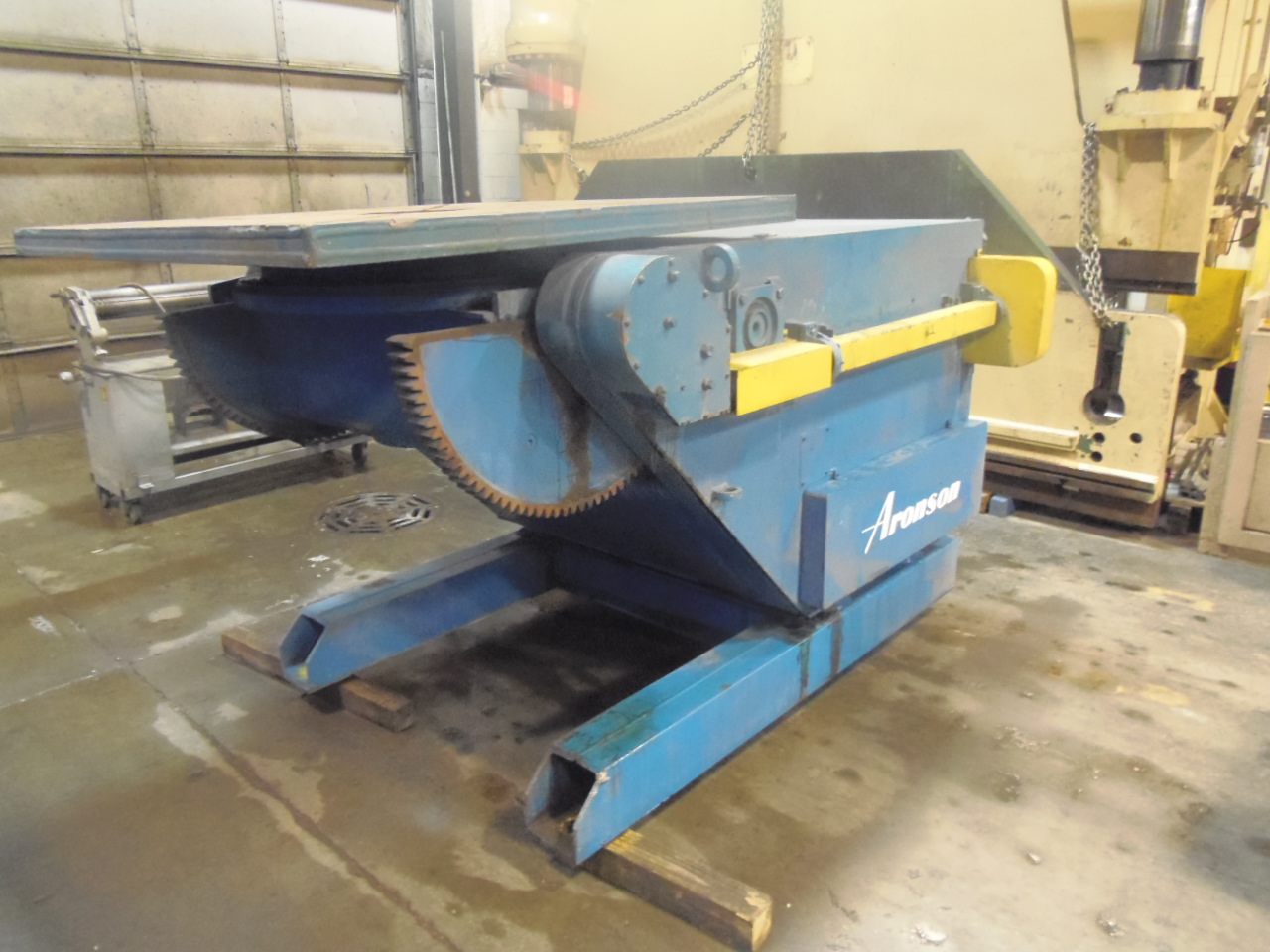

MAKE................................ ARONSON
MODEL............................... GE180CS
SERIAL NUMBER....................... 7891
AGE (YEAR).......................... 1978

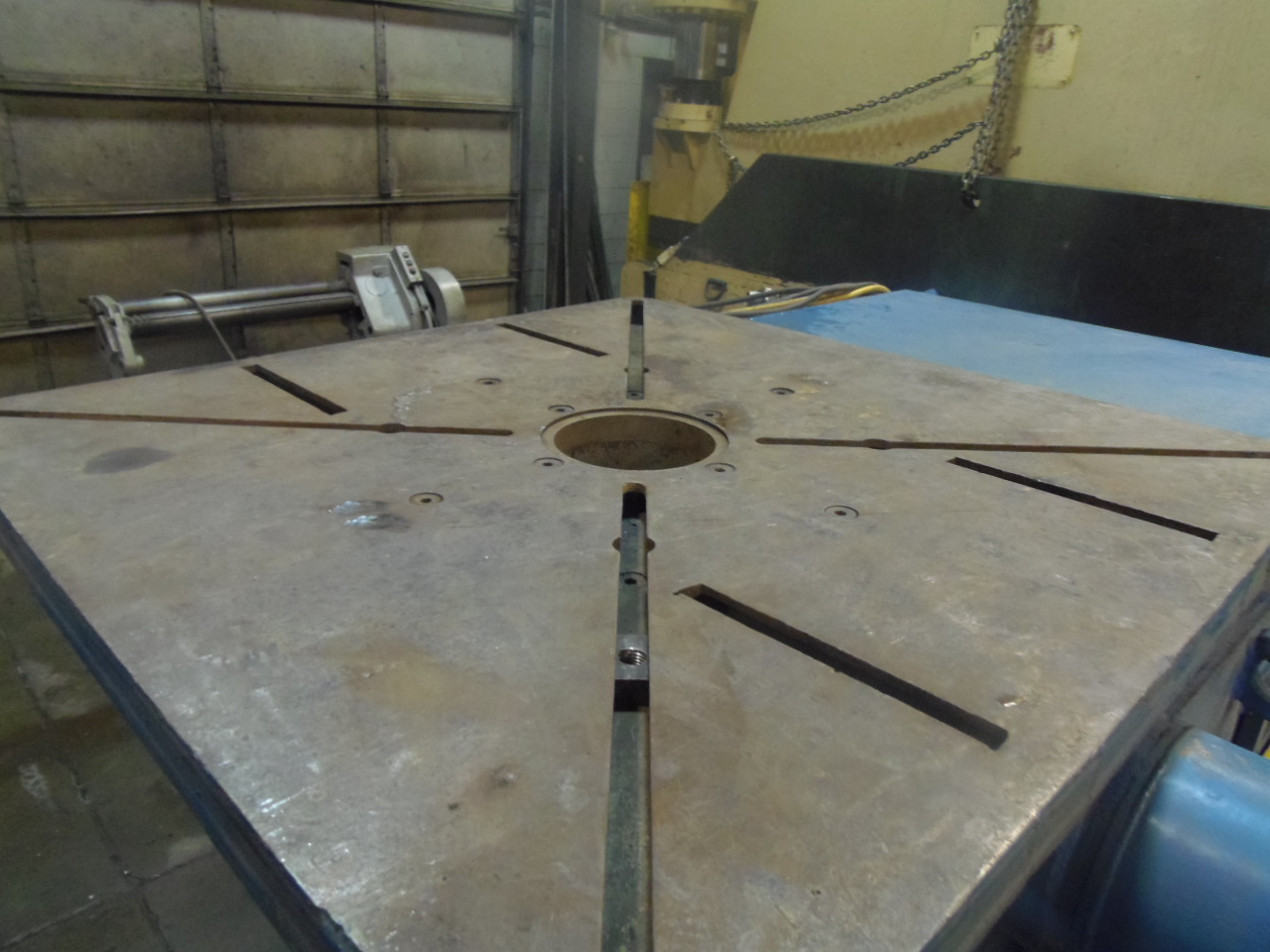

TABLE SIZE.......................... 54" X 54"
CAPACITY @ 12" CG TO TABLE SURFACE.. 18000 LBS.
@18" ............................... 13900 LBS.
@24" ............................... 11350 LBS.
@30" ............................... 9600 LBS.
@36" ............................... 8300 LBS.
@42" ............................... 7300 LBS.
@48" ............................... 6500 LBS.
@54" ............................... 5900 LBS.
@60" ............................... 5400 LBS.
MAX LOAD TORQUE (ROTATION).......... 216000 LB
MAX LOAD TORQUE (TILT).............. 369000 LB
INHERENT OVERHANG................... 8.5"

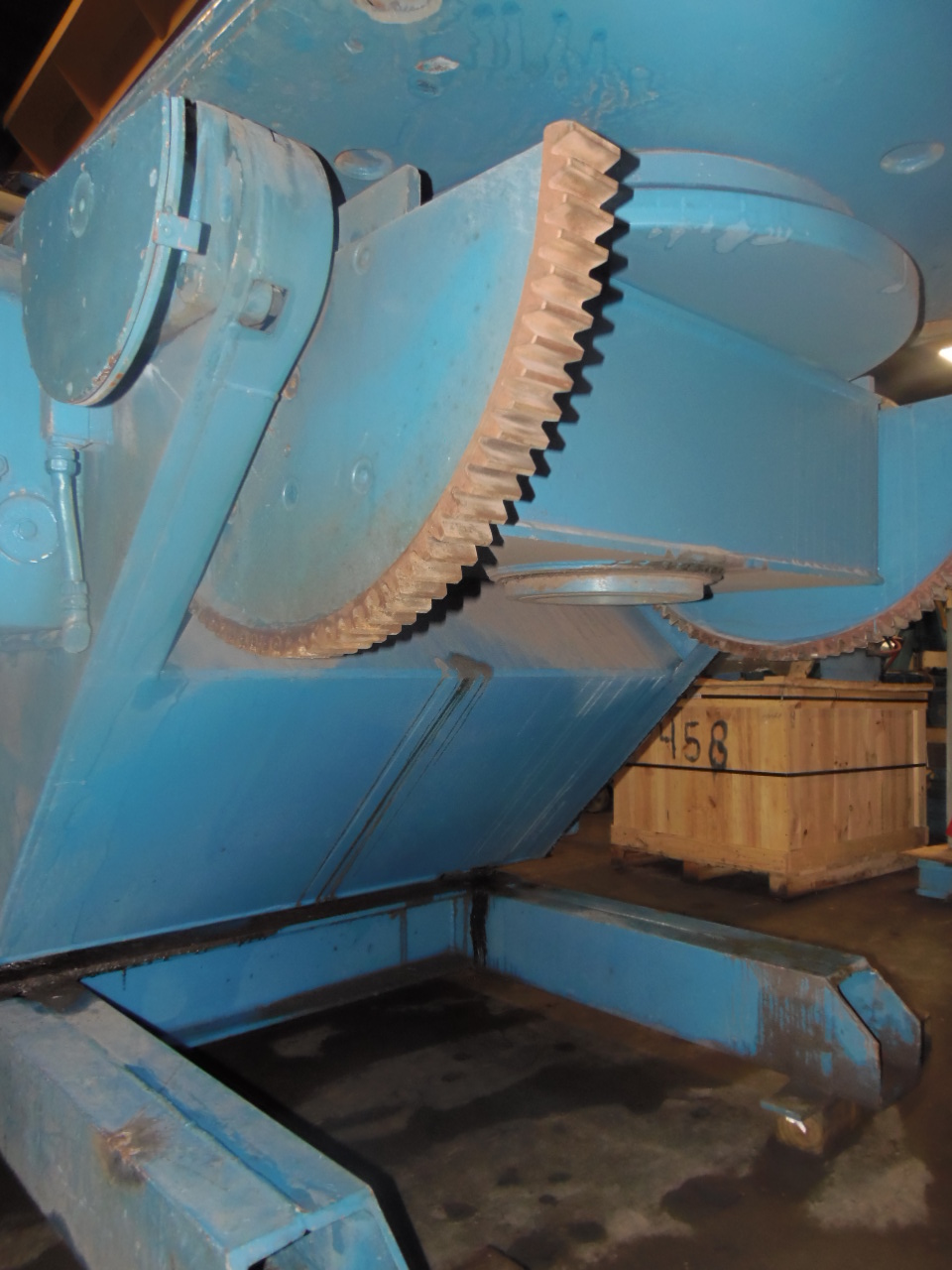

TILT RANGE.......................... 0-135 DEG.
TILT MOTOR.......................... 5 HP
ROTATION (CONSTANT SPEED)........... 0.67 RPM
ROTATION MOTOR...................... 5 HP
ELEVATION (CONSTANT SPEED).......... 24 IPM
ELEVATION MOTOR..................... 5 HP
MAXIMUM CLAMPING DIAMETER........... 70"
NUMBER OF SLOTS AND WIDTH........... 4, 1 1/16"
TABLE THICKNESS..................... 2 1/2"
TOTAL LIFT TRAVEL................... 33"
TABLE HEIGHT MIN/MAX................ 55" / 88"
DIMENSIONS (APPROX)................. 80" X 107"
WEIGHT (APPROX)..................... 10,000 LBS.
EQUIPPED WITH
TILT, ROTATE, LIFT
CONSTANT SPEED

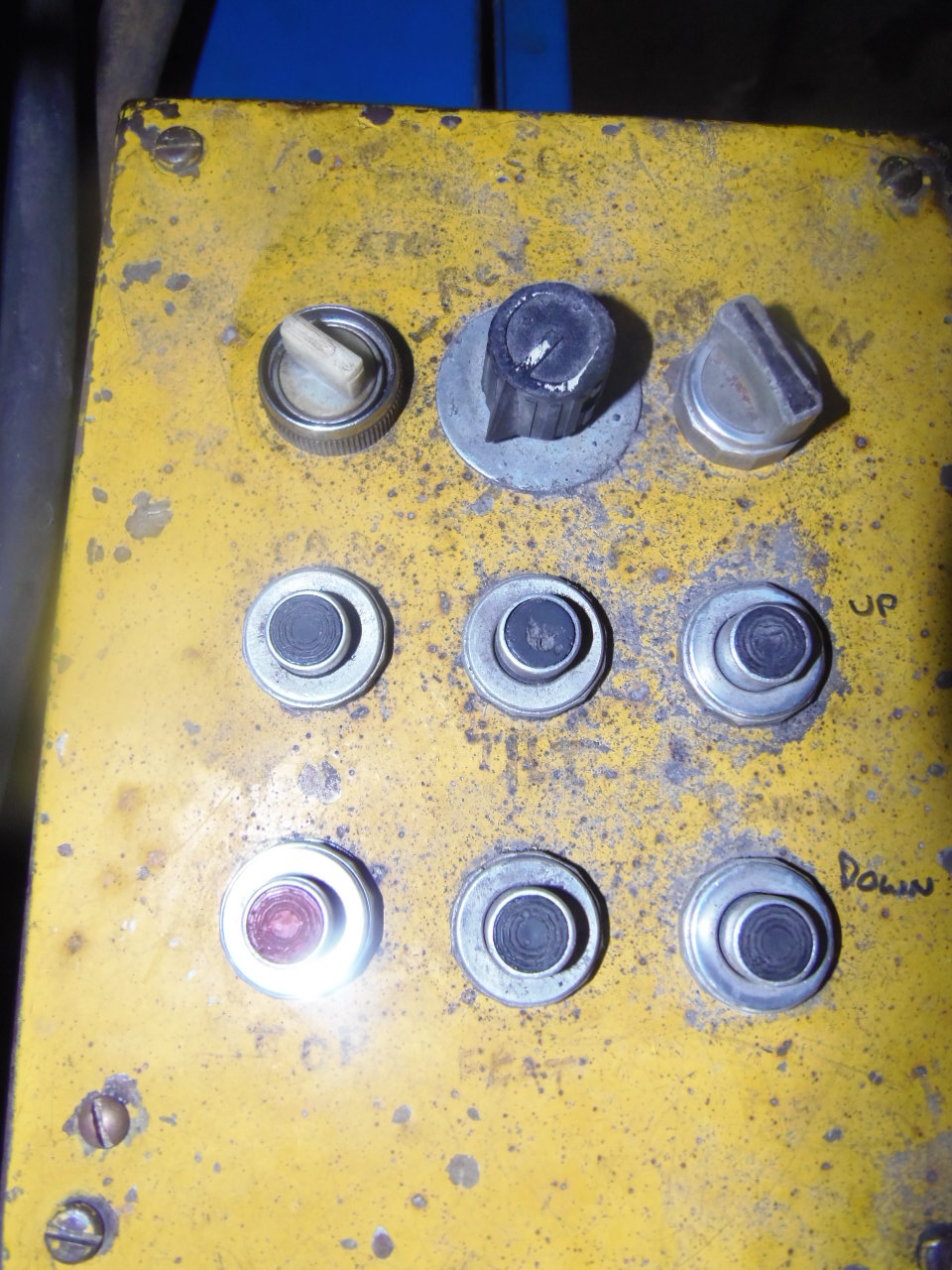

PENDANT CONTROL
SPECIFICATIONS SUBJECT TO VERIFICATION
