Specifications
Equipped With
GENERAL SPECIFICATIONS:

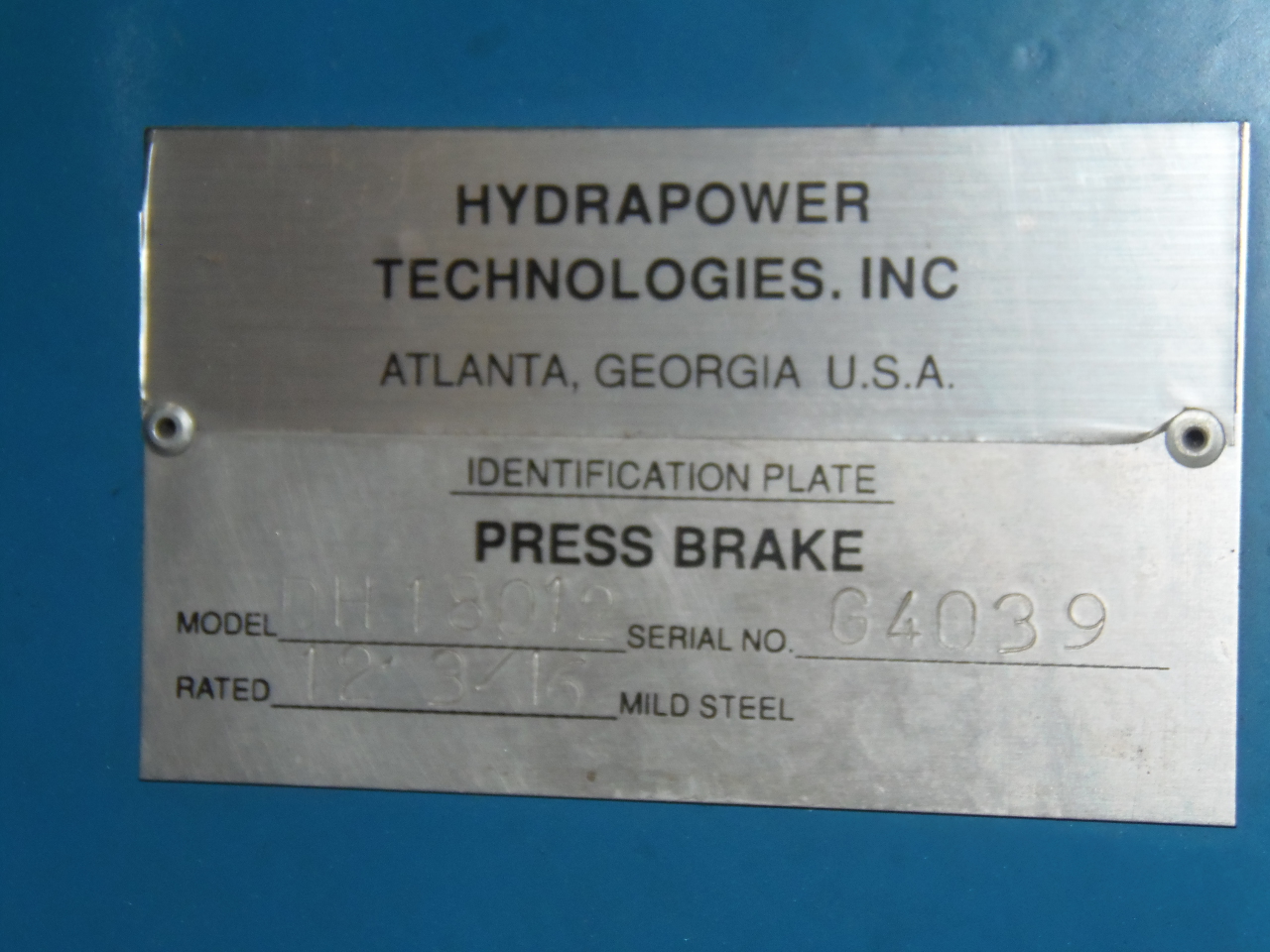

MANUFACTURER....................... HYDRAPOWER
MODEL.............................. DH-18012
SERIAL NUMBER...................... G-4039
NEW................................ 1999
TONNAGE............................ 180
RATED CAPACITY..................... 12' X 3/16"
10' X 1/4"
BENDING LENGTH..................... 144"
LENGTH BETWEEN HOUSINGS............ 126"
STROKE............................. 9"
OPEN HEIGHT........................ 16"
THROAT DEPTH....................... 8"
MAX. SHUT HEIGHT................... 7"
MOTOR HP........................... 30
WEIGHT............................. 22,000 LBS
SHIPPING DIMENSIONS................ 144" L X 54" W X 114" H
EQUIPPED WITH:

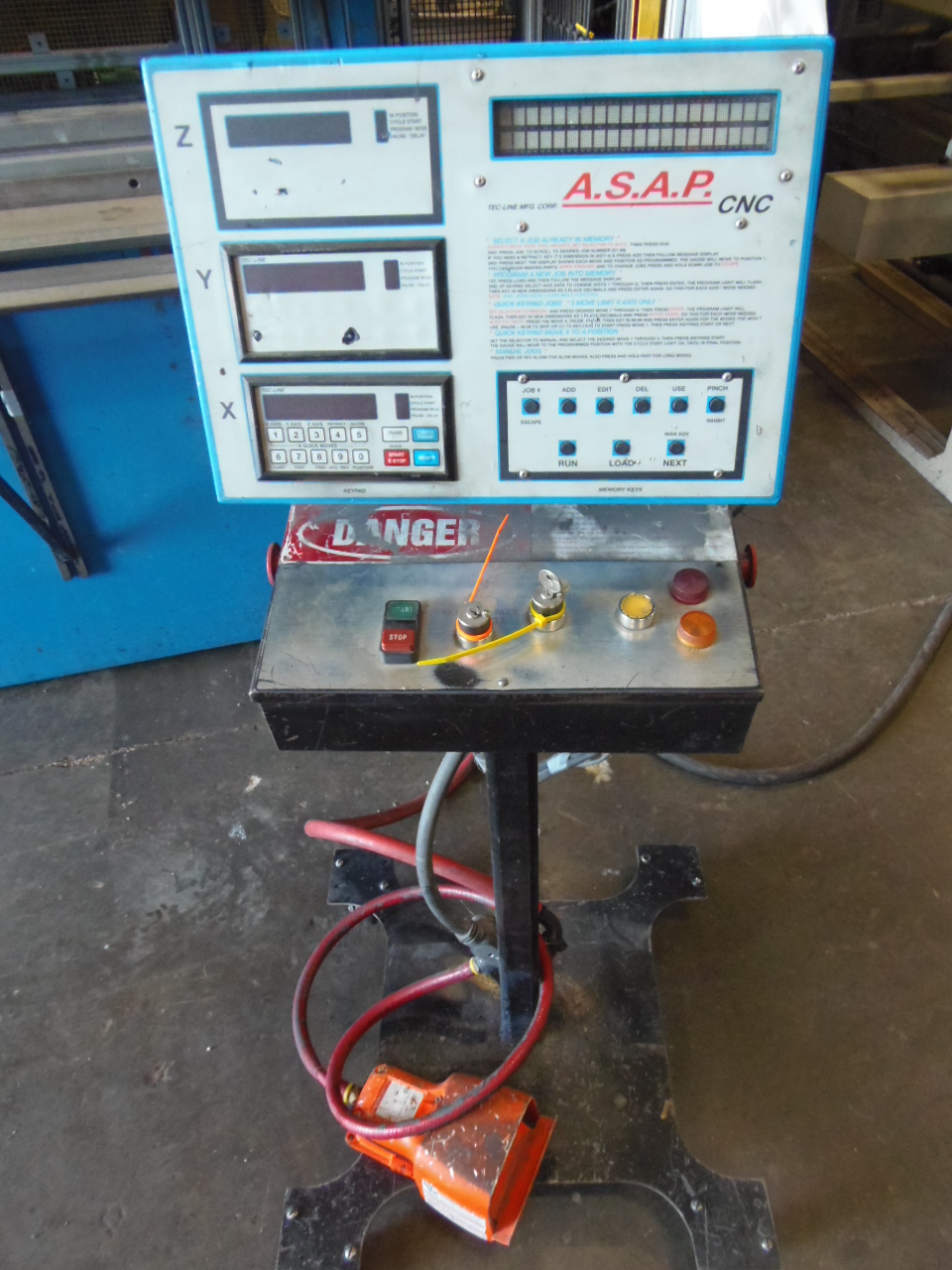

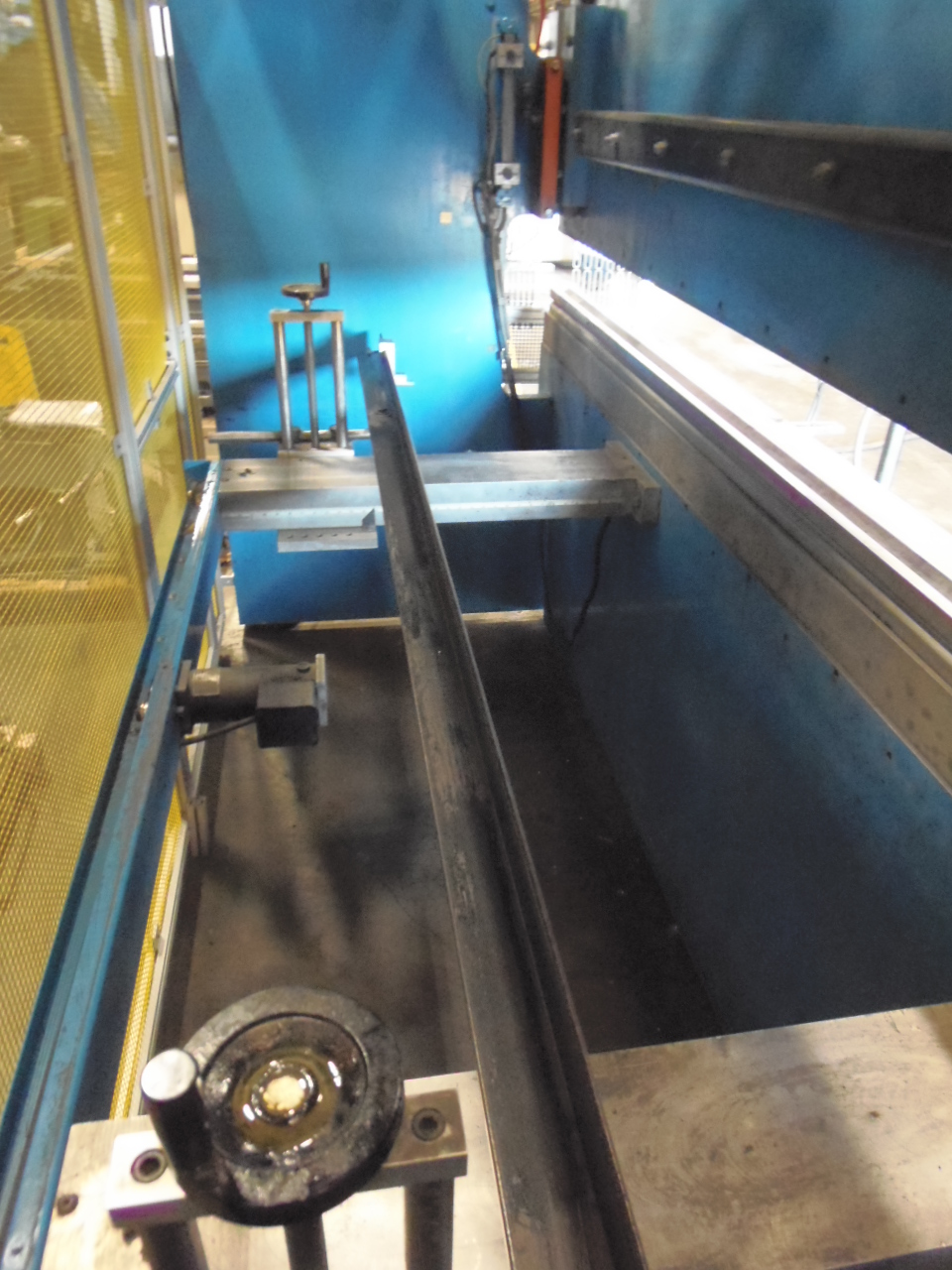

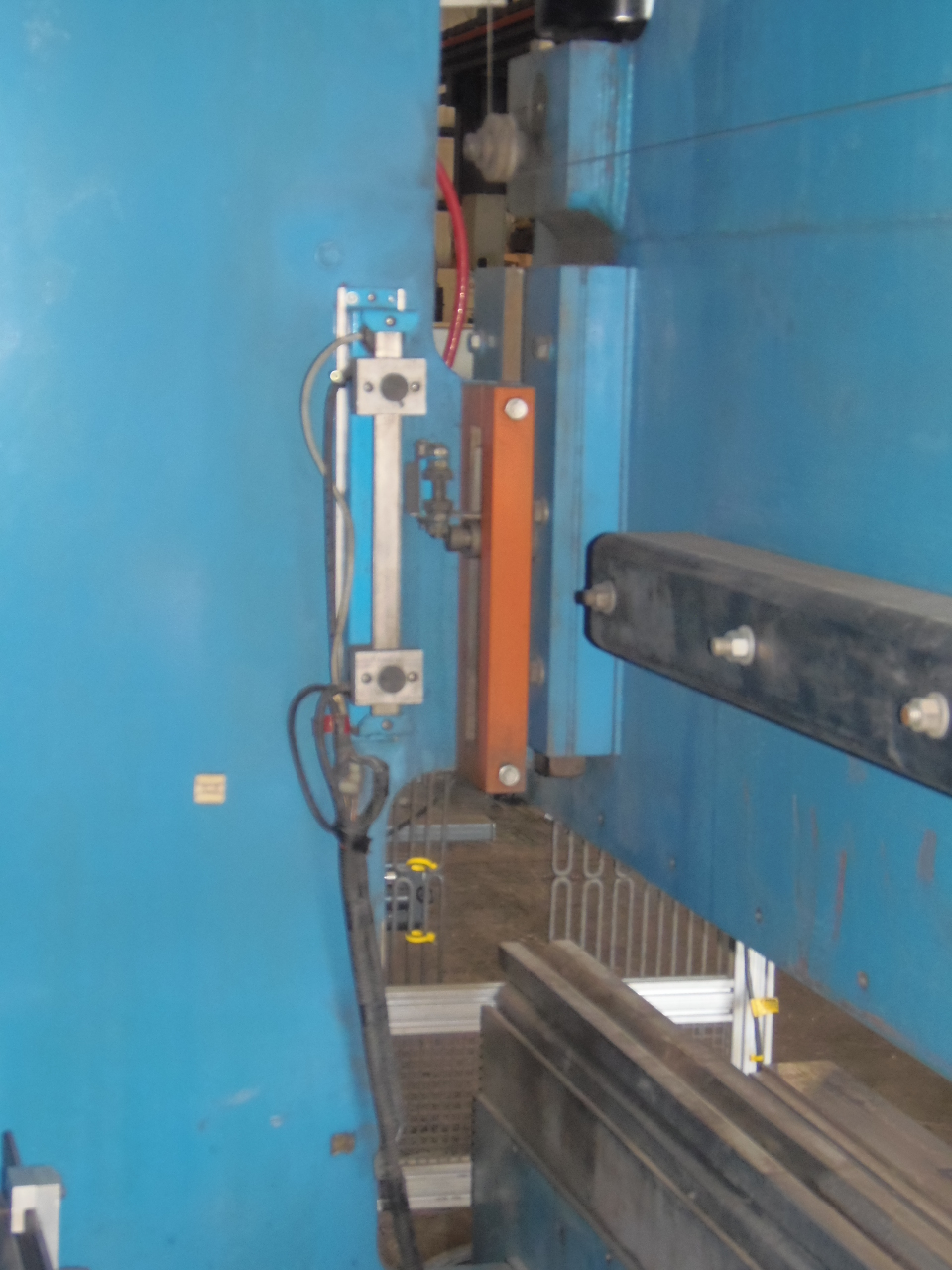

A.S.A.P. MX99-2RDM 2 AXIS CNC CONTROL WITH 24" BACK GAUGE WITH 12" VERTICAL ADJUSTMENT OF THE FINGERS AND RAM DEPTH MONITORING

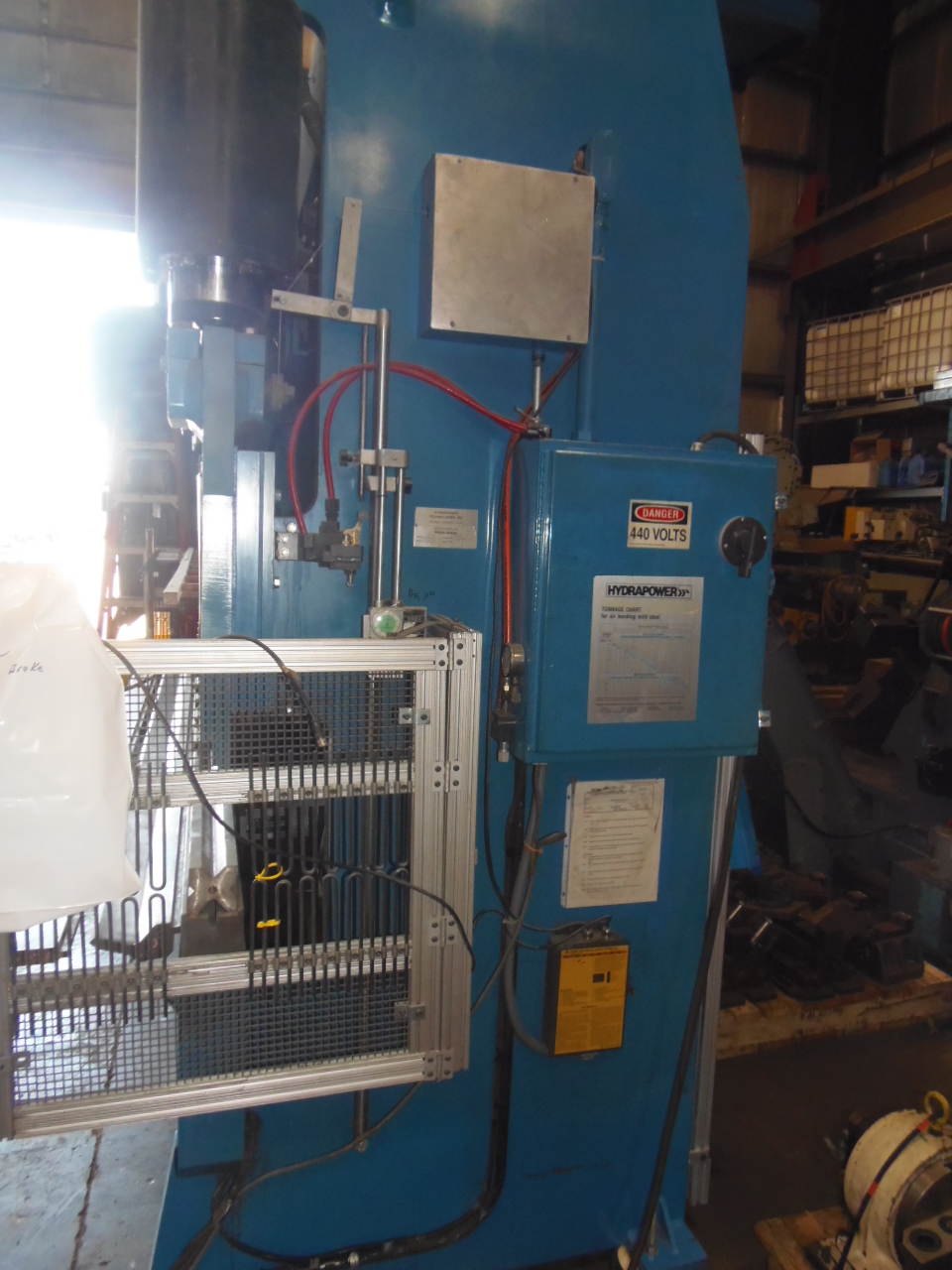

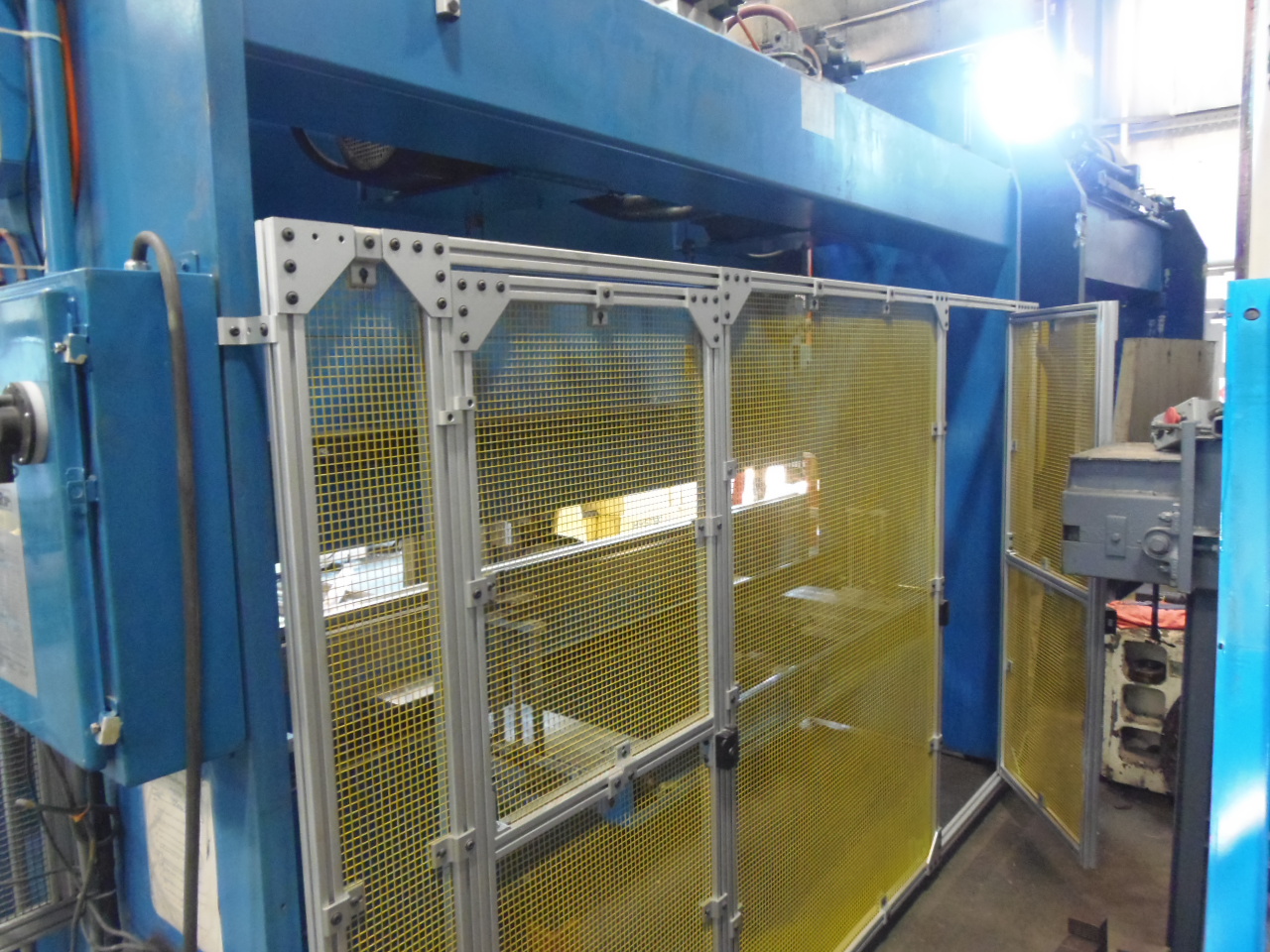

ADDITIONAL REAR GUARDING WITH DOORS

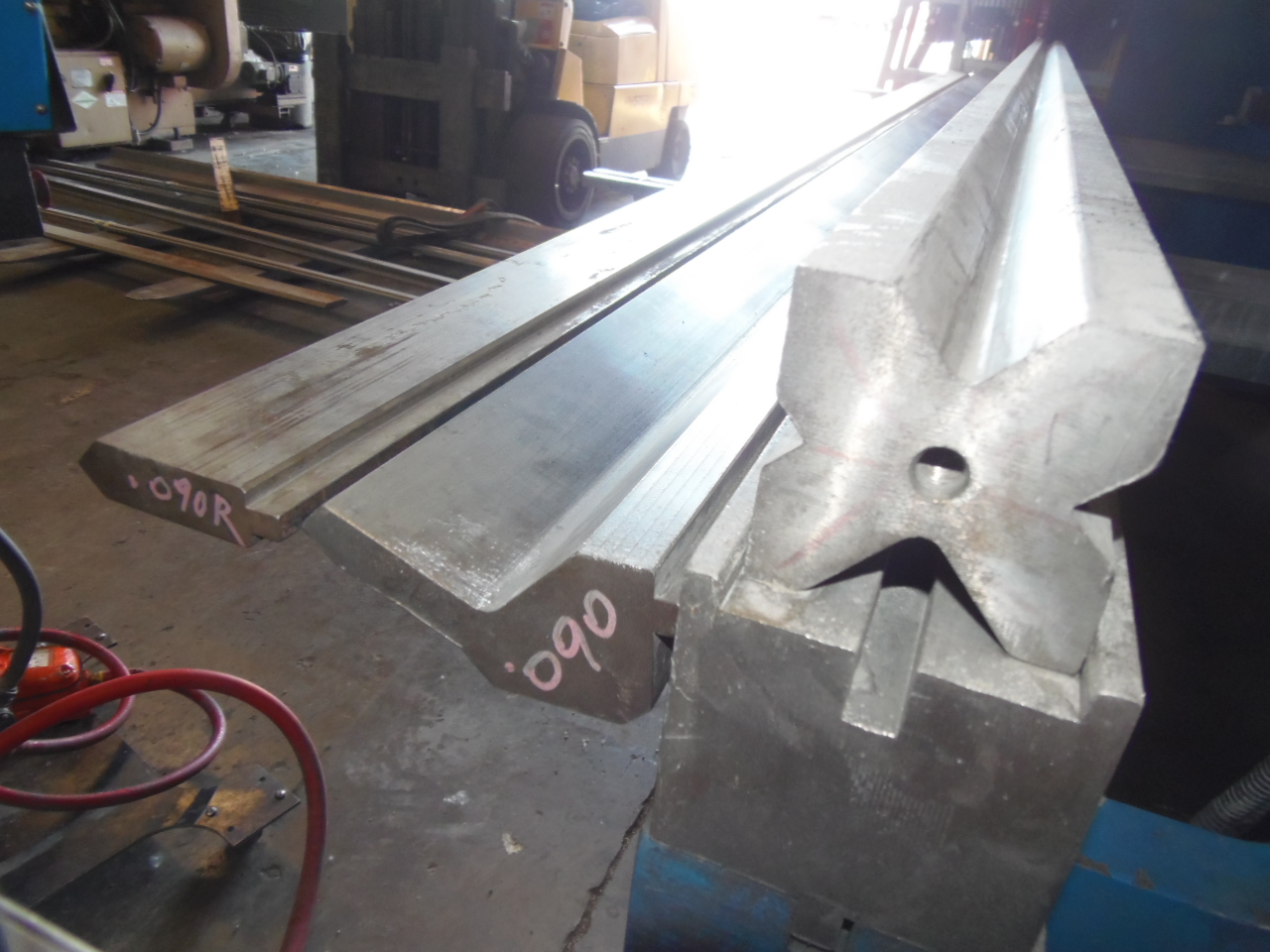

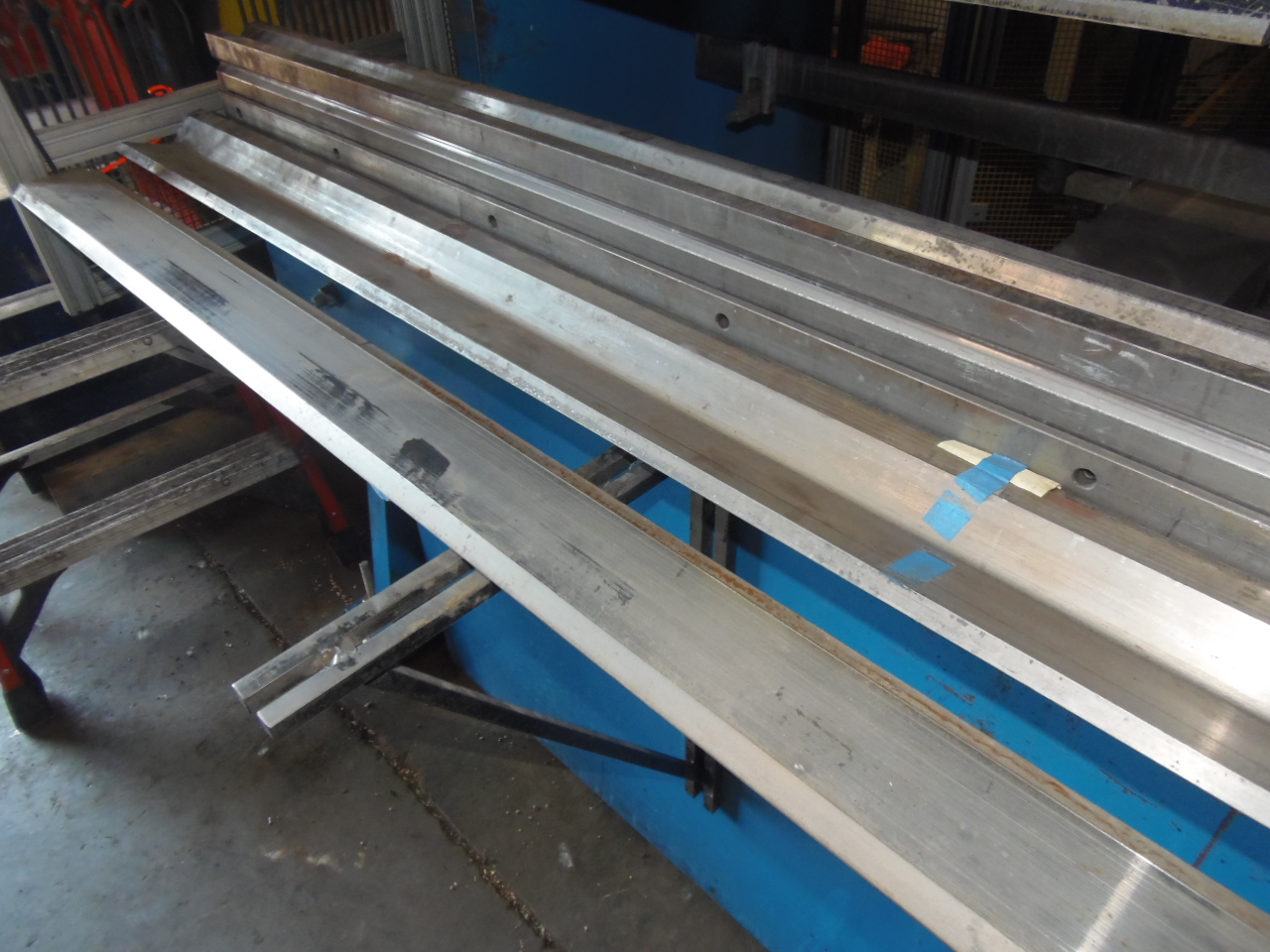

12' 4 WAY DIE WITH 12' GOOSE NECK MALE DIE AND 12' STRAIGHT MALE DIE
MISC. MANUALS
