Specifications
Equipped With
GENERAL SPECIFICATIONS:

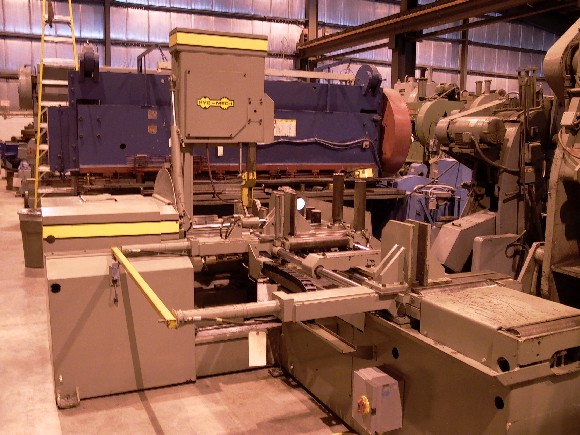

MANUFACTURER........................ HYD-MECH

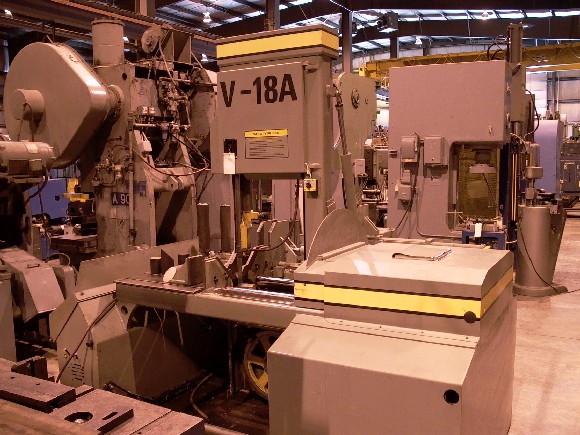

MODEL............................... V-18-APLC
SERIAL #............................ K0698126
NEW APPROXIMATELY................... 1998
CAPACITY: HORIZONTAL.............. 18"
VERTICAL................ 20"
@ 45 DEG. LEFT/RIGHT.... 14"
BLADE............................... 1-1/4" X 14'6" X .042"
BLADE SPEED......................... 75-400 SFM W/53:1 GEARBOX
BLADE GUIDES........................ CARBIDE
BLADE WHEEL DIA..................... 19"
MOTORS: BLADE DRIVE................ 5 HP
HYDRAULIC DRIVE............ 2 HP
PUMPS: HYDRAULIC PUMP............. 6-1/2 GPM
COOLANT PUMP (150W)........ 3-1/2 GPM
PRESSURE COMPENSATED
CONSTANT PRESSURE VARIABLE FLOW

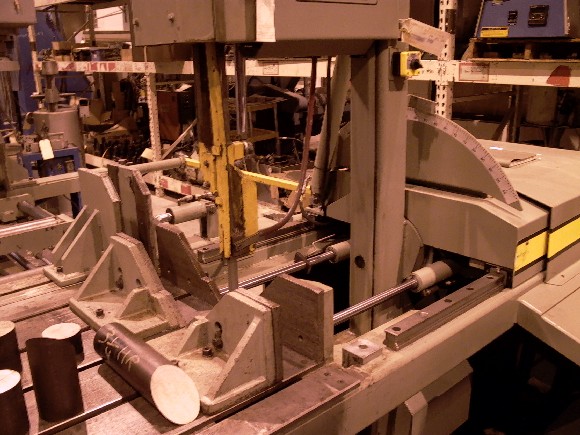

VISES............................... HYD. FULL STROKE
HEAD SWING.......................... HYD. POSITIONED & LOCKED
.......................... FULL 45 DEG. LEFT/RIGHT
TABLE HEIGHT........................ 38"
FEED SYSTEM:
HYD. VARIABLE PRESSURE........... 0-300 PSI
IND. FEED RATE................... 0-15 IPM
SYSTEM PRESSURE..................... 900 PSI
TANK CAP.: HYDRAULIC............... 9 GAL.
COOLANT................. 16 GAL.
WIEGHT (APPROX.).................... 8,000 LBS.
DIMENSIONS (APPROX.)................ 97"H x 100"W x 145"L
CONVEYOR INFEED..................... 20'
CONVEYOR EXIT....................... 10'
ELECTRICS........................... 440/3PH
EQUIPPED WITH:

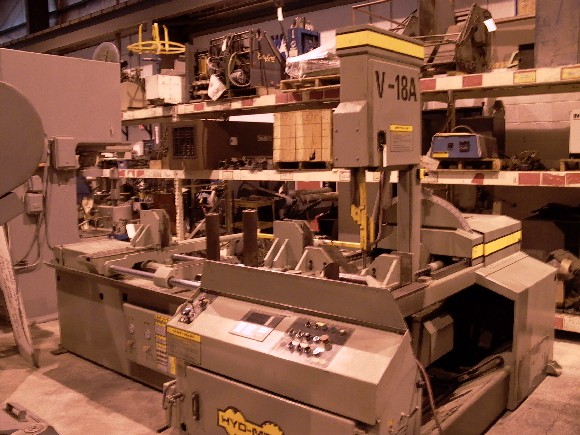

CONTROLLER PLC500-MTA-61 W/INTERFACE SCREEN, KEYPAD, AUTO KEYS, JOB & QUE KEYS
