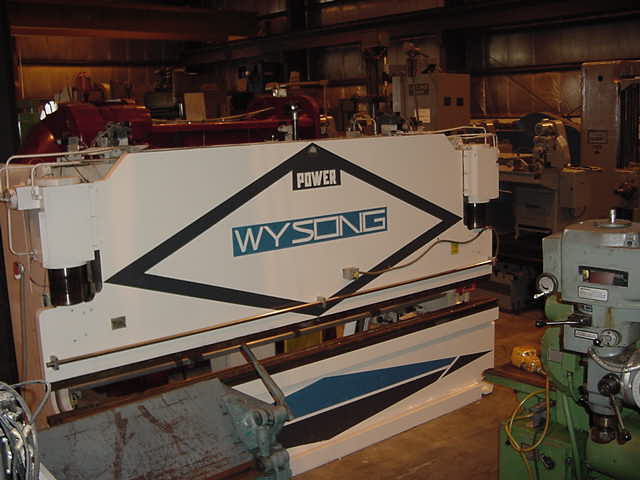

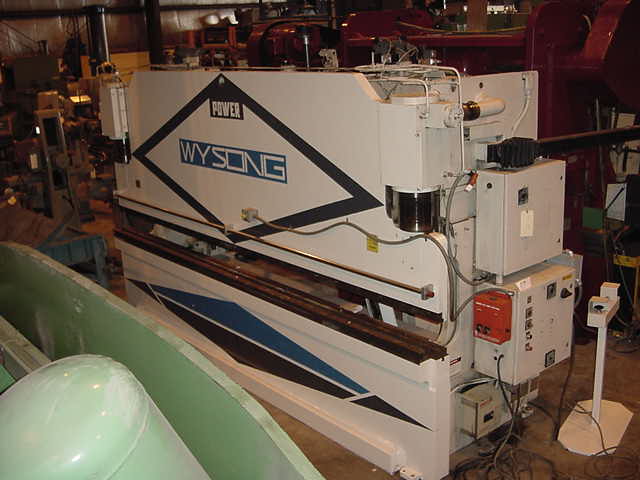

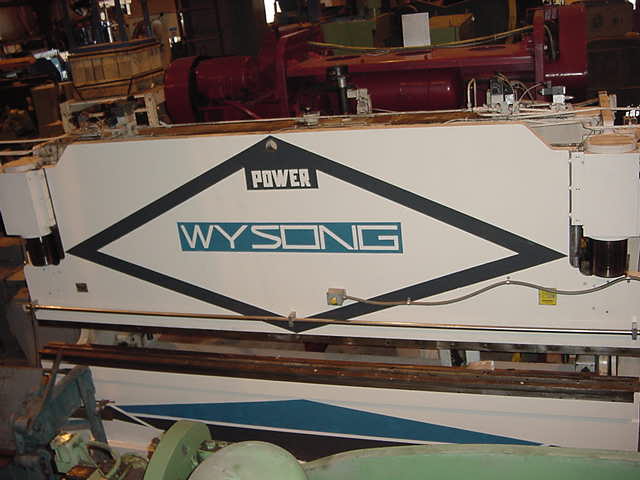

175 TON X 14' WYSONG CNC HYD PRESS BRAKE, NEW 1991, 2 AXIS GC6000 CONTROL, PC BASED, 168" BETWEEN UPRIGHTS, 300 IPM ADVANCE

GENERAL SPECIFICATIONS:

MODEL PH-175-168
SERIAL HPB50-101
YEAR 1991
CAPACITY 175 TON
OVERALL LENGTH OF BED & RAM 14'
DISTANCE BETWEEN HOUSINGS 12'6"
STROKE 8"
DIE SPACE 17"
CLOSED HEIGHT 9"
THROAT DEPTH 8"
SPEEDS-APPROACH 300 IPM
PRESS 22 IPM
RETURN 215 IPM
RATED CAPACITY 14' X 3/16"
12' X 1/4"

EQUIPPED WITH
WYSONG GC 6000 2 AXIS CNC CONTROL
SECTIONAL RAM CLAMPS
15 HP MAIN MOTOR
ELECTRICAL CONTROLS
ELECTRIC FOOT PEDAL
