GENERAL SPECIFICATIONS:

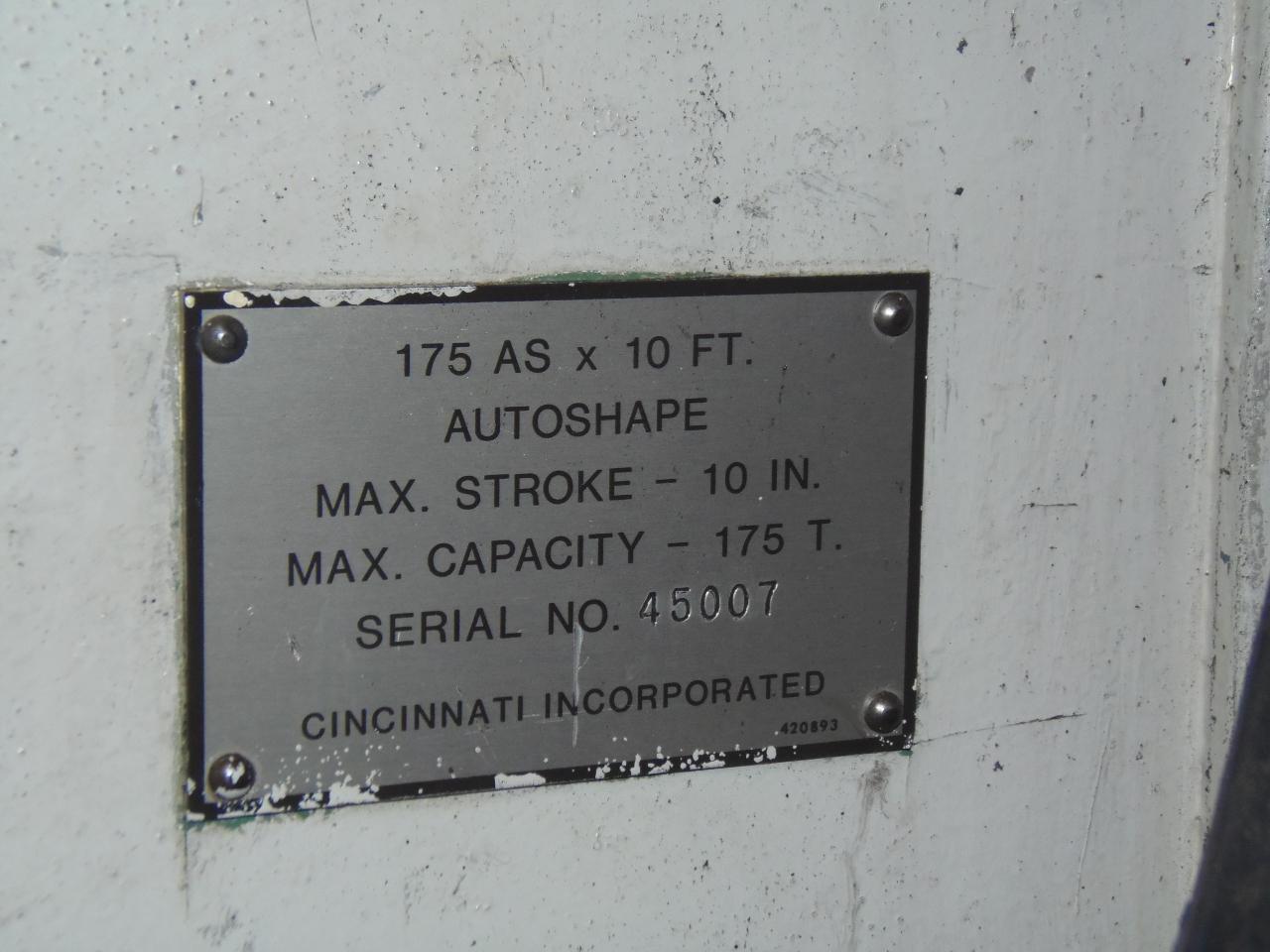

MAKE..................... CINCINNATI
MODEL.................... 175AS-10
SERIAL NUMBER............ 45007
AGE (YEAR)............... 1990
OVERALL BED LENGTH....... 144"
DIST. BTWN. HOUSINGS..... 10' 6"
BENDING CAPACITY......... 175 TONS
STROKE................... 10"
OPEN HEIGHT.............. 17"
CLOSED HEIGHT............ 7"
BED WIDTH................ 3.75"
THROAT DEPTH............. 8"
RAM SPEED APPROACH....... 260 IPM
RAM SPEED PRESSING....... 1-65 IPM
RAM SPEED RETURN......... 1-290 IPM
MAIN MOTOR............... 25 HP
ELECTRICS................ 460V / 3PH
DIMENSIONS............... 192" X 48" X 130" H
WEIGHT APPROX............ 26,000 LBS.
EQUIPPED WITH:

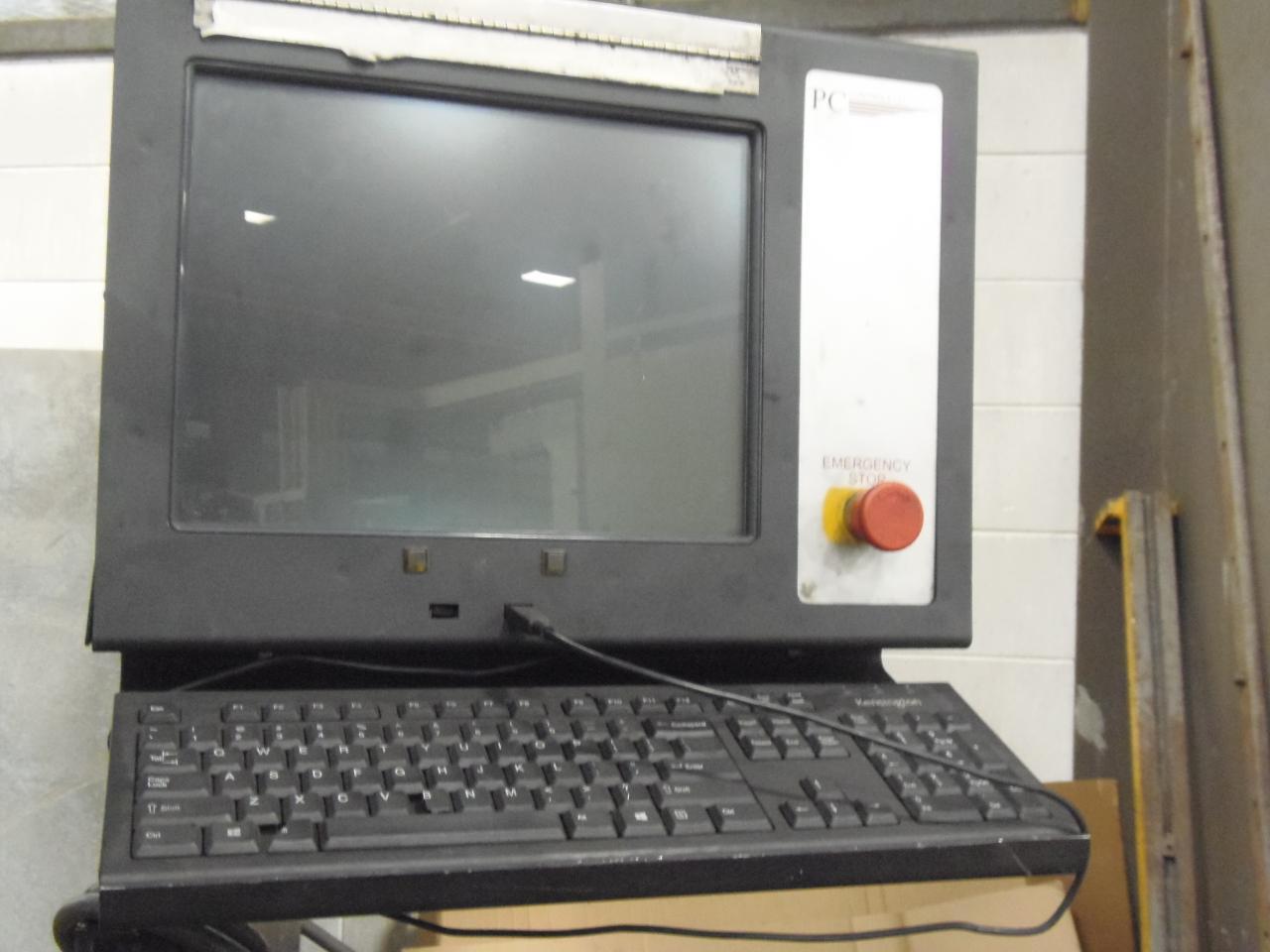

PC CNC

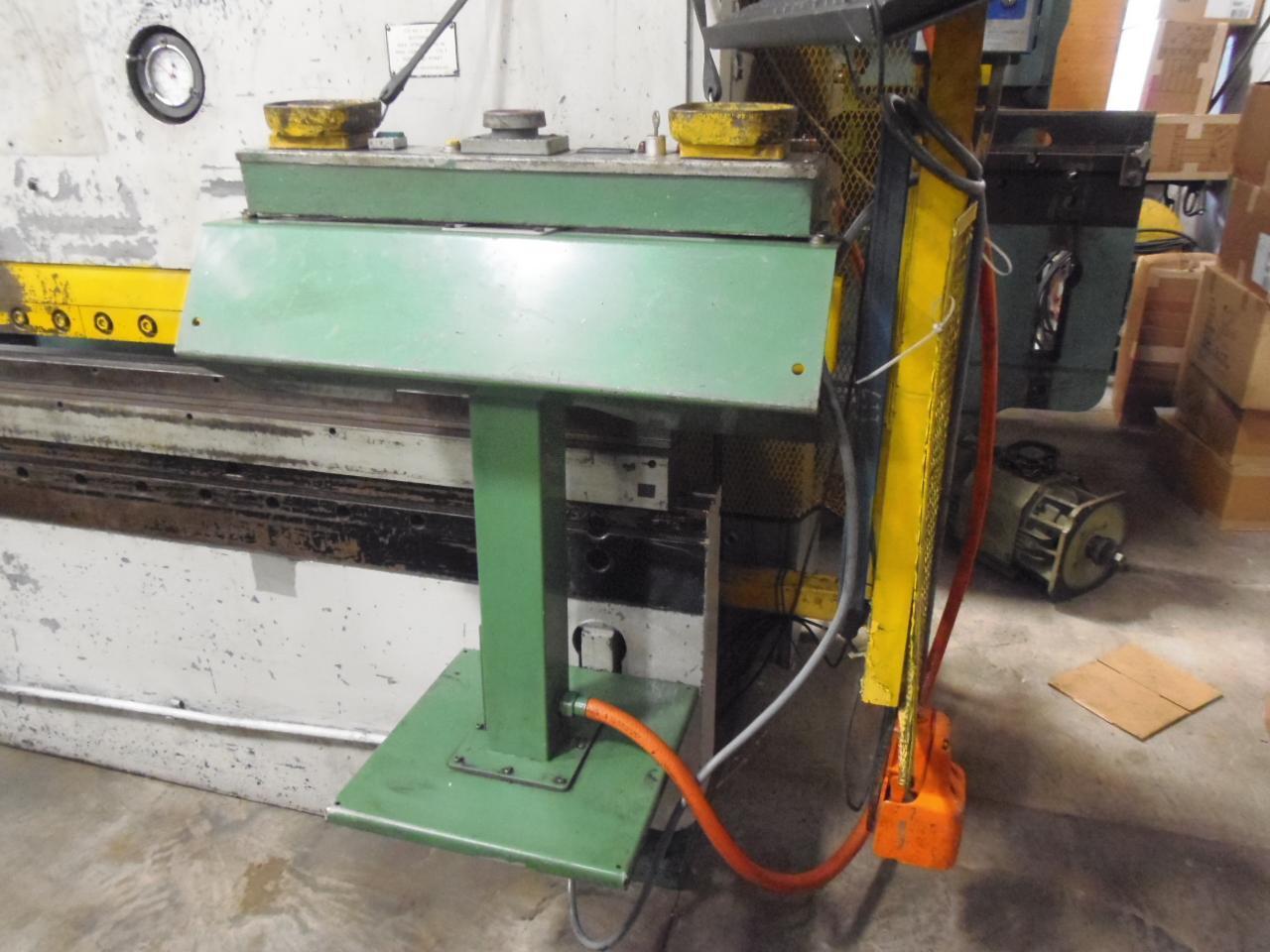

FOOT PEDAL
DUAL PALM BUTTONS
STROKE LENGTH
FLUSH FLOOR (NO PIT)
