Specifications
Equipped With
GENERAL SPECIFICATIONS:

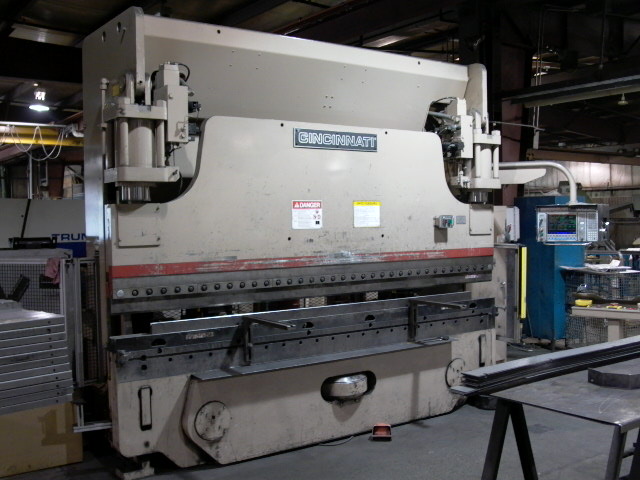

MANUFACTURER........................... CINCINNATI
MODEL.................................. 175AF AUTOFORM
NEW APPROXIMATELY...................... 1995
TONNAGE................................ 175
OVERALL LENGTH......................... 144"
DISTANCE BETWEEN CENTERS............... 126"
STROKE................................. 10"
THROAT................................. 8"
CLOSED HEIGHT.......................... 7"
RAM SPEEDS
APPROACH............................ 260 IPM
FORMING............................. 1-65 IPM
VARIABLE RETURN..................... 1-290 IPM
RATED CAPACITY......................... 3/8" X 75"
MOTOR.................................. 25 HP
ELECTRICS.............................. 460/3/60
EQUIPPED WITH:
6 AXIS CNC BACKGAUGE
24" X-AXIS
8" PROGRAMMABLE R-AXIS
AUTOCROWNING
PRESENCE SENSING-PRESENCE SENSING, DEVICE INTERFACE, MUTE INDICATOR LIGHT, PEDESTAL MOUNTING OF PALMBUTTON STATION
BED MACHINED & DRILLED FOR 7 3/4" ANGLE BRACKETS
BED MACHINED WITH CROSS "C" SLOTS, FULL LENGTH DIE SLOT TOP, AND FULL LENGTH DOVETAIL SLOTS, FRONT AND REAR

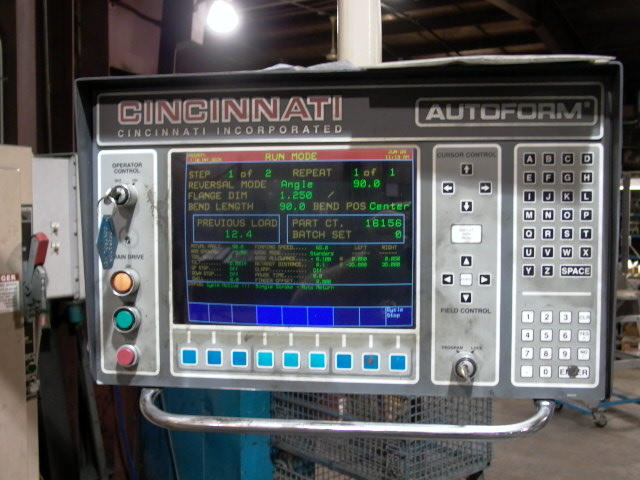

PENDANT MOUNTED PROGRAMMABLE ELECTRONIC CONTROL WITH COLOR CRT DISPLAY, TOOL LIBRARY, PROGRAM STORAGE, AND 20 CAD DESIGN CONTROL SOFTWARE
3.5" FLOPPY DISK DRIVE
3 POSTION FOOTSWITCH
