GENERAL SPECIFICATIONS:

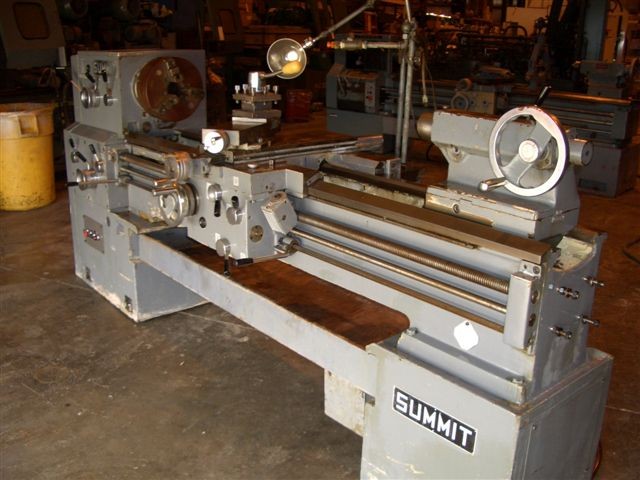

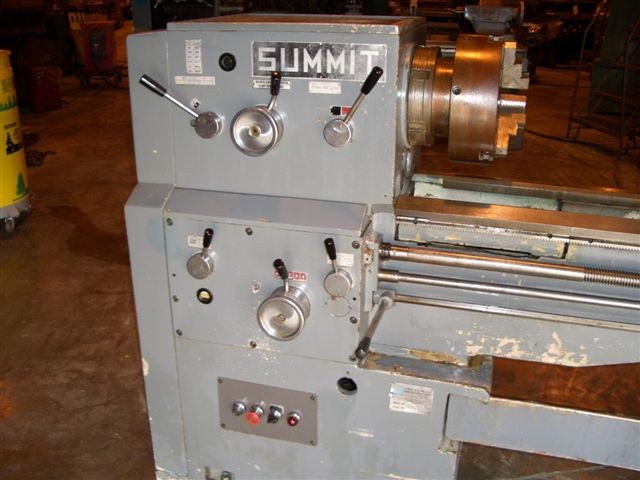

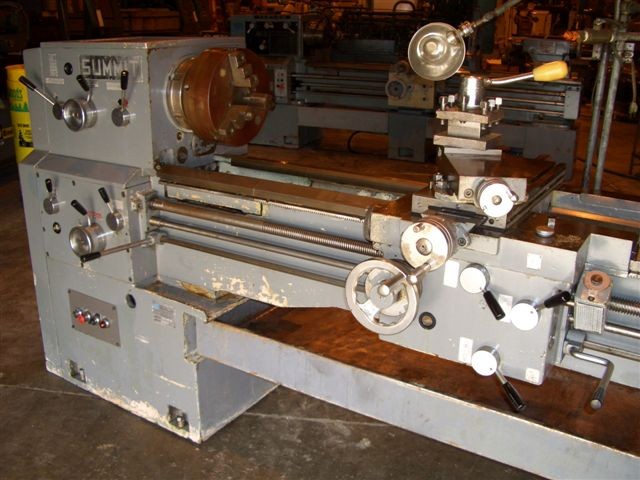

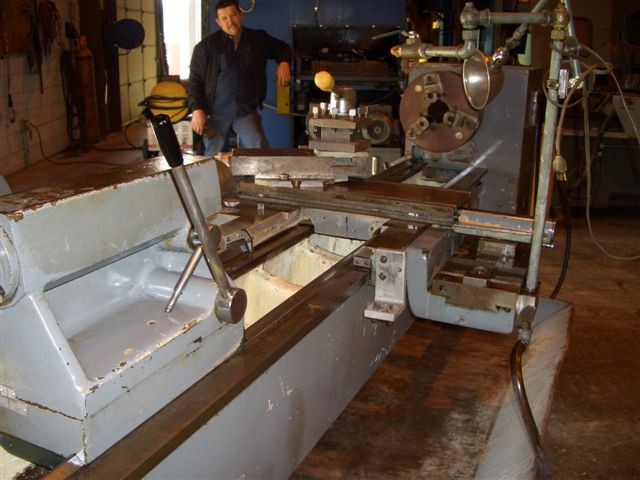

MANUFACTURER SUMMIT
MODEL 17-3x60
SERIAL # 3369
AGE APPROXIMATELY 1977
SWING OVER BED 19"
SWING IN GAP 27"
SWING OVER CROSS SLIDE 15.375"
DISTANCE BETWEEN CENTERS 60"
SPINDLE HOLE DIAMETER 3"
SPINDLE TAPER D1-8
SPINDLE SPEEDS (12) 22 - 1500 RPM
THREAD PER INCH (56) 3/4 - 92
METRIC THREADS (35) .25 - 23
MODULE THREADS (26) .25 - 11.5
DIAMETRAL PITCH (56) 1.5 - 184
TAILSTOCK TAPER 5 MT
MAIN DRIVE MOTOR 7.5 HP
WEIGHT (APPROX.) 5,700 LBS.
EQUIPPED WITH:
12" 3-JAW CHUCK
INCH/METRIC THREADING
4-WAY TOOLPOST
COOLANT SYSTEM
