Specifications
Equipped With

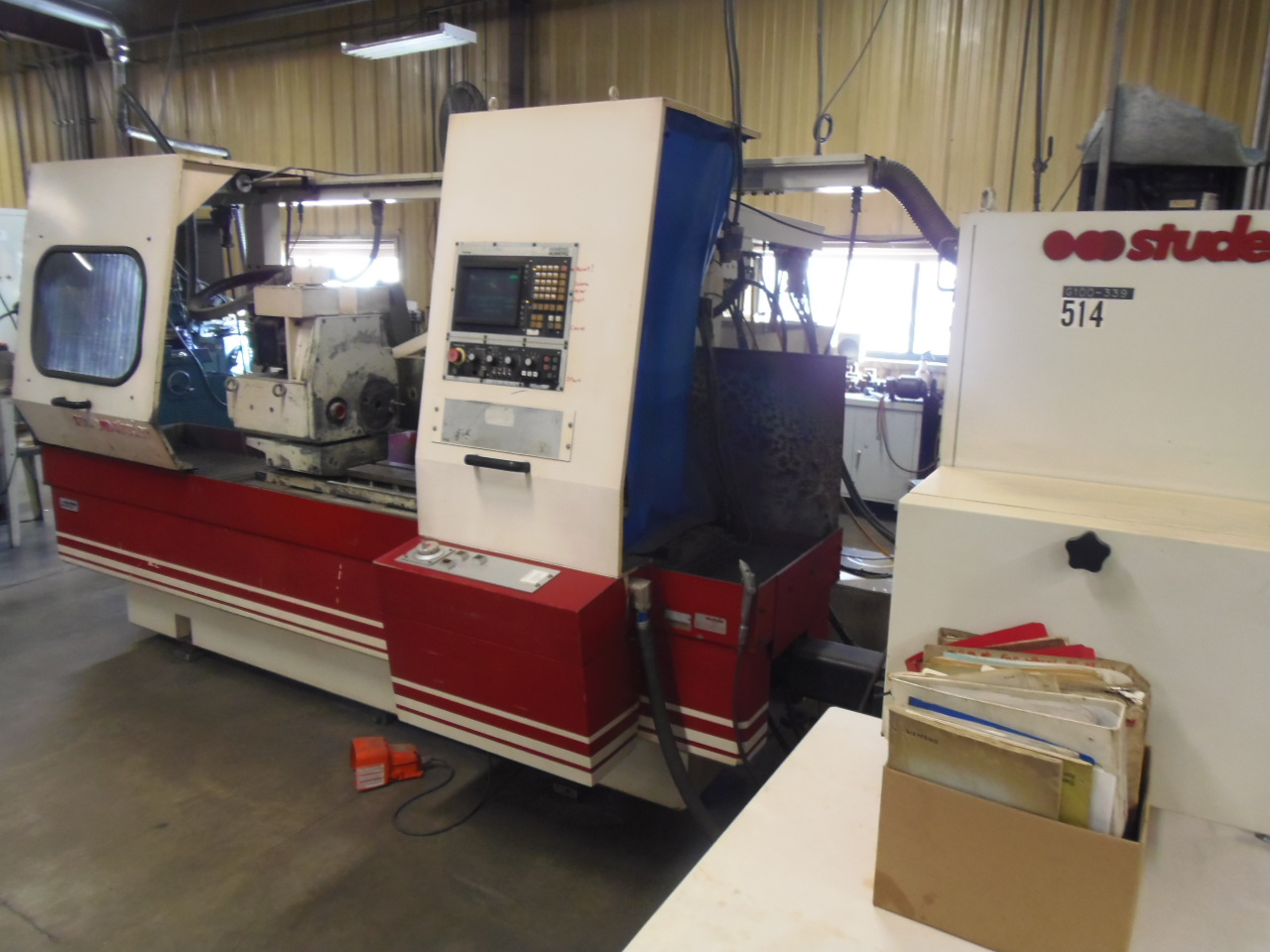

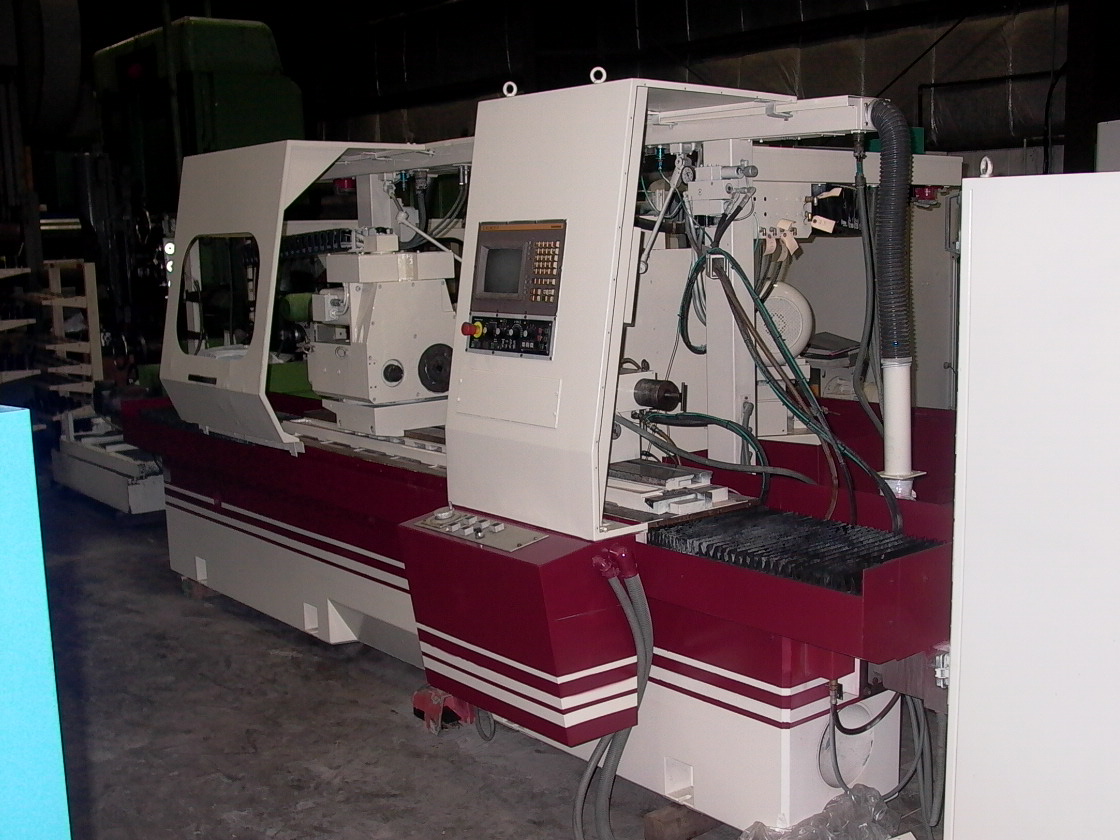

GENERAL SPECIFICATIONS:

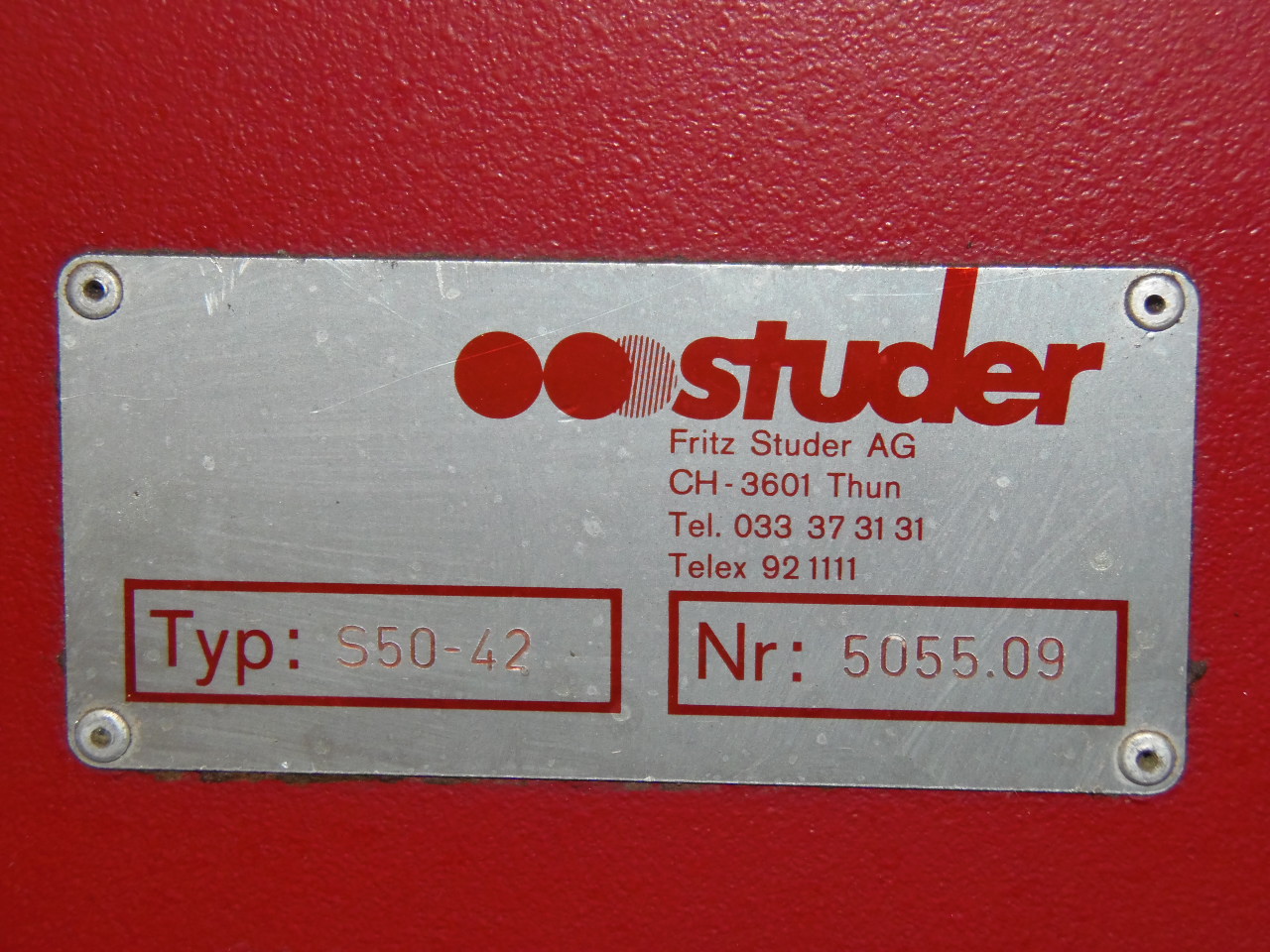

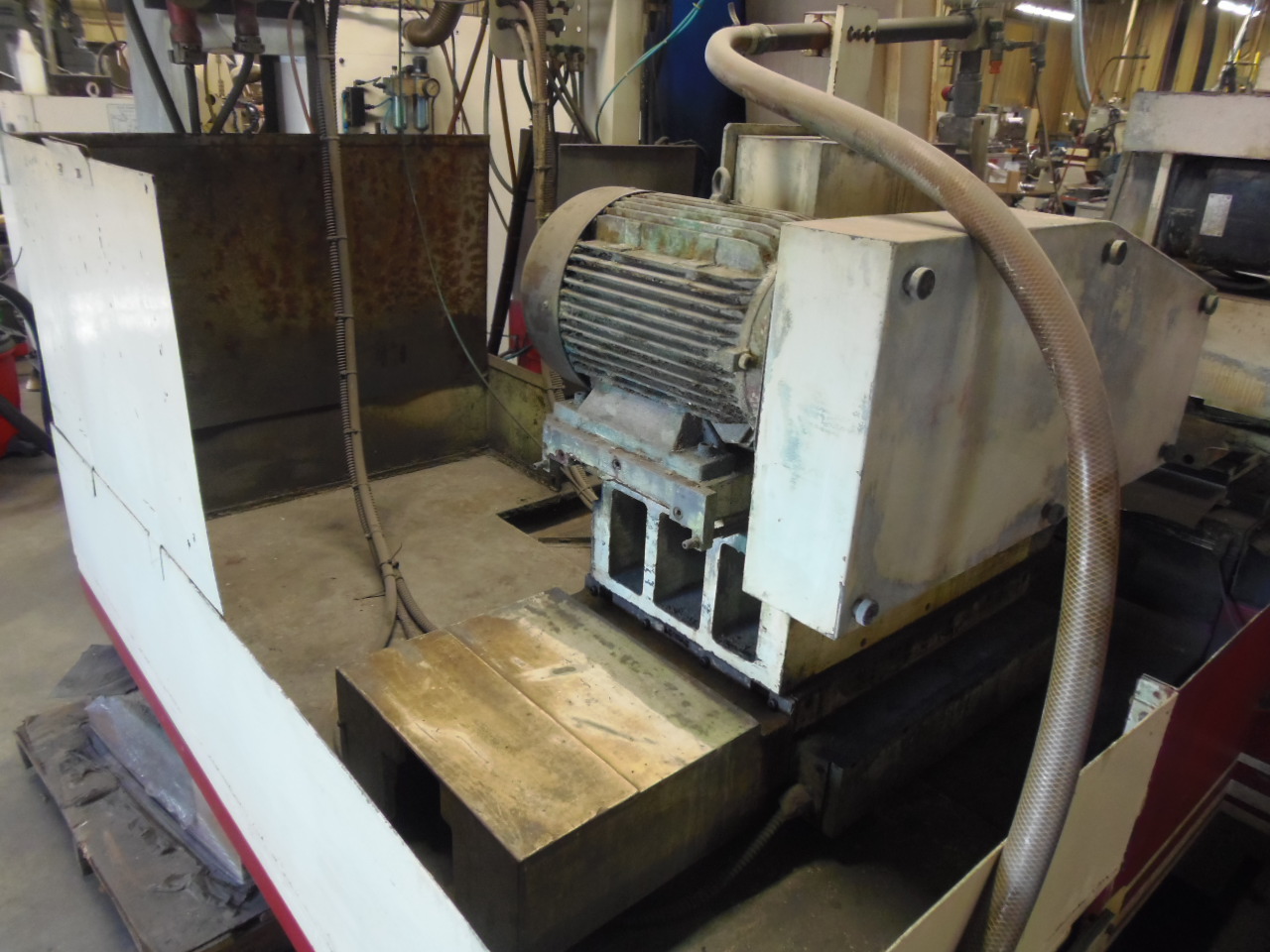

MANUFACTURER.......................... STUDER
MODEL................................. S50-42
AGE APPROXIMATELY..................... 1984
SERIAL NUMBER......................... V39551
SWING................................. 17.7"
CENTER DISTANCE....................... 42"
LONGITUDINAL TRAVEL................... 45"
MAX. TABLE TRAVEL SPEED............... 393"
X AXIS TRAVEL......................... 7.9"
WORKHEAD SPEED........................ 16-650 RPM
WORKHEAD SWIVEL....................... 0 - 90 DEGREES

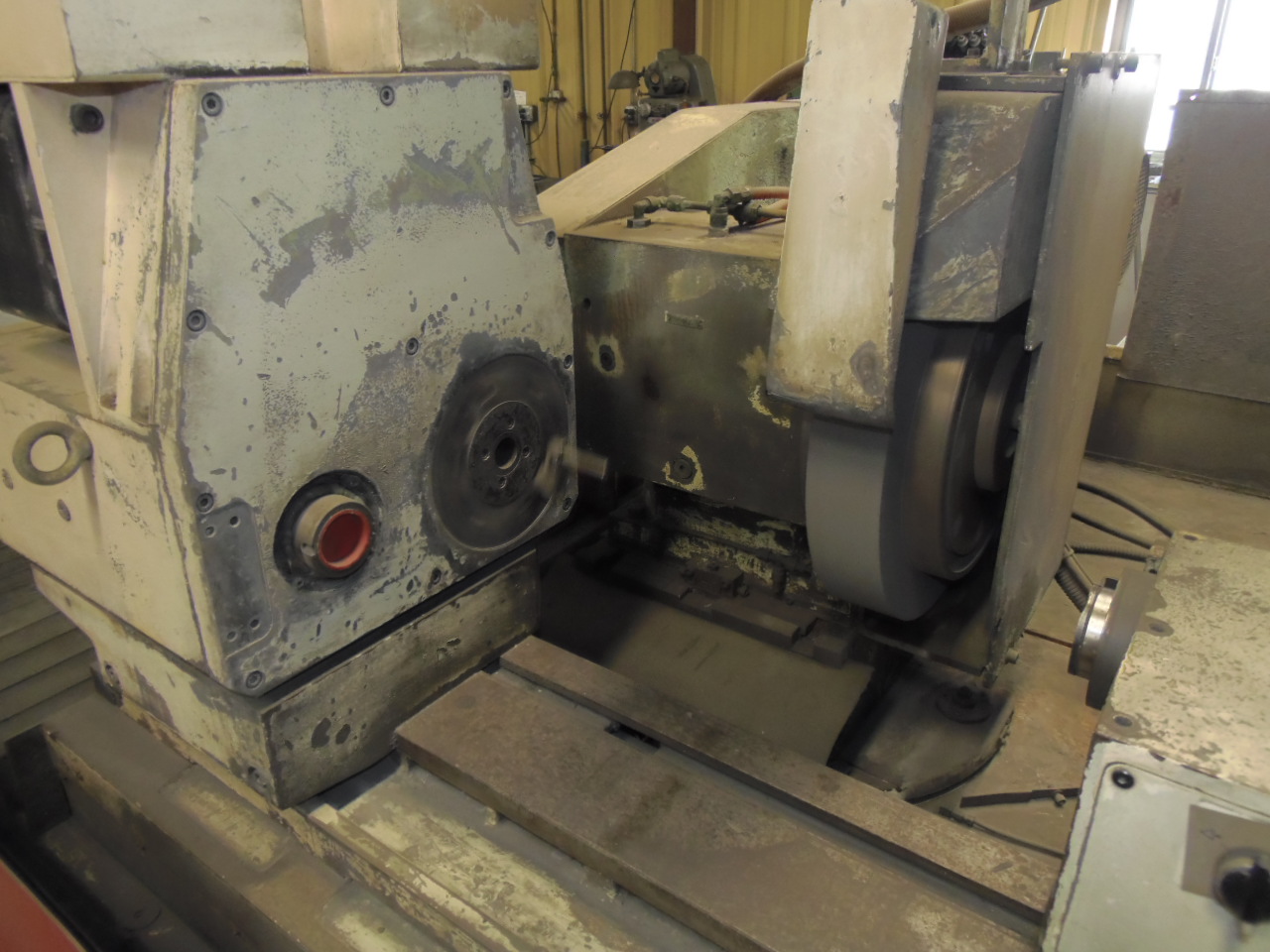

GRINDING WHEEL DIA. X WIDTH X BORE.... 23.6" X 5.9" X 8"
WHEEL SPEEDS.......................... 1420/1520/1670/1870/2100/2440
GRINDING WHEEL SWIVEL.................. +- 45 DEGREE
WHEEL SLIDE TRAVEL.................... 7.87"
WHEEL SLIDE TRAVEL SPEED.............. 393 IPM
WORKHEAD AND TAILSTOCK TAPER.......... 4MT
LIVE GRIND TAPER...................... 6MT
WEIGHT APPROXIMATELY.................. 12000 LBS
CURRENTLY WIRED 460V/3PHASE/60 CYCLE
OVERALL MAIN GRINDER DIM. 140" LONG X 88" WIDE
EQUIPPED WITH:

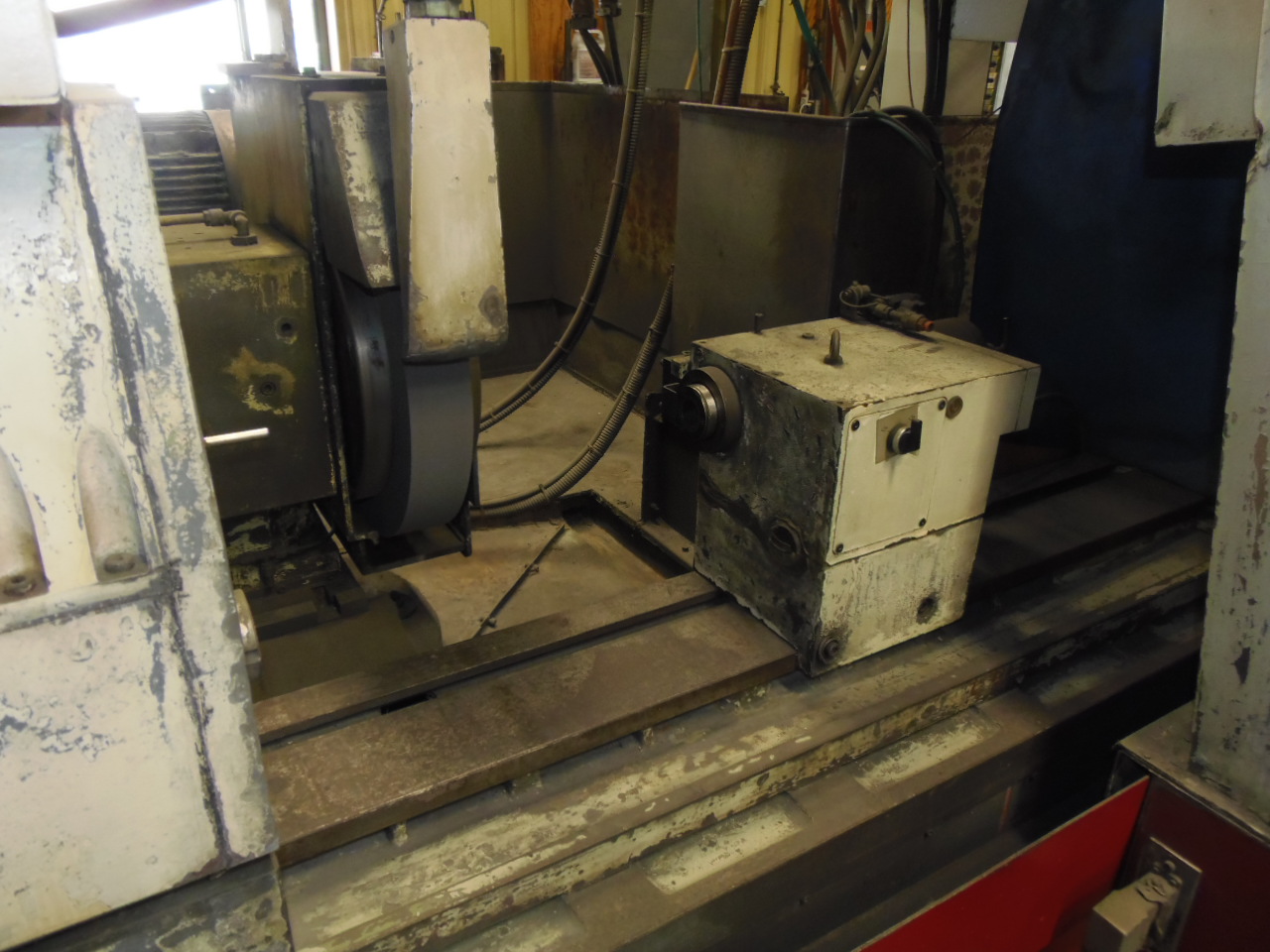

TAILSTOCK WITH 1.6" OF BARREL TRAVEL
SWIVEL TABLE

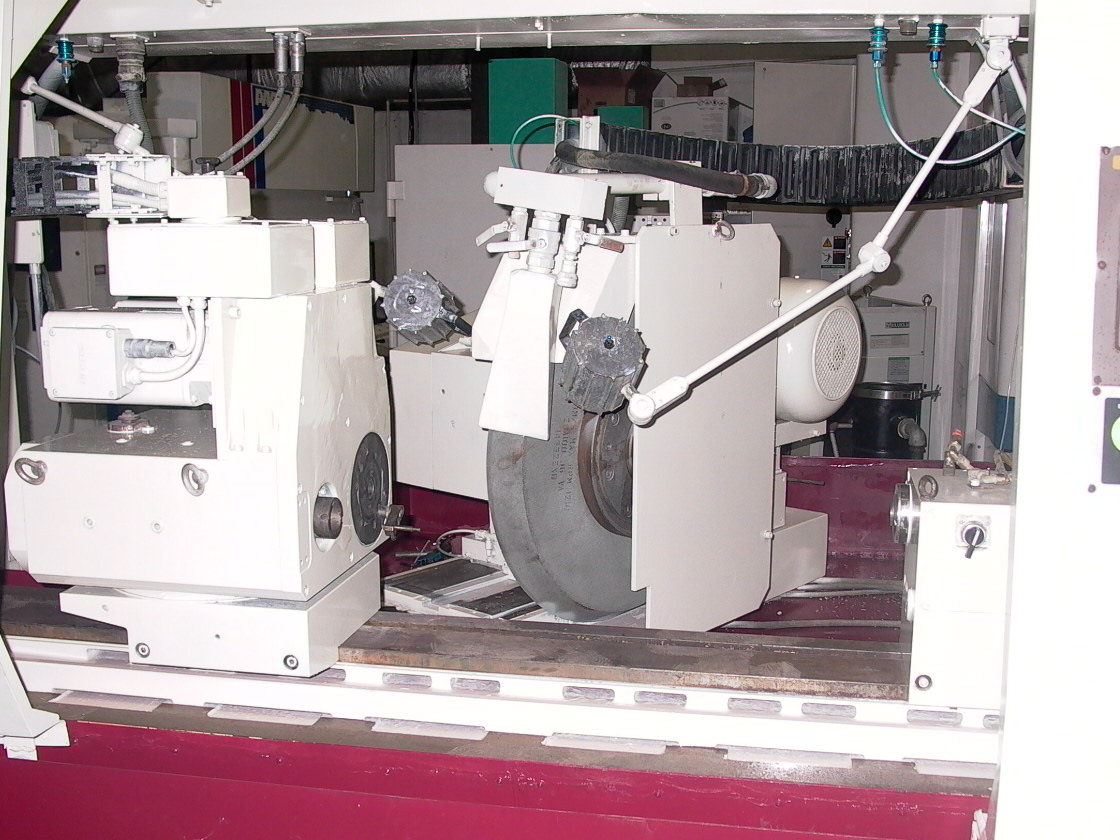

WORK HEAD WITH BOTH LIVE AND DEAD CENTER SPINDLES
WORKHEAD SWIVELS 180 DEGREES TO BRING EITHER SPINDLE INTO WORKING POSITION
FOOT CONTROL VIBRATION SENSING UNIT
MARPOSS GAUGE
APPROX. 1.8" THRU HOLE ON LIVE SPINDLE

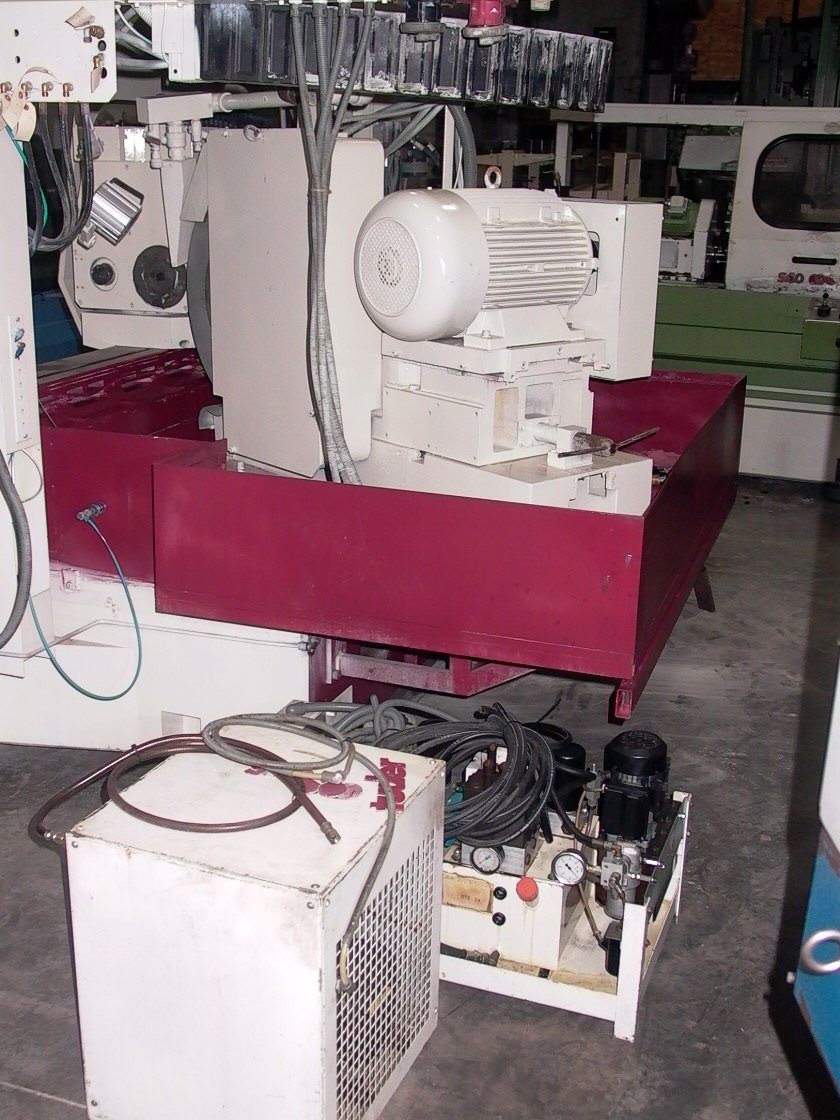

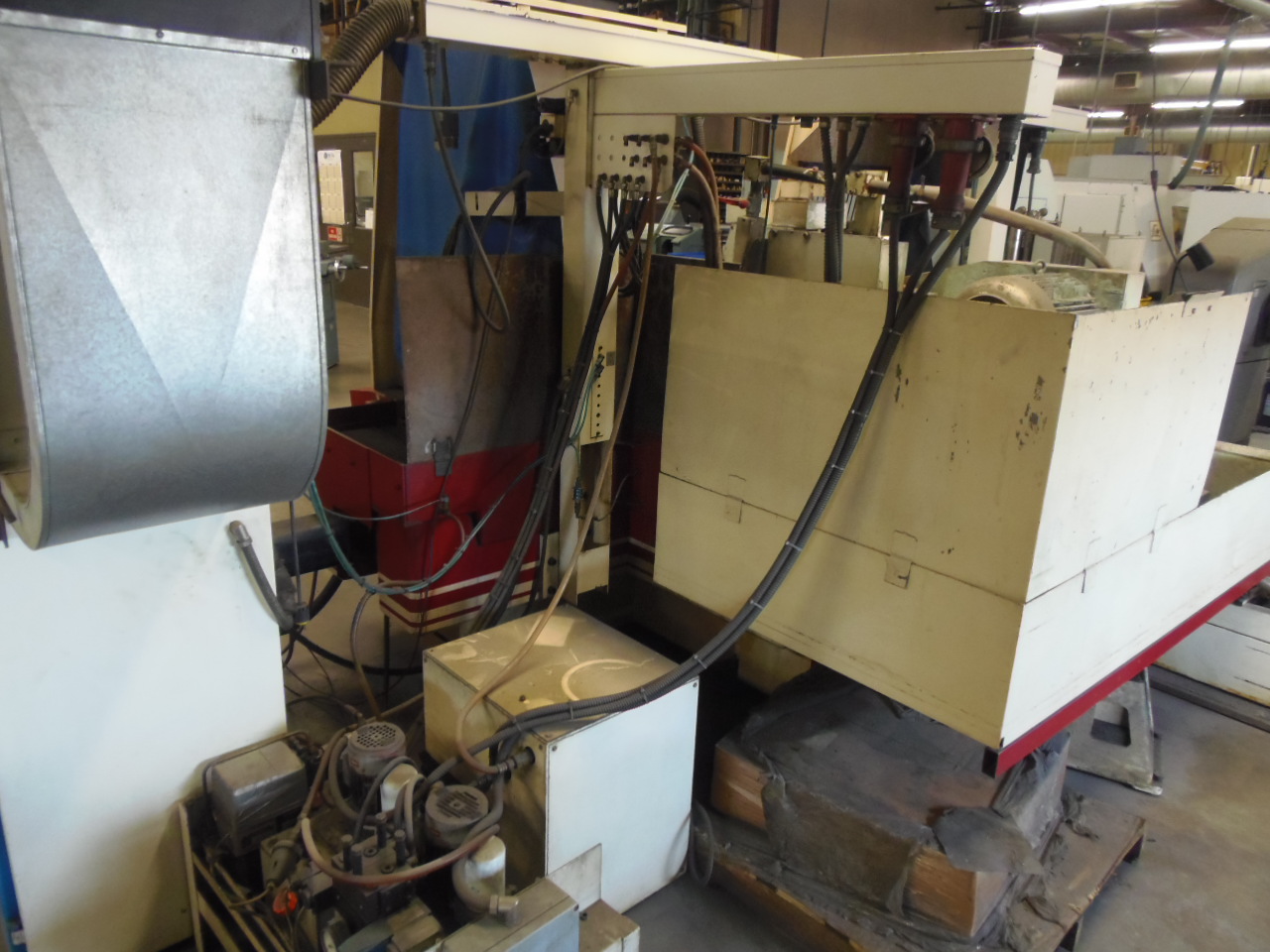

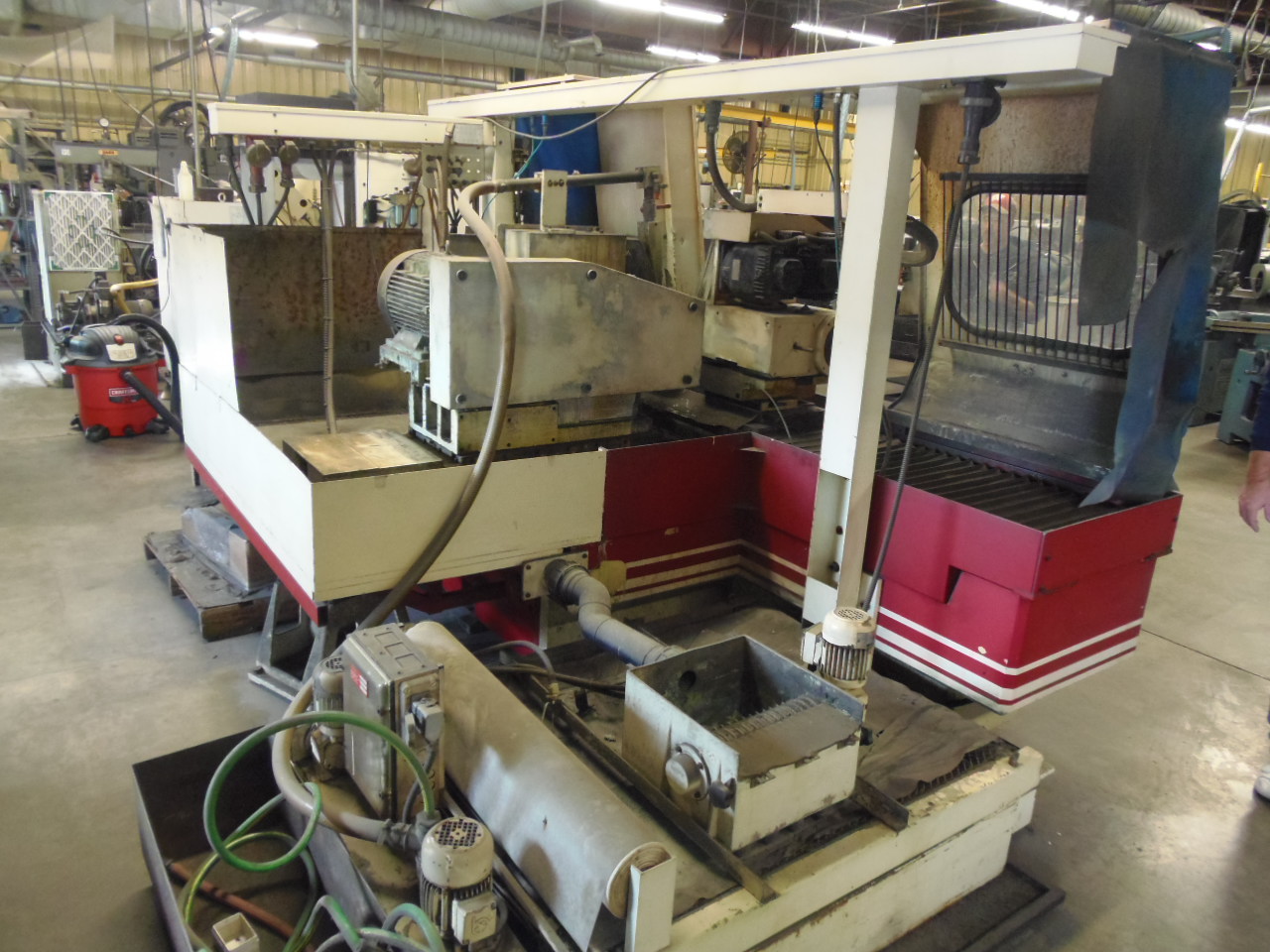

COOLANT WITH MAGNETIC SEPERATOR AND PAPER FILTRATION
EXTRA WHEEL HUB
WHGEEL LIFT BRACKET
STATIC BALANCER
MISC. MANUALS

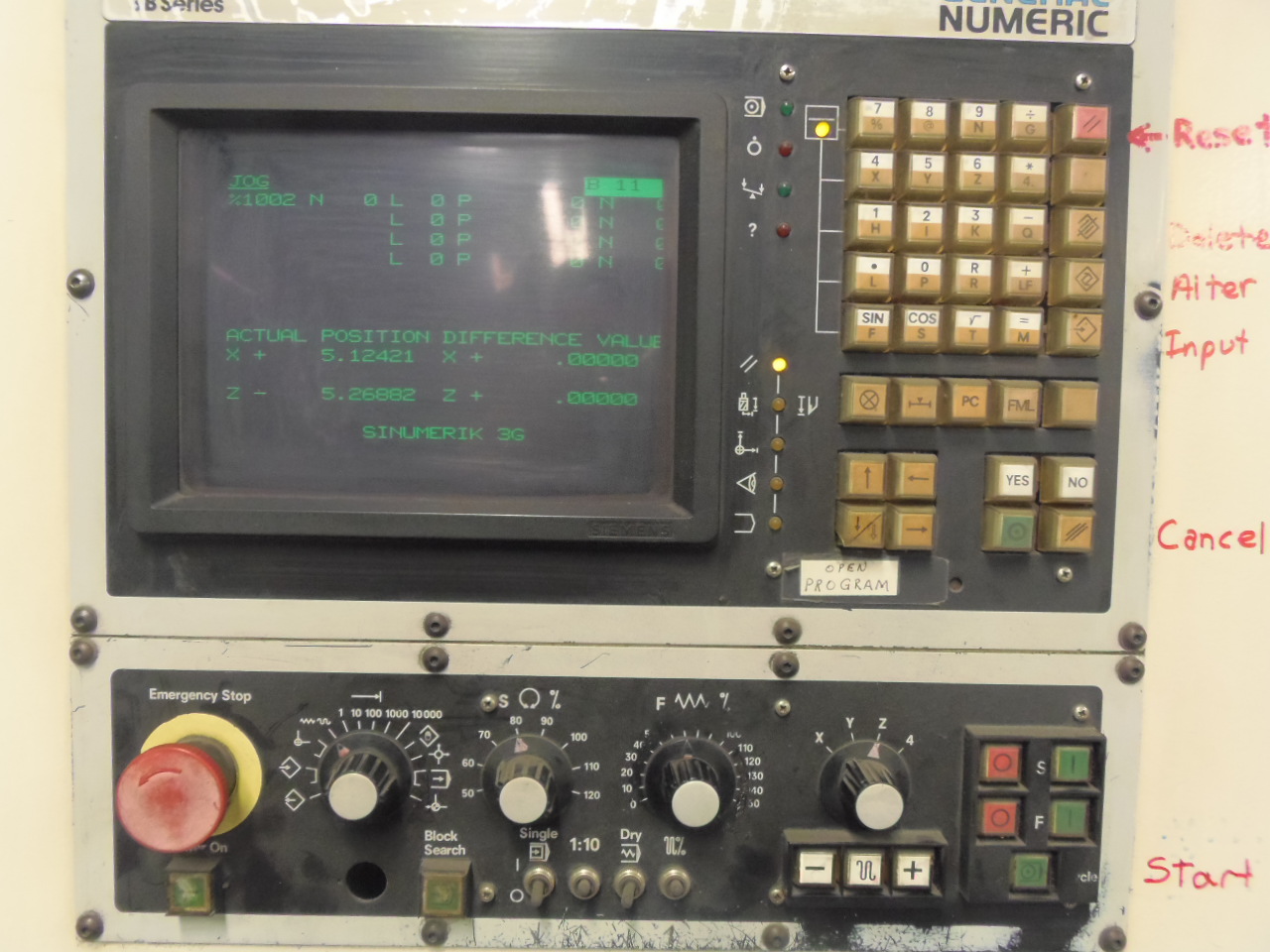

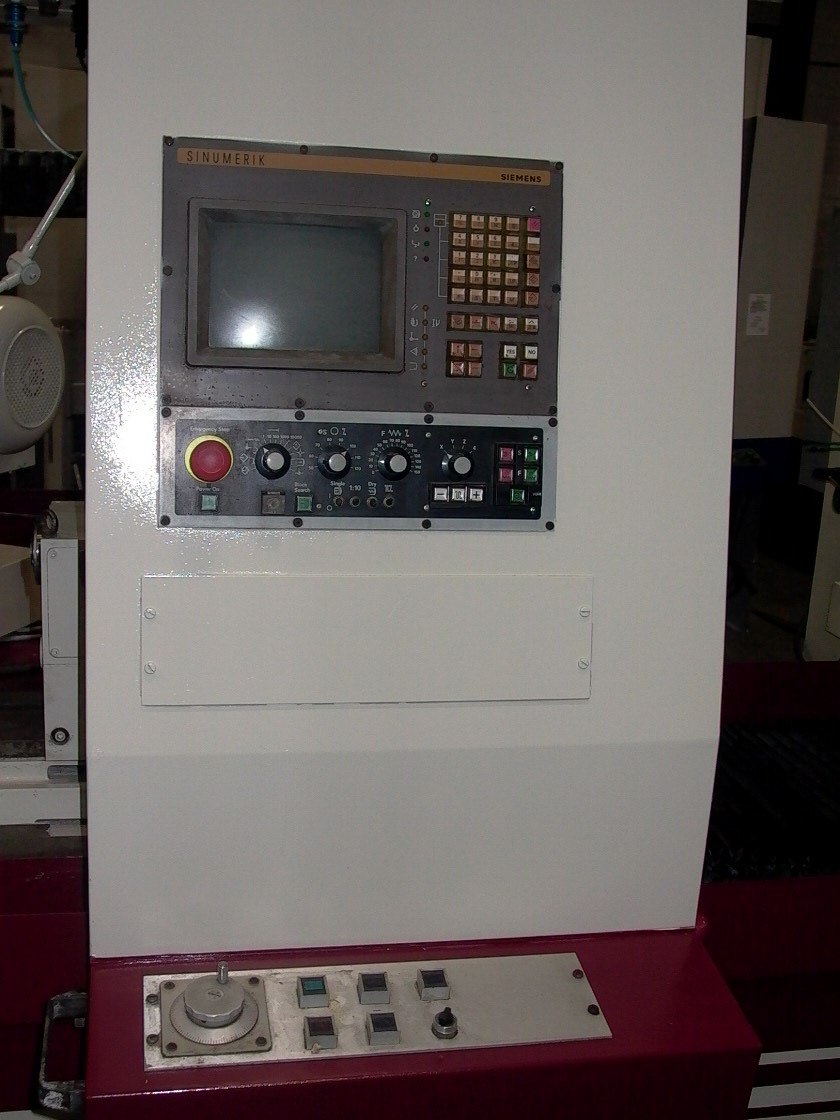

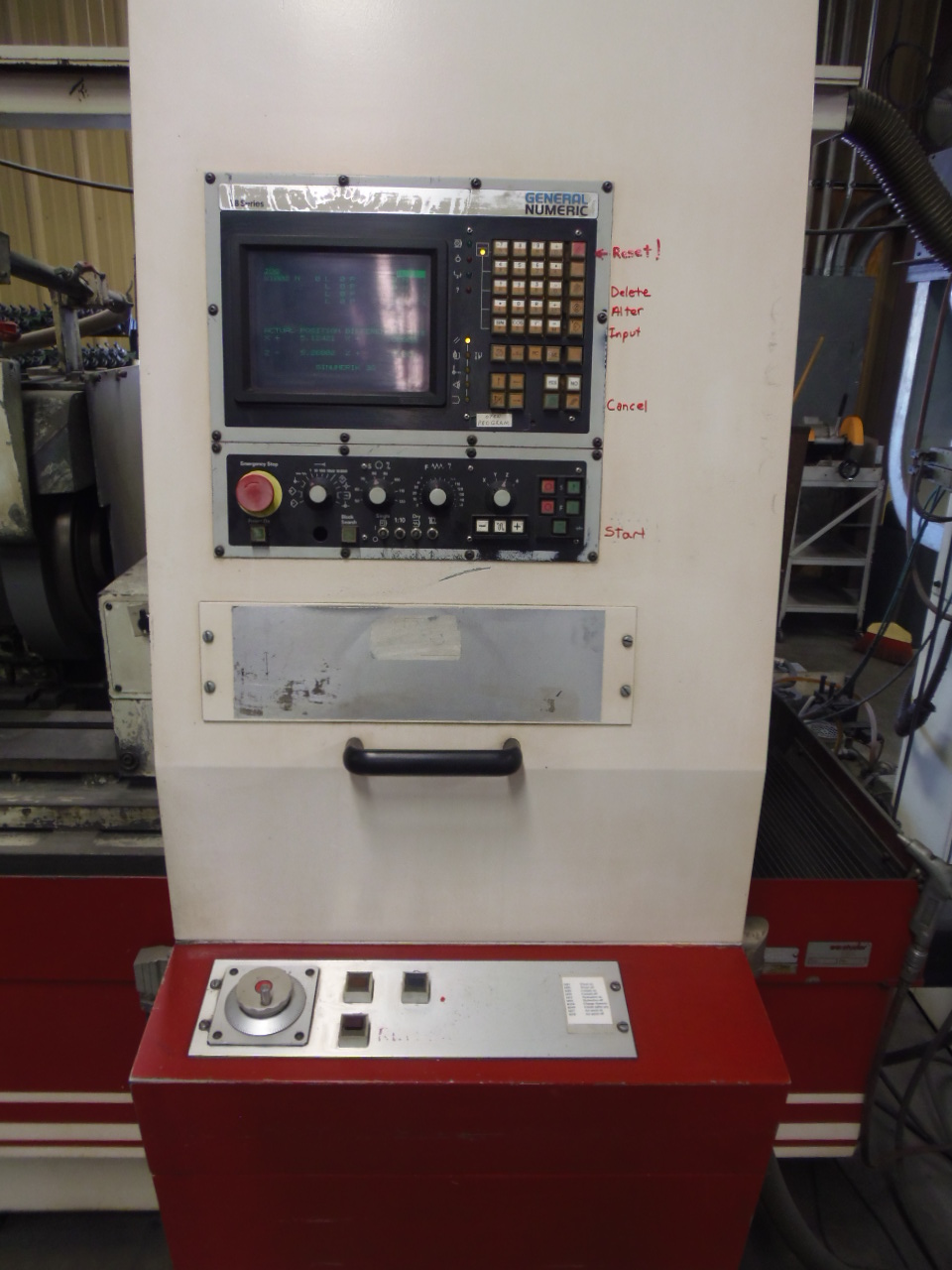

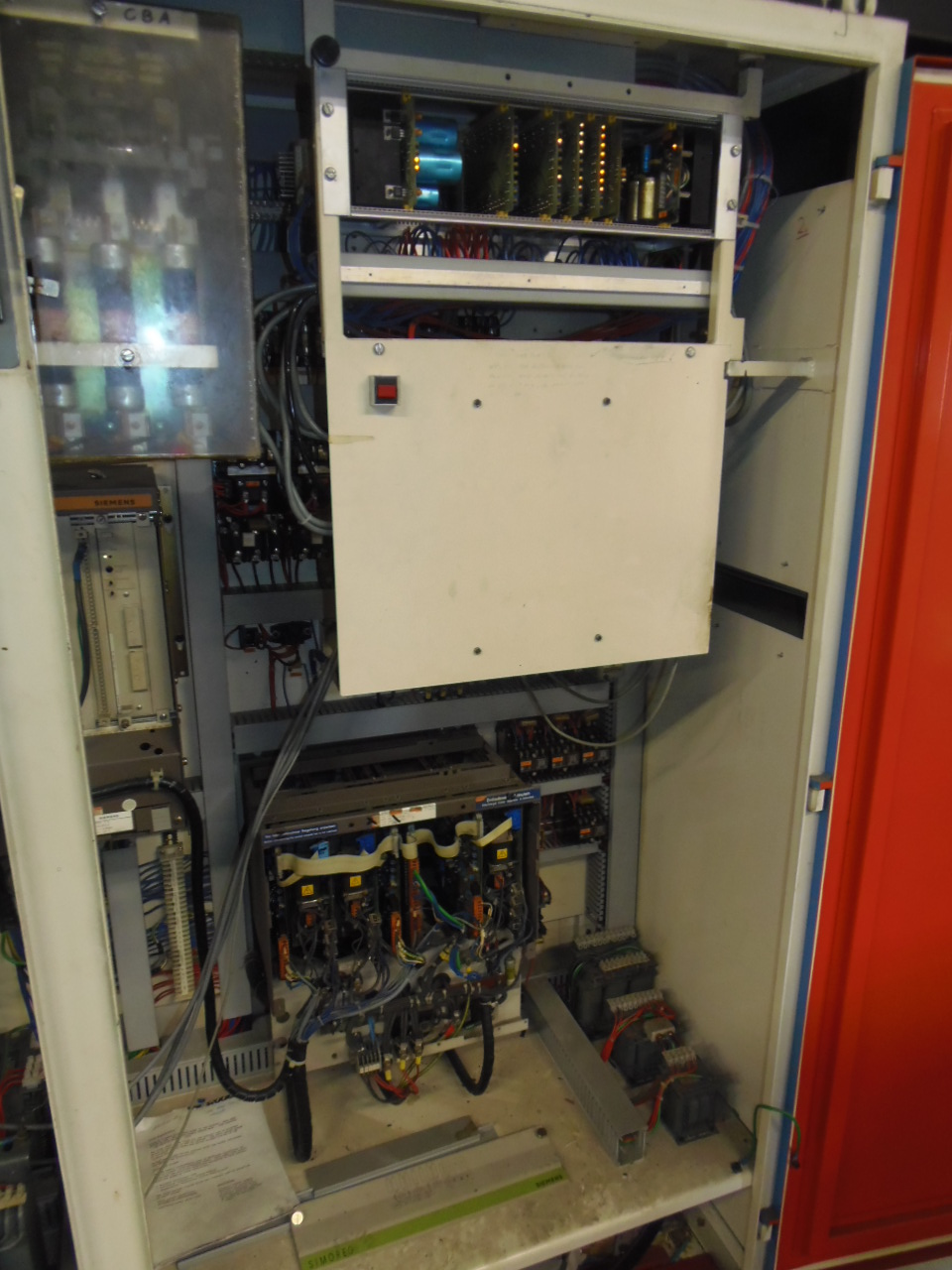

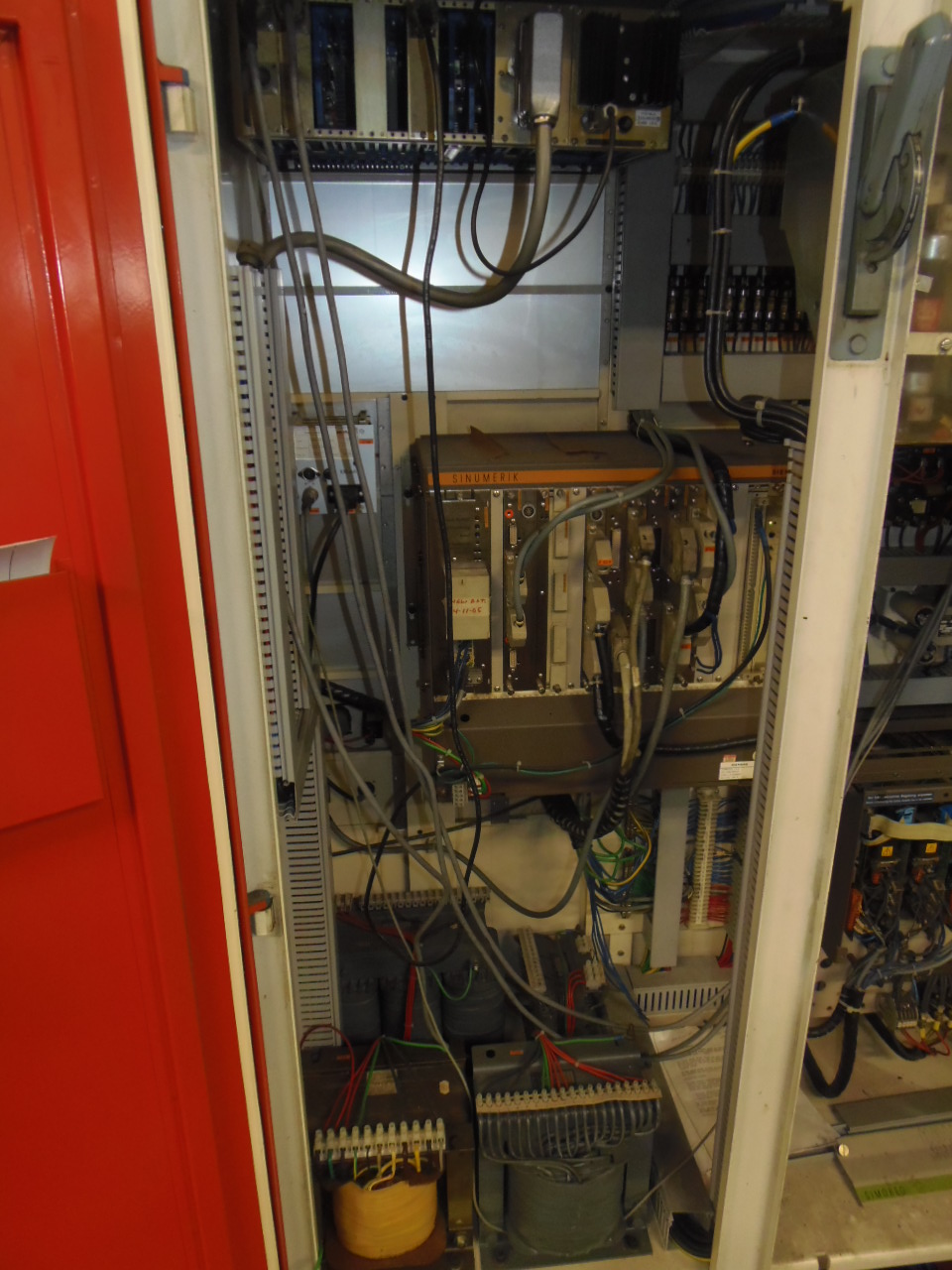

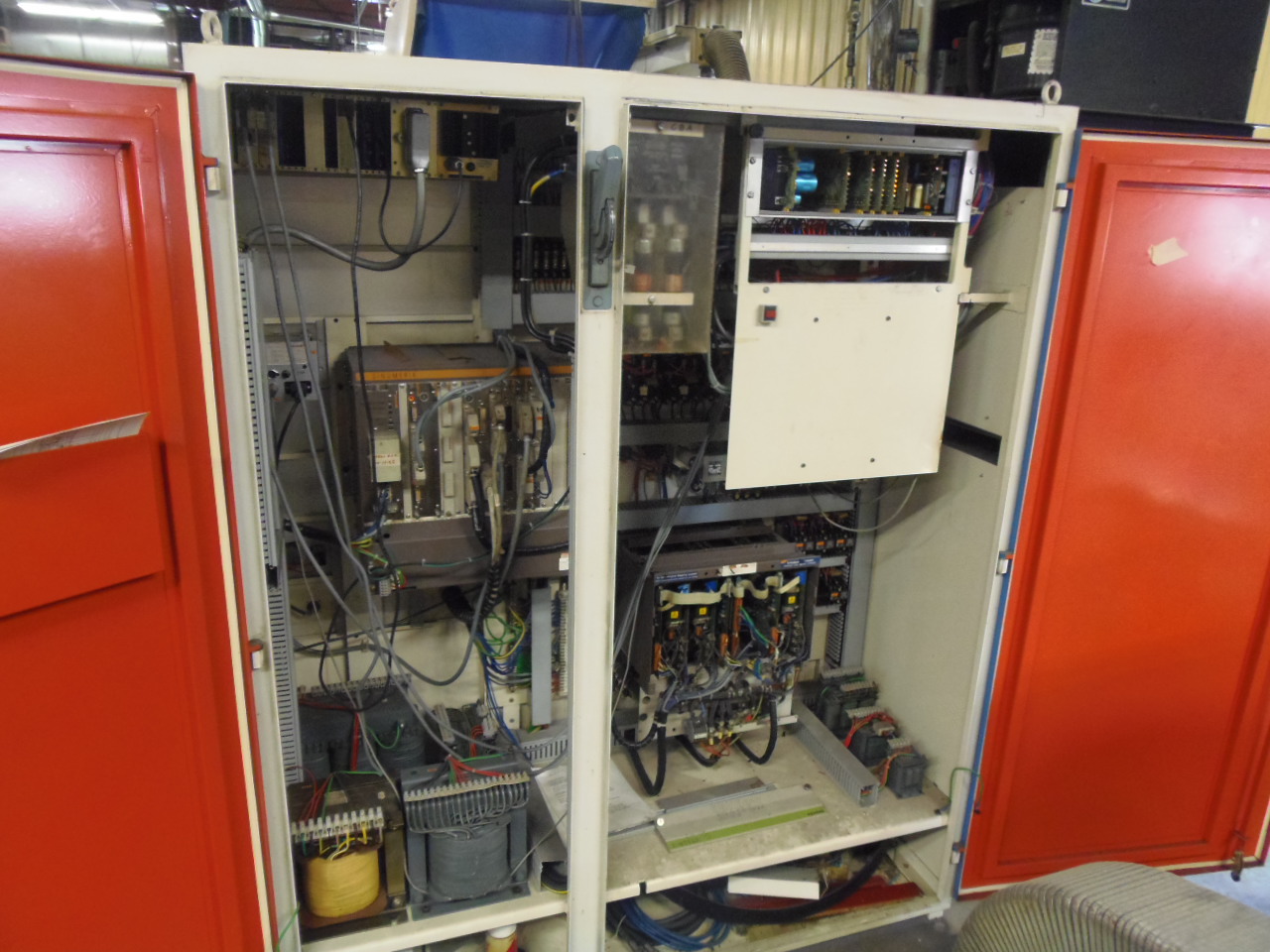

SIEMENS SINUMERIK 3G CNC CONTROL
16 BIT MICROPROCESSOR CONTINUOUS PATH CONTROL
9" CRT
263 FT OF MEMORY
TOOL COMPENSATION,
ZERO OFFSETS
RS 232C
