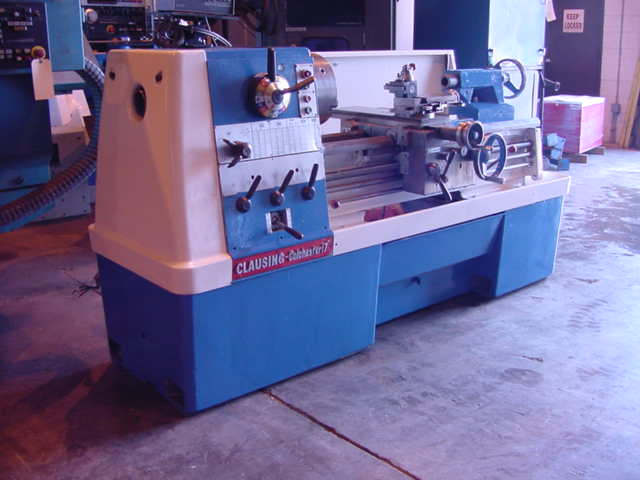

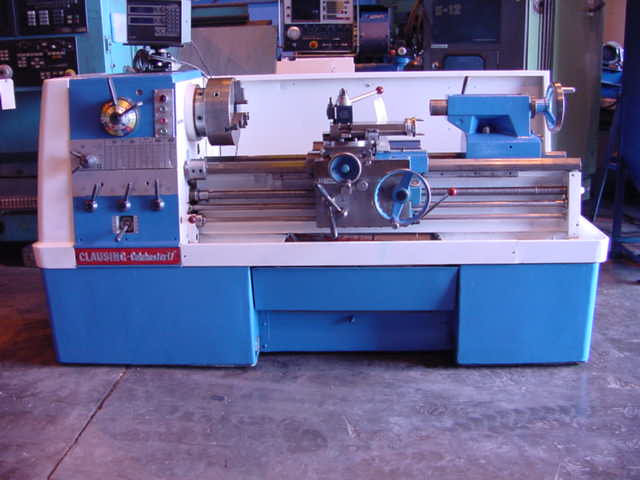

17" X 40" CLAUSING-COLCHESTER, 20-1600 RPM, 3" SPINDLE BORE, 28" SWING IN GAP, 3 & 4 JAW CHUCKS

GENERAL SPECIFICATIONS:
MANUFACTURER....................... CLAUSING-COLCHESTER
SERIAL #........................... 7001-40216
SWING OVER BED..................... 17"
DISTANCE BETWEEN CENTERS........... 40"
SWING OVER CROSS SLIDE............. 10-1/2"
SWING IN GAP....................... 28"
SPINDLE NOSE....................... 8"
SPINDLE BORE....................... 3"
SPINDLE SPEEDS (16)................ 20 - 1600 RPM
THREADING FEEDS.................... 2 - 72 TPI
WEIGHT (APPROX.)................... 6,000 LBS.
ELECTRICS.......................... 3/60/230/460

EQUIPPED WITH:
REMOVABLE BLOCK GAP
COOLANT PUMP AND PIPING
APRON CONTROL
THREADING DIAL
3 & 4 JAW CHUCKS
FACE PLATE
LIVE CENTER
REMOVABLE CHIP PAN BED
REAR SPLASH GUARD
DRIVEN BY 10 HP MOTOR AND CONTROLS
ACCURITE 2 AXIS DRO
ALORIS TOOL POST
HAND COLLET CLOSURE
DRO ON TOOL POST
