GENERAL SPECIFICATIONS:
MANUFACTURER ANDRYCHOW
MODEL TUG-40
NEW (APPROX.) 1987
SWING OVER BED 17.75"
SWING OVER CROSS SLIDE 10"
SWING IN GAP 25.75"
DISTANCE BETWEEN CENTERS 40"
SPINDLE NOSE D1-6
HOLE THRU SPINDLE 2.1"
SPINDLE SPEEDS (18) 20 - 1600 RPM
FEEDS (100) .007 - .720 IPR
INCH THREADS (70) 1/4 - 56 TPI
METRIC THREADS (60) 1/2 - 112 MM
MOTOR 7.5 HP
ELECTRICS 3 PH/230V/460V/60
WEIGHT (APPROX.) 5,000 LBS.
EQUIPPED WITH:

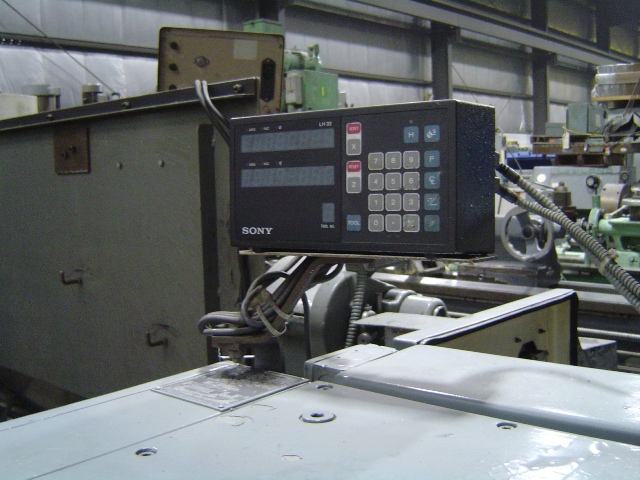

2-AXIS SONY DIGITAL READOUT
INCH/METRIC THREADING

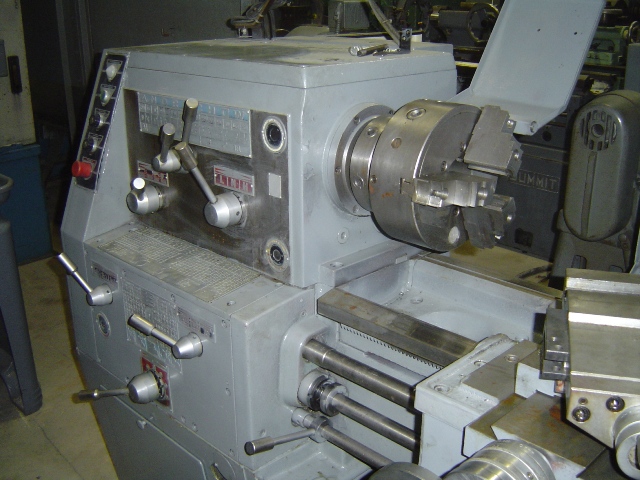

10" 3-JAW CHUCK
STEADY REST
COOLANT TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
