Specifications
Equipped With
GENERAL SPECIFICATIONS:

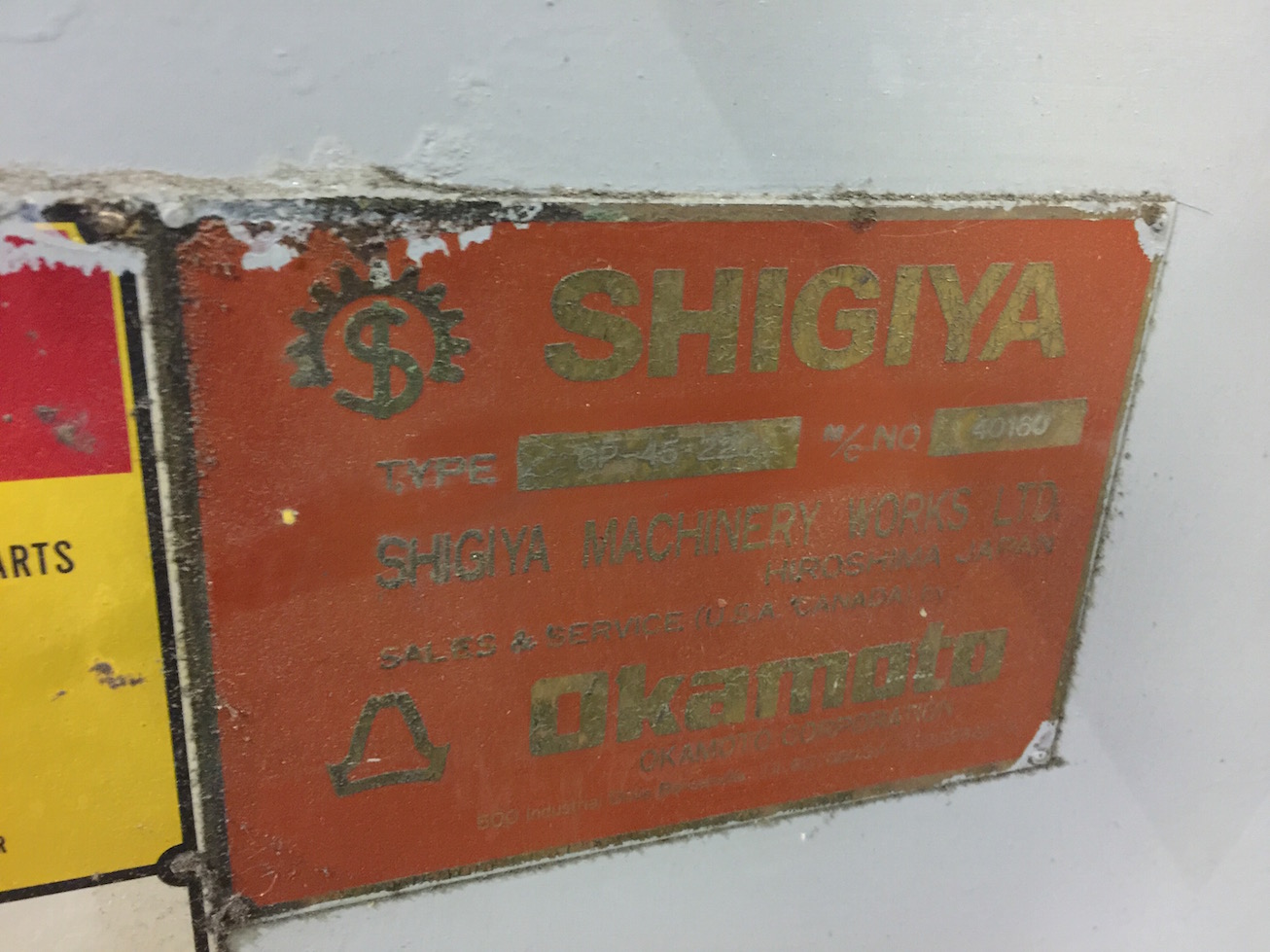

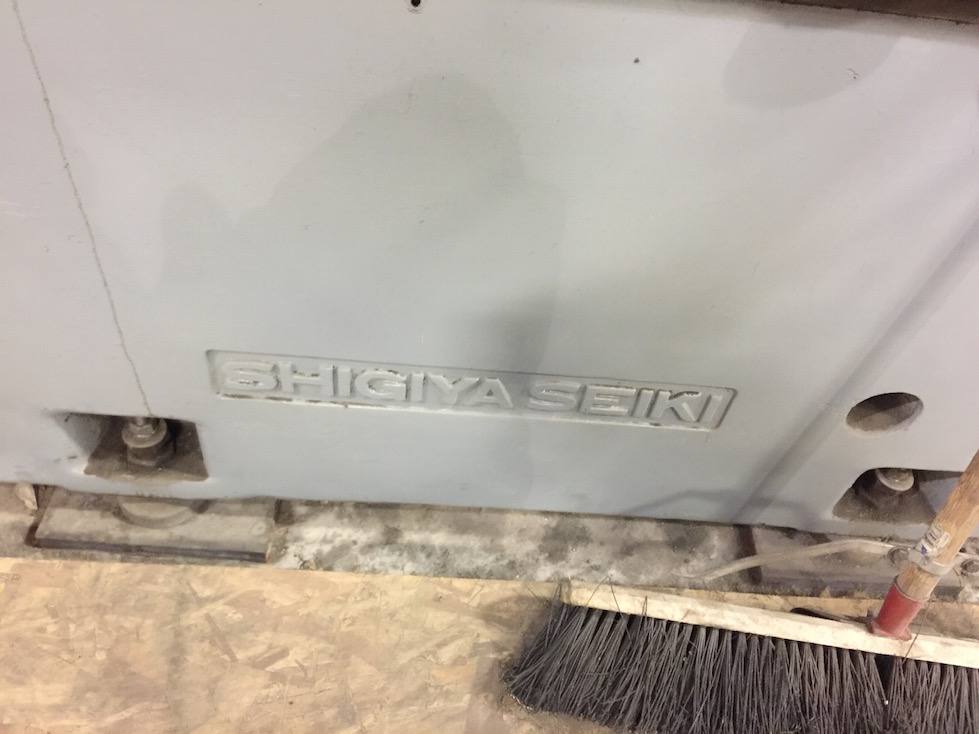

Manufacturer................................ Shigiya

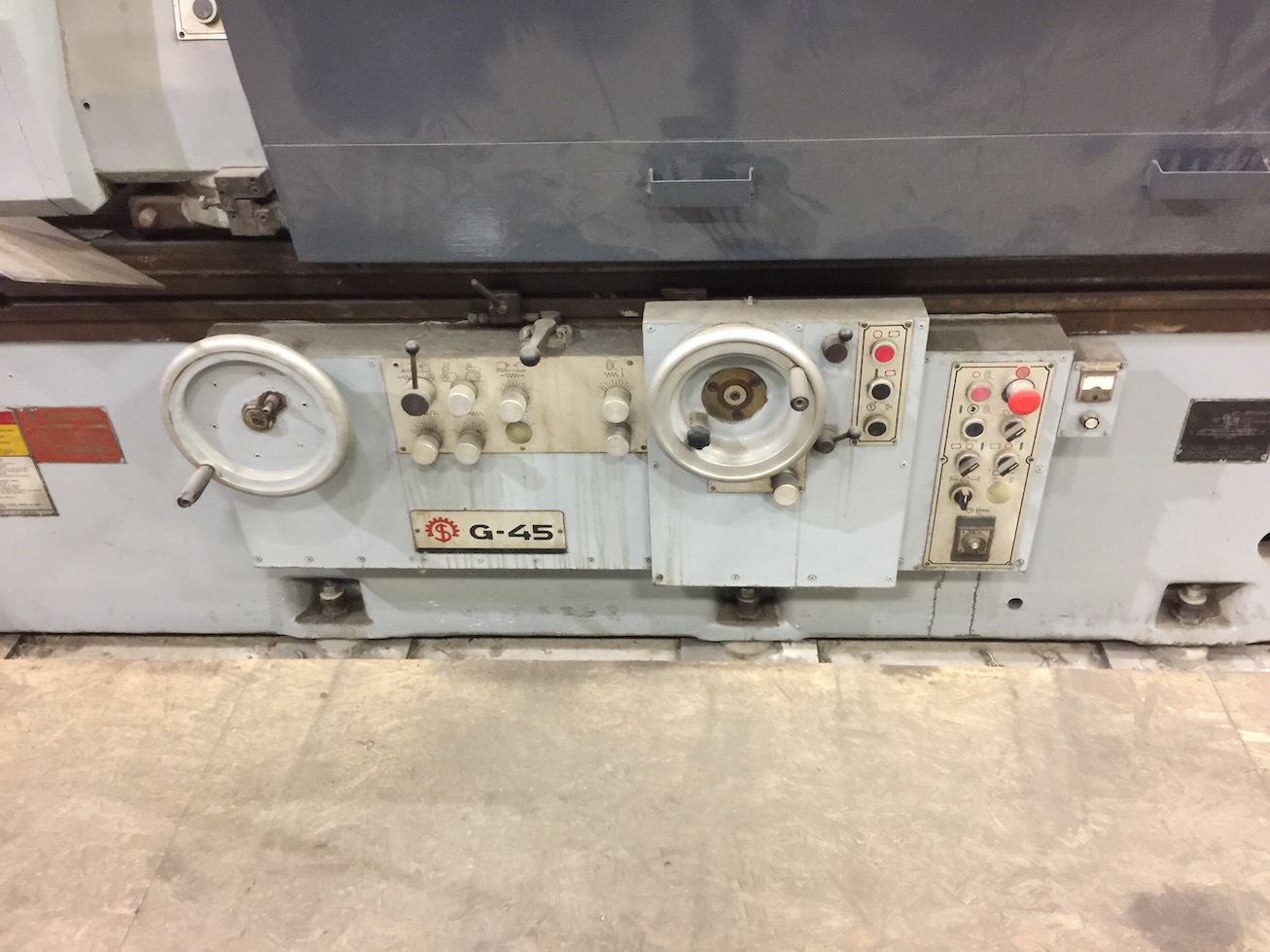

Model number................................ G-45 220

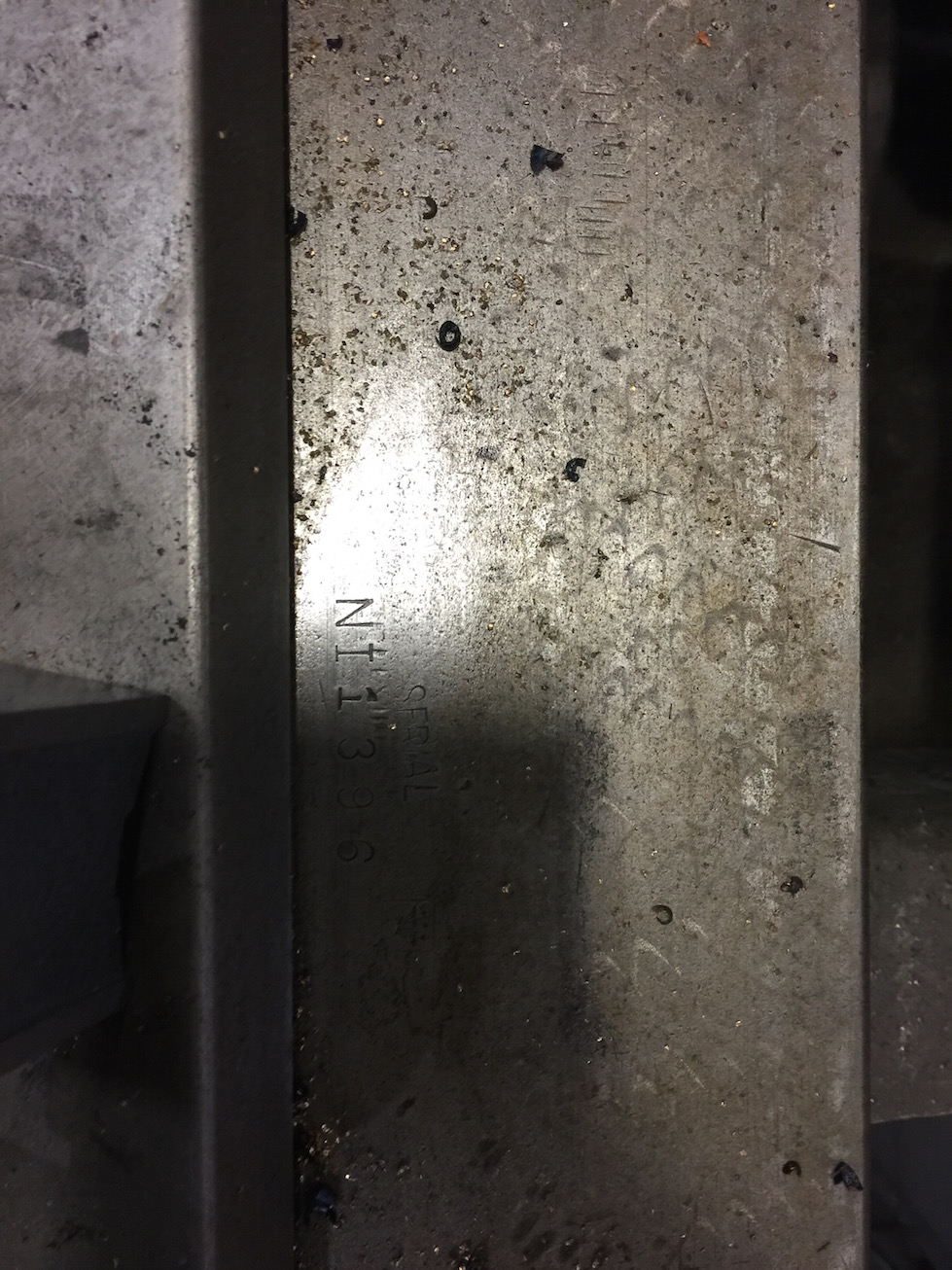

Serial number............................... 40160
Swing Over Table............................ 17.5"
Maximum Distance Between Centers............ 86.5"
Maximum grinding weight between centers..... 1430

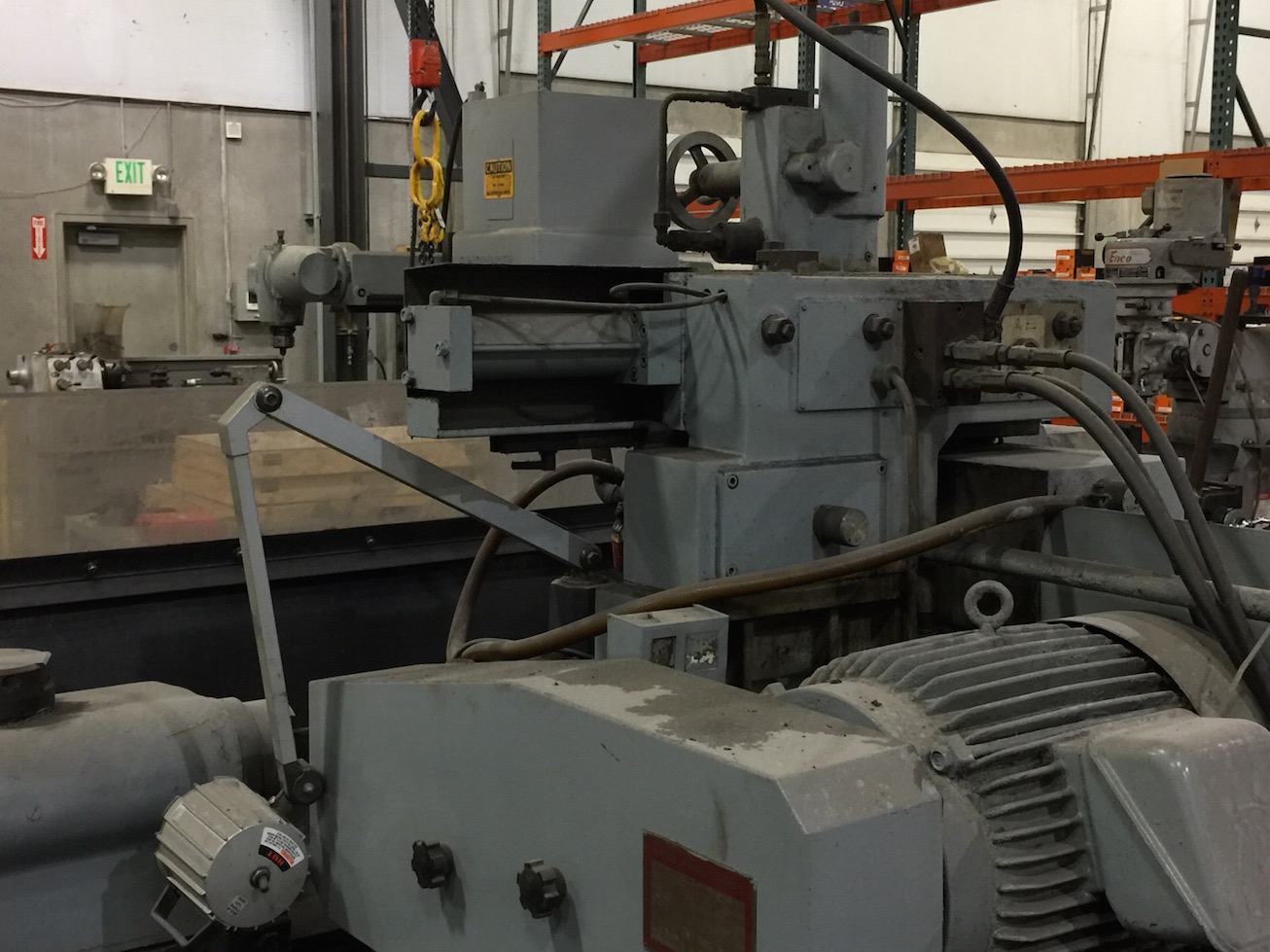

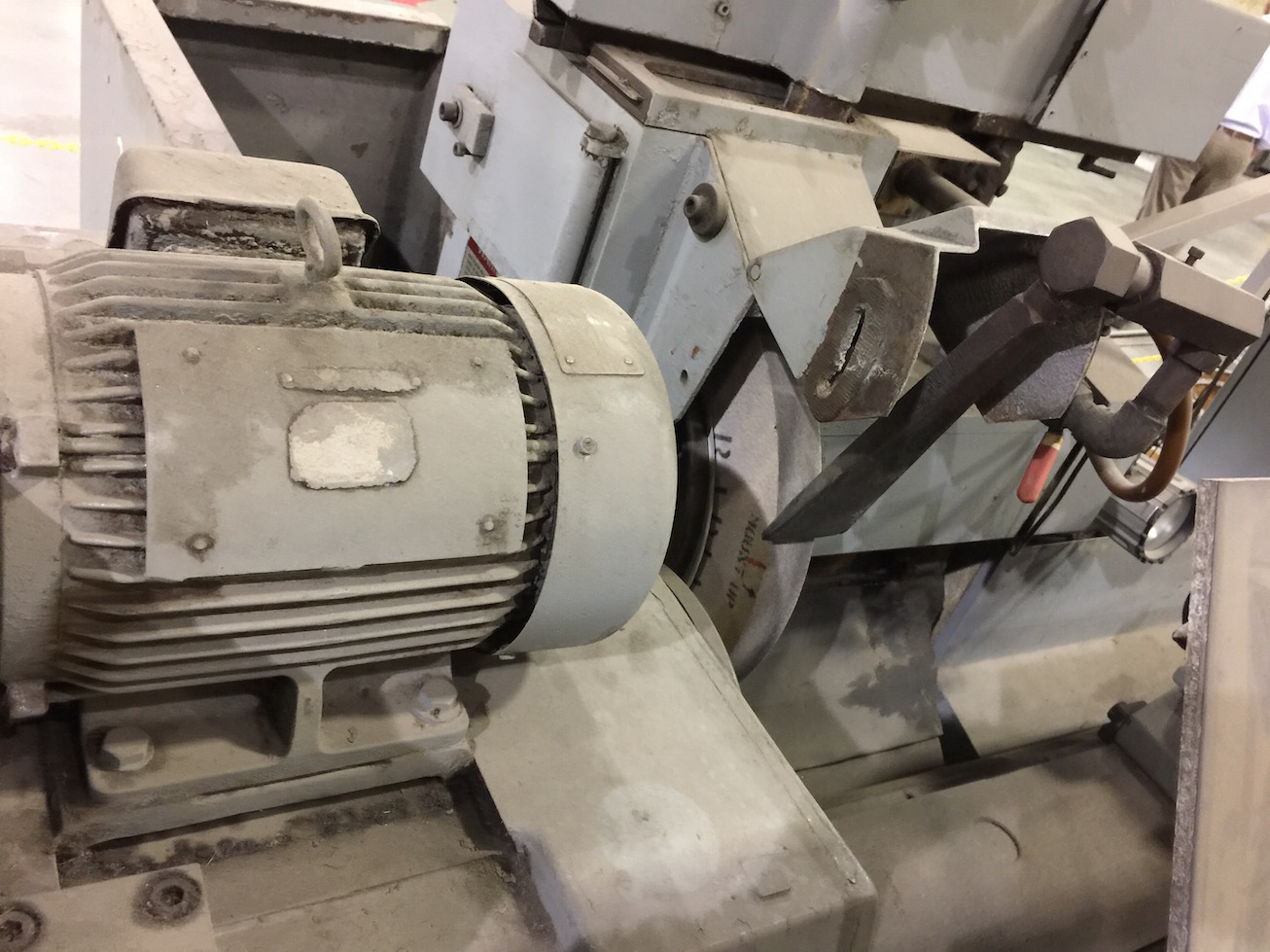

Wheel head
Grinding Wheel Size......................... 24" x 3" x 10" Bore
Grinding Wheel swivel range................. Non-swivel

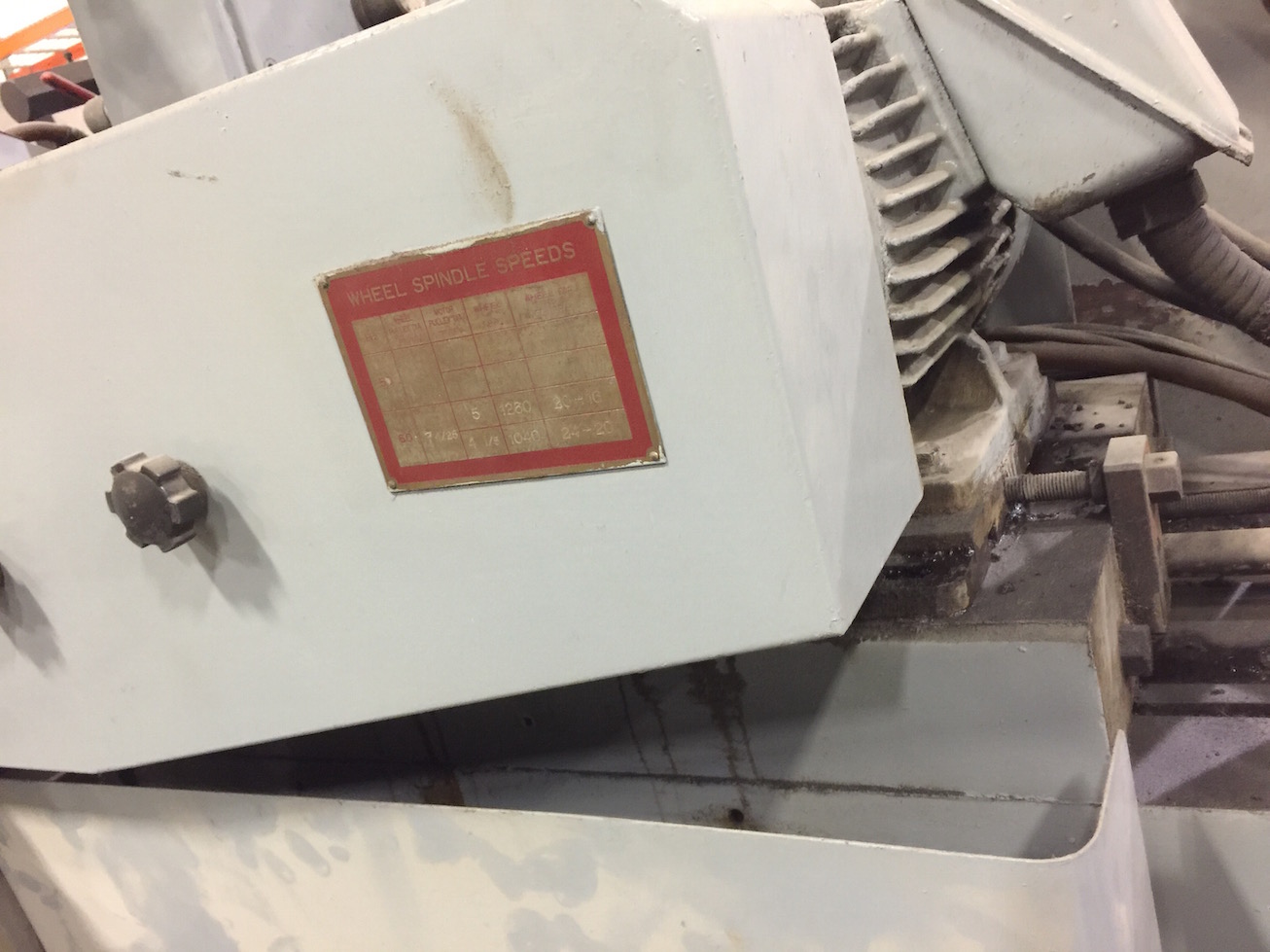

Grinding wheel spindle speeds............... 1040/1260 rpm
Automatic infeed at left/right or both end.. .00004" to .03" stepless
Plunge cut infeed speed..................... .00008 to .05" stepless
Plunge cut spark out range.................. 0 to 30 seconds
Motor size.................................. 14.75 hp
Work head
Spindle revolution.......................... live
Swivel angle................................ 120 degrees
Headstock work center....................... 5 mt
Hole thru work head......................... 1.4"
Motor size.................................. 1 hp
Tailstock
Taper of center............................. 5 mt
Stroke...................................... 1.75"
Table
Max. swivel range counter clockwise......... 6 degrees
Max. swivel range clockwise................. 1.5 degrees
Automatic table traverse speed range........ 2 to 118 IPM
Feed/rev. of handle......................... .1 to .59"
Floor space................................. 89" x 276"
Machine weight.............................. 14,500 lbs
EQUIPPED WITH:

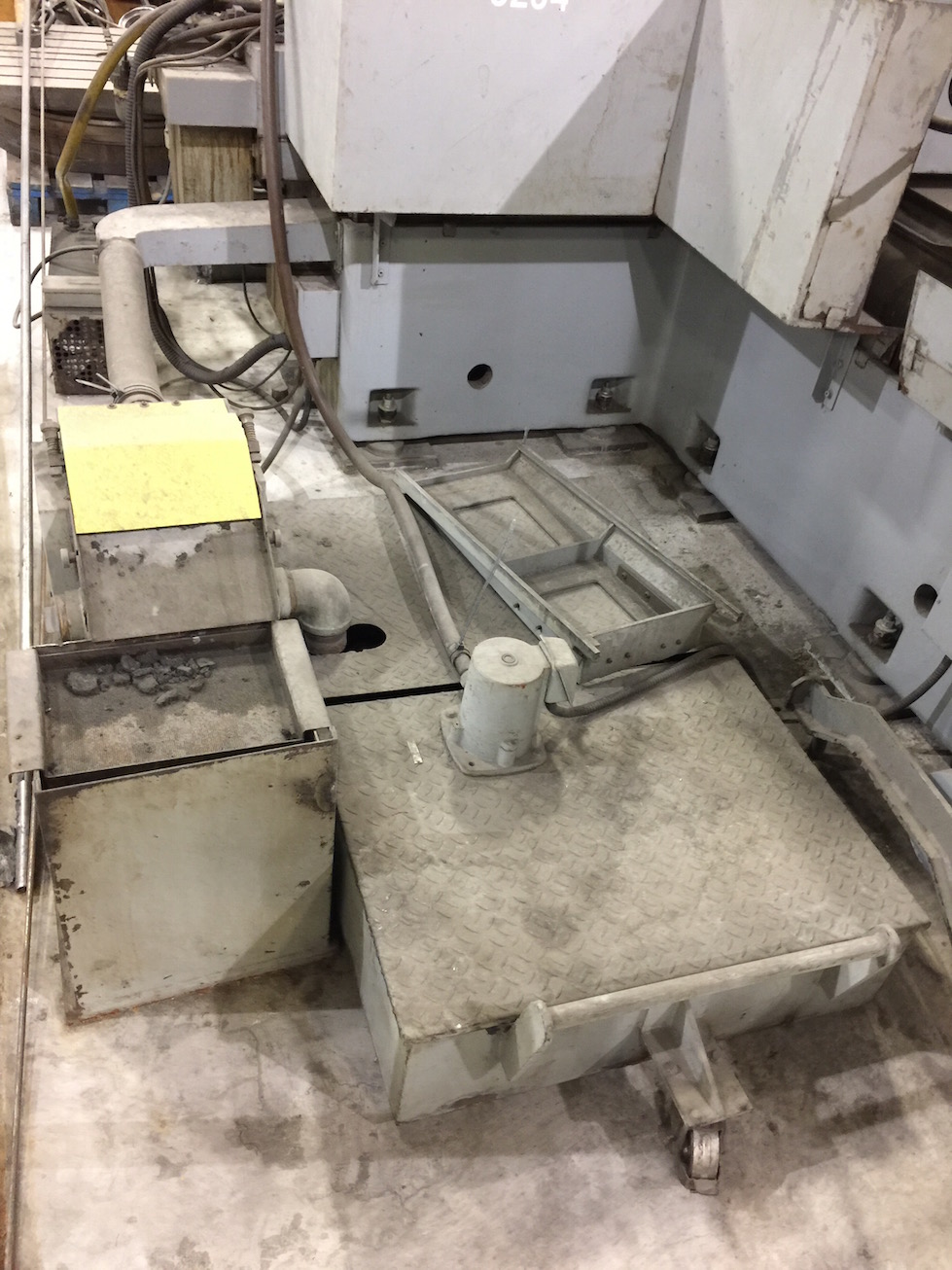

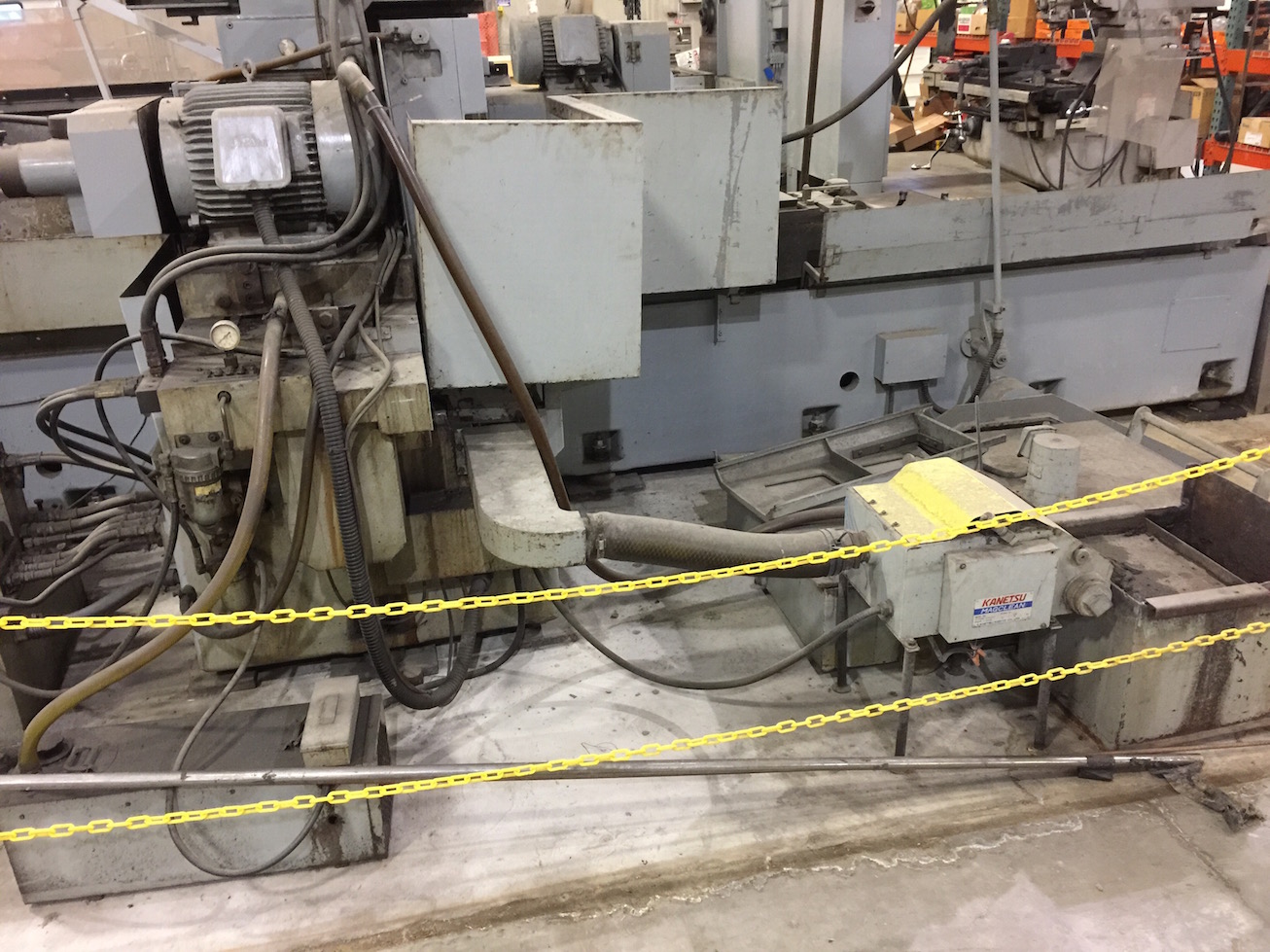

coolant system with magnetic separator
automatic or manual operation
pneumatic float system for easy movement of head and tail stocks
rapid infeed

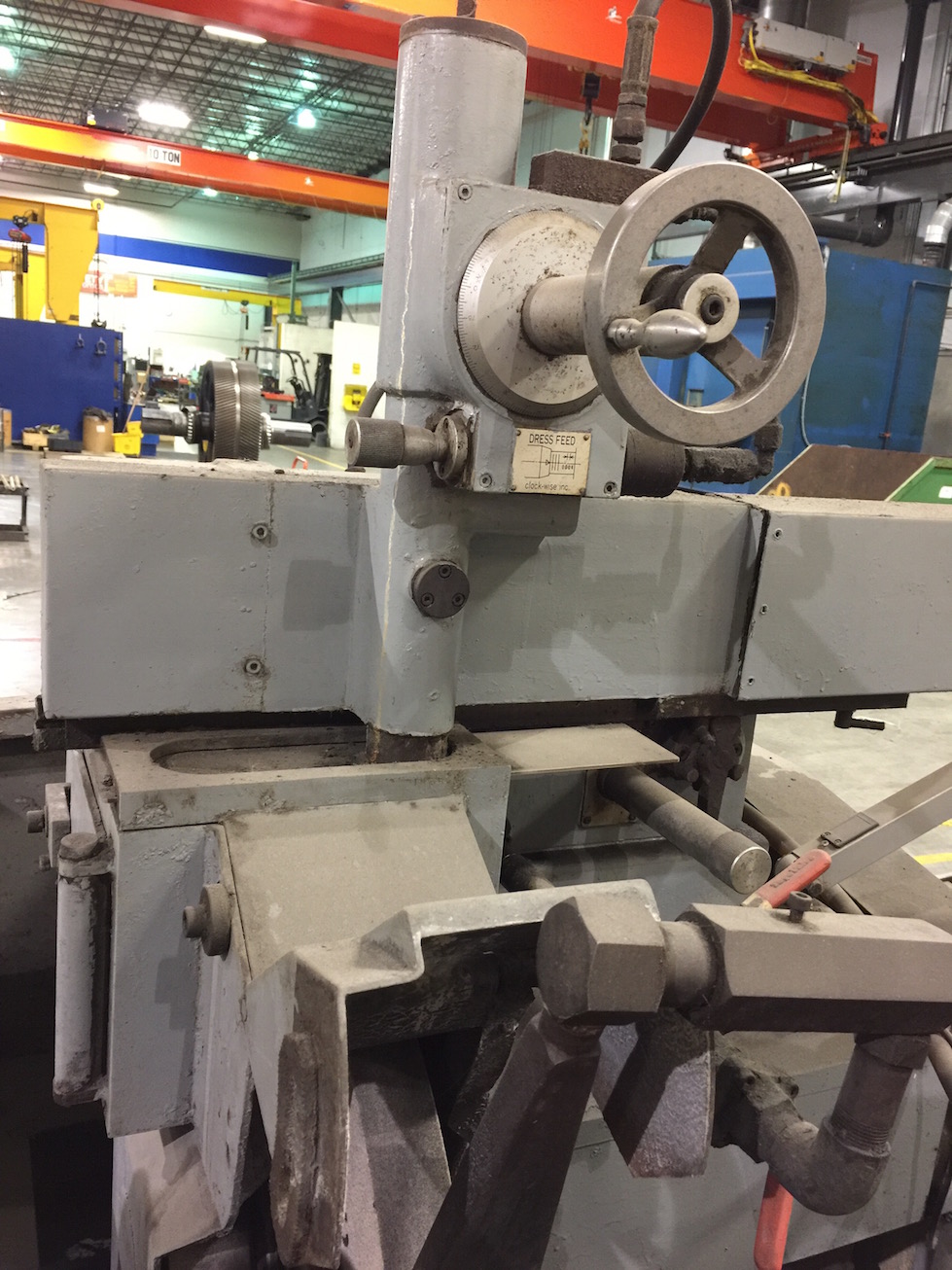

hydraulic wheel dresser

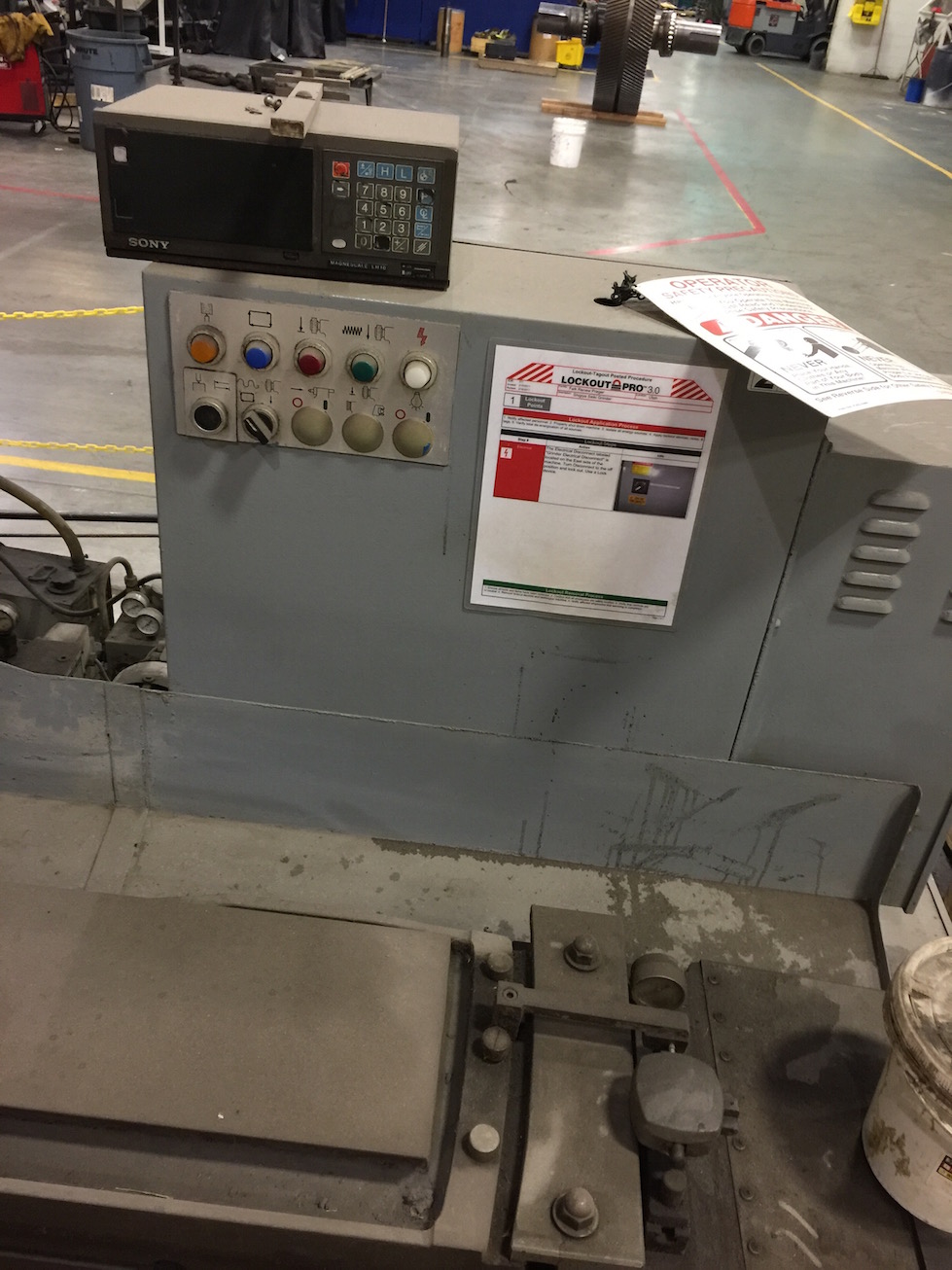

z axis digital readout
work light
