GENERAL SPECIFICATIONS:

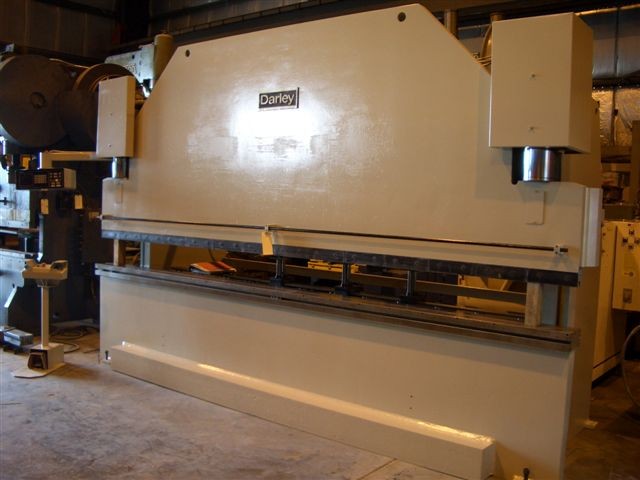

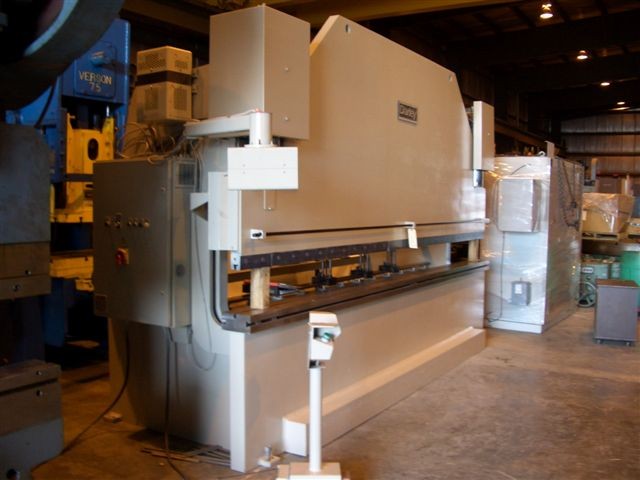

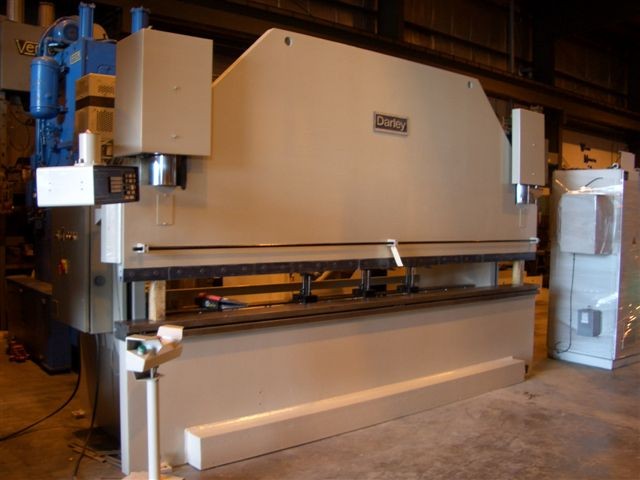

MANUFACTURER DARLEY
MODEL 150.43/37
SERIAL # 12836
NEW (APPROX.) 1986
CAPACITY 165 TON
OVERALL BENDING LENGTH 14'1"
DISTANCE BETWEEN HOUSINGS 12'1"
MAX. OPENING TABLE-PRESS BEAM 15.7"
STROKE LENGTH (ADJUSTABLE) 6.8"
APPROACH SPEED 3.9"/SEC.
PRESSING SPEED .29"/SEC.
RETURN SPEED 2.7"/SEC.
TABLE HEIGHT 35.4"
TABLE WIDTH 6.2"
GAP IN SIDE FRAME 11.8"
MOTOR CAPACITY 30 HP
DIMENSIONS (APPROX.) 174"L x 57"W x 116"H
WEIGHT (APPROX.) 35,200 LBS.
EQUIPPED WITH:
TYPE DA22 CNC UNIT
4 SPEED RAM OPERATION
ELECTRONIC-HYDRAULIC CTRL OF MOVEMENT & POSITIONING OF RAM
ACCURATE ADJ. OF RAM WHILE UNDER FULL PRESSURE
DIGITAL DISPLAY FOR ALL FUNCTIONS & POSITIONS

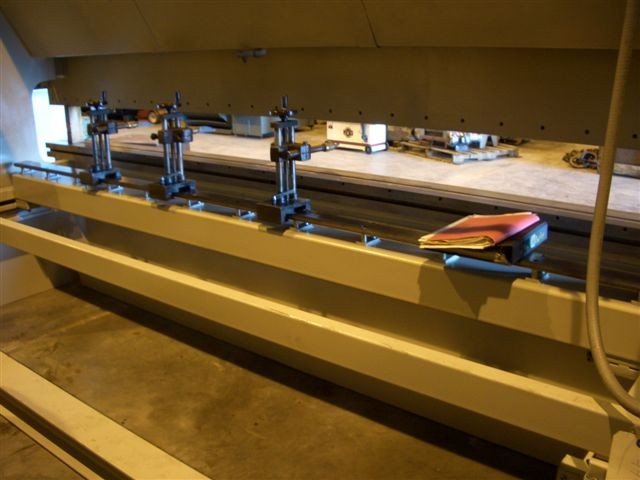

CNC BACK GAUGE-X AXIS TYPE DC210
TABLE W/T-SLOT AT THE FRONT AND BACK OF TABLE
3/4" SLOT IN TABLE
2 TABLE ARMS (ADJUSTABLE)
REMOVABLE TABLE

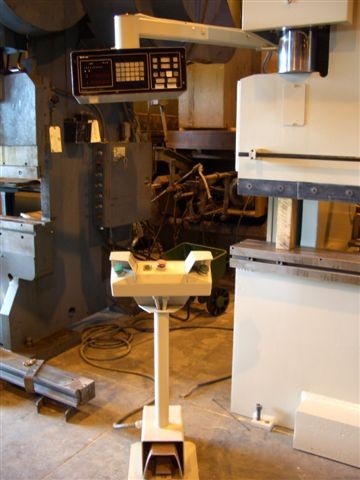

PEDESTAL CONTROL WITH PALM BUTTONS & FOOT SWITCH
14' KWIK COMP DEFLECTION COMPENSATING DIE HOLDER
