Specifications
Equipped With
SPECIFICATIONS:
Model number........................... Fa5B-V
Serial number.......................... 25122
Year................................... 1980

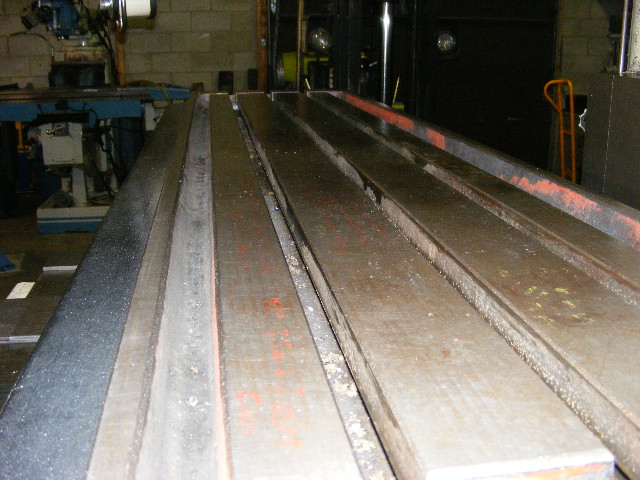

Table.................................. 16" x 78 1/2"
Travels longitudinal................... 55"
cross......................... 17 3/4"
vertical...................... 18"
Spindle taper.......................... 50 ISO
Spindle speeds (20).................... 18 - 1400 rpm
Spindle nose to table surface - max.... 22"
Spindle centre to column............... 17 3/4"
Spindle head swivel.................... 45 deg + / -
Vertical adjustment of spindle......... 3 3/4"

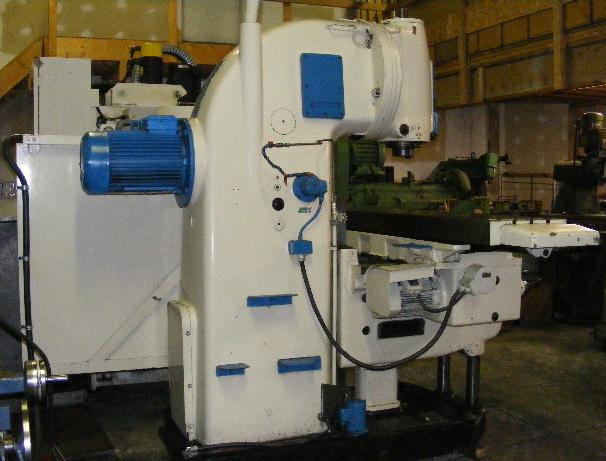

Main motor............................. 15 HP
Approx weight.......................... 10,400 Lbs.
Floor space............................ 155" x 99" x 96"
Electrics.............................. 440/3/60
Equipped with:-
Rapid feeds in x/y/z
Coolant Pump

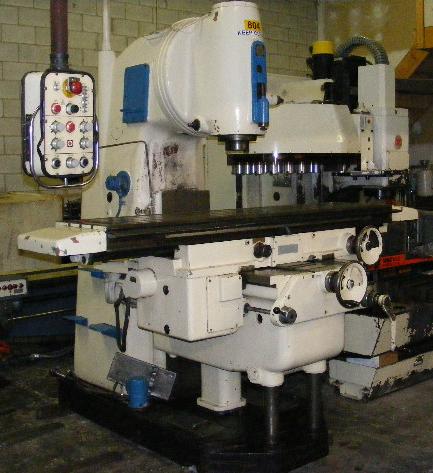

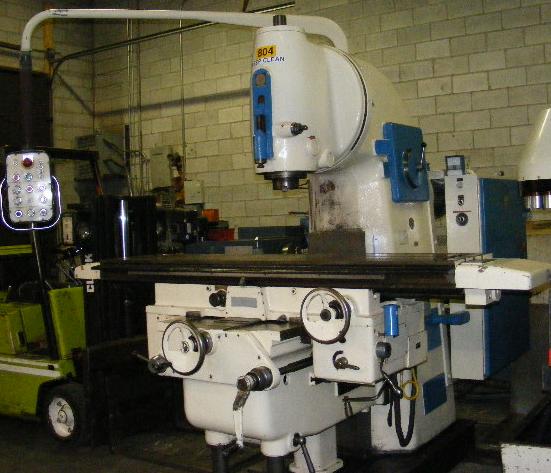

Pendant Control
