GENERAL SPECIFICATIONS:
MANUFACTURER..................... MONARCH
MODEL............................ 60 TOOLMAKERS
SERIAL........................... 31460
NEW (APPROX.).................... 1942
SWING OVER BED................... 18.5"
SWING OVER CROSS SLIDE........... 11"
CHUCK SIZE....................... 12" 3 JAW
SPINDLE TAPER.................... D1-8
DISTANCE BETWEEN CENTERS......... 54"

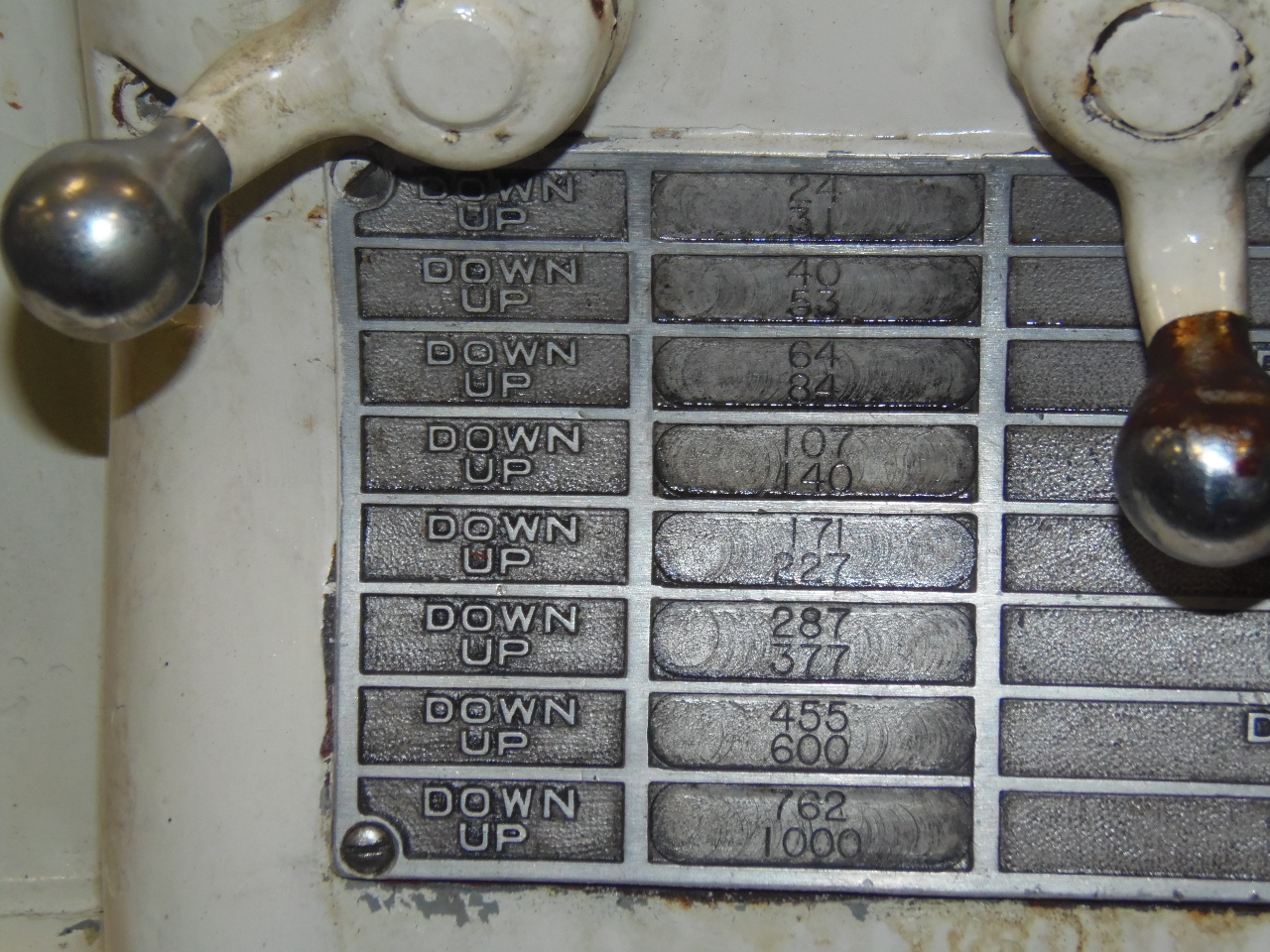

SPINDLE SPEEDS (16).............. 24 - 1000 RPM

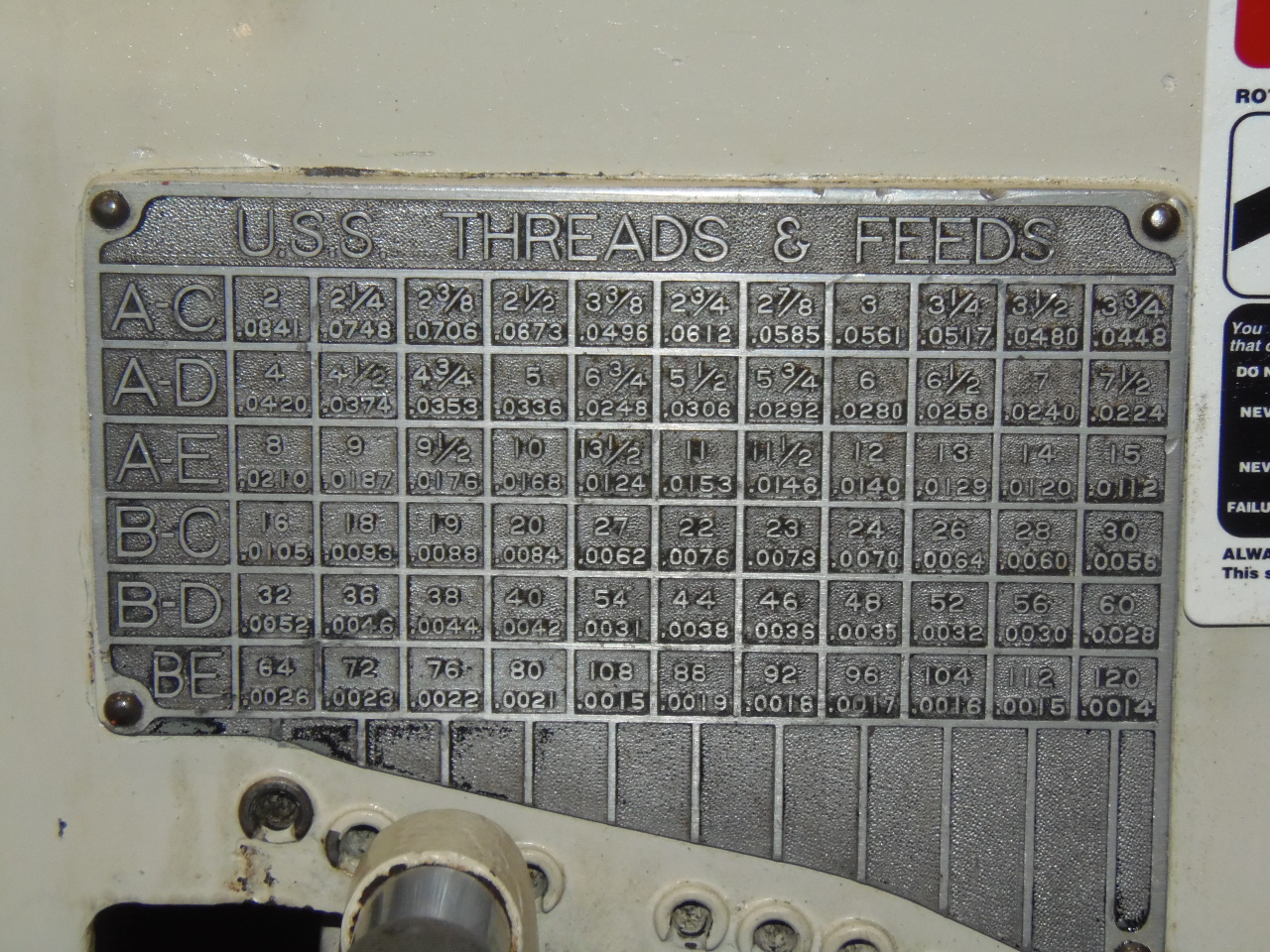

FEED RANGE....................... .0014 - .084 IPR
THREADING RANGE.................. 2 - 120 TPI
SPINDLE HOLE..................... 1.5"
OVERALL DIMENSIONS............... 10' x 4' x 4' H
WEIGHT (APPROX).................. 5,000 lbs.
ELECTRICS........................ 480/240V
................................. CURRENTLY WIRED 480
................................. 9 AMPS at 480
MOTOR............................ 5 HP
EQUIPPED WITH:

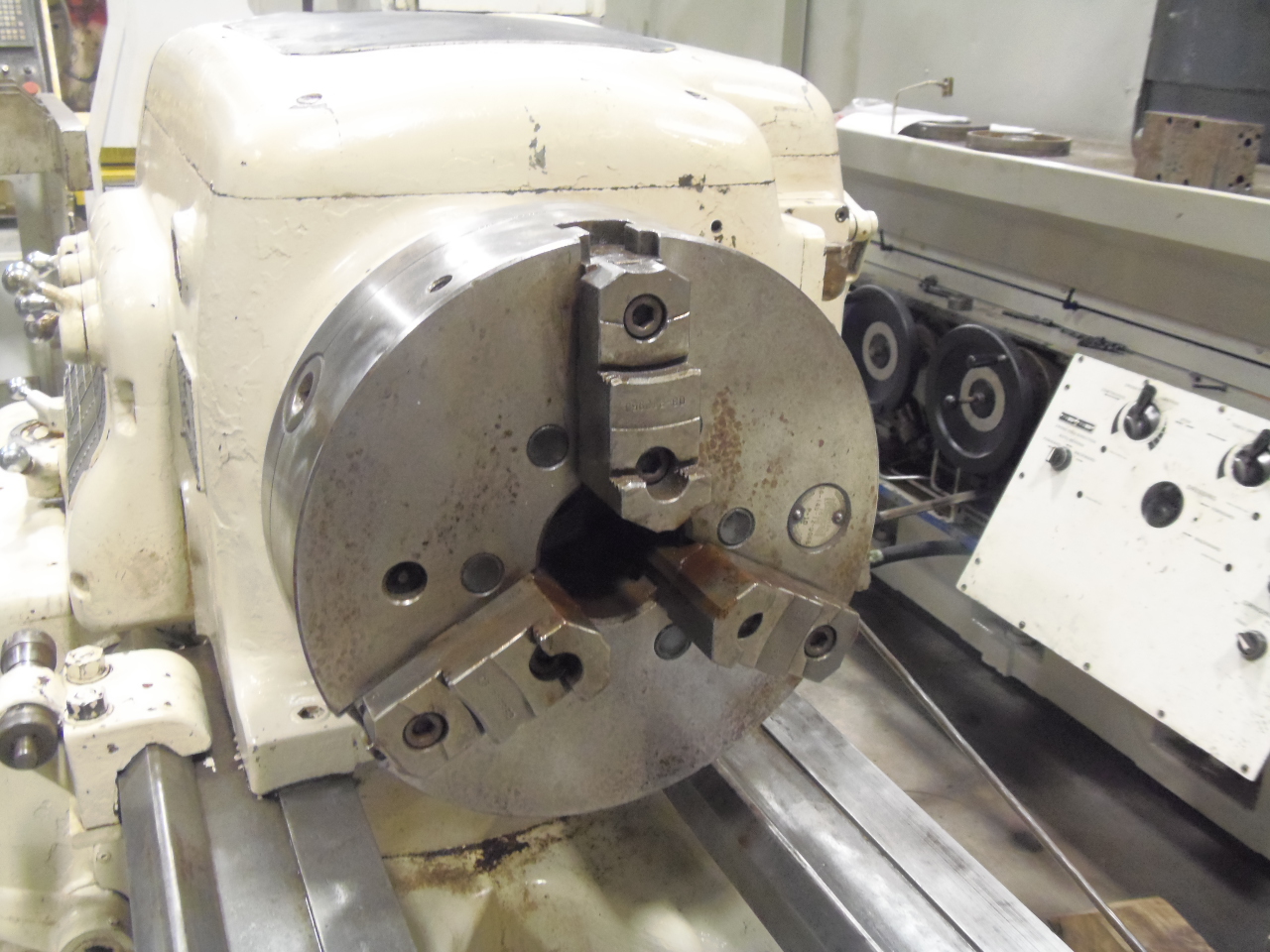

10" 3-JAW CHUCK

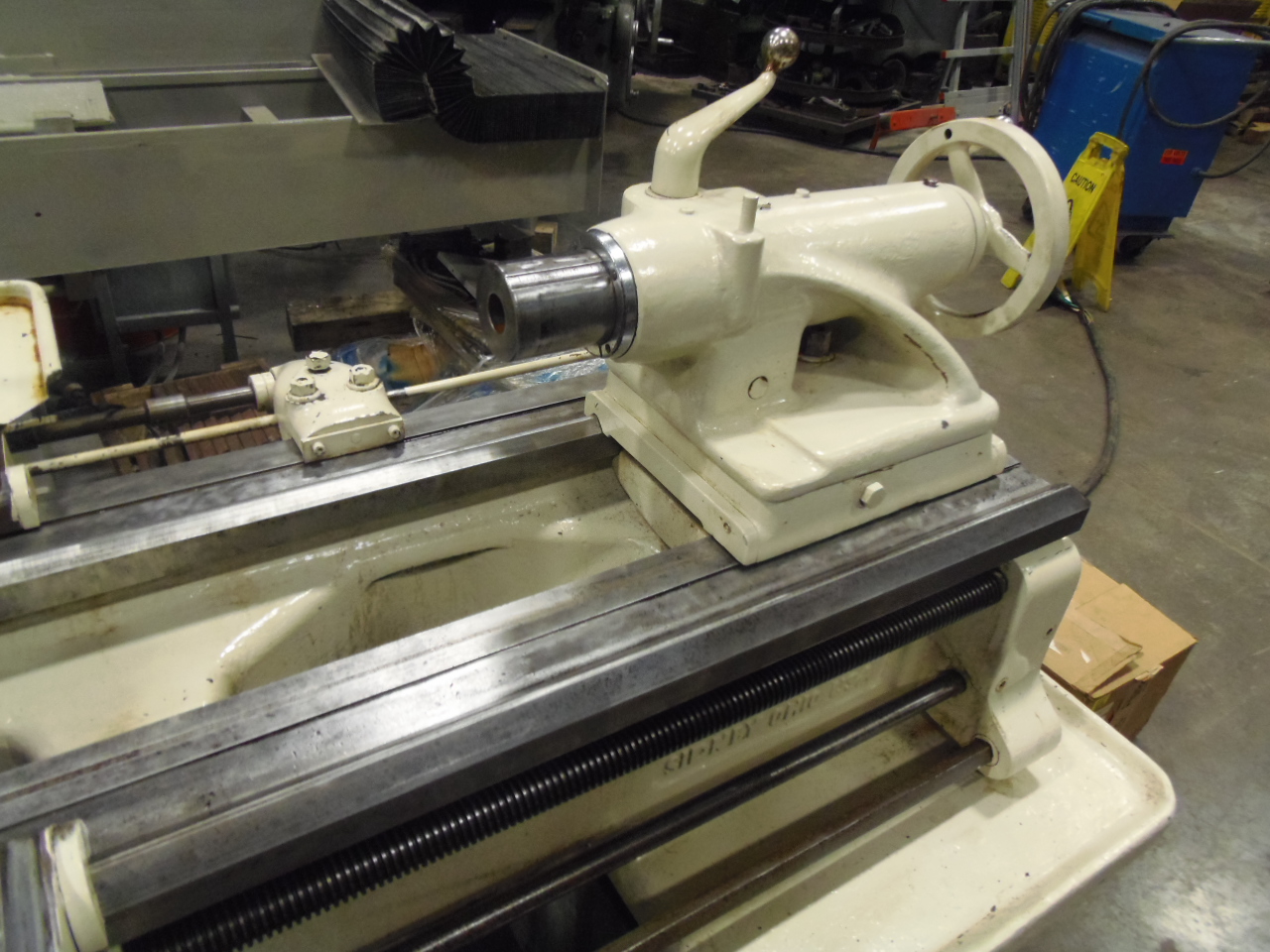

TAILSTOCK

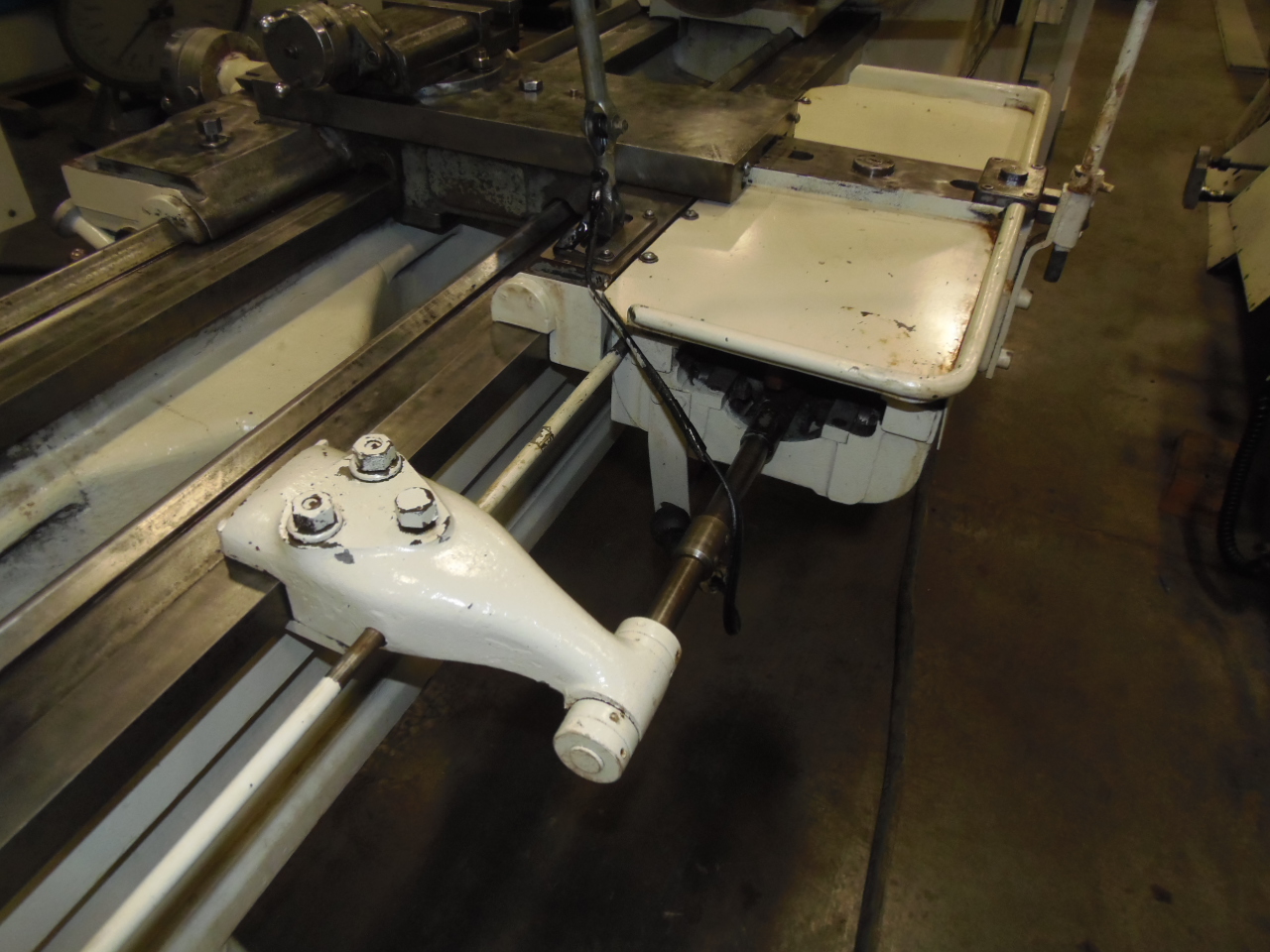

TAPER ATTACHMENT
18" MAX. LENGTH PER ONE SETTING
MAX. 4" PER FOOT TAPER
HEADSTOCK LEADSCREW REVERSE LEVER

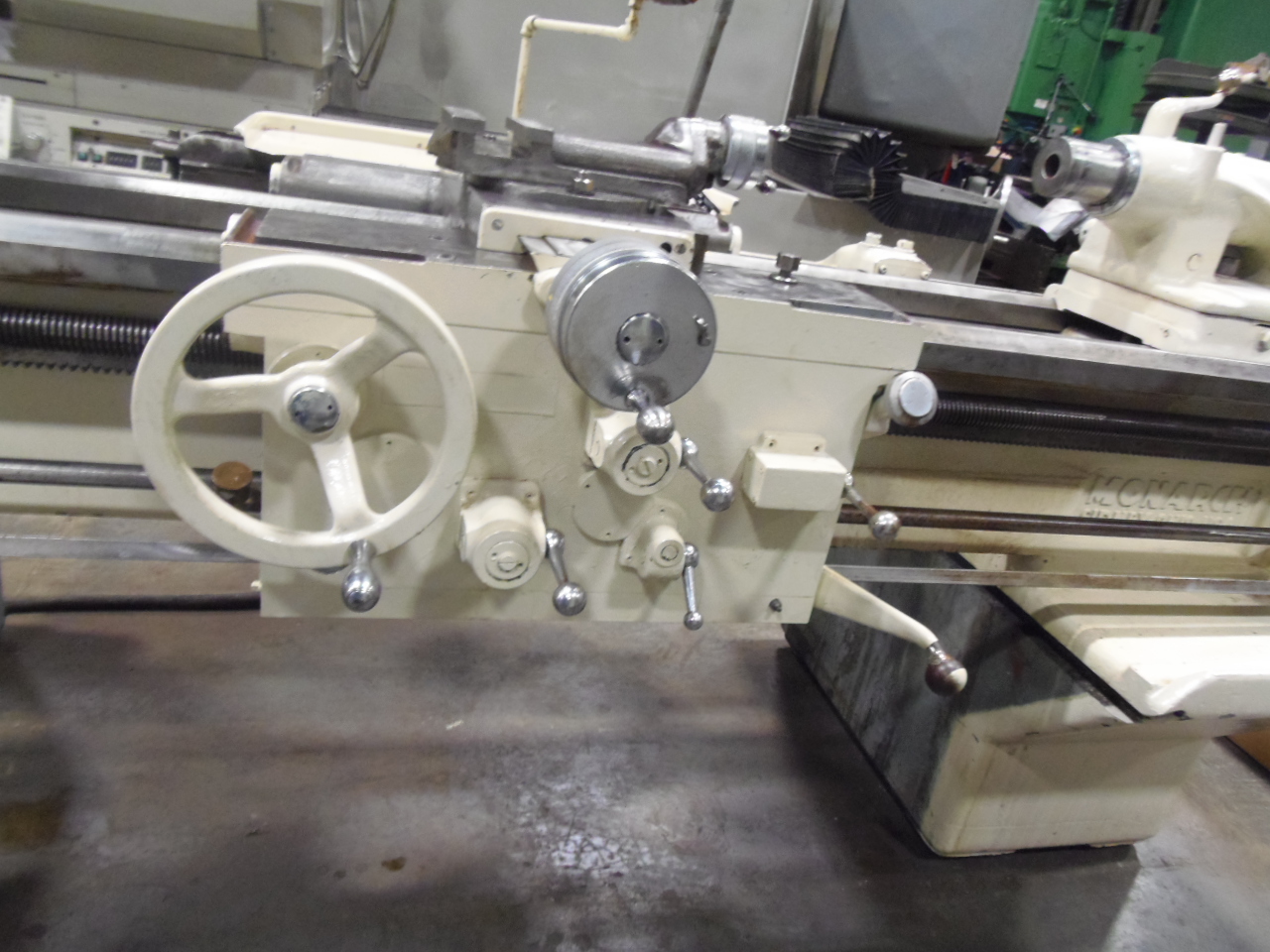

APRON LEADSCREW REVERSE LEVER
ADJUSTABLE LENGTH STOP
THREAD DIAL

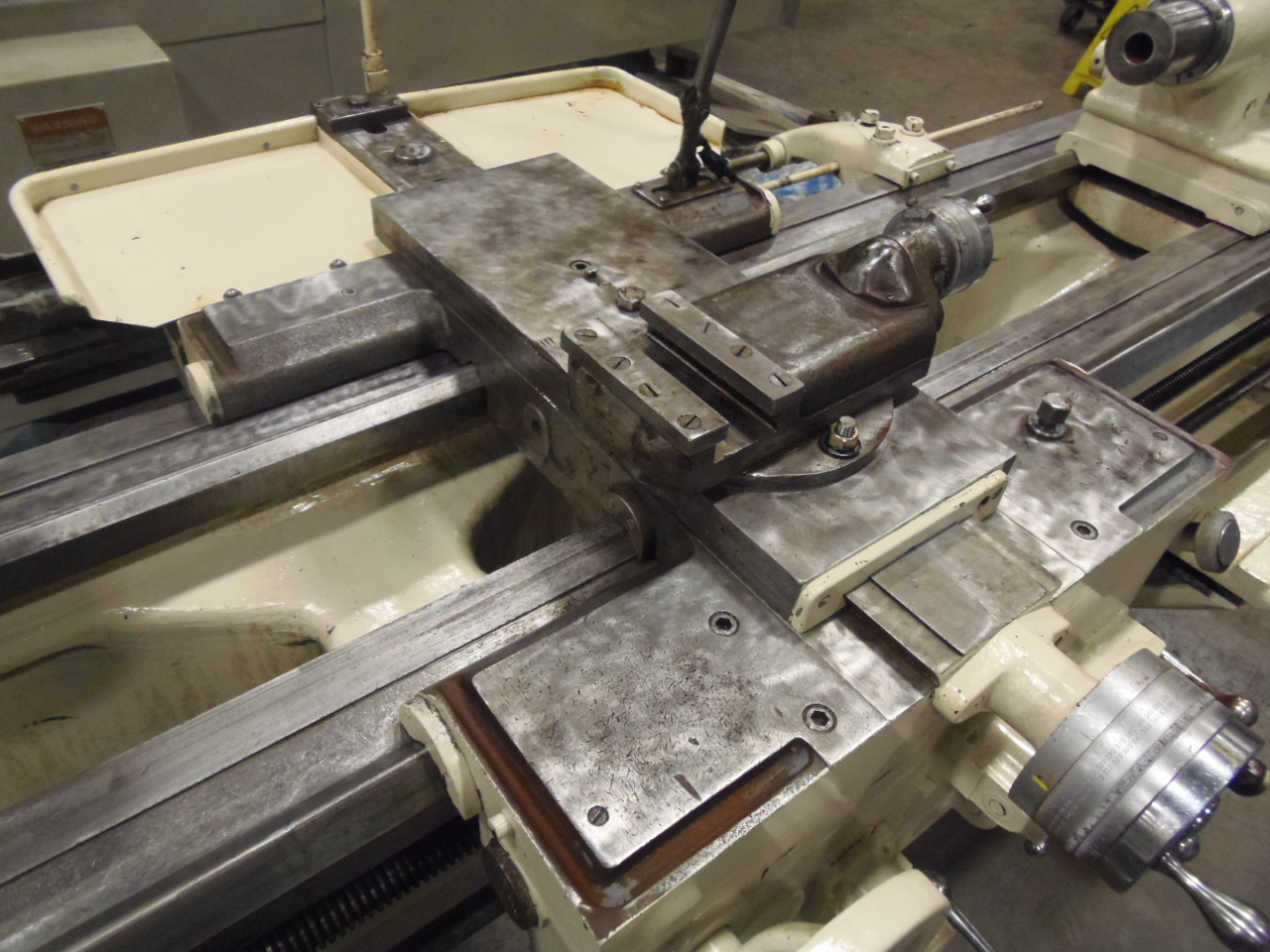

TOOL POST
WORK LIGHT
CURRENTLY RUNNING ON 480V 3 PHASE
